Rear Stabilizer Bar replacement parts for 2019 Polaris Ranger EV MD (R01)

OEM Parts Polaris 2019 Polaris Ranger EV MD (R01) Rear Stabilizer Bar

REAR STABILIZER BAR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

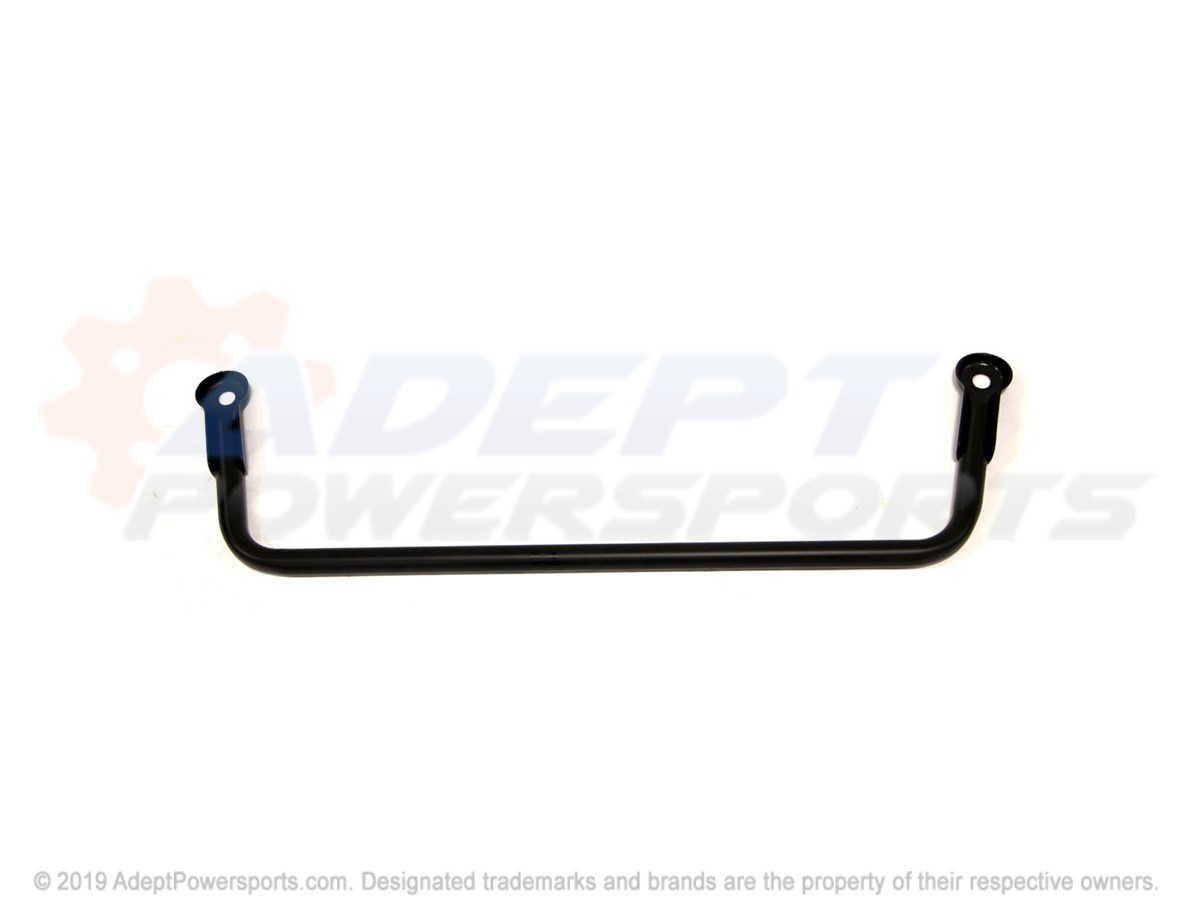

1	WELD-STABILIZER BAR M. BLK Part #: 1016615-458 Required per assembly: 1 Currently Not Available

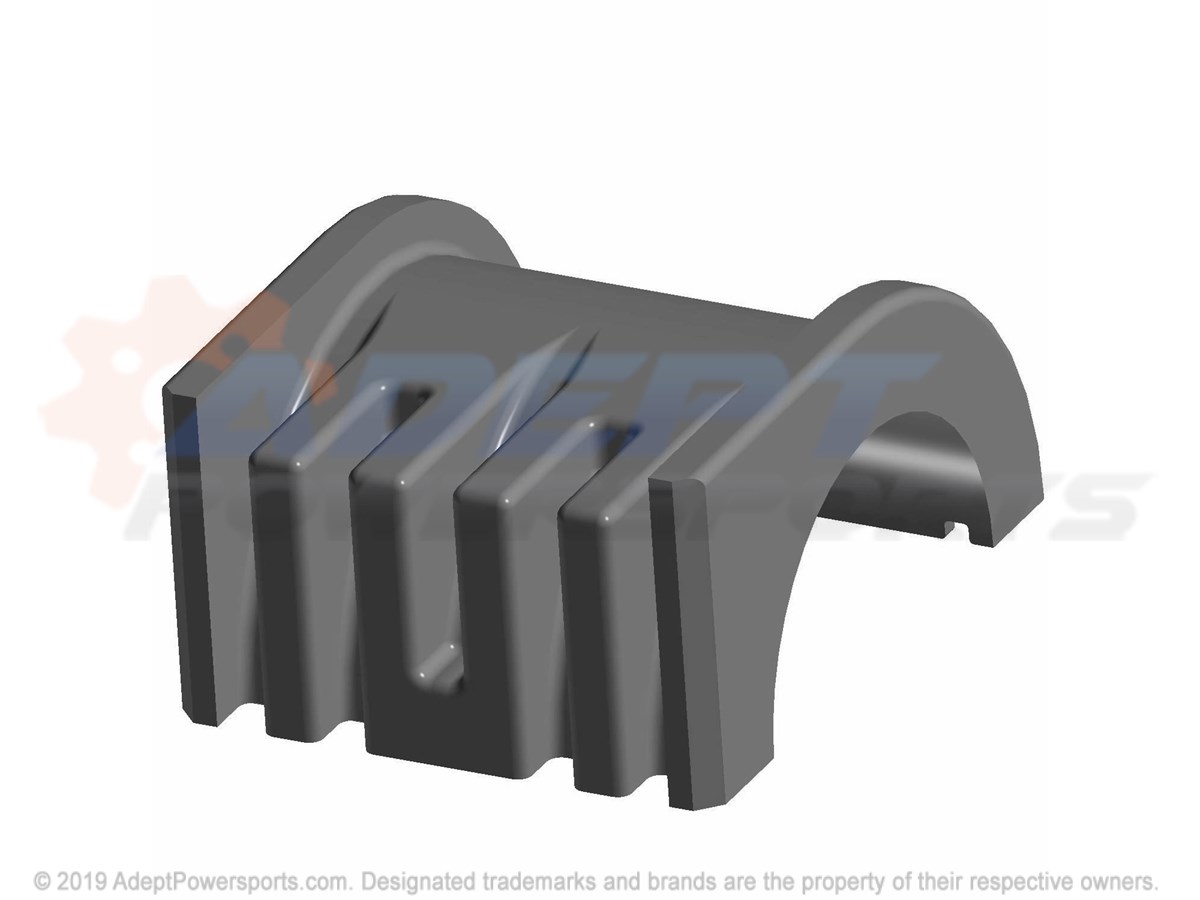

2	BUSHING, UPPER, STEERING Part #: 5450325 Required per assembly: 4 Currently Not Available
3	BRACKET, STEERING, BUSHING, UPPER Part #: 5257028 Required per assembly: 2 Currently Not Available
4	SCREW Part #: 7517208 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
5	ASM-LINKAGE, STABILIZER, BAR Part #: 1543853 Required per assembly: 2 Currently Not Available
6	BUSHING-LNKG, TORBAR, DURO80 Part #: 5416013 Required per assembly: 2 Currently Not Available
7	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 2 Note: FITTING, ZERK (90o) Currently Not Available
