OEM Parts Polaris 2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) Seat

2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) A20SXM95AL/CAL - Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2204682 Kit-Seat Post

KIT-SEAT POST

Part #: 2204682 Required per assembly: 1
Currently Not Available
1

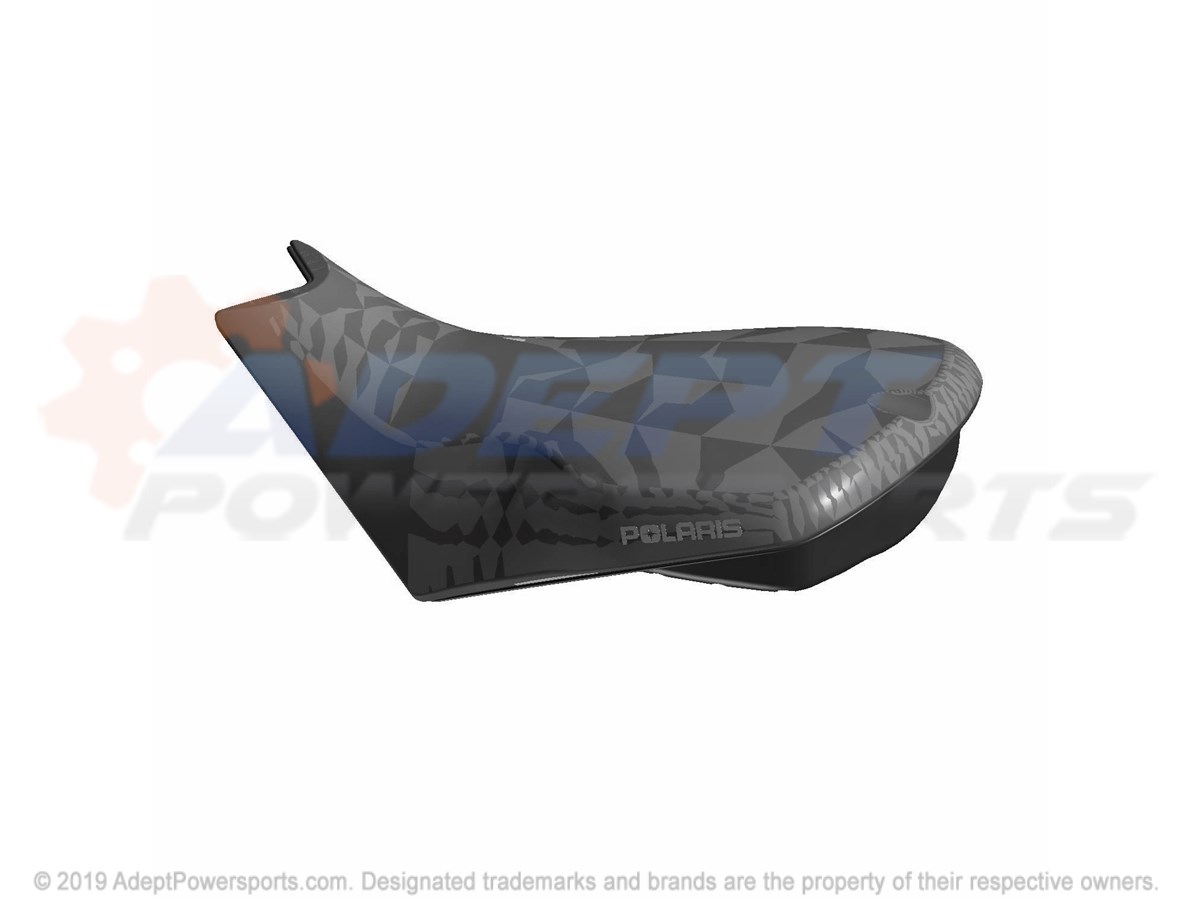

Polaris 2689744 Asm-Seat, Blk/Lmsq, Lmsq, St

ASM-SEAT, BLK/LMSQ, LMSQ, ST

Part #: 2689744 Required per assembly: 1 Note: INCL. 5
Currently Not Available
2
Polaris 5418181 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5418181 Required per assembly: 2 Note: FROM 11/20/2019
Currently Not Available
2
Polaris 5415539 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5415539 Required per assembly: 2 Note: TO 11/20/2019
Currently Not Available
3
Polaris 5250682 Bracket, Seat, Base

BRACKET, SEAT, BASE

Part #: 5250682 Required per assembly: 2
Currently Not Available
4
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 2
Currently Not Available
5
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
