Cooling System, Fans And Shrouds replacement parts for 2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04)

OEM Parts Polaris 2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) Cooling System, Fans And Shrouds

COOLING SYSTEM, FANS AND SHROUDS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available

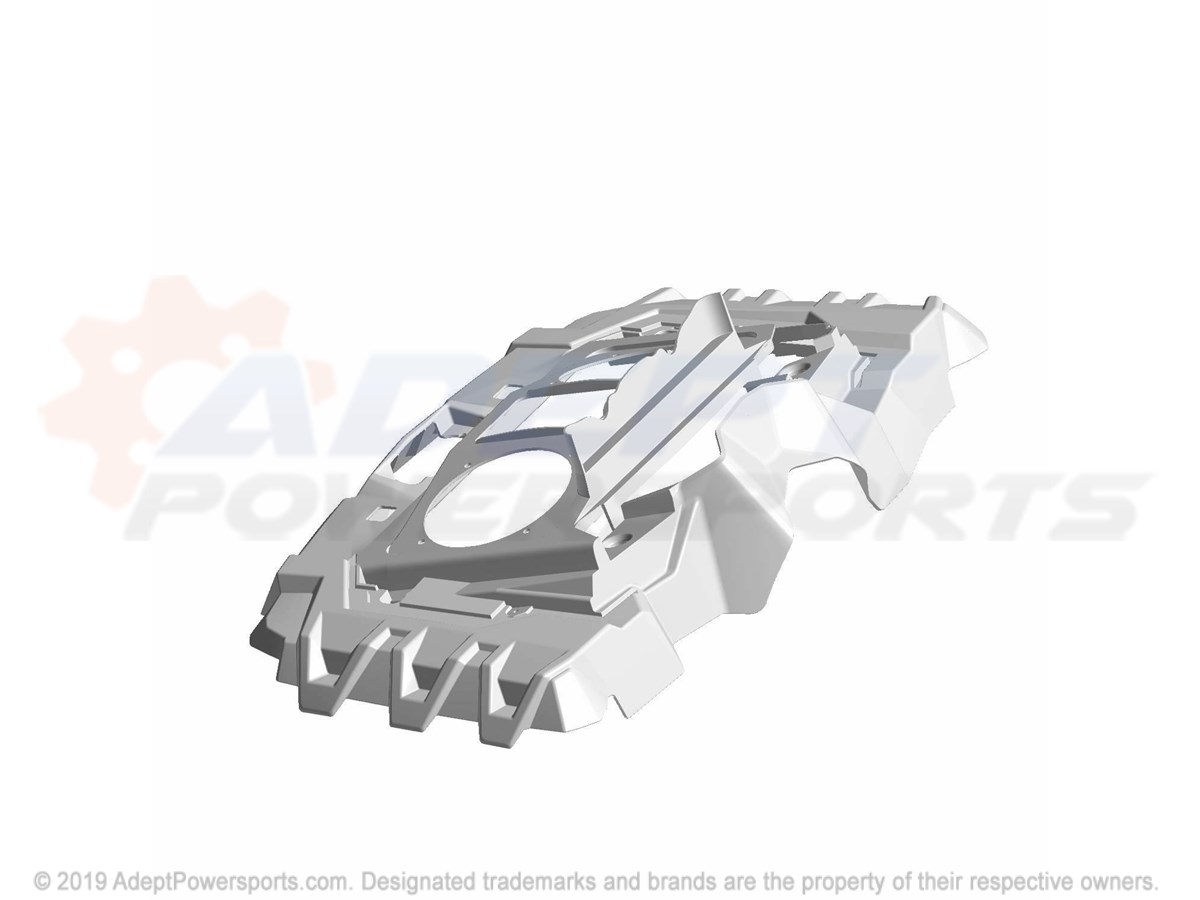

2	SHROUD-RADIATOR, INNR, PNT, O.BLK Part #: 5452216-800 Required per assembly: 1 Currently Not Available
3	BUSHING, RUBBER Part #: 5413887 Required per assembly: 2 ~~$2.49~~ $1.73 - + Add to cart
4	HANDLE, BLACK Part #: 5438117 Required per assembly: 2 Currently Not Available
5	SHAFT, LNR, ANCHOR Part #: 5138410 Required per assembly: 2 Currently Not Available
6	SPACER, ANCHOR Part #: 5521796 Required per assembly: 2 Currently Not Available
7	PIN Part #: 7661970 Required per assembly: 2 ~~$3.89~~ $1.73 - + Add to cart
8	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart

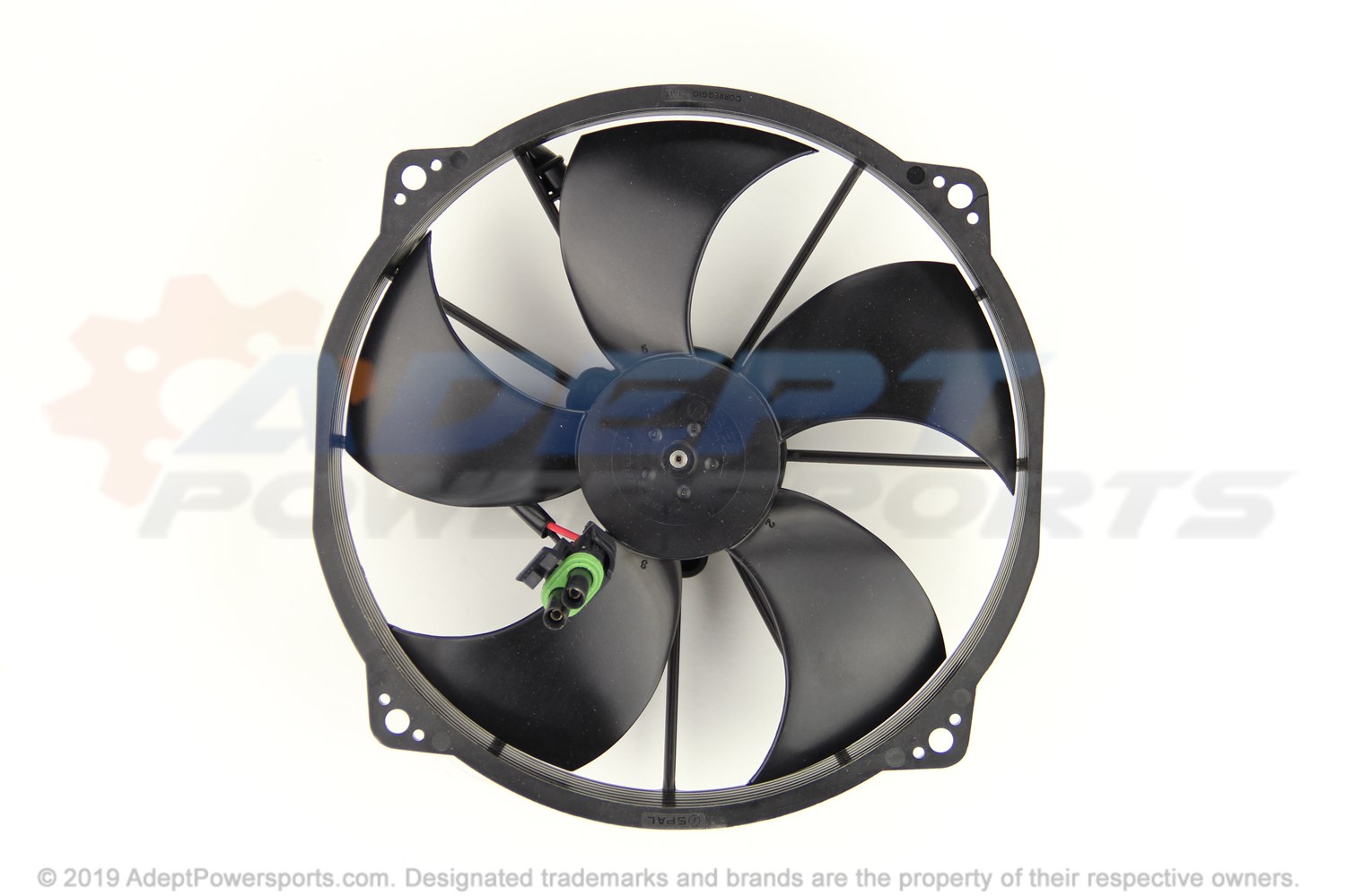

9	FAN-RADIATOR OUTLET Part #: 2413007 Required per assembly: 2 Currently Not Available
10	NUT, FLANGE Part #: 7547453 Required per assembly: 8 Currently Not Available

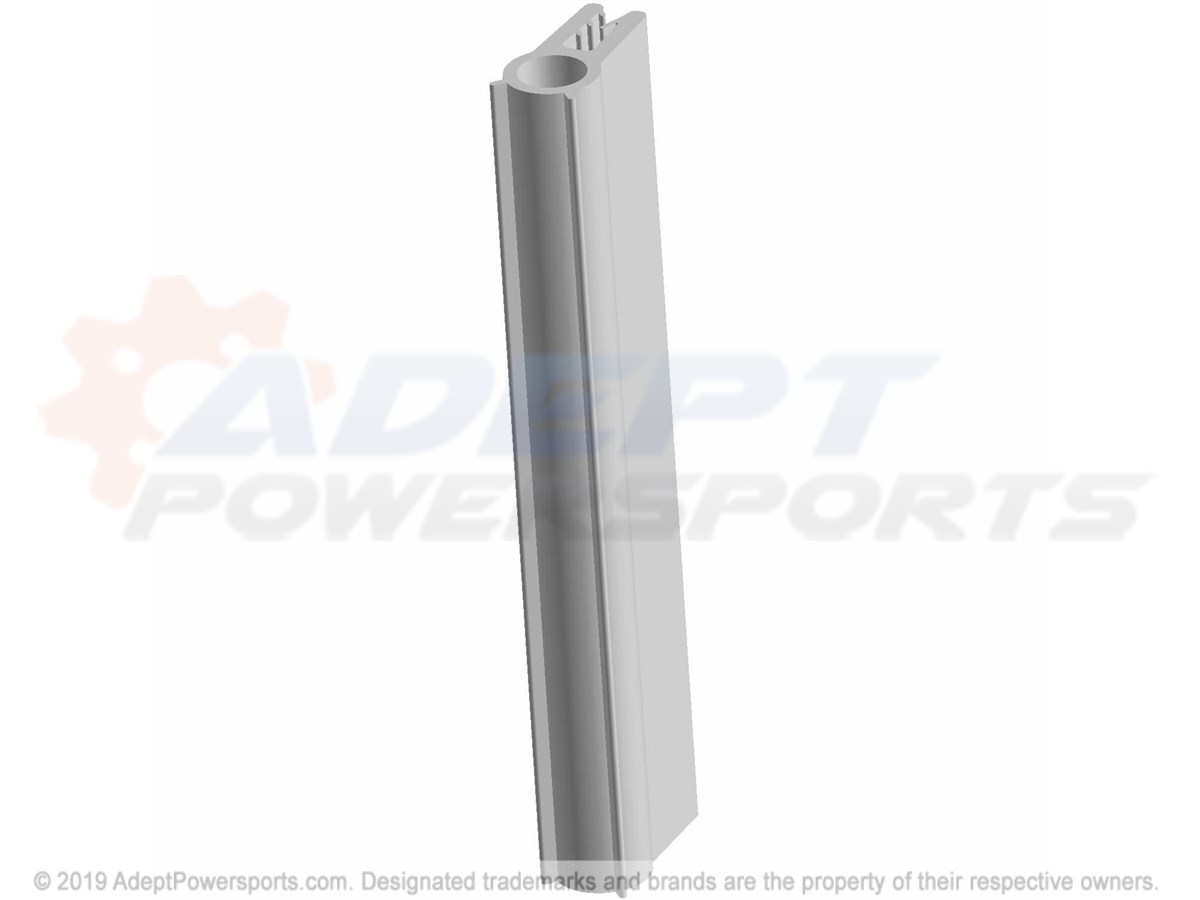

11	SEAL-RADIATOR, 170CM Part #: 5814210-170 Required per assembly: 1 Currently Not Available
12	SEAL-RADIATOR, 44CM Part #: 5814210-44 Required per assembly: 1 Currently Not Available
13	SCR-HXFLGHD, M6X16, 0600086 Part #: 7518591 Required per assembly: 8 Currently Not Available
14	SHROUD-RADIATOR, LOWER, BLK Part #: 5451986-070 Required per assembly: 1 Currently Not Available
