OEM Parts Polaris 2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) Rear Control Arms

2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) A20SXM95AL/CAL - Rear Control Arms

REAR CONTROL ARMS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

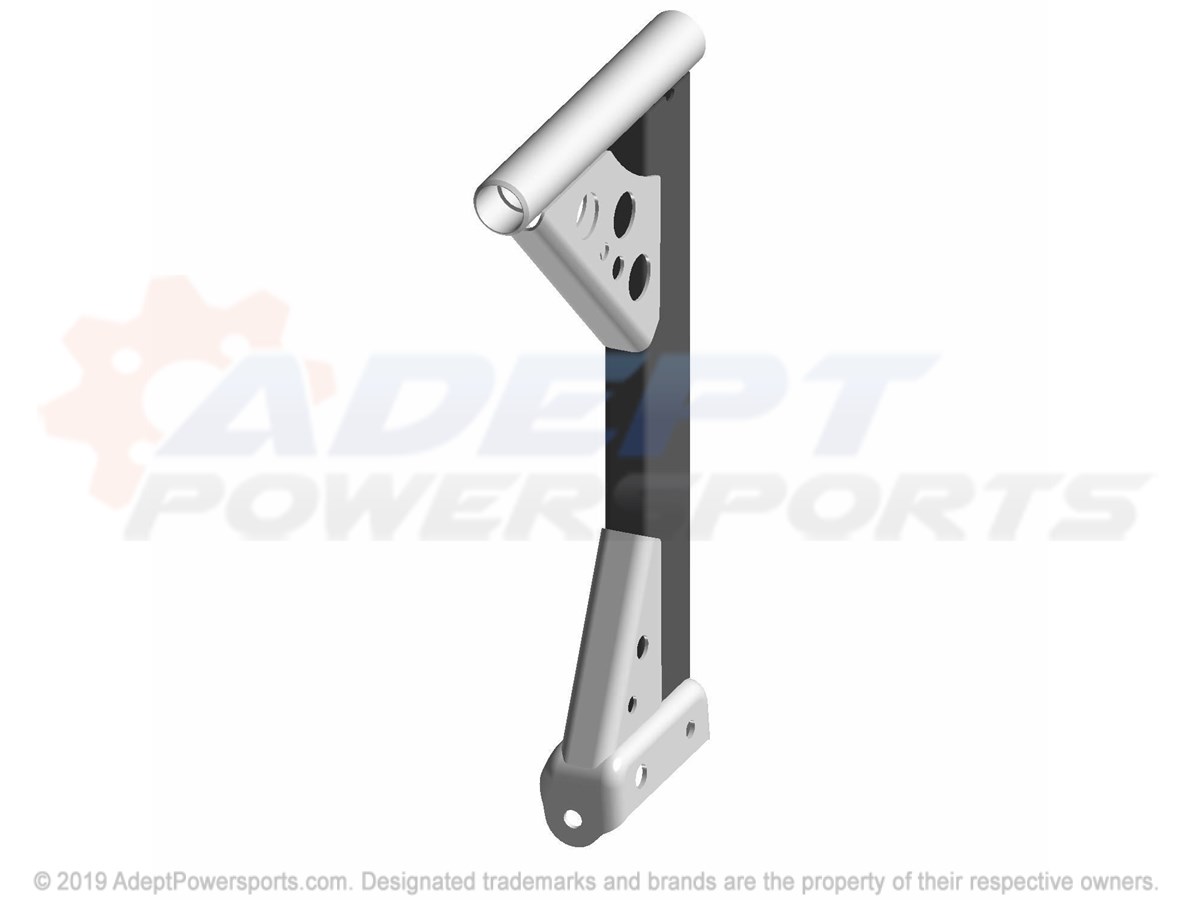

Polaris 1025342-067 Weld-Uca, Seal, Rear, Lh, Blk

WELD-UCA, SEAL, REAR, LH, BLK

Part #: 1025342-067 Required per assembly: 1 Note: TO 9/16/2019
Currently Not Available
1
Polaris 1025342-067 Weld-Uca, Seal, Rear, Lh, Blk

WELD-UCA, SEAL, REAR, LH, BLK

Part #: 1025342-067 Required per assembly: 1 Note: FROM 9/16/2019
Currently Not Available
2

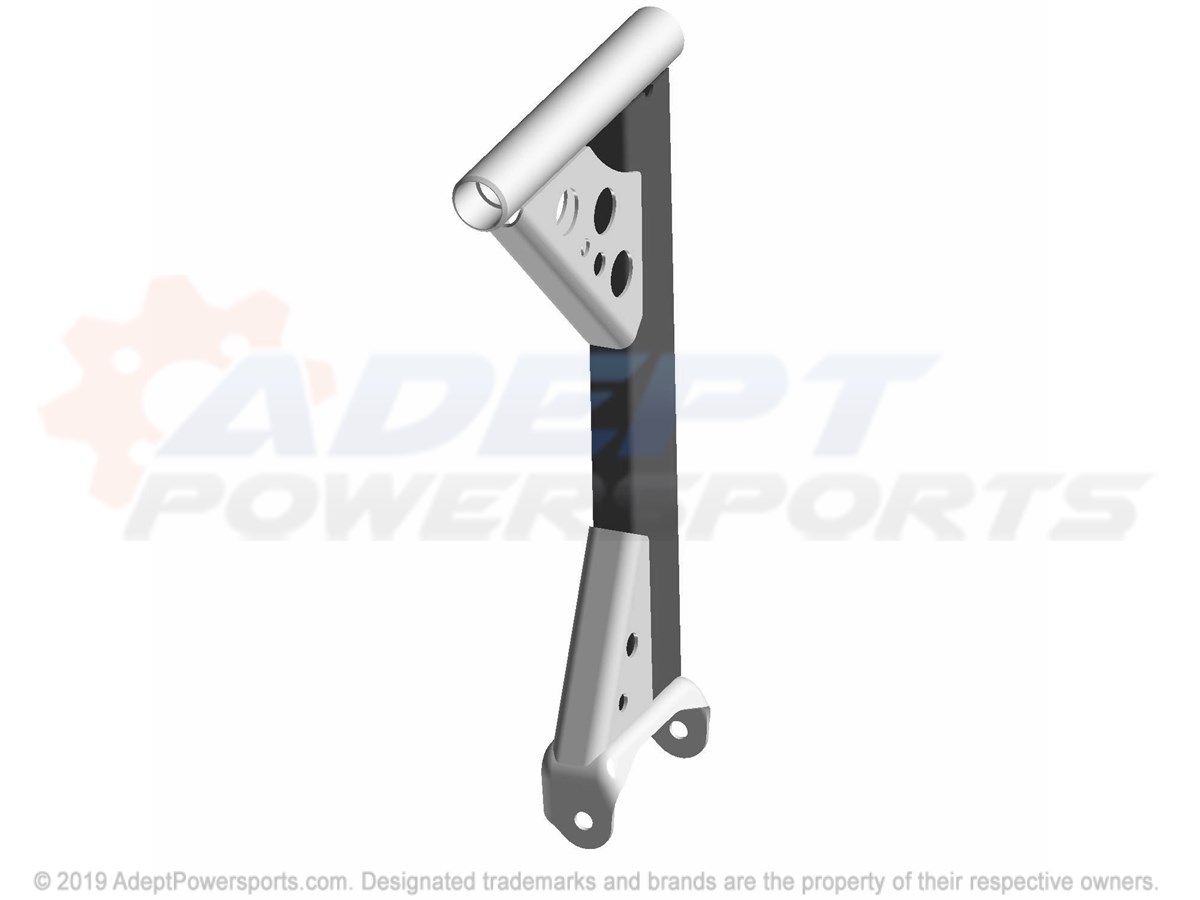

Polaris 1025343-067 Weld-Uca, Seal, Rear, Rh, Blk

WELD-UCA, SEAL, REAR, RH, BLK

Part #: 1025343-067 Required per assembly: 1 Note: TO 9/16/2019
Currently Not Available
2
Polaris 1025343-067 Weld-Uca, Seal, Rear, Rh, Blk

WELD-UCA, SEAL, REAR, RH, BLK

Part #: 1025343-067 Required per assembly: 1 Note: FROM 9/16/2019
Currently Not Available
3

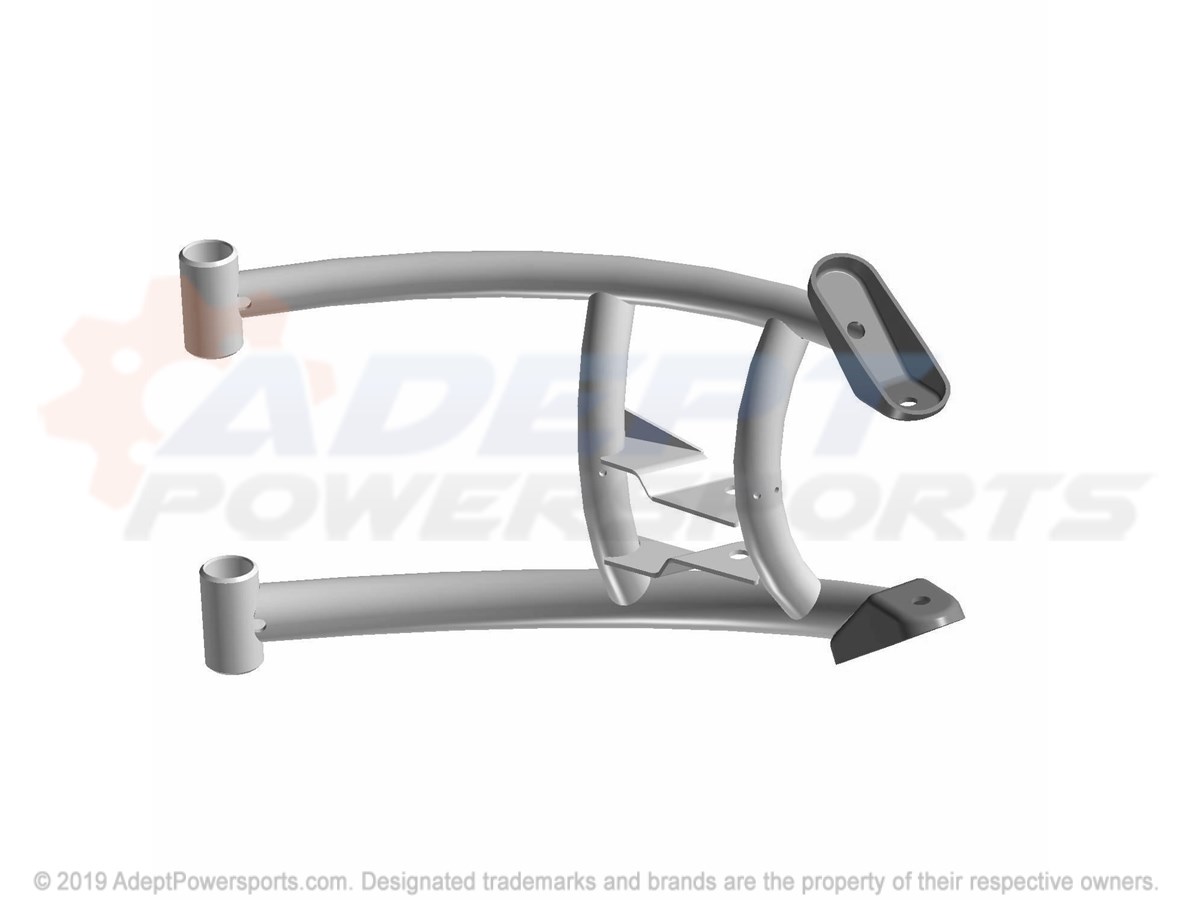

Polaris 1025346-067 Weld-Lca, Seal, Rear, Hl, Lh, Blk

WELD-LCA, SEAL, REAR, HL, LH, BLK

Part #: 1025346-067 Required per assembly: 1
Currently Not Available
4

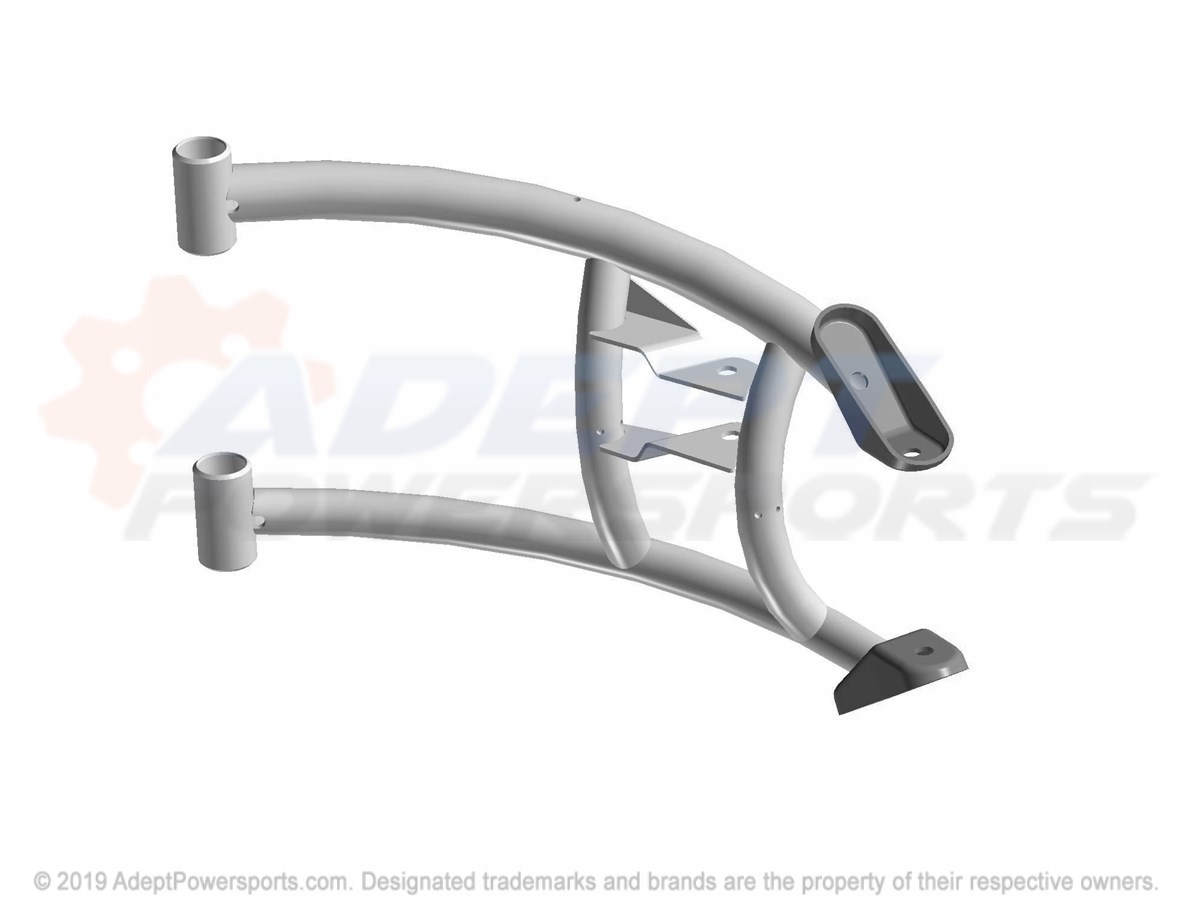

Polaris 1025347-067 Weld-Lca, Seal, Rr, Hl, Rh, Blk

WELD-LCA, SEAL, RR, HL, RH, BLK

Part #: 1025347-067 Required per assembly: 1
Currently Not Available
