OEM Parts Polaris 2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) Front A-Arms

2020 Polaris Sportsman XP 1000 HIGH LIFTER (R04) A20SXM95AL/CAL - Front A-Arms

FRONT A-ARMS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

WELD-UCA, SEAL, FRONT, LH, BLK

Part #: 1025344-067 Required per assembly: 1 Note: TO 9/16/2019
Currently Not Available
1

WELD-UCA, SEAL, FRONT, LH, BLK

Part #: 1025344-067 Required per assembly: 1 Note: FROM 9/16/2019
Currently Not Available
2

WELD-UCA, SEAL, FRONT, RH, BLK

Part #: 1025345-067 Required per assembly: 1 Note: TO 9/16/2019
Currently Not Available
2

WELD-UCA, SEAL, FRONT, RH, BLK

Part #: 1025345-067 Required per assembly: 1 Note: FROM 9/16/2019
Currently Not Available
3

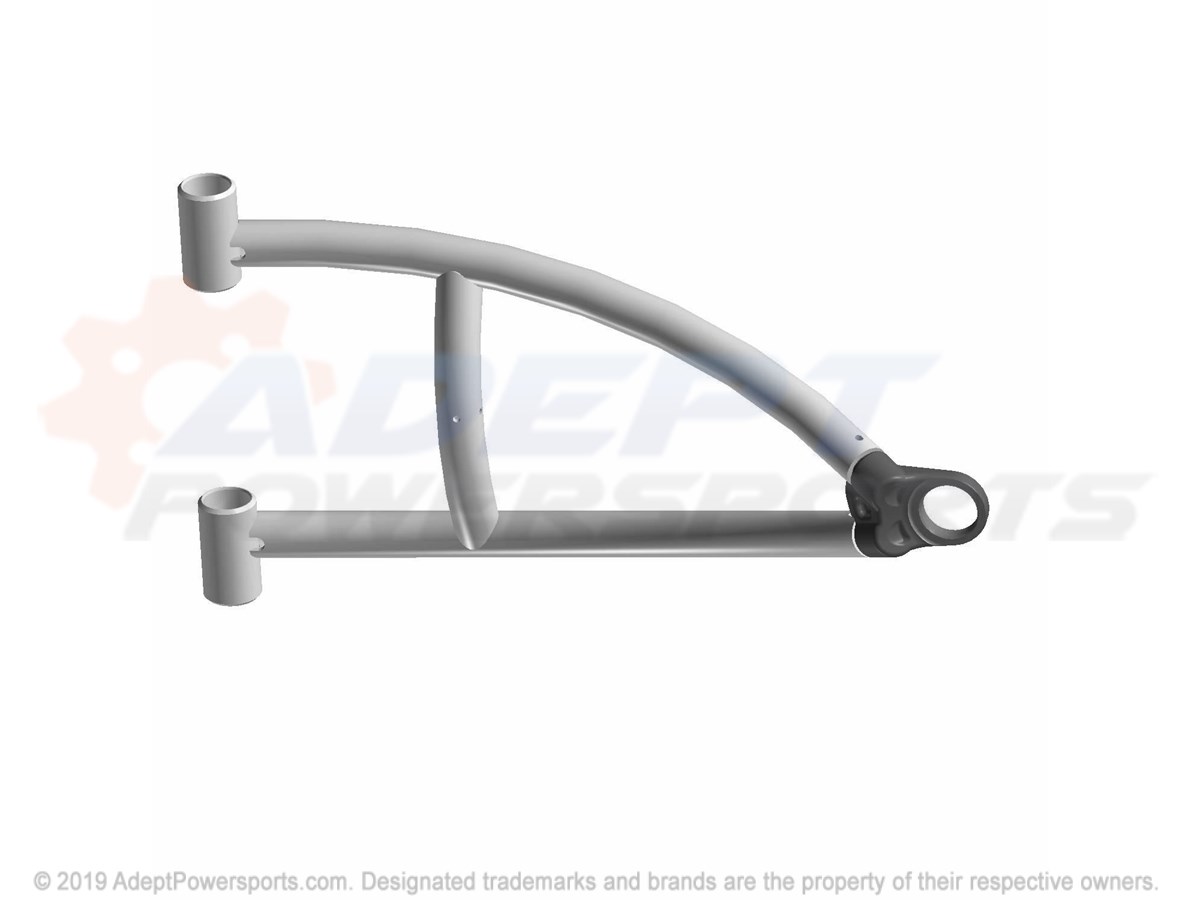

Polaris 1023371-067 Weld-Lca, Front, Lh, Blk

WELD-LCA, FRONT, LH, BLK

Part #: 1023371-067 Required per assembly: 1
Currently Not Available
4

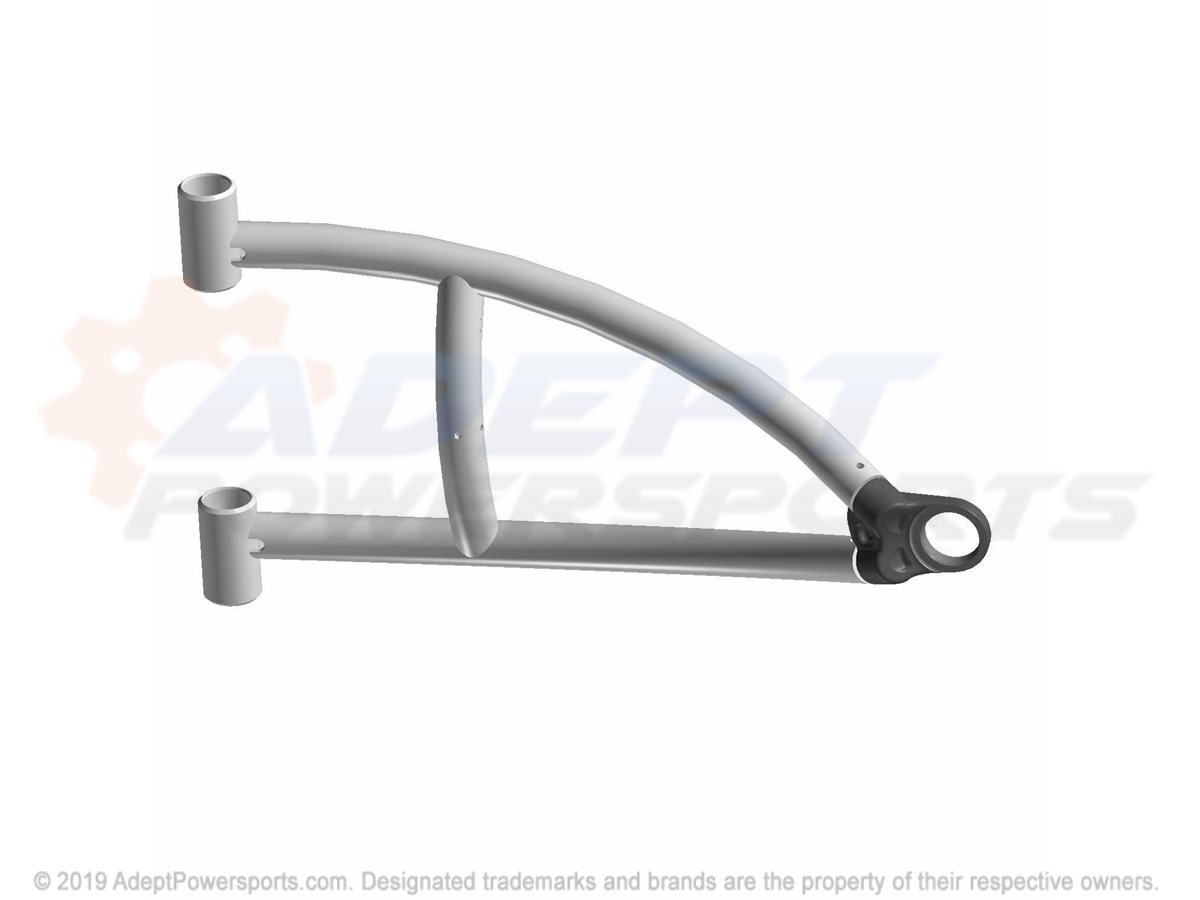

Polaris 1023372-067 Weld-Lca, Front, Rh, Blk

WELD-LCA, FRONT, RH, BLK

Part #: 1023372-067 Required per assembly: 1
Currently Not Available
