Secondary Clutch replacement parts for 2020 Polaris Pro XD (R02)

OEM Parts Polaris 2020 Polaris Pro XD (R02) Secondary Clutch

SECONDARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRVN, STATIONARY, P190X, MU Part #: 1323824 Required per assembly: 1 Note: INCL. 3,5,6,15 Currently Not Available
2	ASM-DRIVEN, MOVEABLE, P190X, CS Part #: 1323637 Required per assembly: 1 Note: INCL. 2,4,9-11 Currently Not Available
2	ASM-DRIVEN, MOVEABLE, P190X, CS Part #: 1323637 Required per assembly: 1 Note: INCL. 4 Currently Not Available
3	E-CLIP Part #: 7710466 Required per assembly: 3 Currently Not Available
5	ROLLER-8X22X11.25, PA Part #: 5455537 Required per assembly: 3 Currently Not Available
6	WSHR-FLAT, 8.4X1.6 Part #: 7556211 Required per assembly: 3 Currently Not Available
7	ASM-HELIX, P190X, 36-48/67BA Part #: 1323639 Required per assembly: 1 Note: INCL. 8 Currently Not Available
8	BEARING-DU, 32X20 Part #: 3515085 Required per assembly: 1 Currently Not Available
9	CUP-DRIVEN, SPRING, P190X Part #: 5633950 Required per assembly: 1 Currently Not Available
10	SPRING, DRIVEN Part #: 7044761 Required per assembly: 1 Currently Not Available
11	SCR-TXFLBH-M10X1.25X40 10.9SPC Part #: 7520698 Required per assembly: 3 Currently Not Available
12	SCR-M8X1.25X65-HX/FL-Y CL 10.9 Part #: 7519212 Required per assembly: 1 Currently Not Available
13	WSHR-FLAT, 8.4X30.0X2.0, 0600090 Part #: 7556219 Required per assembly: 1 Currently Not Available
14	SHIM-RING, DIN, 988-22X30X0.5 Part #: 7557060 Currently Not Available
15	PIN-DRIVEN, ROLLER, 8MM Part #: 5141086 Required per assembly: 3 Currently Not Available

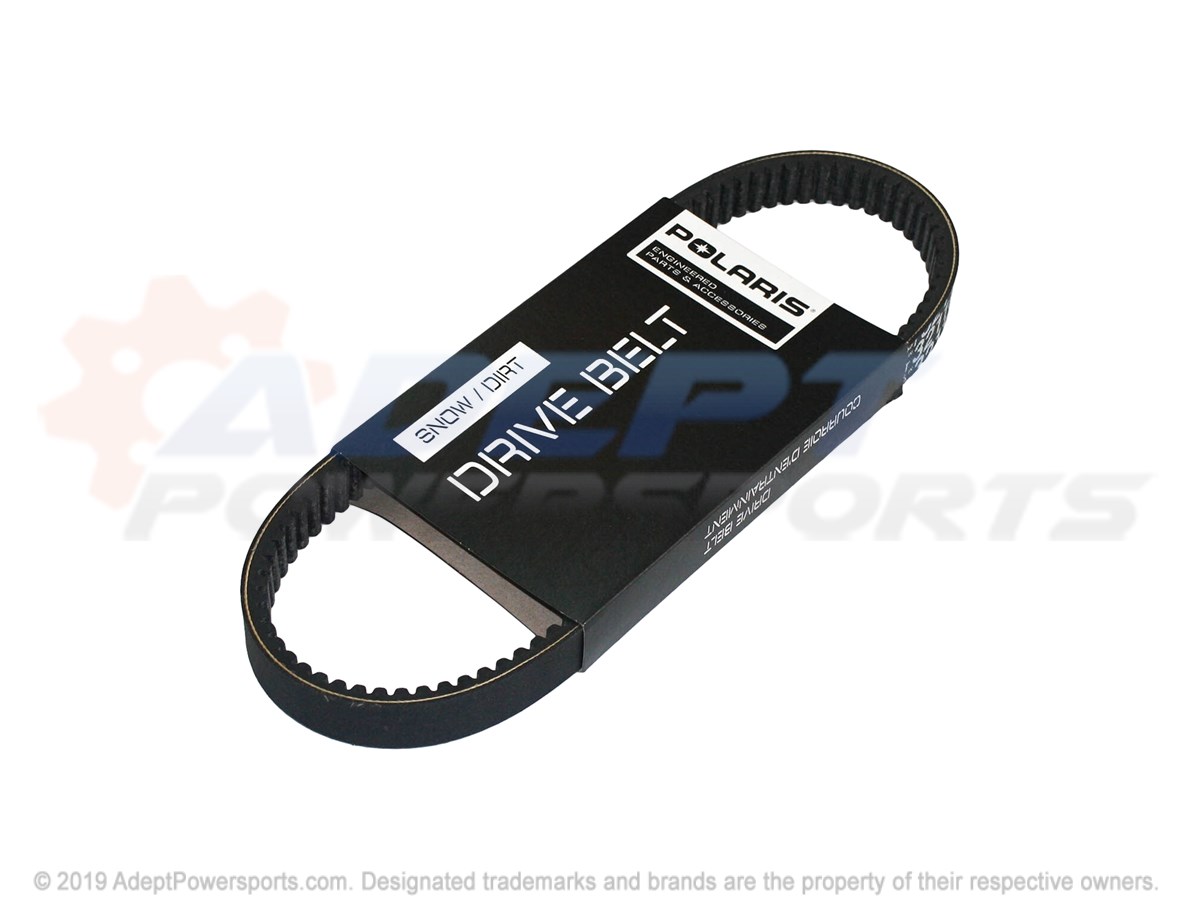

16	BELT-DRIVE Part #: 3211218 Required per assembly: 1 Currently Not Available
