Dipstick And Oil Filter replacement parts for 2020 Polaris Pro XD (R02)

OEM Parts Polaris 2020 Polaris Pro XD (R02) Dipstick And Oil Filter

DIPSTICK AND OIL FILTER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, OIL, FILL, TUBE Part #: 1204547 Required per assembly: 1 Note: INCL. O-RING Currently Not Available
2	O-RING Part #: 5414047 Required per assembly: 1 Currently Not Available
3	ASM-DIPSTICK Part #: 3023488 Required per assembly: 1 Currently Not Available
4	COOLER-OIL, TO, WATER, 5 Part #: 1240821 Required per assembly: 1 Currently Not Available
5	ADAPTOR-FILTER, STRAIGHT Part #: 2521530 Required per assembly: 1 Currently Not Available
6	FILTER, OIL Part #: 2540086 Aftermarket alternatives available Required per assembly: 1 Note: Filter, Oil Currently Not Available
7	COVER-BREATHER, MACH Part #: 5143720 Required per assembly: 1 Currently Not Available
8	BRACKET, TUBE, OIL, FILL, LOWER Part #: 5255453 Required per assembly: 1 Currently Not Available

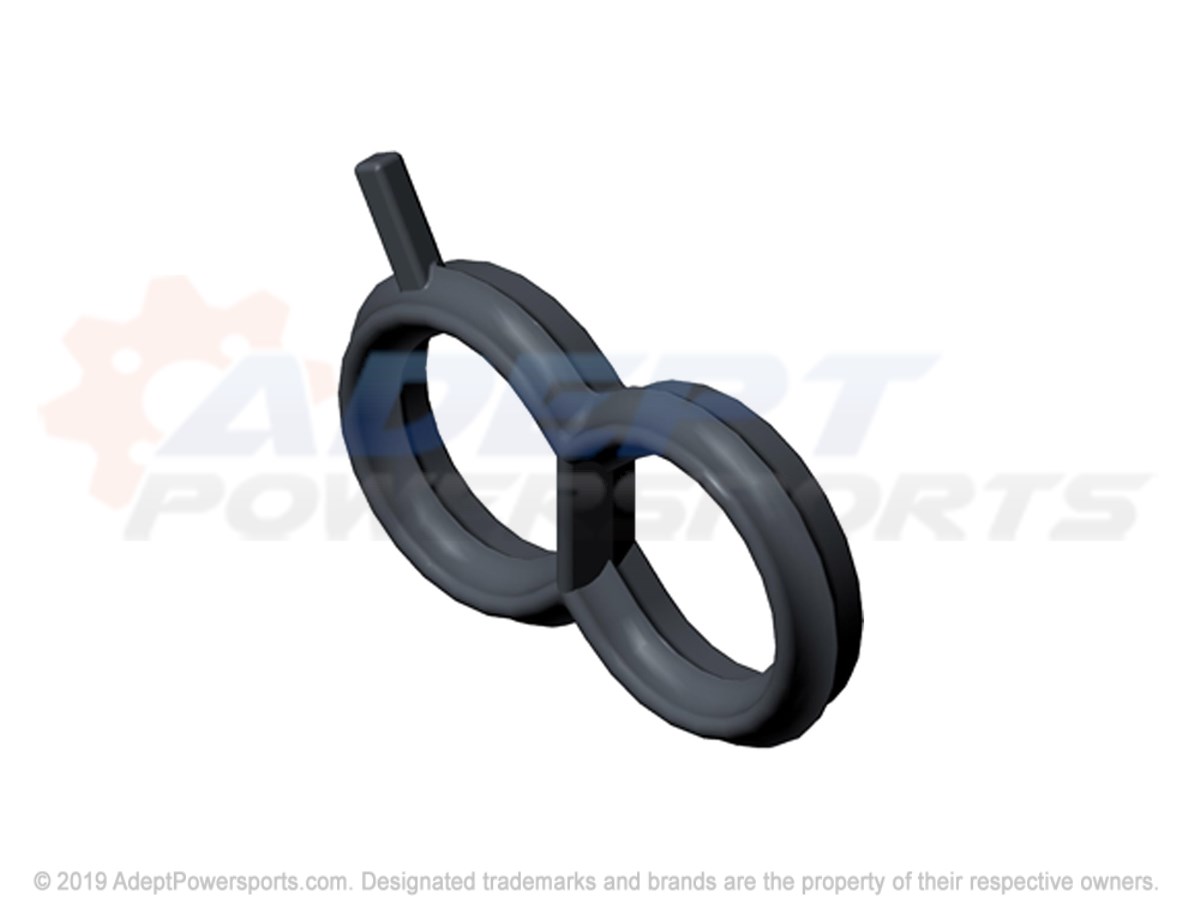

9	O-RING .612X.818X.103 Part #: 5413837 Required per assembly: 2 Currently Not Available
10	SEAL, COVER, BREATHER Part #: 5813759 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518576 Required per assembly: 5 Currently Not Available
12	SCREW Part #: 7519303 Required per assembly: 4 Currently Not Available
13	SEAL-FILTER ADAPTER-3HOLE Part #: 3610348 Required per assembly: 1 Currently Not Available

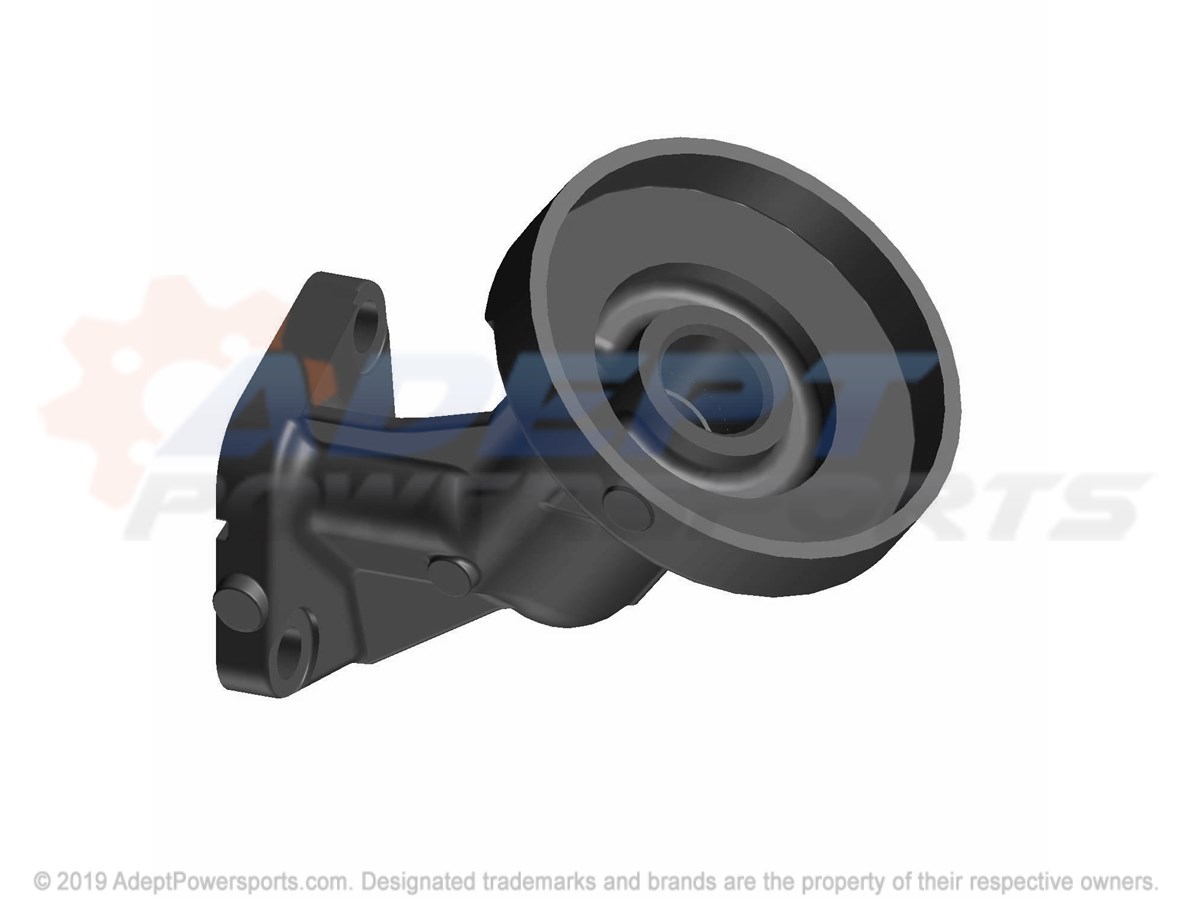

14	ADAPTER-OIL, FILTER, MACH Part #: 5142156 Required per assembly: 1 Currently Not Available
