Stator And Flywheel replacement parts for 2020 Polaris Pro XD (R02)

OEM Parts Polaris 2020 Polaris Pro XD (R02) Stator And Flywheel

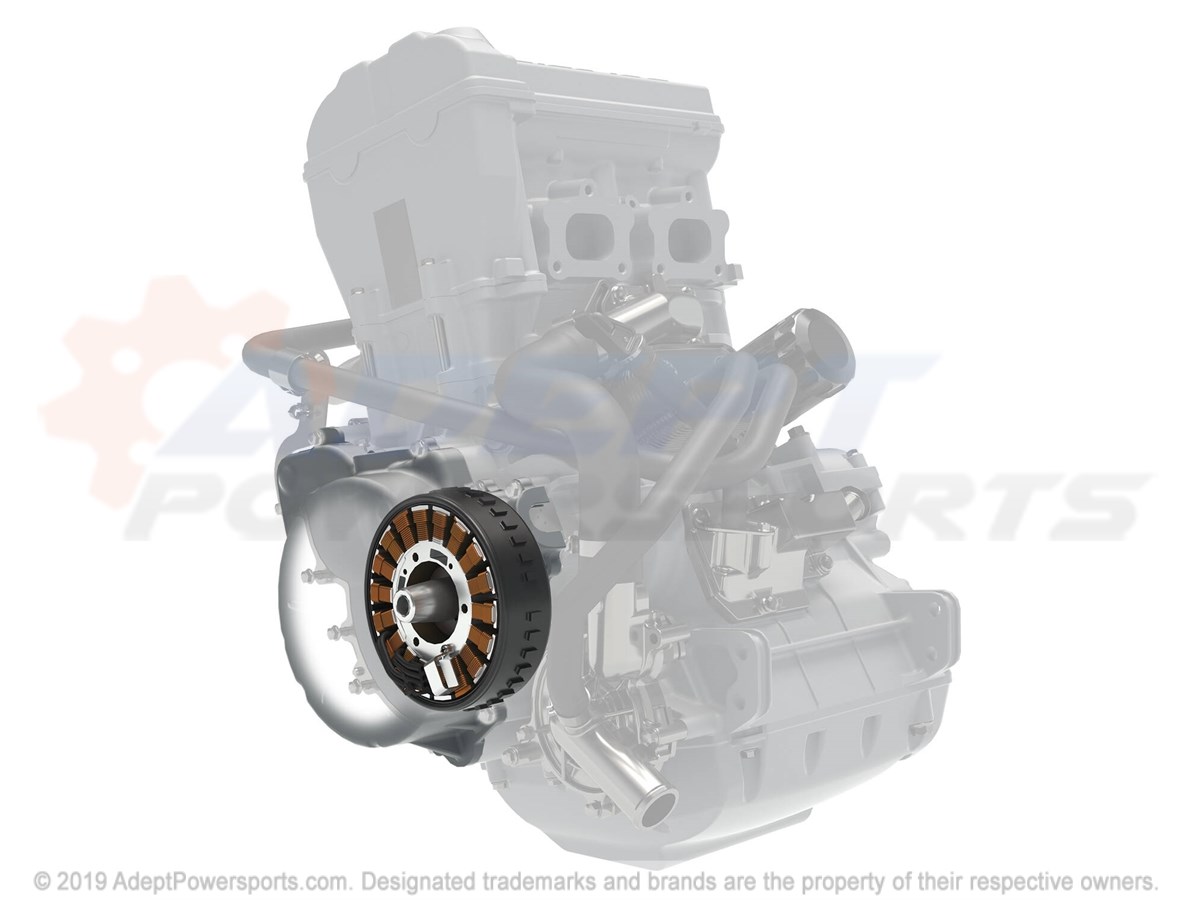

STATOR and FLYWHEEL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-IGN, COVER, STARTER, BRG Part #: 1206299 Required per assembly: 1 Note: INCL. 2,3 Currently Not Available
2	BEARING-BALL 9X24X7 Part #: 3514717 Required per assembly: 1 Currently Not Available
3	RING-SNAP DIN472 24X1.2MM Part #: 7710654 Required per assembly: 1 Currently Not Available
4	STATOR-900W, DUAL, 706MM Part #: 4018494 Required per assembly: 1 Currently Not Available
5	BRACKET, RETAINER, WIRE Part #: 5255473 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7510005 Required per assembly: 3 Currently Not Available
7	SCREW Part #: 7517847 Required per assembly: 2 Currently Not Available
8	SENSOR-CRANK POSITION Part #: 2411719 Required per assembly: 1 Currently Not Available
9	CLIP-WIRE, 6.35MM Part #: 7081477 Required per assembly: 1 Currently Not Available

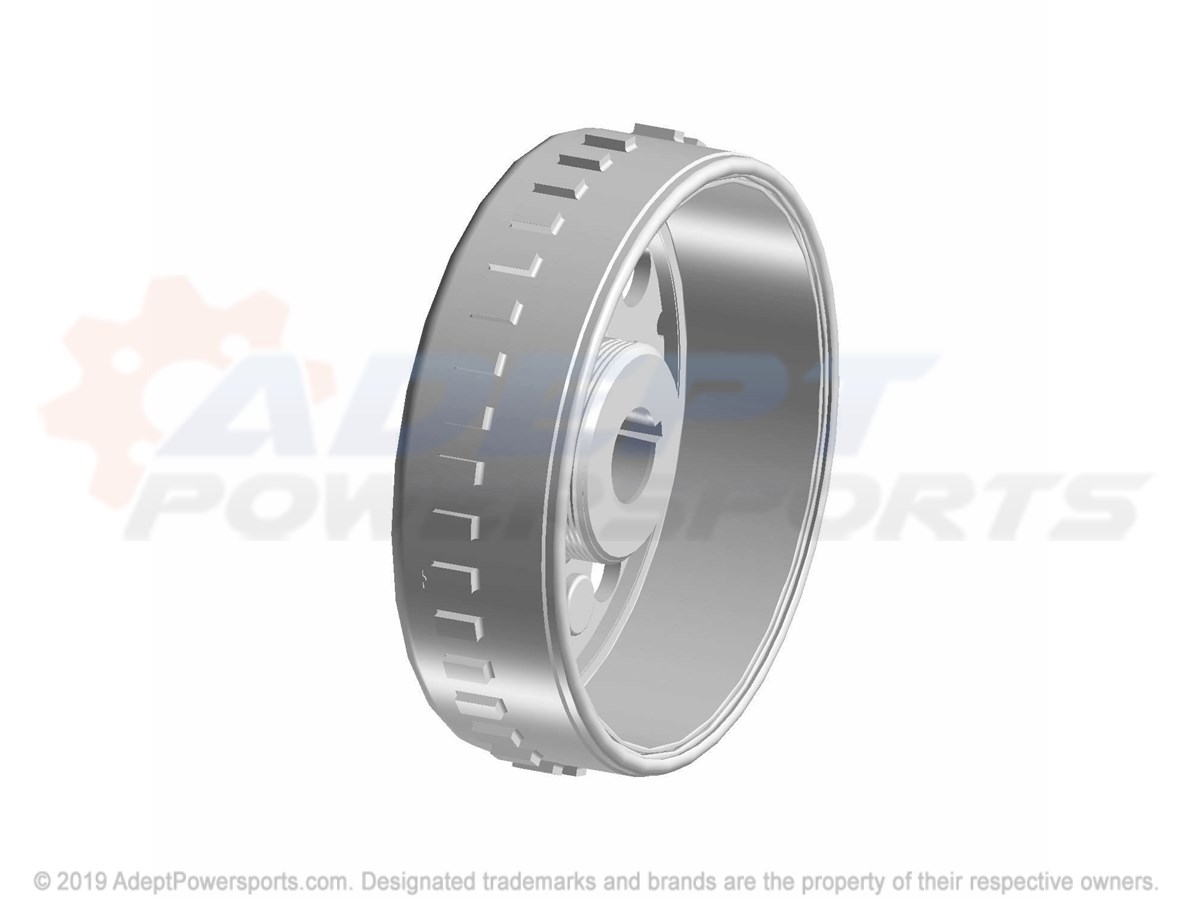

10	FLYWHEEL-900W Part #: 4017135 Required per assembly: 1 Currently Not Available
11	GAKSET-COVER, MAG Part #: 5814160 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518576 Required per assembly: 1 Currently Not Available
13	SCR-HXFL-M12X1.25X43 12.9 Part #: 7520178 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7519297 Required per assembly: 13 Currently Not Available
15	BRKT-HOSE, BYPASS Part #: 5263750 Required per assembly: 1 Currently Not Available
16	WSHR-32X12X4, HARD Part #: 7556885 Required per assembly: 1 Currently Not Available
