Air Intake Manifold replacement parts for 2020 Polaris Pro XD (R02)

OEM Parts Polaris 2020 Polaris Pro XD (R02) Air Intake Manifold

AIR INTAKE MANIFOLD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

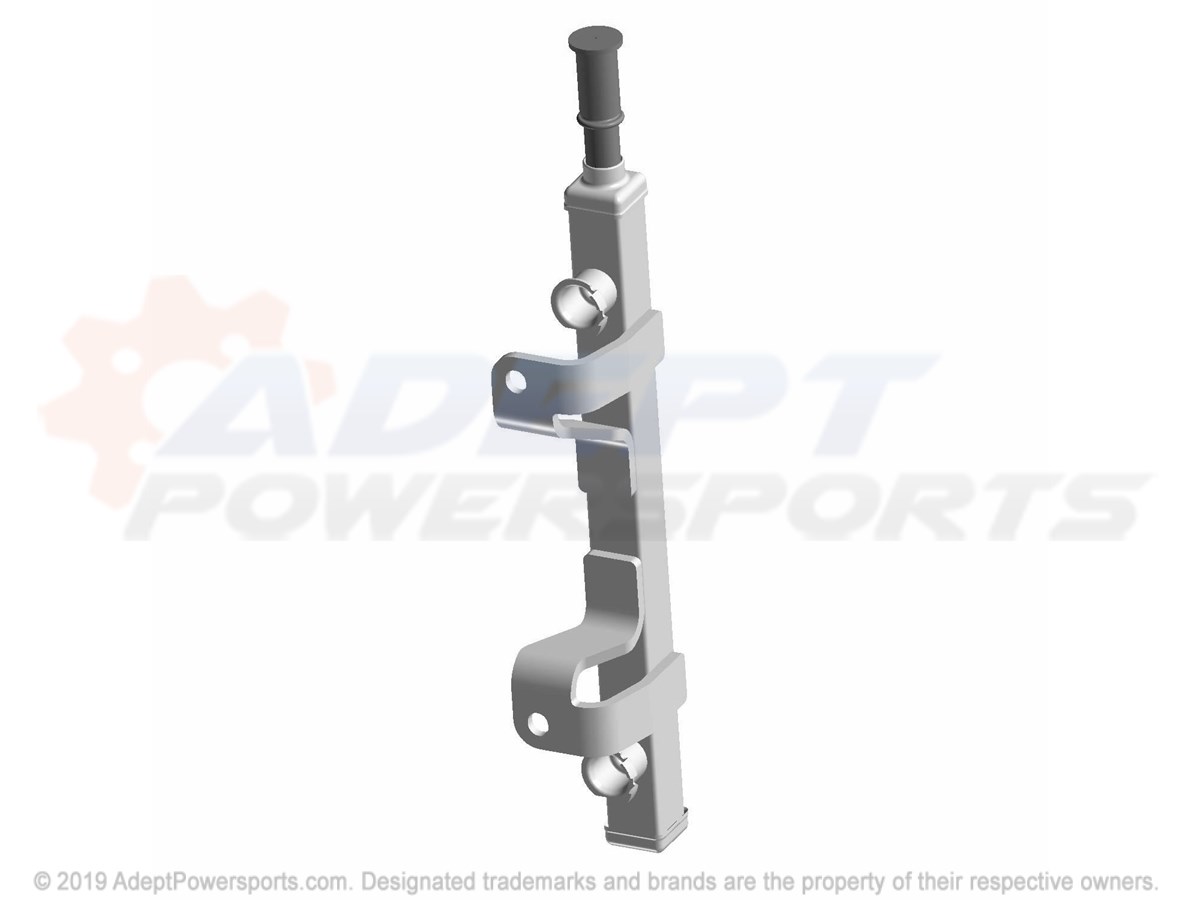

1	RAIL-FUEL, SOHC Part #: 2522016 Required per assembly: 1 Currently Not Available
2	THROTTLE, 46MM Part #: 1204455 Required per assembly: 1 Currently Not Available

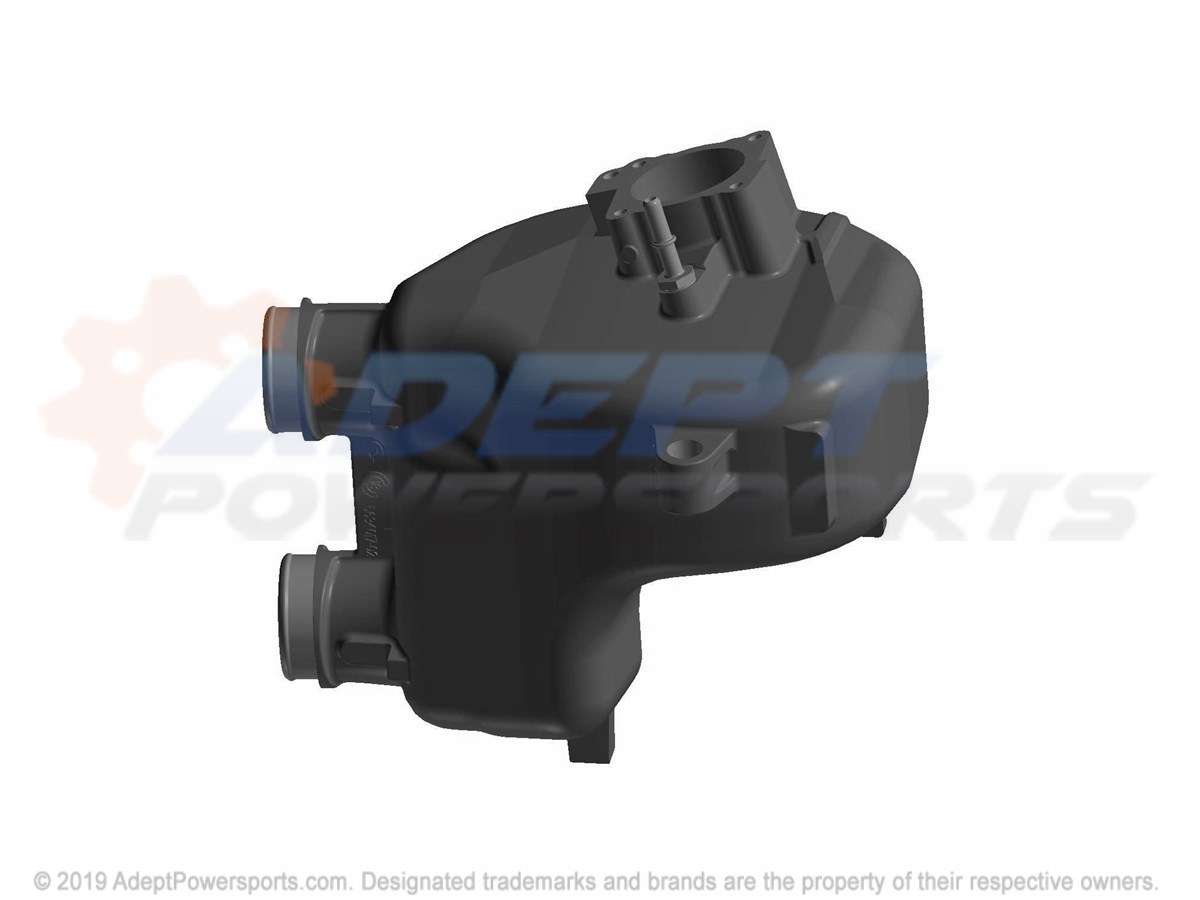

3	MANIFOLD-INTAKE, SOHC, EVAP Part #: 5141969 Required per assembly: 1 Note: EVAP Currently Not Available
3	MANIFOLD-INTAKE, SOHC Part #: 5142354 Required per assembly: 1 Note: STD Currently Not Available
4	SENSOR-TMAP DSS3-TF Part #: 2411528 Required per assembly: 1 Currently Not Available

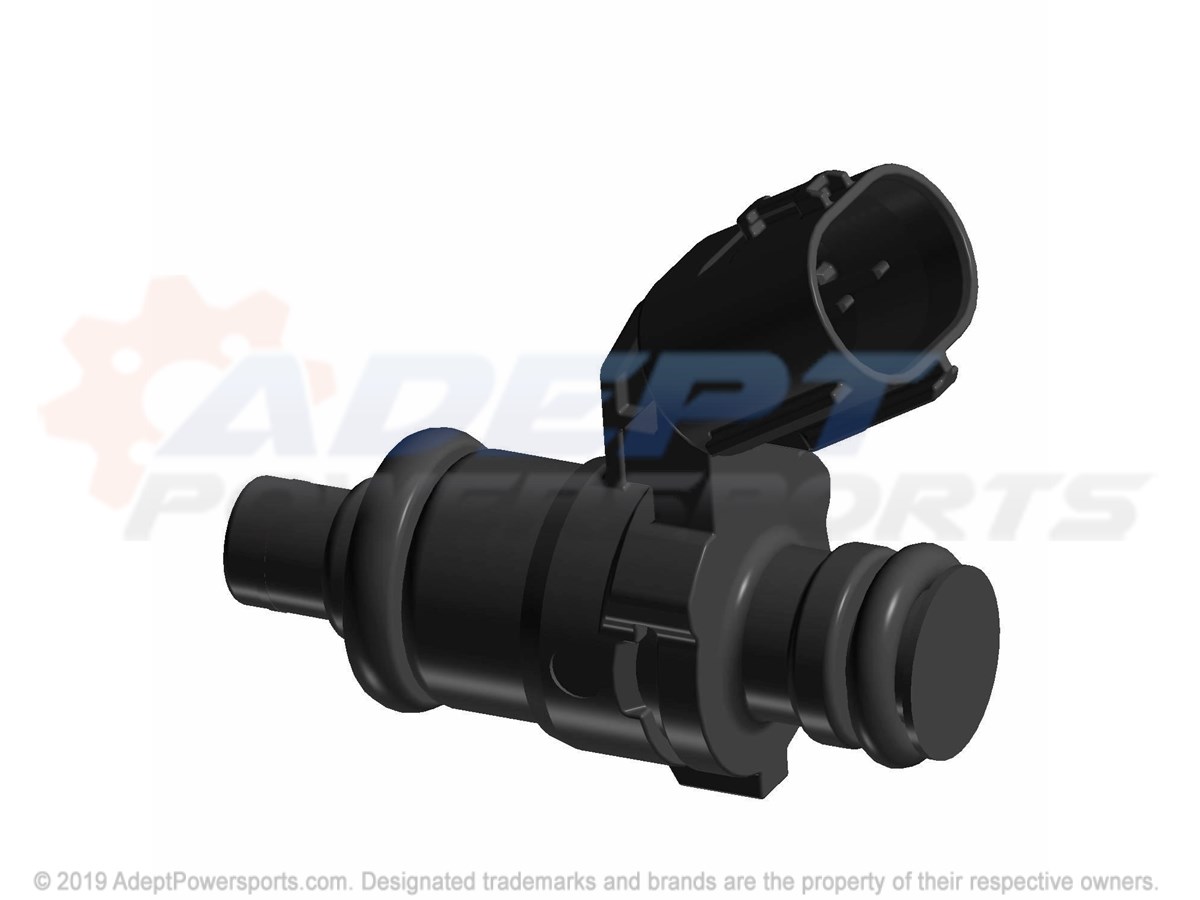

5	INJ-FUEL, SE Part #: 2521621 Required per assembly: 2 Note: INCL. 6,7 Currently Not Available

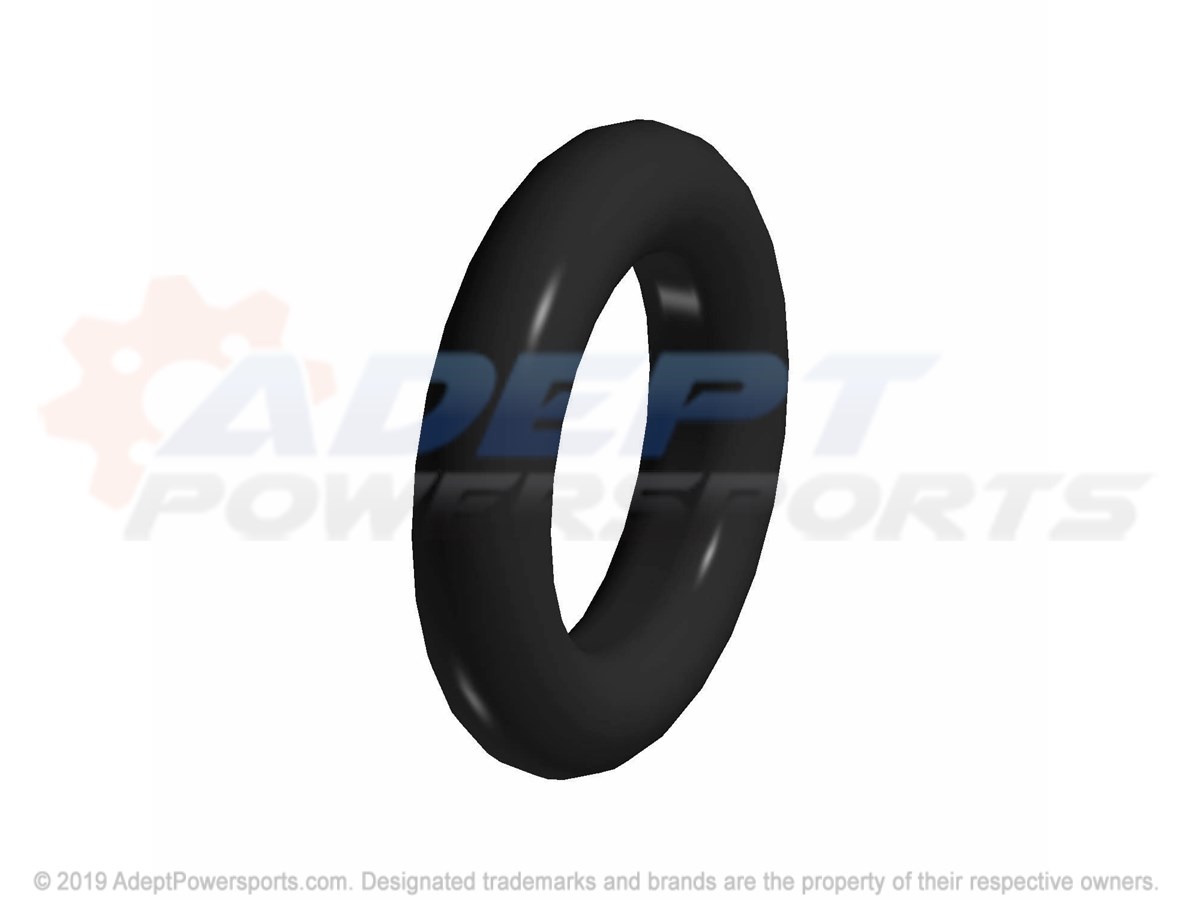

6	O-RING, BOSCH, EV-SE, UPPER Part #: 5416412 Required per assembly: 2 Currently Not Available

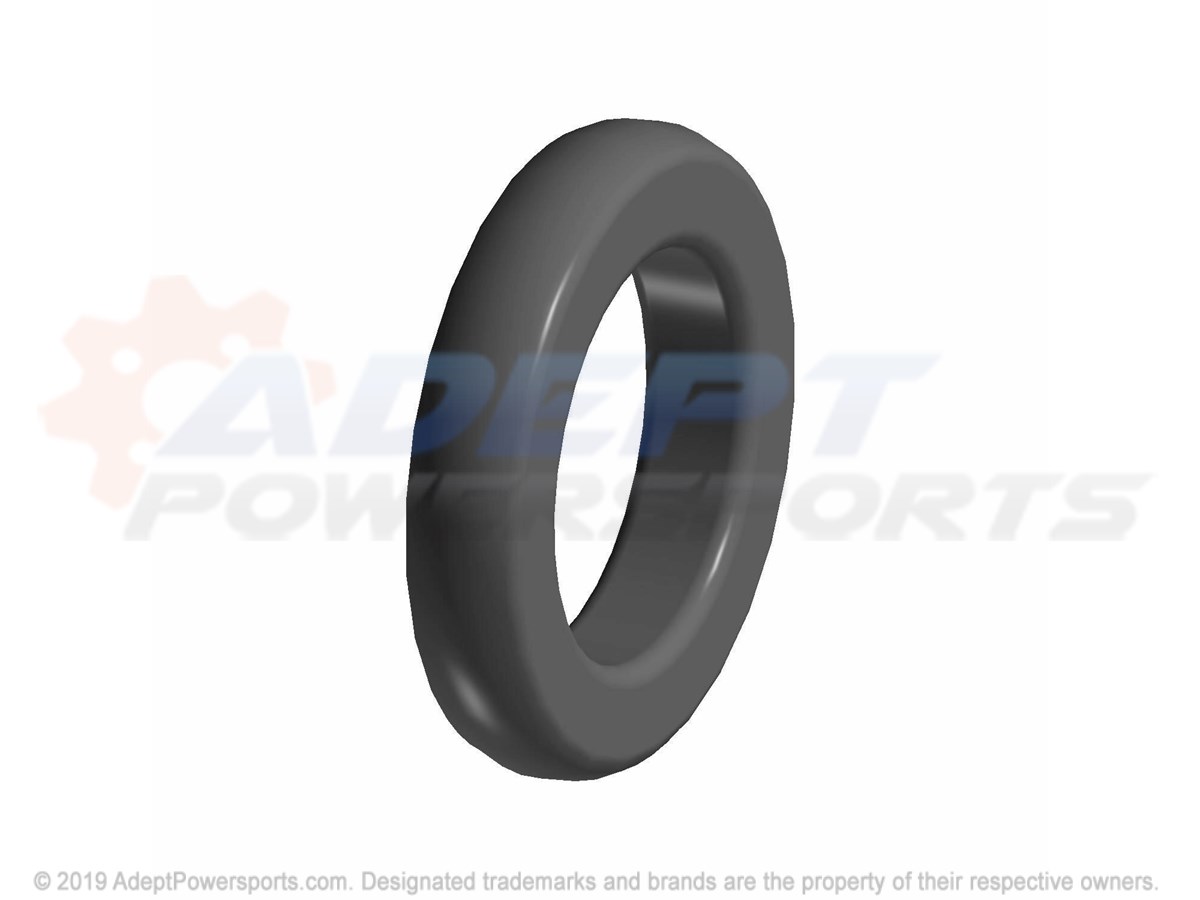

7	O-RING, BOSCH, EV-SE, LOWER Part #: 5416413 Required per assembly: 2 Currently Not Available
8	SCREW Part #: 7518576 Required per assembly: 3 Currently Not Available
9	SCREW Part #: 7517932 Required per assembly: 4 ~~$3.99~~ $2.30 - + Add to cart
10	BUSHING, MOUNT Part #: 5414719 Required per assembly: 2 Currently Not Available
11	CLAMP, BAND, NARROW Part #: 7080413 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
12	SCREW, FLANGE Part #: 7519298 Required per assembly: 1 Currently Not Available
13	NUT, FLANGE Part #: 7547332 Required per assembly: 1 Note: Nut, Nylok Currently Not Available
14	SHAFT, COMPRESSION Part #: 5138987 Required per assembly: 1 Currently Not Available

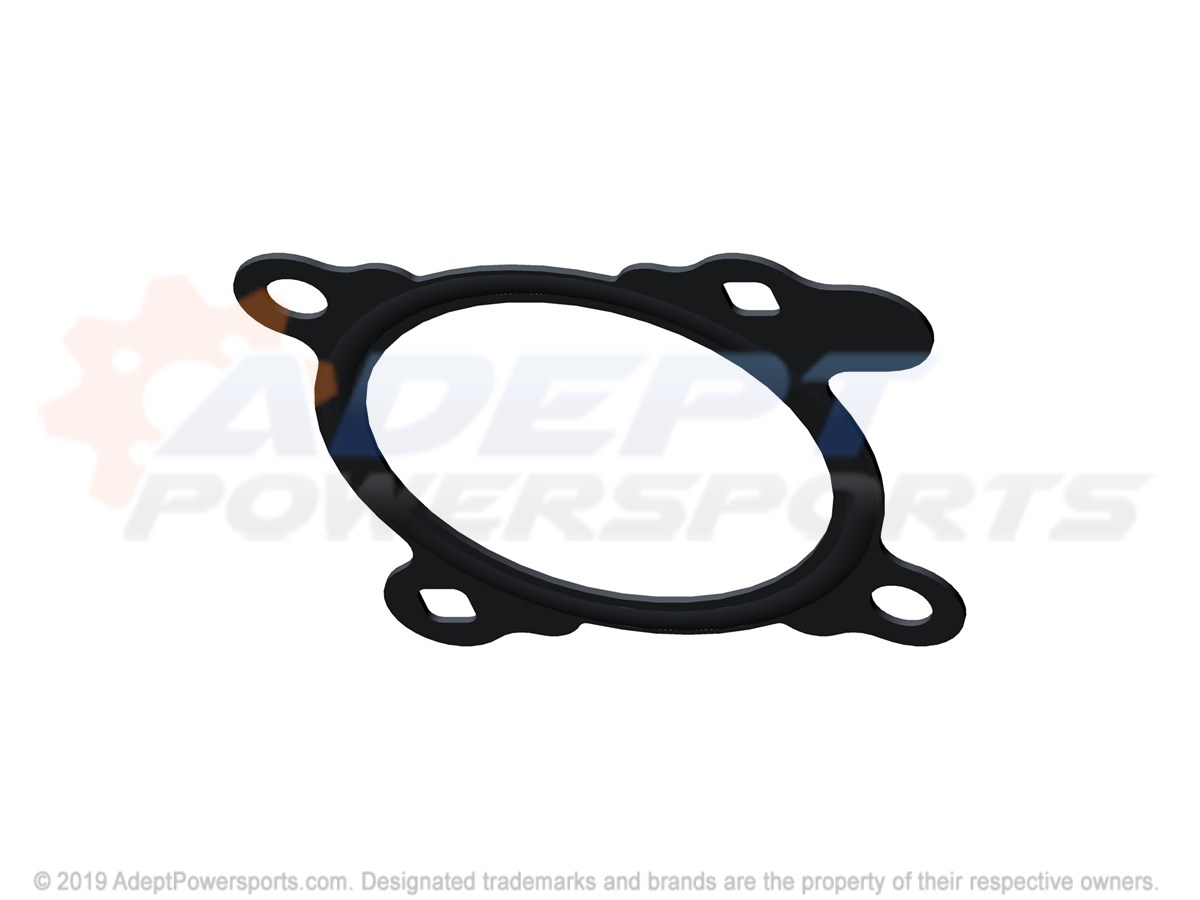

15	GASKET Part #: 5813735 Required per assembly: 1 Currently Not Available
