OEM Parts Polaris 2020 Polaris P5500/P6500 (R01) Chassis

2020 Polaris P5500/P6500 (R01) P20GGGFNA/GGGGNA - Chassis

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-FRAME, 5K, 6K

Part #: 2208629 Required per assembly: 1
Currently Not Available
2

ASM-CENTER, LIFT, 5K, 6K

Part #: 2208689 Required per assembly: 1 Note: INCL. HDWR.
Currently Not Available
3

ASM-HANDLE, LOCK, MOUNT, 5K, 6K

Part #: 2208696 Required per assembly: 1 Note: INCL. HDWR.
Currently Not Available
4

ASM-WHEEL, 5K, 6K

Part #: 2208690 Required per assembly: 1 Note: INCL. 4 WHEELS,MNTG. HDWR.
Currently Not Available
5

ASM-BRAKES, LH, 5K, 6K

Part #: 2208691 Required per assembly: 1 Note: INCL. HDWR.
Currently Not Available
6

ASM-BRAKES, RH, 5K, 6K

Part #: 2208692 Required per assembly: 1 Note: INCL. HDWR.
Currently Not Available
7

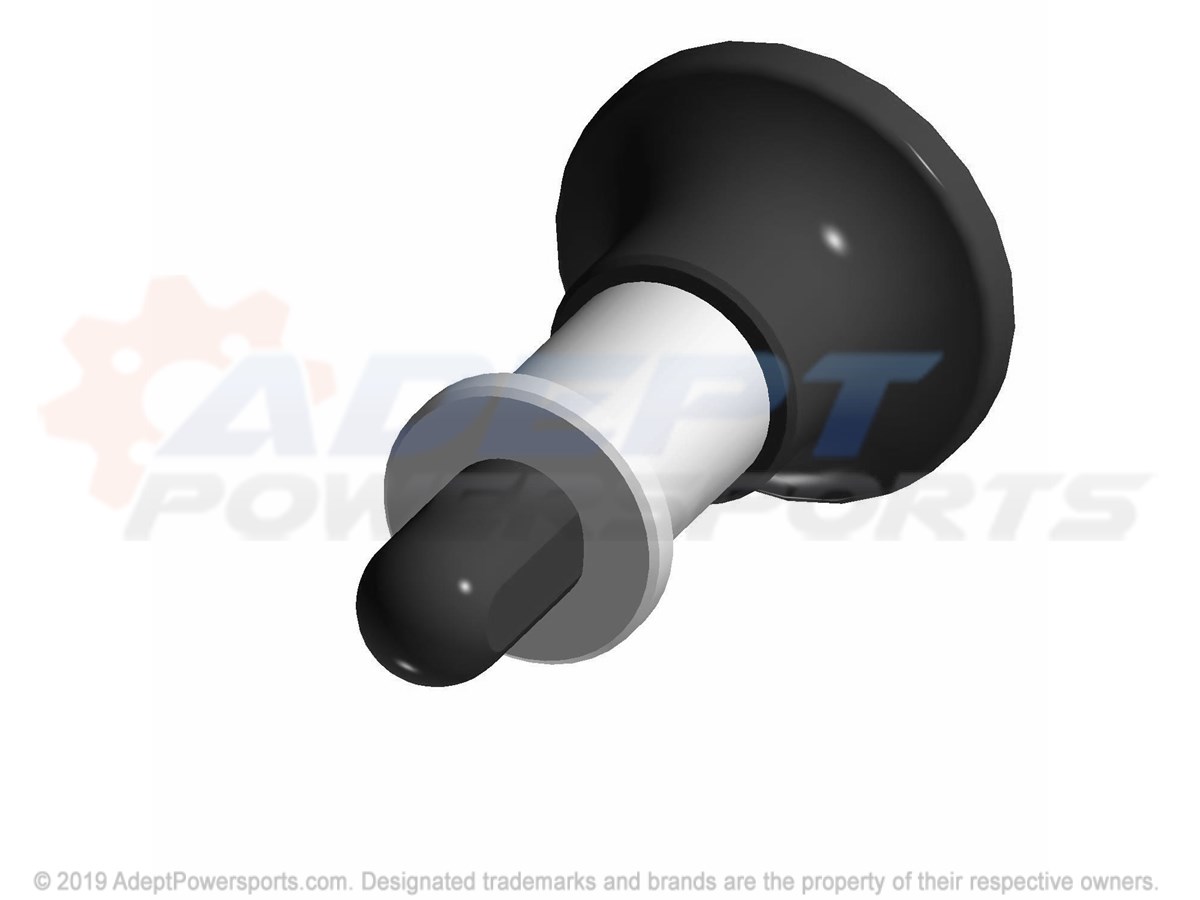

Polaris 3410528 Asm-Handle, Plunger, 5K, 6K

ASM-HANDLE, PLUNGER, 5K, 6K

Part #: 3410528 Required per assembly: 1 Note: INCL. HDWR.
Currently Not Available
