OEM Parts Polaris 2020 Polaris P5500/P6500 (R01) Electrical - Alternator

2020 Polaris P5500/P6500 (R01) P20GGGFNA/GGGGNA - Electrical - Alternator

ELECTRICAL - ALTERNATOR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-5KW, ROTOR

Part #: 3410454 Required per assembly: 1
Currently Not Available
1

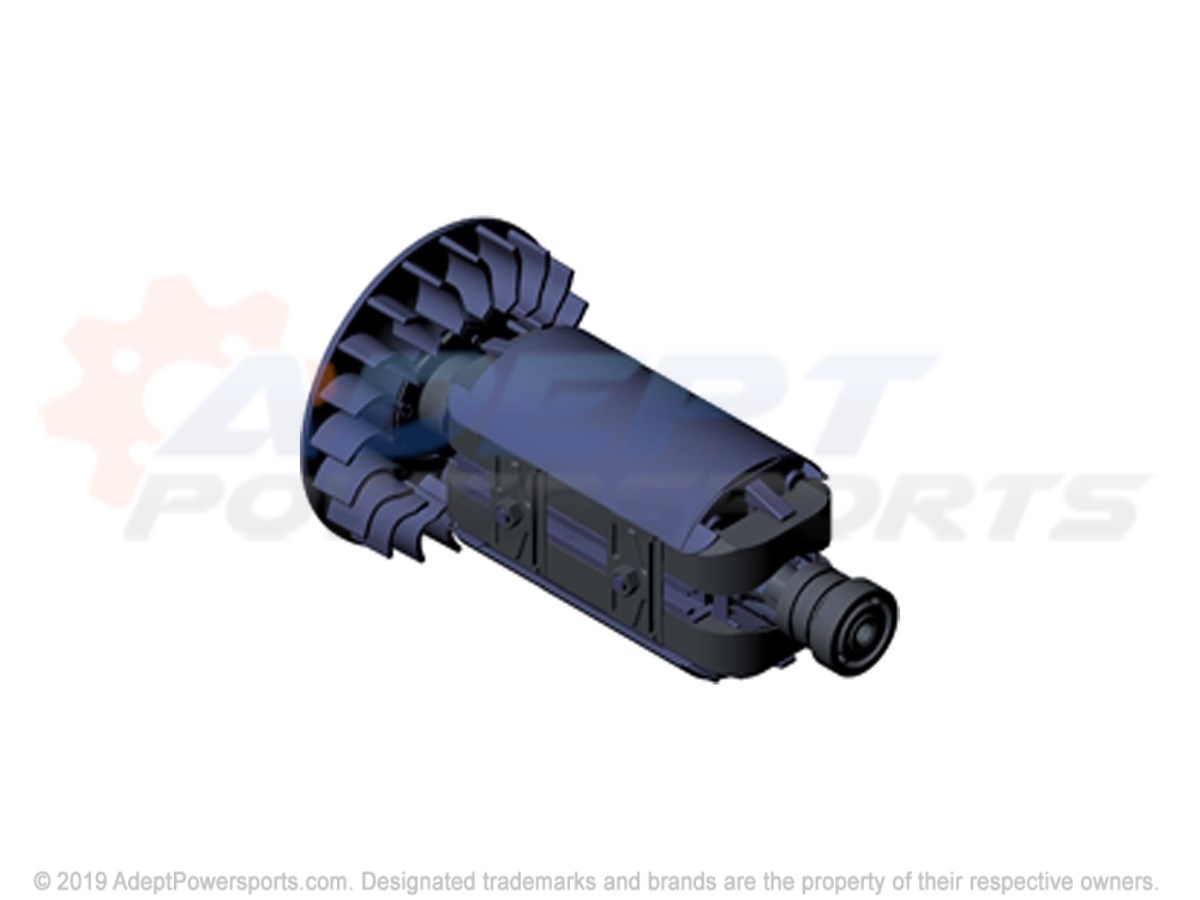

Polaris 3410455 Asm-6Kw, Rotor

ASM-6KW, ROTOR

Part #: 3410455 Required per assembly: 1
Currently Not Available
2

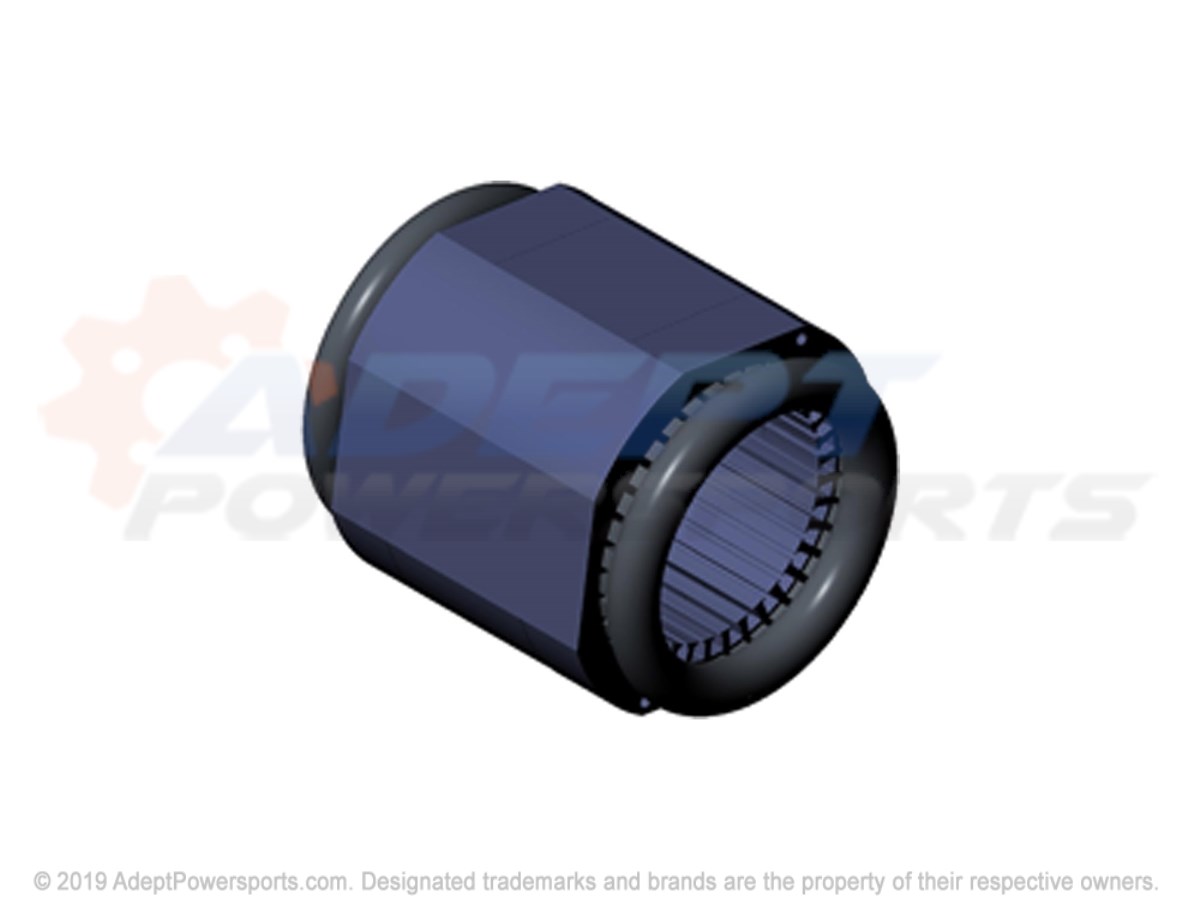

Polaris 3410456 Asm-5Kw, Stator

ASM-5KW, STATOR

Part #: 3410456 Required per assembly: 1
Currently Not Available
2

ASM-6KW, STATOR

Part #: 3410457 Required per assembly: 1
Currently Not Available
3

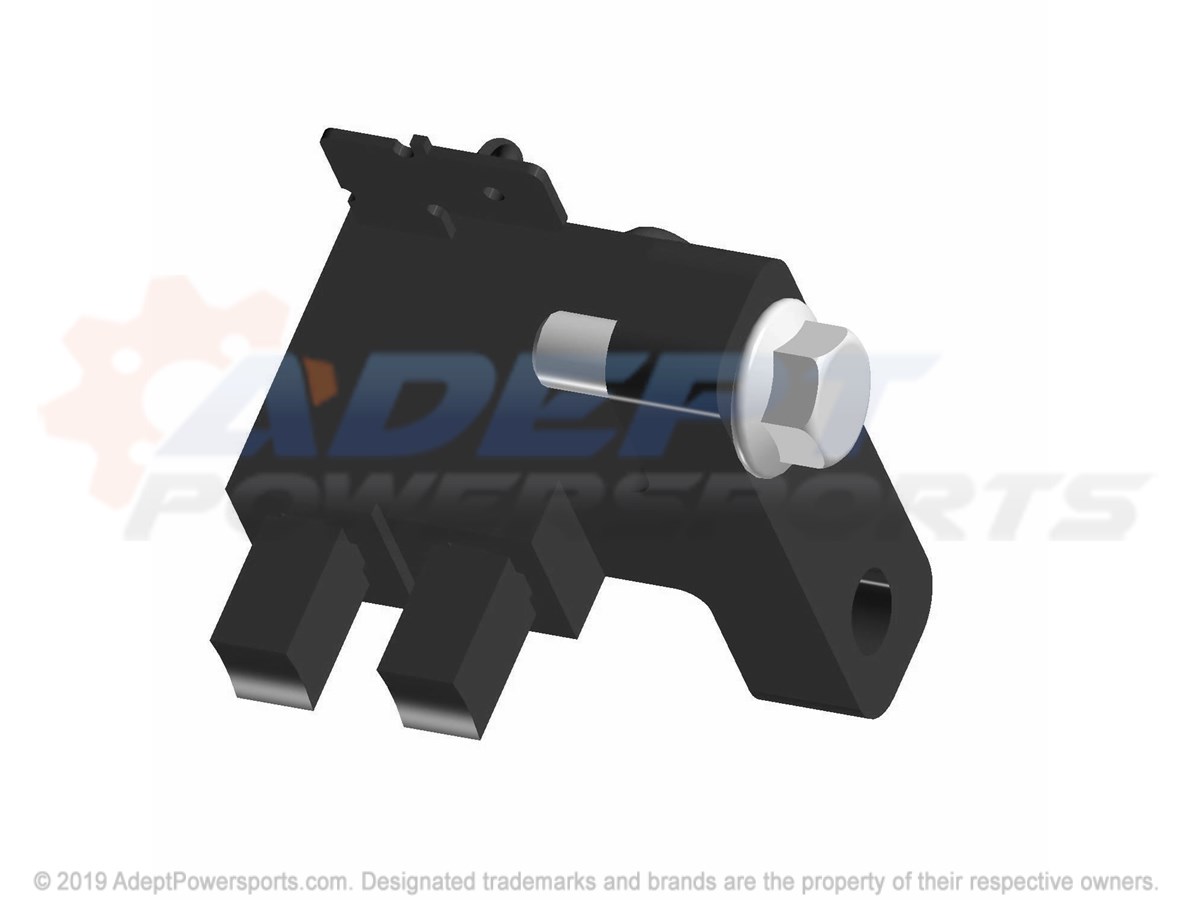

Polaris 2208641 Asm-Altenator, Brush, 5K, 6K

ASM-ALTENATOR, BRUSH, 5K, 6K

Part #: 2208641 Required per assembly: 1
Currently Not Available
4

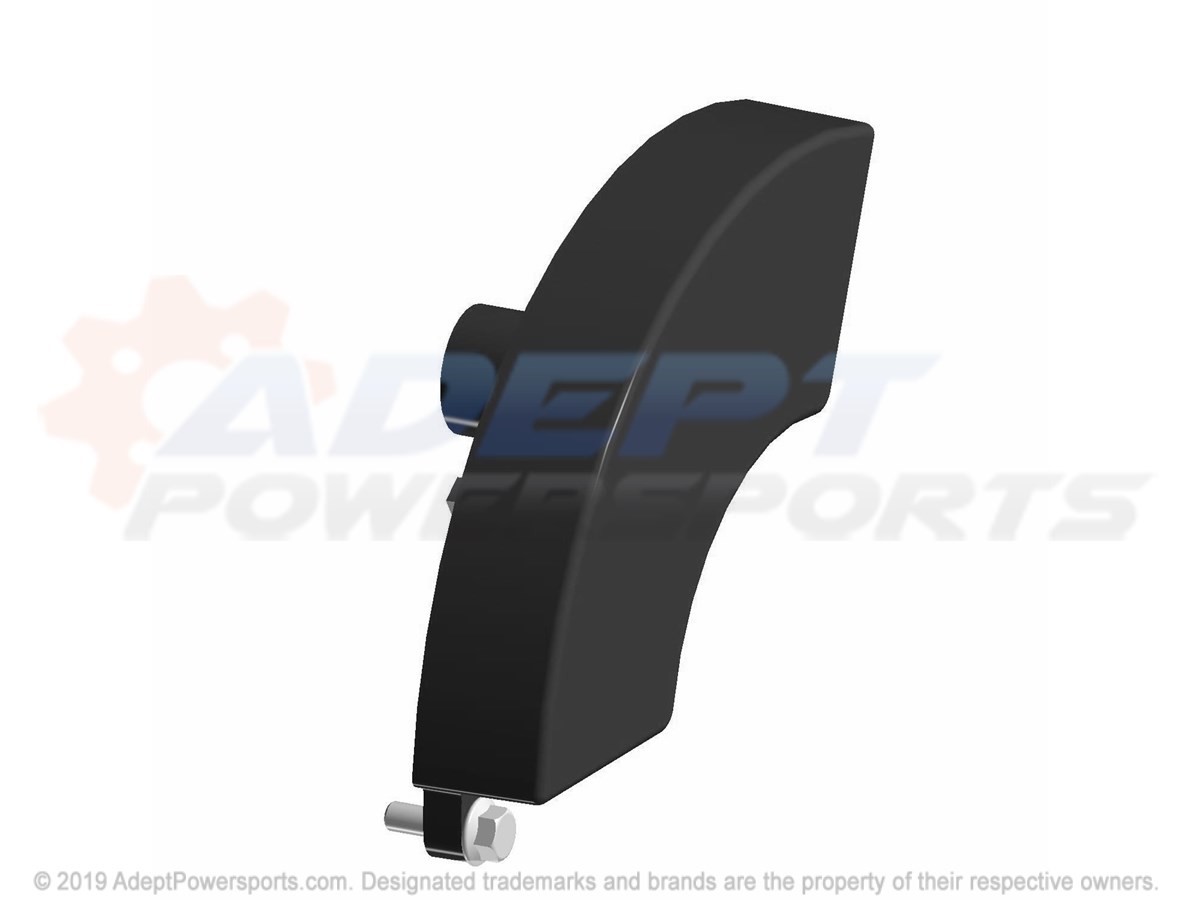

Polaris 3410458 Regulator-5Kw Avr

REGULATOR-5KW AVR

Part #: 3410458 Required per assembly: 1 Note: INCL. MNTG. HDWR.
Currently Not Available
4
Polaris 3410459 Regulator-6Kw Avr

REGULATOR-6KW AVR

Part #: 3410459 Required per assembly: 1 Note: INCL. MNTG. HDWR.
Currently Not Available
