Fuel System replacement parts for 2020 Polaris P5500/P6500 (R01)

OEM Parts Polaris 2020 Polaris P5500/P6500 (R01) Fuel System

FUEL SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

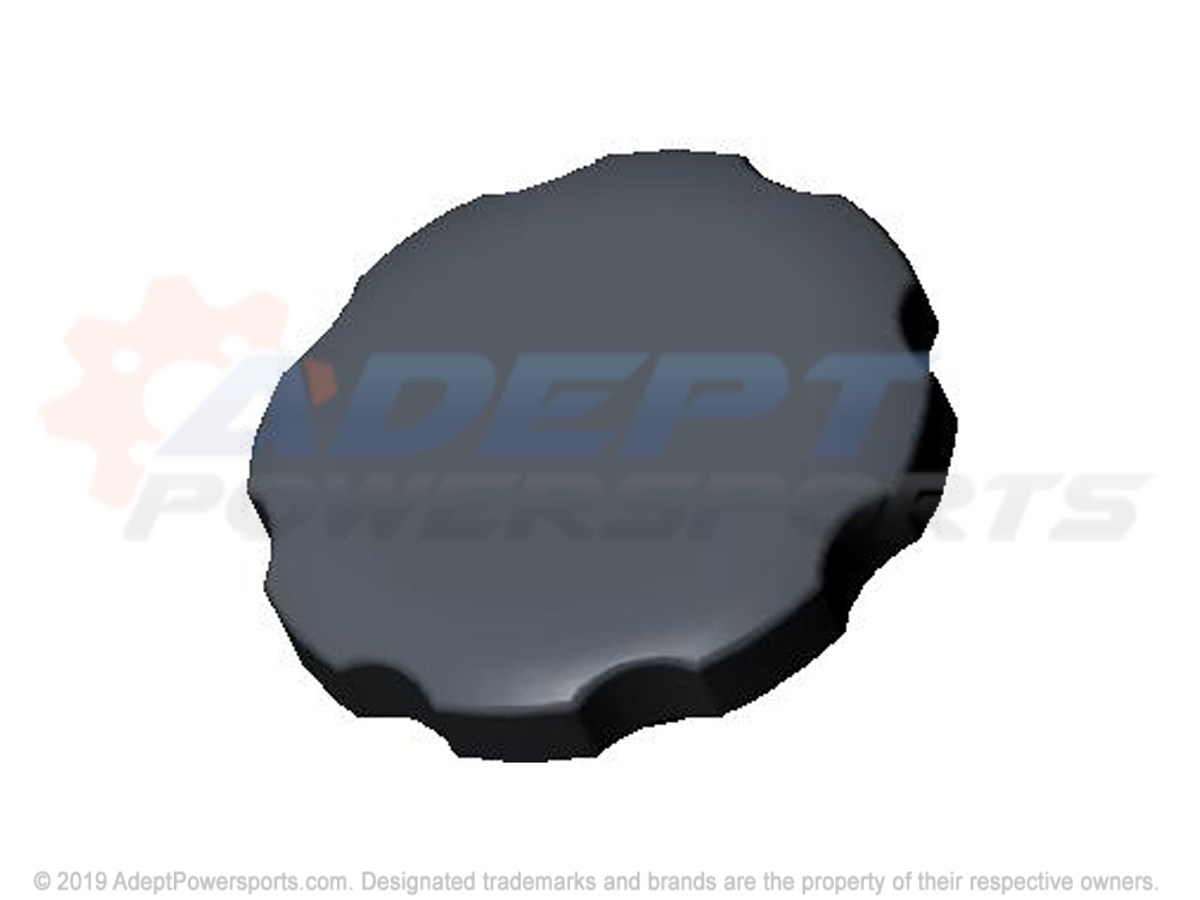

1	CAP-FUEL, TANK, 5K, 6K Part #: 3410460 Required per assembly: 1 Note: WITH CHAIN Currently Not Available

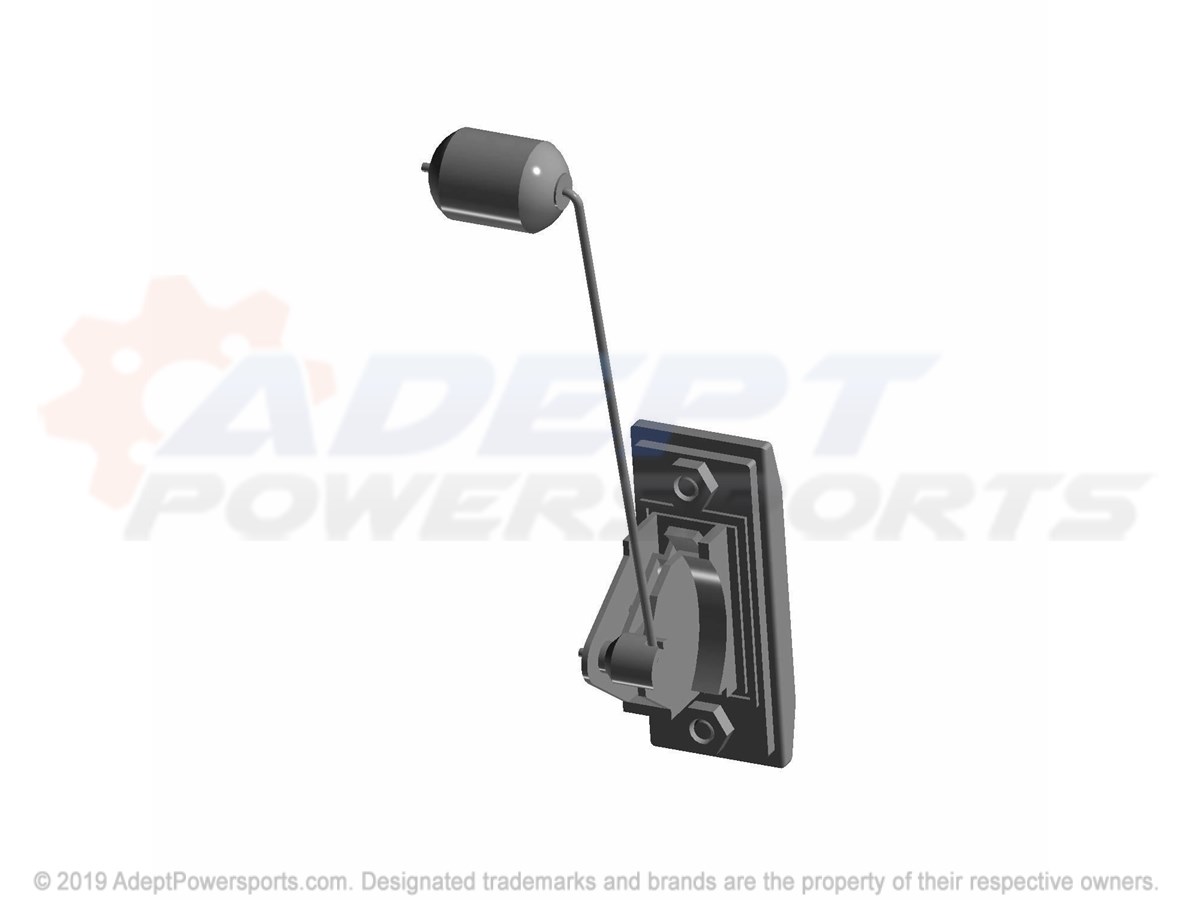

2	GAUGE-FUEL, 5K, 6K Part #: 3410461 Required per assembly: 1 Currently Not Available
3	ASM-FUEL, TANK, HARDWARE, 5K, 6K Part #: 2208642 Required per assembly: 1 Note: INCL. QTY. 4 OF EACH Currently Not Available
4	VALVE-FUEL, SWITCH, 5K, 6K Part #: 3410439 Required per assembly: 1 Note: INCL. KNOB AND VALVE Currently Not Available

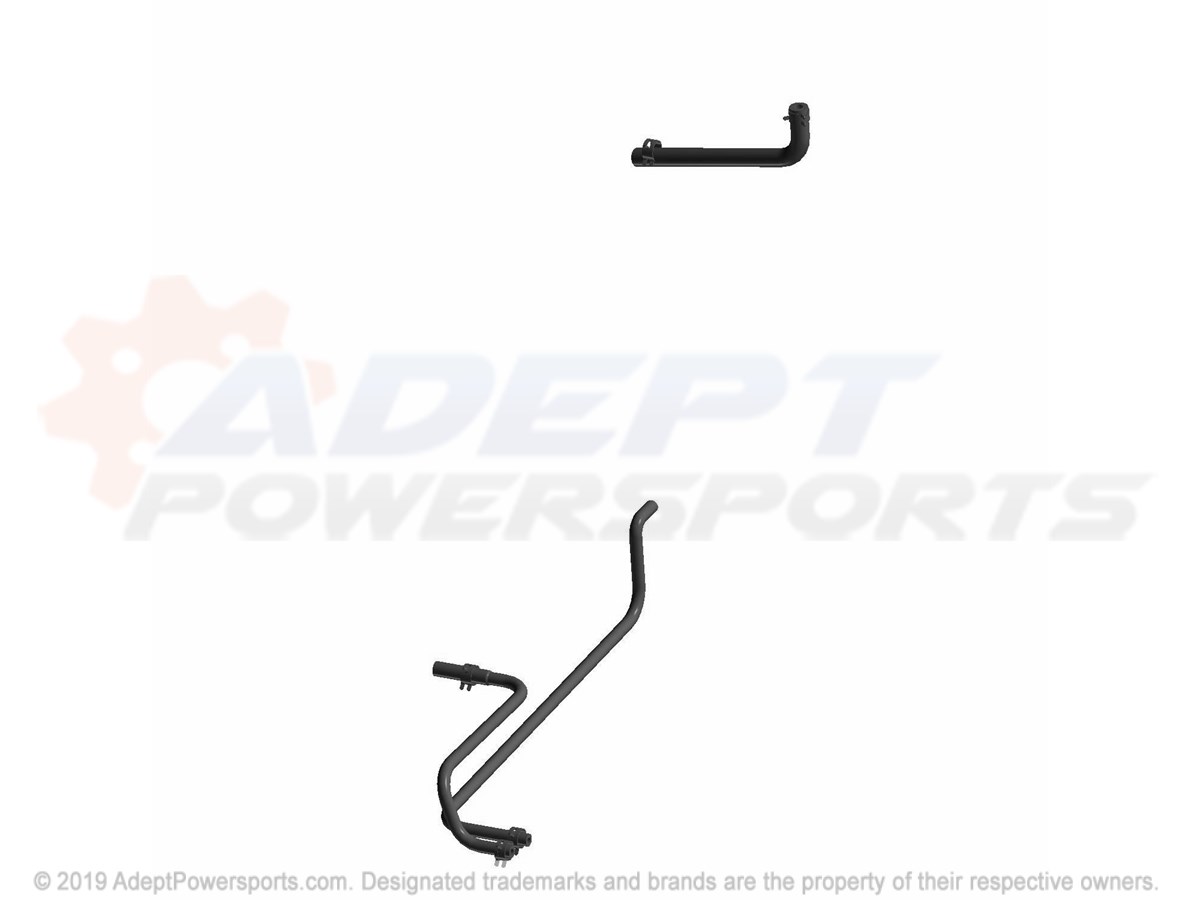

5	ASM-FUEL, LINE, COMPLETE, 5K, 6K Part #: 2208643 Required per assembly: 1 Note: INCL. CLAMPS Currently Not Available

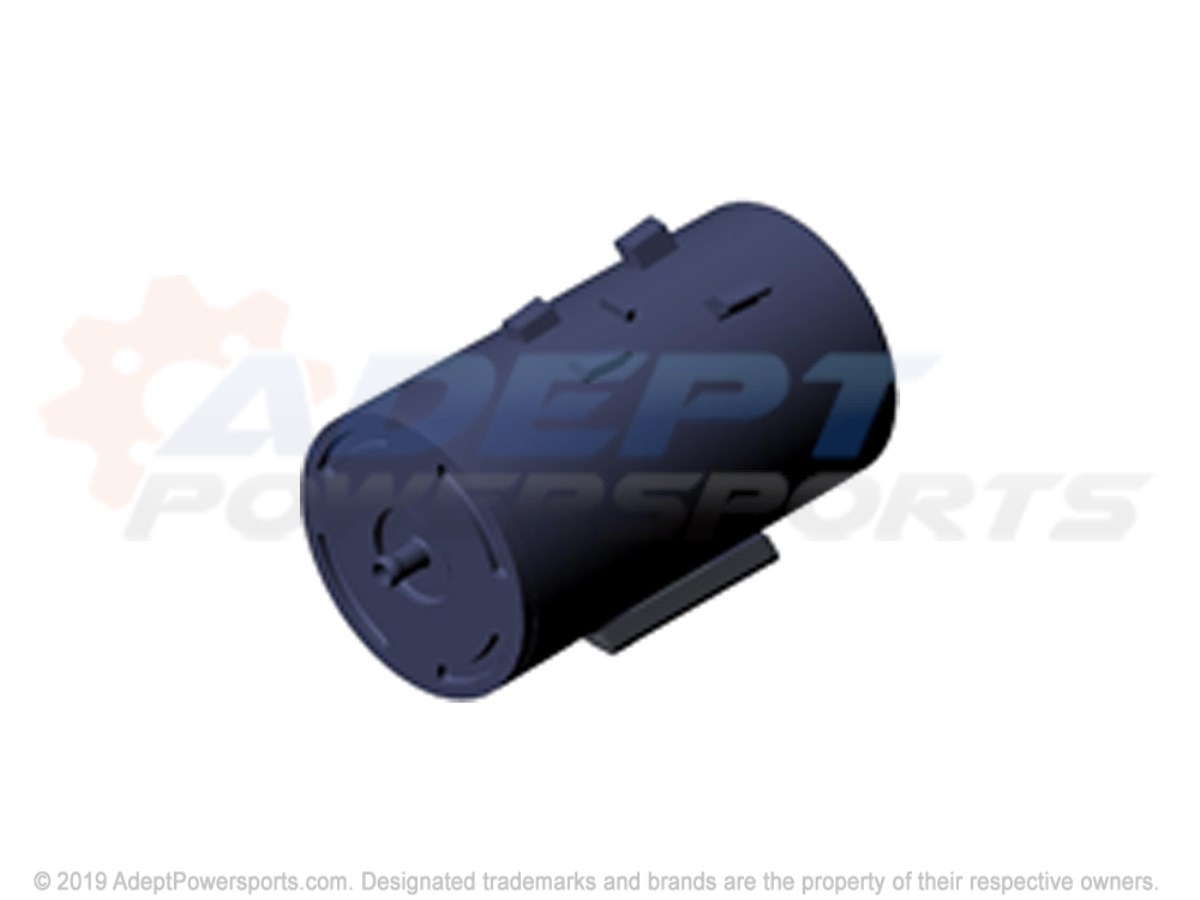

6	CANISTER-CARBON, 5K, 6K Part #: 3410462 Required per assembly: 1 Currently Not Available
7	ASM-FUEL, TANK, 5K, 6K Part #: 2208632 Required per assembly: 1 Note: INCL. 1,2 Currently Not Available
