Electrical - Panel And Battery replacement parts for 2020 Polaris P5500/P6500 (R01)

OEM Parts Polaris 2020 Polaris P5500/P6500 (R01) Electrical - Panel And Battery

ELECTRICAL - PANEL and BATTERY Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BRKT-CONTROL, PANEL, 5K, 6K Part #: 3410438 Required per assembly: 1 Note: PANEL ONLY Currently Not Available

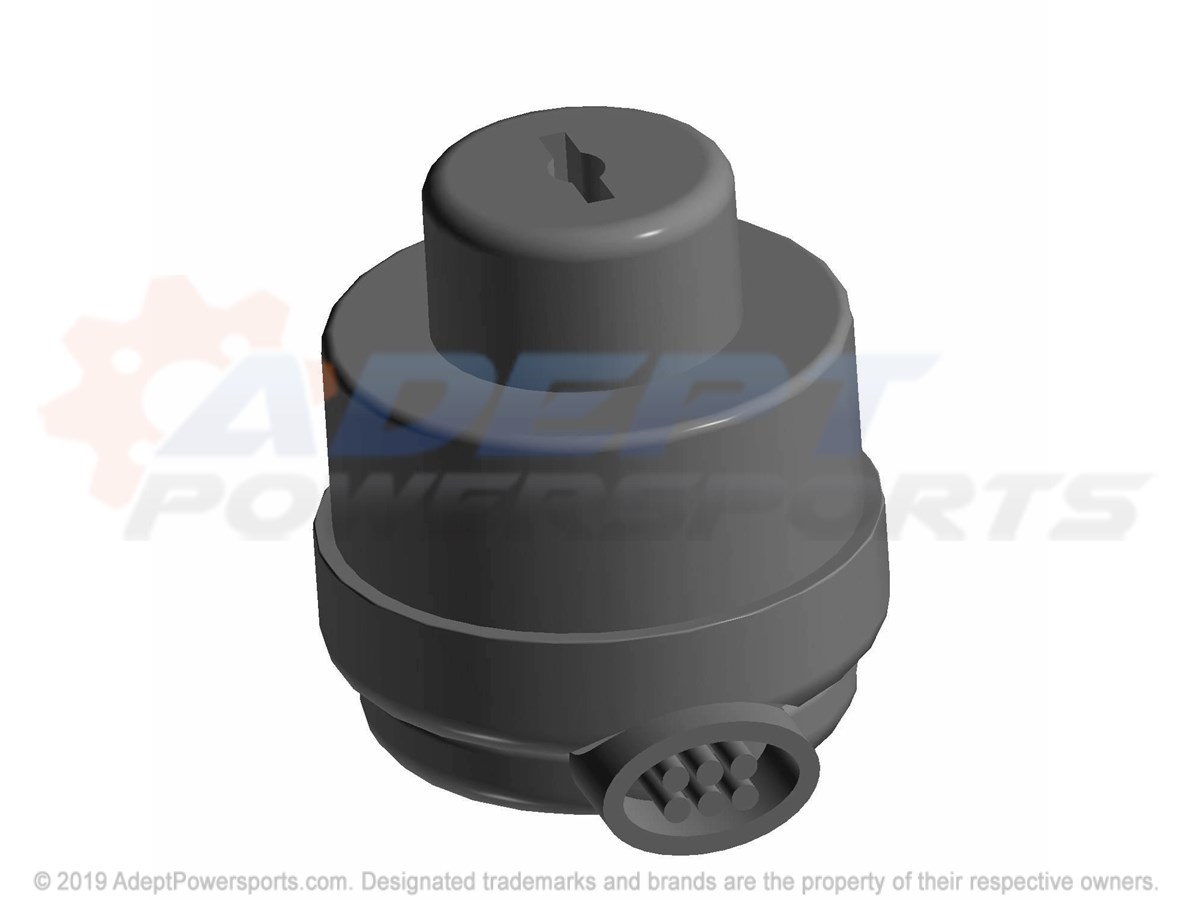

2	SWITCH-ENGINE, 5K, 6K Part #: 3410440 Required per assembly: 1 Note: INCL. KEY Currently Not Available
2	KEY-5K, 6K Part #: 3410467 Required per assembly: 2 Currently Not Available
3	BREAKER-8AMP Part #: 3410443 Required per assembly: 2 Currently Not Available
4	METER-HOUR, 5K, 6K Part #: 3410444 Required per assembly: 1 Currently Not Available
5	BREAKER-2P, 21A, 5K Part #: 3410446 Required per assembly: 1 Note: 5K ONLY Currently Not Available
5	BREAKER-2P, 25A, 6K Part #: 3410447 Required per assembly: 1 Note: 6K ONLY Currently Not Available
6	SOCKET-120V, GFCI Part #: 3410448 Required per assembly: 2 Currently Not Available
6	COVER-120V, GFCI, SOCKET Part #: 3410451 Required per assembly: 2 Currently Not Available
7	BREAKER-20A, 5K, 6K Part #: 3410449 Required per assembly: 2 Currently Not Available
8	SOCKET-120V/240V Part #: 3410452 Required per assembly: 1 Currently Not Available
8	COVER-SOCKET, 120-240V Part #: 3410501 Required per assembly: 1 Currently Not Available
9	ASM-GROUNDING, TERMINAL Part #: 3410453 Required per assembly: 1 Currently Not Available
10	SOCKET-DC, CHARGING Part #: 3410445 Required per assembly: 1 Currently Not Available
10	PLUG-DC SOCKET Part #: 3410523 Required per assembly: 1 Note: PLUG Currently Not Available

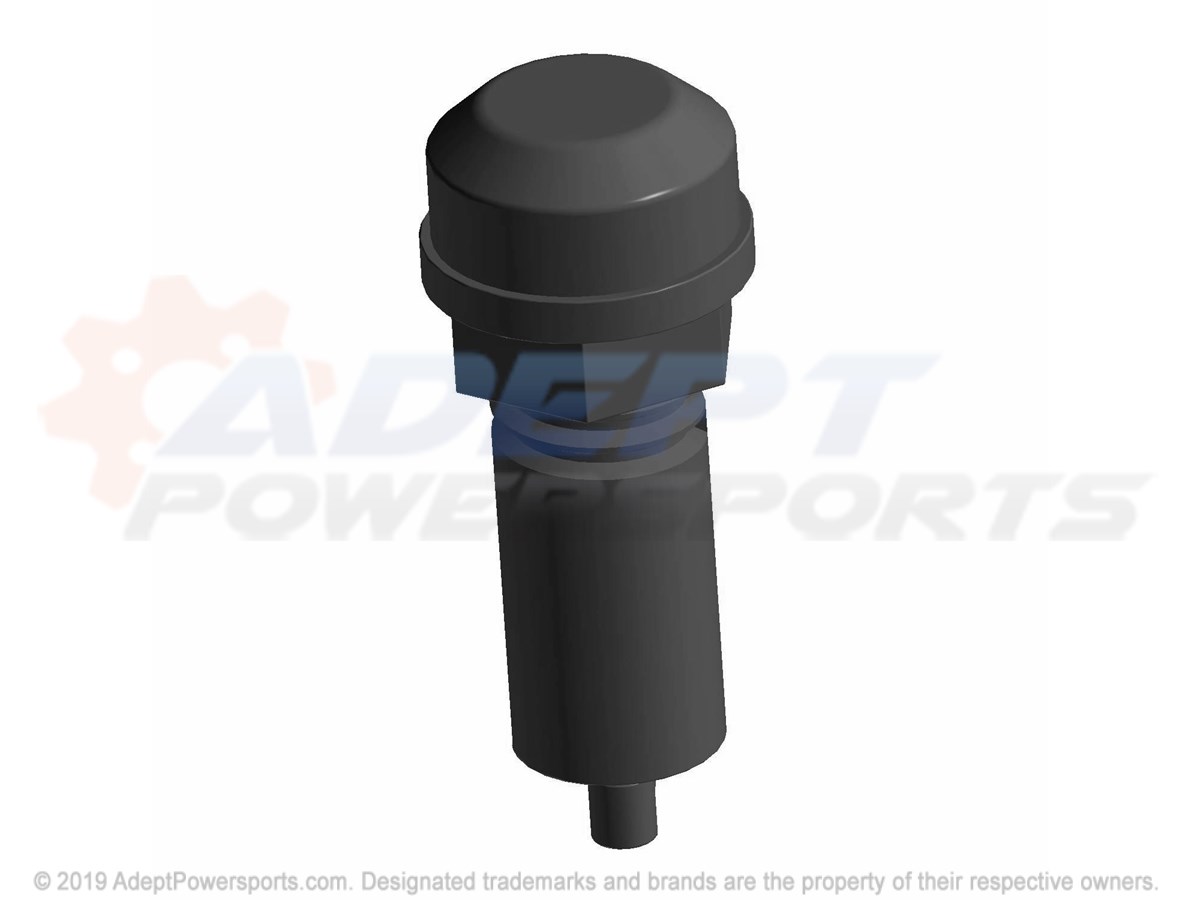

11	LAMP-PILOT, 5K, 6K Part #: 3410442 Required per assembly: 1 Currently Not Available

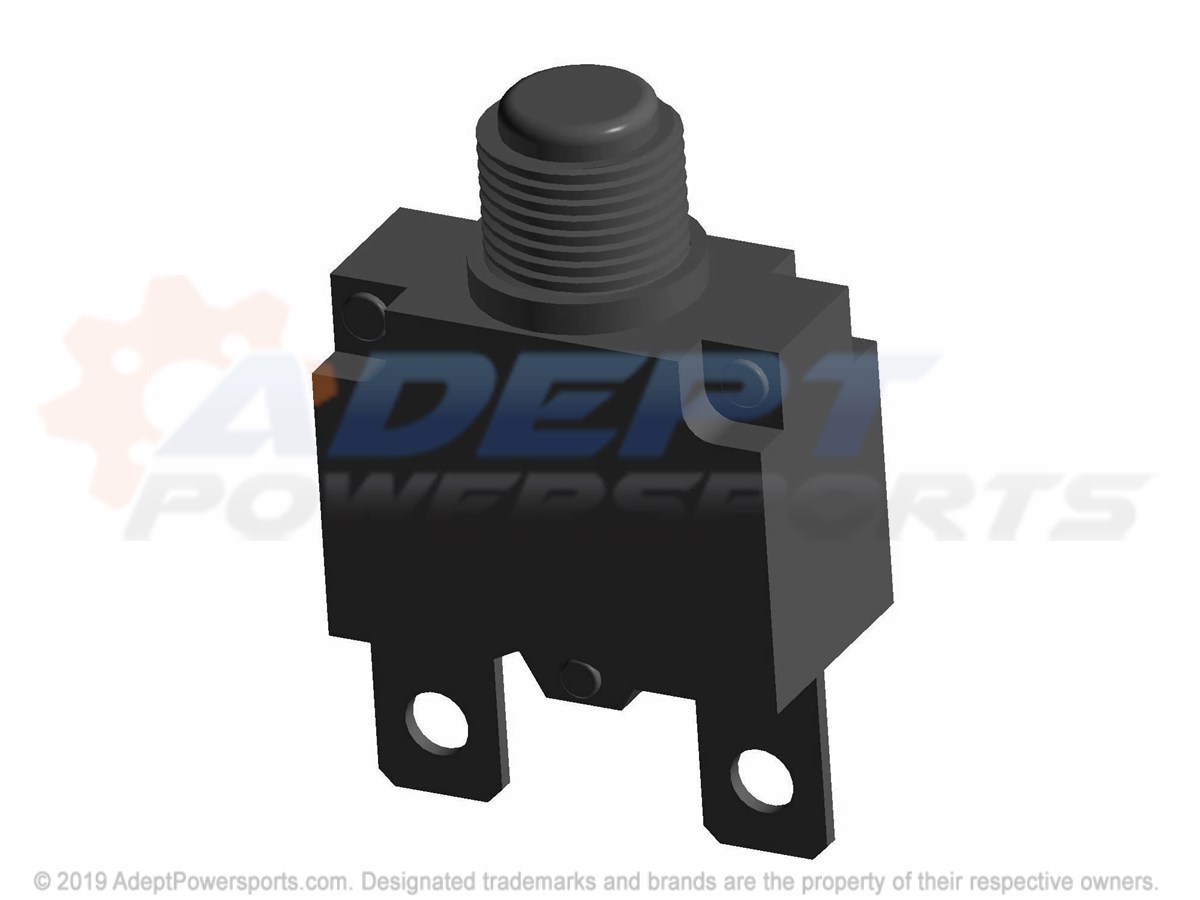

12	BREAKER-10AMP, 5K, 6K Part #: 3410441 Required per assembly: 1 Currently Not Available

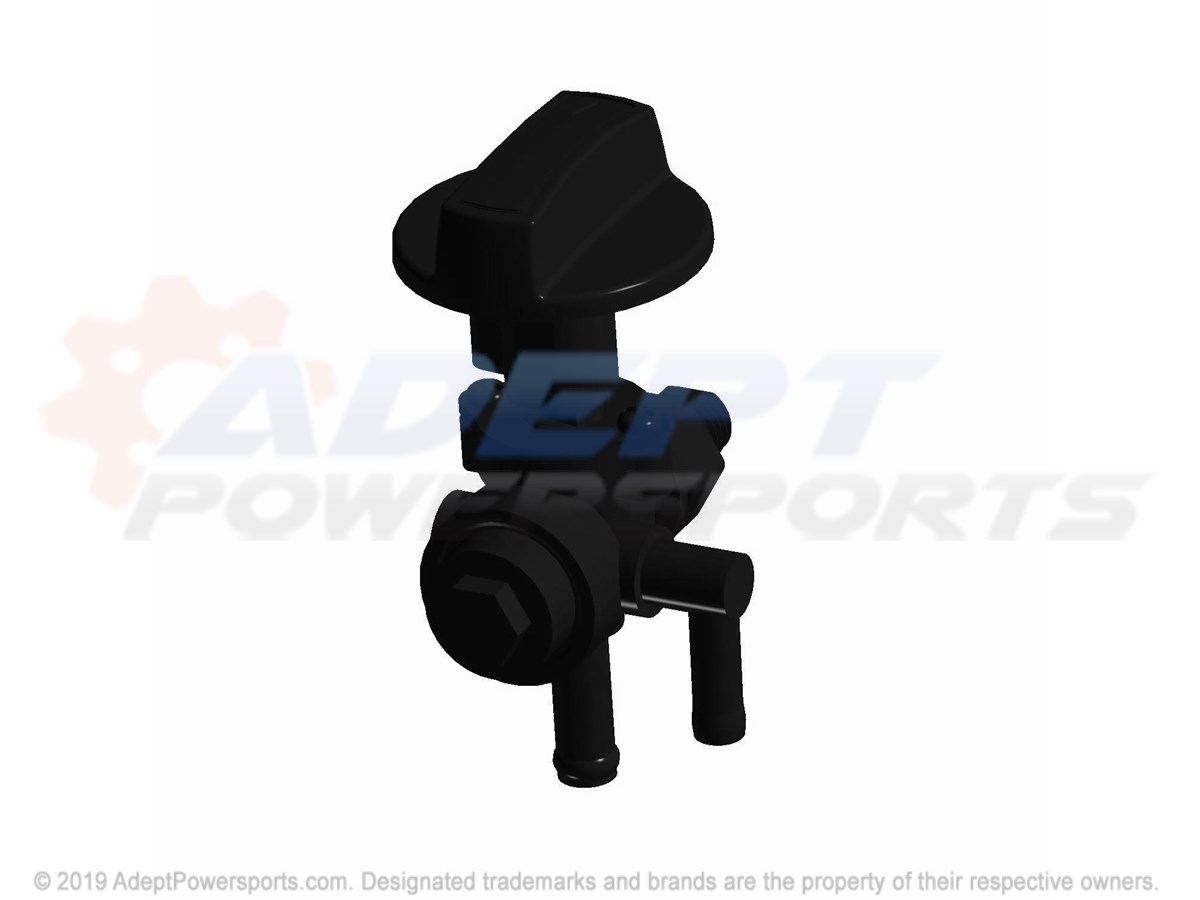

13	VALVE-FUEL, SWITCH, 5K, 6K Part #: 3410439 Required per assembly: 1 Note: INCL. KNOB AND VALVE Currently Not Available

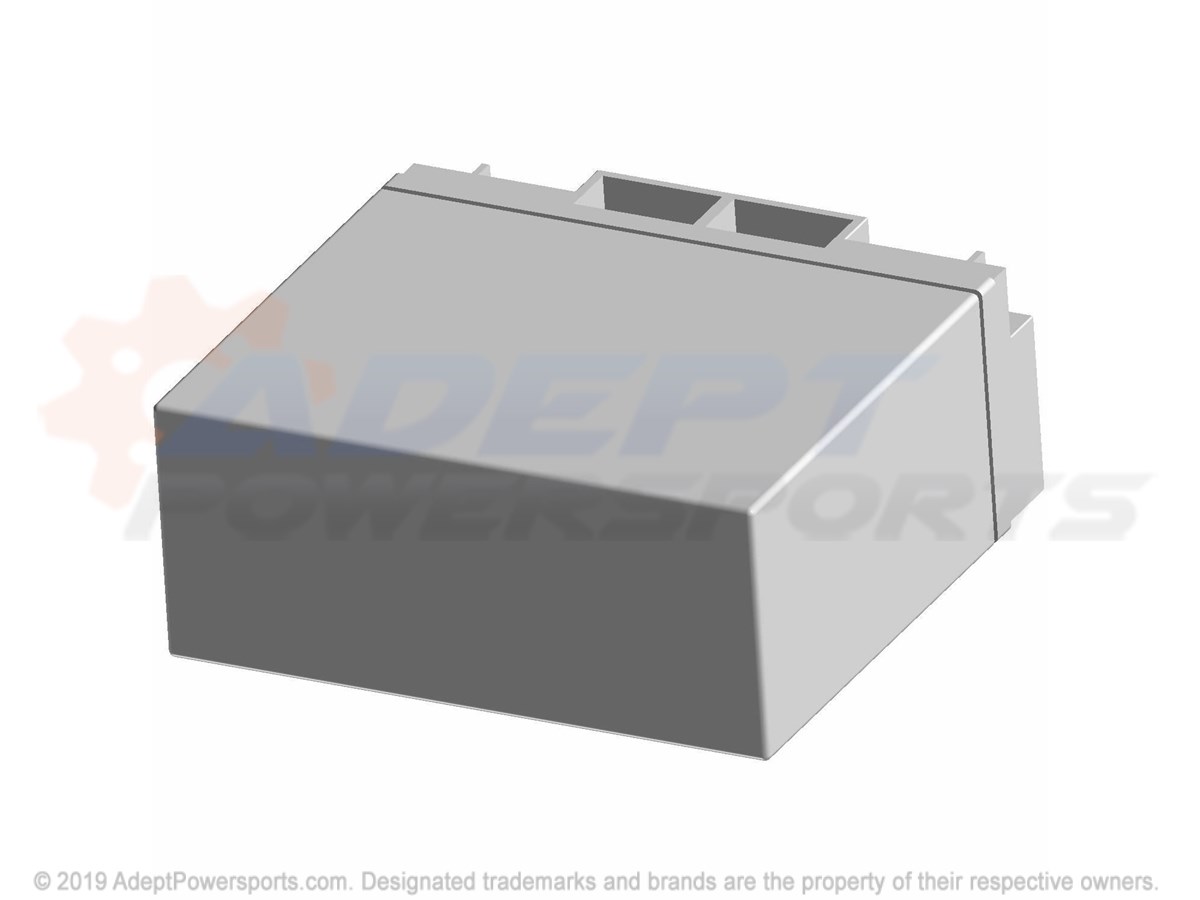

14	BTRY-5K, 6K Part #: 3410437 Required per assembly: 1 Note: WITH MNTG HDWR Currently Not Available
15	BRKT-BATTERY, 5K, 6K Part #: 3410436 Required per assembly: 1 Note: INCL. HDWR. Currently Not Available
