REAR FENDERS - Z20R4_92AC/BC/AE/BE/AK/BK/AR/BR/AH/BH/AT/BT/LE/LT/LC Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

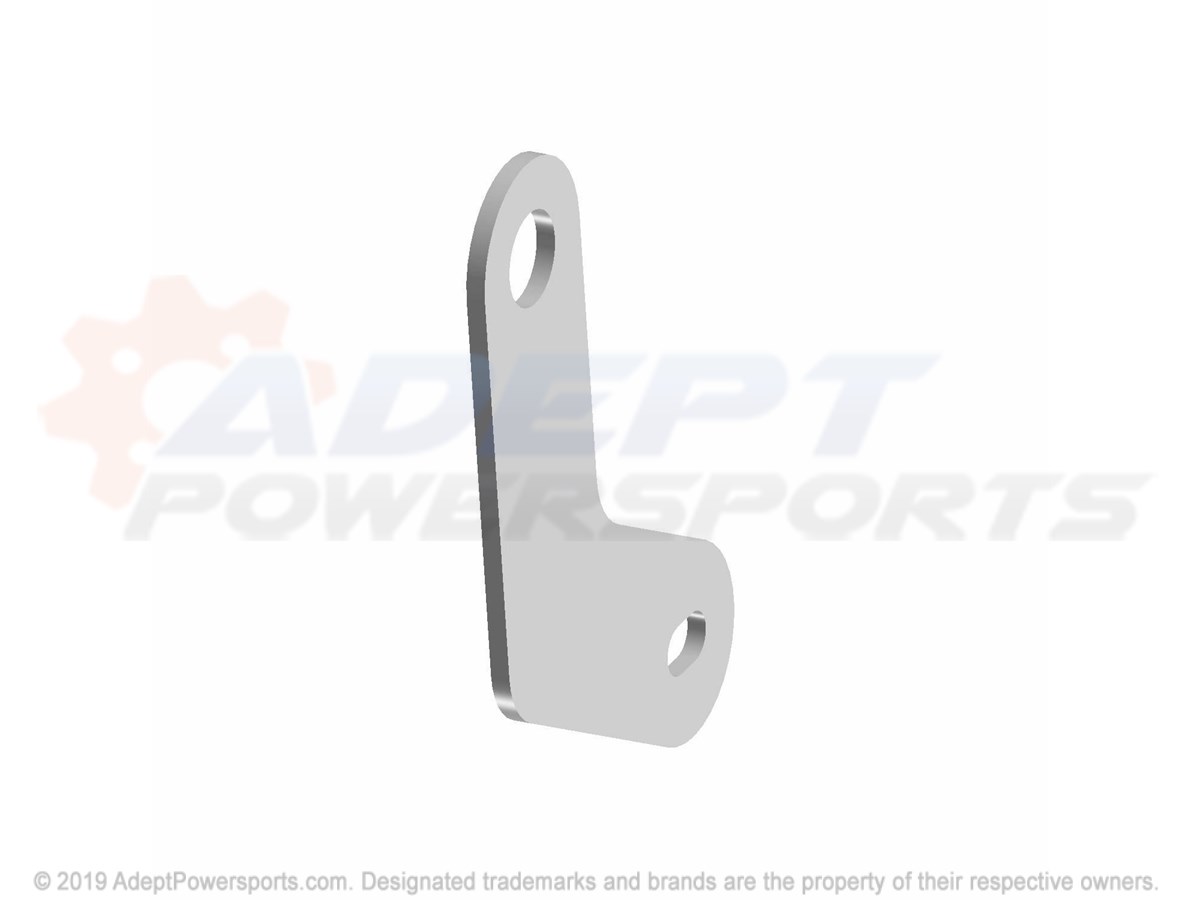

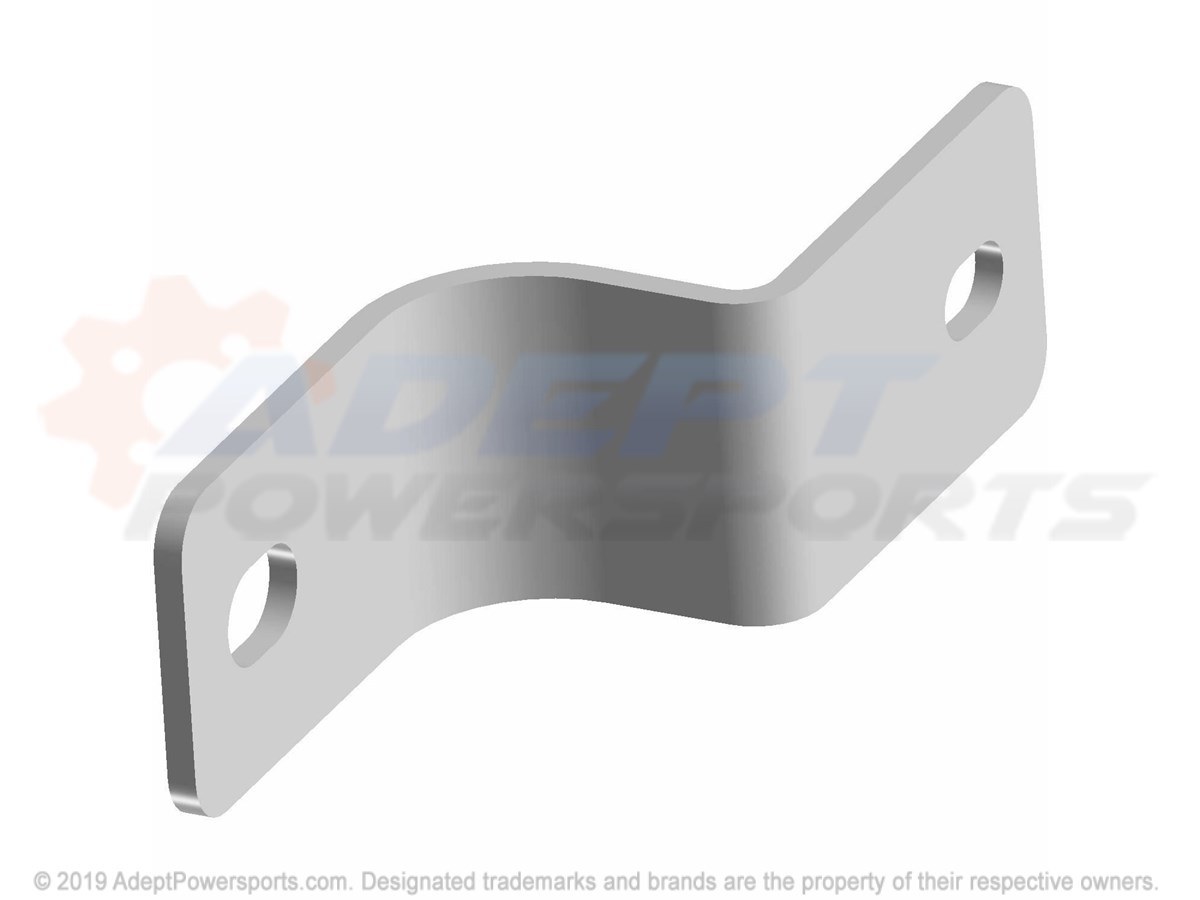

1	BRKT-MOUNT, FENDER, REAR, BLK Part #: 5267571-458 Required per assembly: 2 Currently Not Available

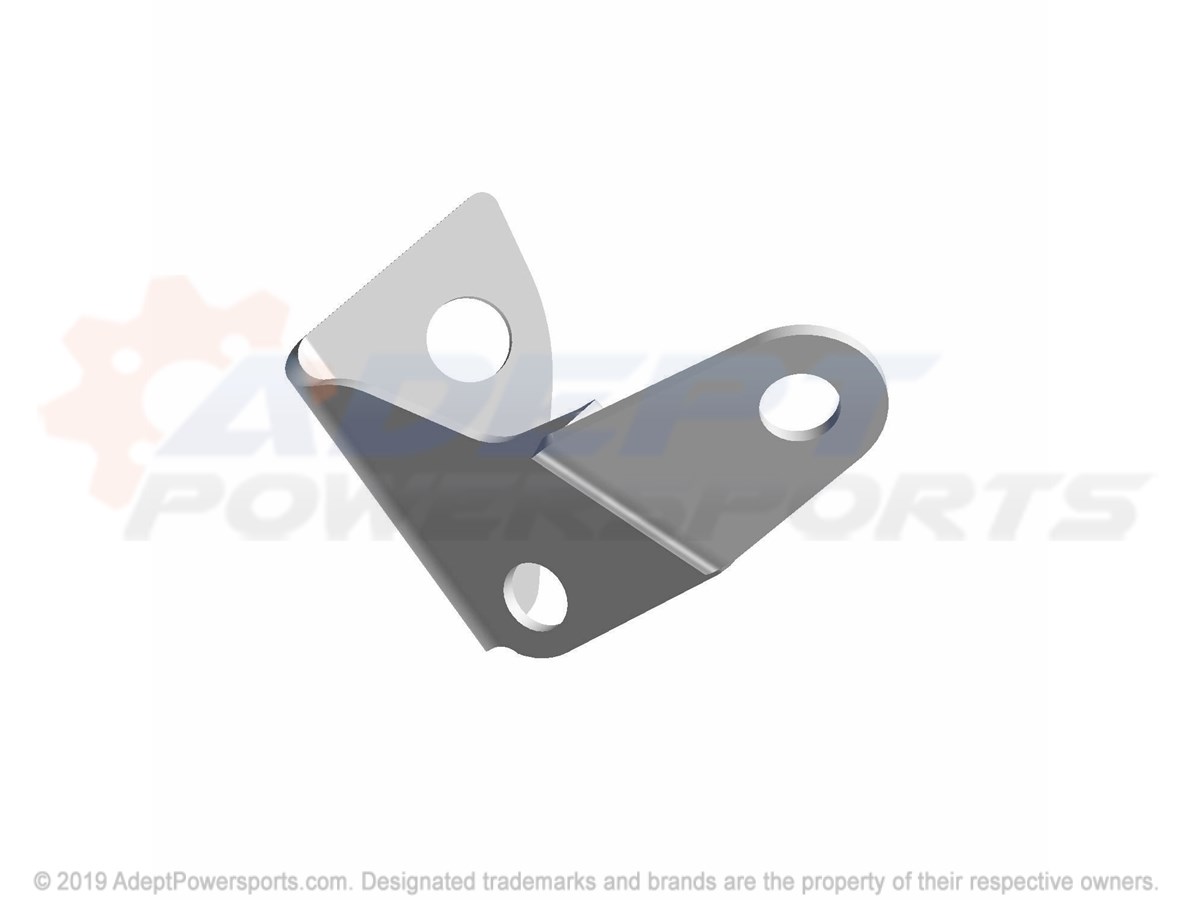

2	BRKT-MNT, REAR, FLARE, LH Part #: 5267827 Required per assembly: 1 Currently Not Available
3	BRKT-MNT, REAR, FLARE, RH Part #: 5267828 Required per assembly: 1 Currently Not Available

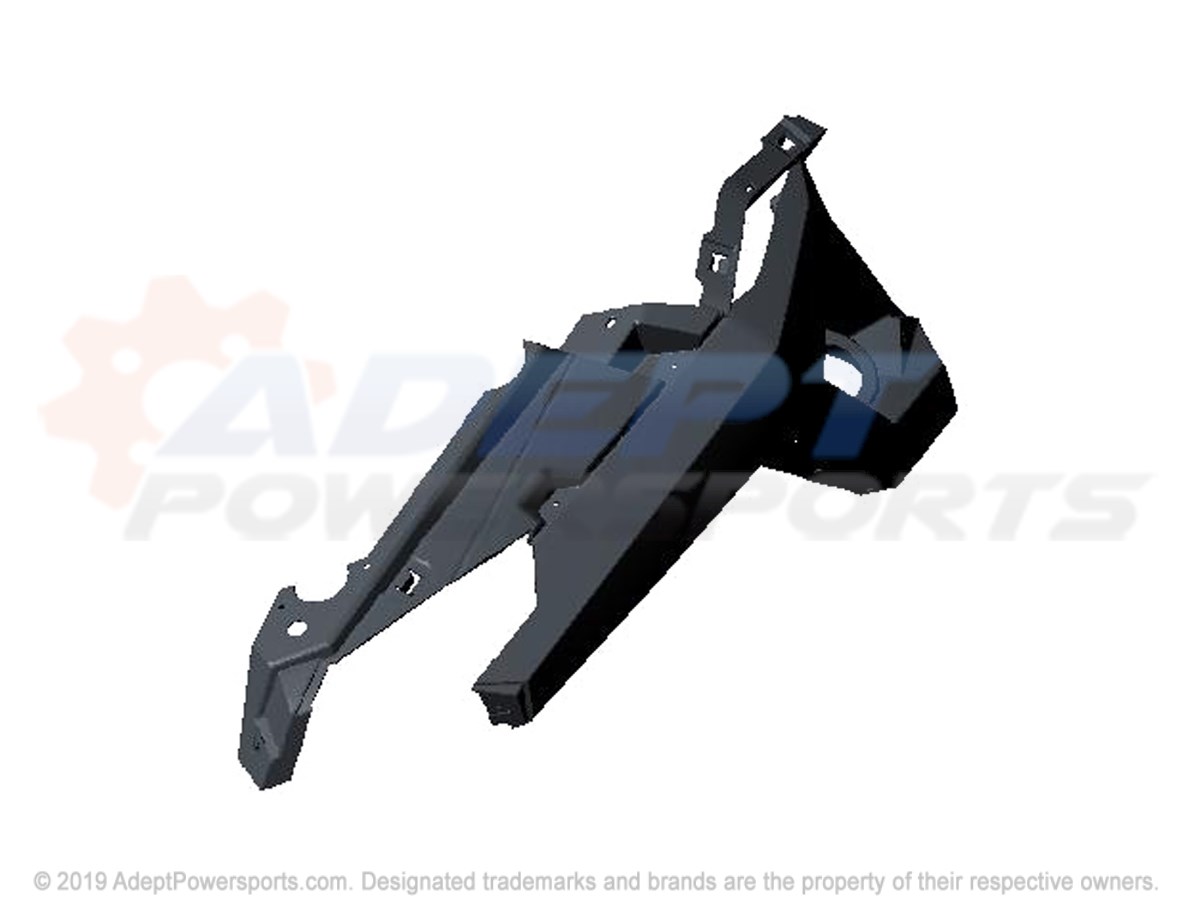

4	FENDER-REAR, FLARE, LH, BLK Part #: 5455186-070 Required per assembly: 1 Currently Not Available
5	FENDER-REAR, FLARE, RH, BLK Part #: 5455187-070 Required per assembly: 1 Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, O.BURST Part #: 5455887-647 Required per assembly: 1 Note: CAE Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, C.YEL Part #: 5455887-517 Required per assembly: 1 Note: CLT Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, WH, LTNG Part #: 5455887-599 Required per assembly: 1 Note: BAC Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, I.RED Part #: 5455887-293 Required per assembly: 1 Note: BAR Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, CR.BLK Part #: 5455887-266 Required per assembly: 1 Note: BAK Currently Not Available
6	FENDER-RR, OUTER, PNT, LH, O.MAD Part #: 5455887-589 Required per assembly: 1 Note: CLE Currently Not Available

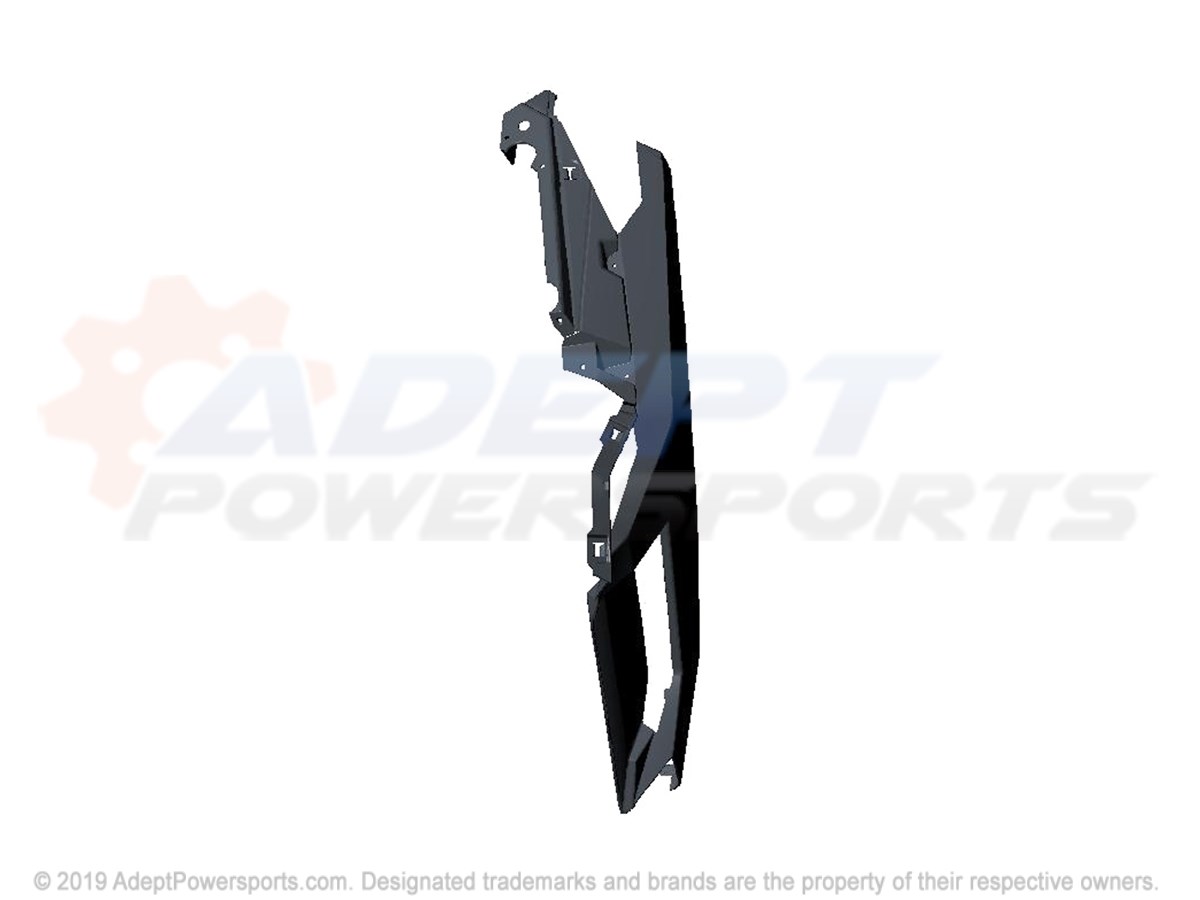

7	FENDER-RR, OUTER, PNT, RH, O.MAD Part #: 5455888-589 Required per assembly: 1 Note: CLE Currently Not Available
7	FENDER-RR, OUTER, PNT, RH, O.BURST Part #: 5455888-647 Required per assembly: 1 Note: CAE Currently Not Available
7	FENDER-RR, OUTER, PNT, RH, CR.BLK Part #: 5455888-266 Required per assembly: 1 Note: BAK Currently Not Available
7	FENDER-RR, OUTER, PNT, RH, I.RED Part #: 5455888-293 Required per assembly: 1 Note: BAR Currently Not Available
7	FENDER-RR, OUTER, PNT, RH, WH, LTNG Part #: 5455888-599 Required per assembly: 1 Note: BAC Currently Not Available
7	FENDER-RR, OUTER, PNT, RH, C.YEL Part #: 5455888-517 Required per assembly: 1 Note: CLT Currently Not Available

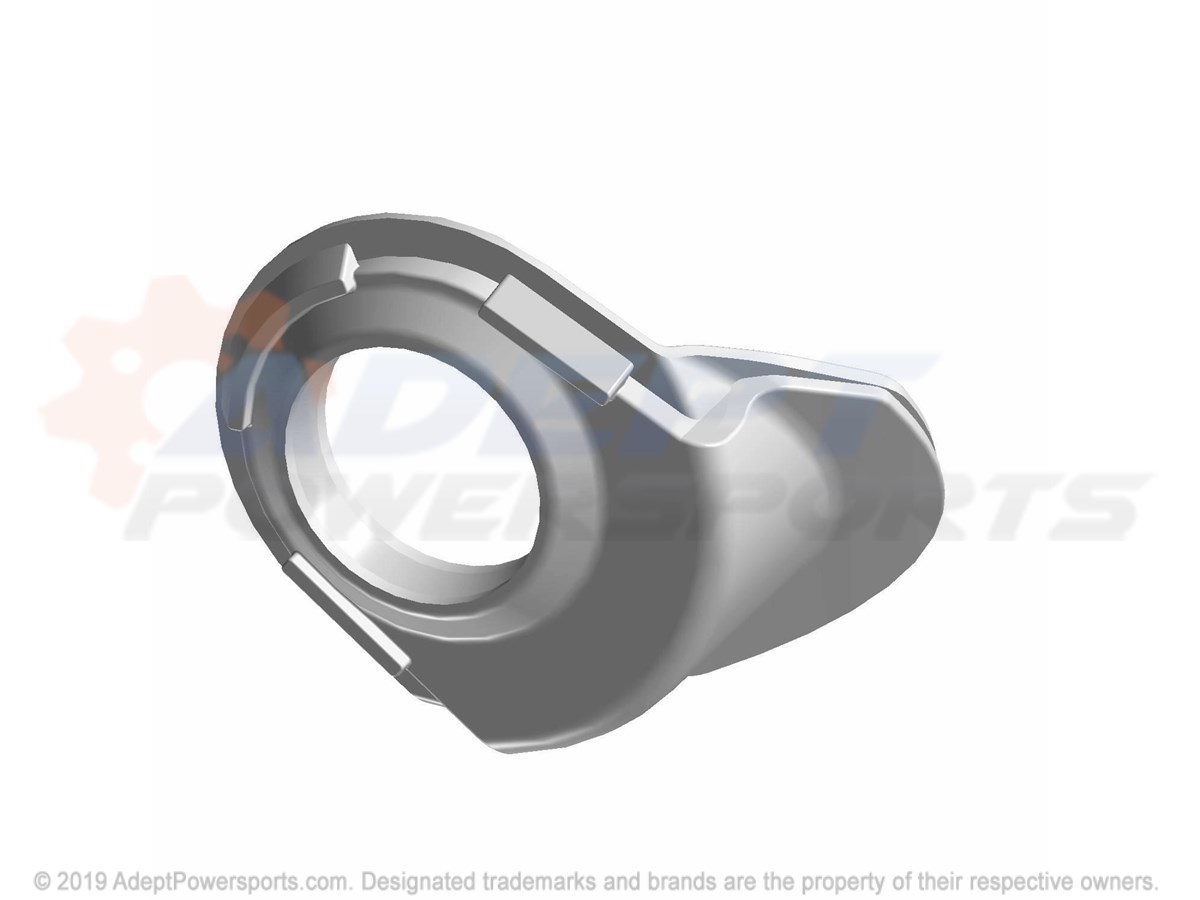

8	GROMMET-SUPPORT, FILL, NECK Part #: 5417052 Required per assembly: 1 Currently Not Available

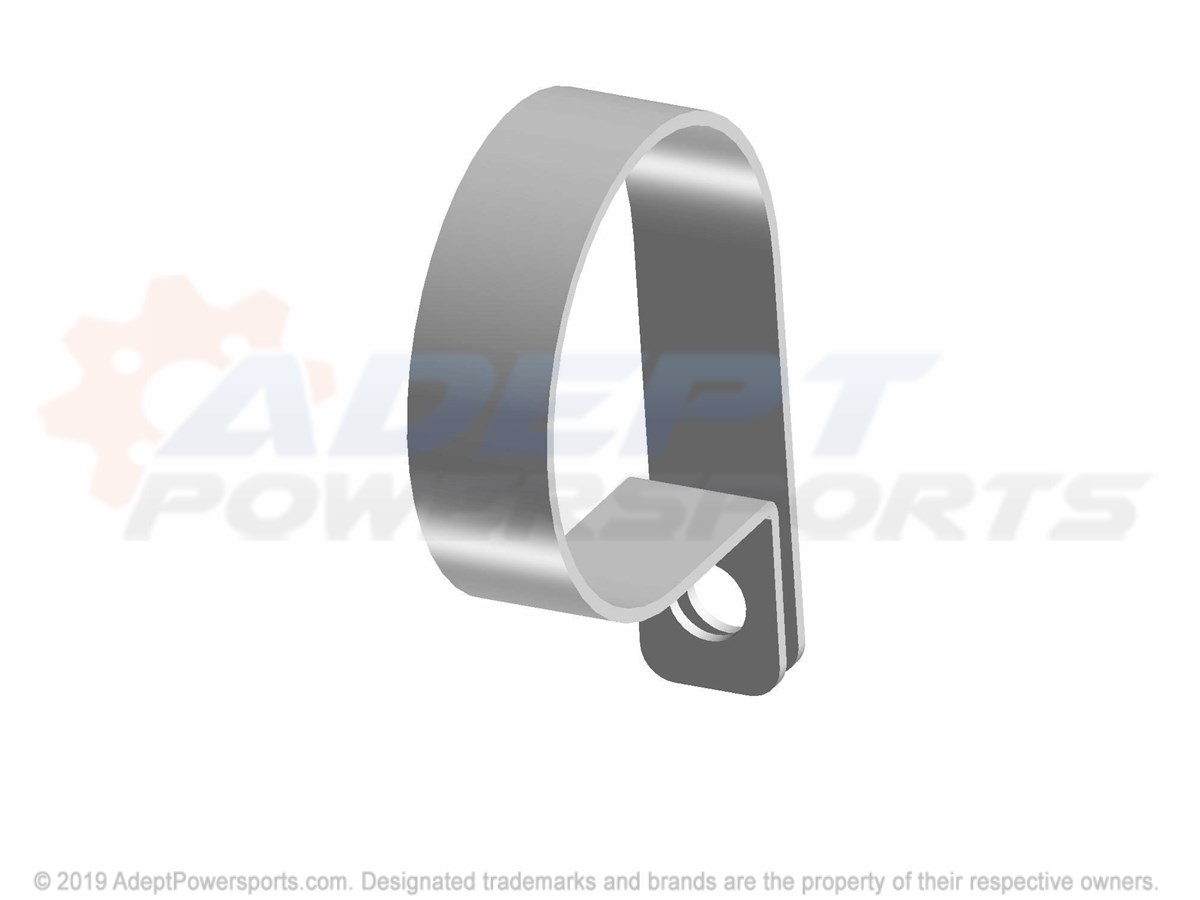

9	CLAMP-P, LARGE Part #: 7082563 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7519650 Currently Not Available
11	SCREW Part #: 7518936 Currently Not Available
12	NUT, U-TYPE Part #: 7547674 ~~$2.99~~ $1.73 - + Add to cart
13	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart

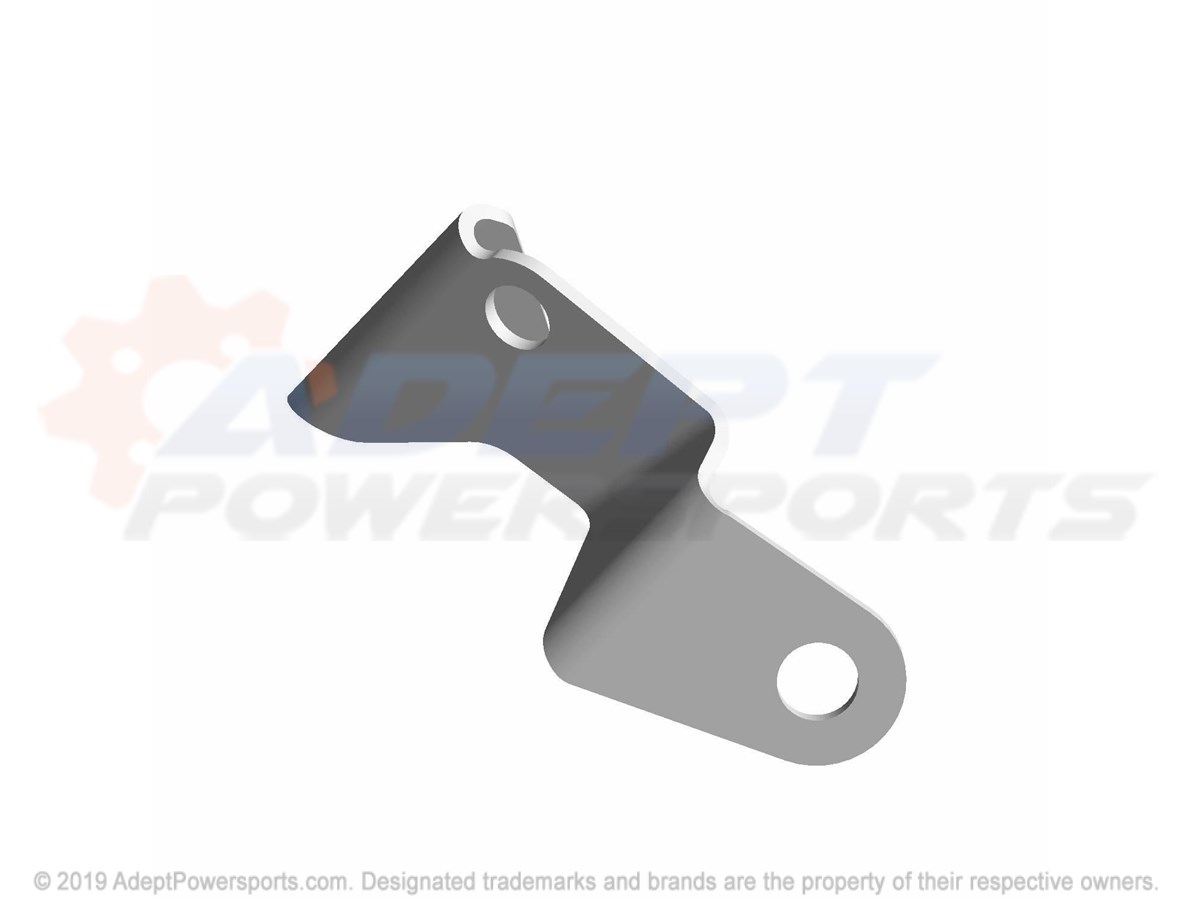

14	BRKT-MNT, FNDR, FLARE, LWR, RR, MP Part #: 5268471 Required per assembly: 2 Currently Not Available
