Front Shock Mounting, Ultimate- Z20r4d92ac/Bc/Lc/Ak/Bk/Ar/Br replacement parts for 2020 Polaris RZR PRO XP 4

OEM Parts Polaris 2020 Polaris RZR PRO XP 4 Front Shock Mounting, Ultimate- Z20r4d92ac/Bc/Lc/Ak/Bk/Ar/Br

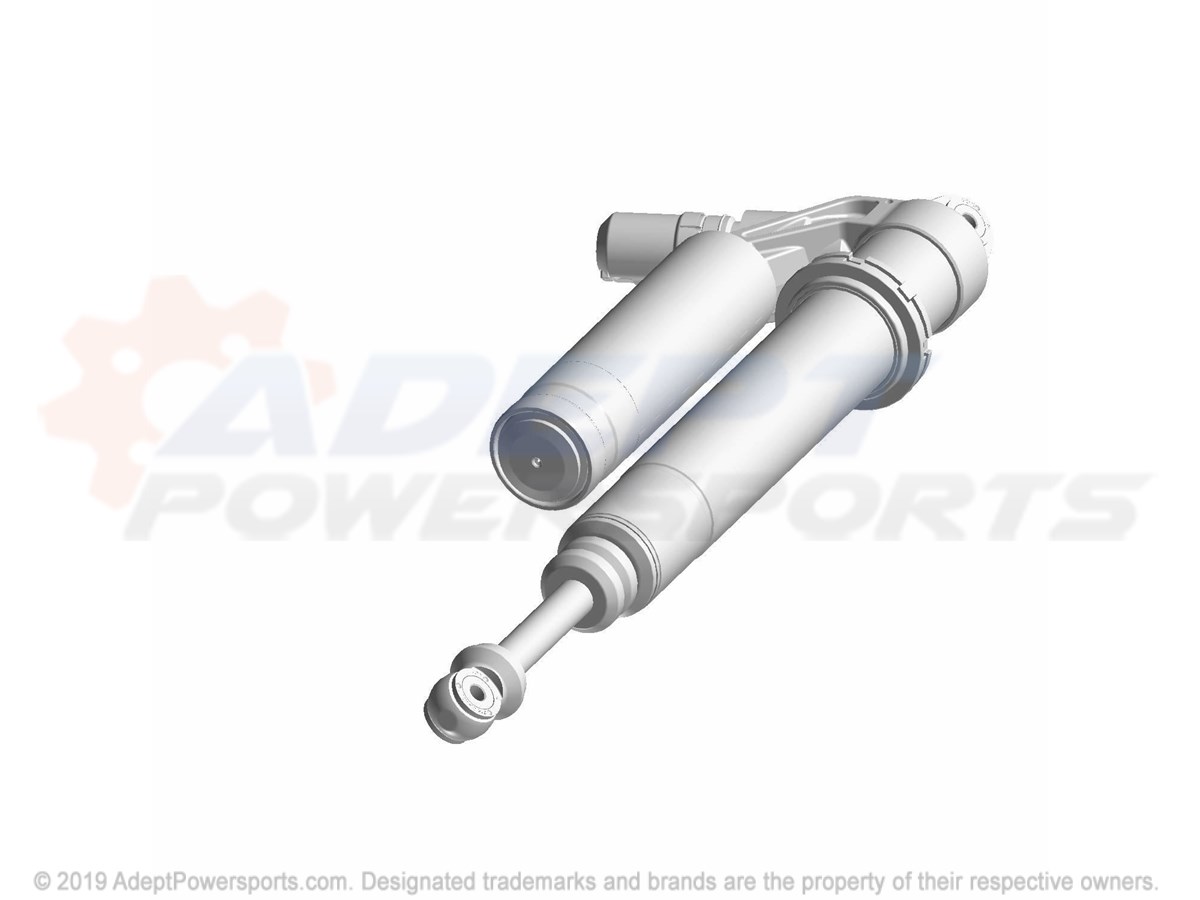

FRONT SHOCK MOUNTING, ULTIMATE- Z20R4D92AC/BC/LC/AK/BK/AR/BR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SPACER-SPRING, 2.5" Part #: 5456620 Required per assembly: 2 Currently Not Available
2	ADAPTER-SPRING 3.5" OD Part #: 5452325 Required per assembly: 2 Currently Not Available
3	SHOCK-FRONT, RH, DX, MP Part #: 7045438 Required per assembly: 1 Currently Not Available
3	SHOCK-FRONT, LH, DX, MP Part #: 7045830 Required per assembly: 1 Currently Not Available
4	SP-335#, 15.25FL, 3.04-3.04ID, RD Part #: 7045497-293 Required per assembly: 2 Note: DAR Currently Not Available
4	SP-335#, 15.25FL, 3.04-3.04ID, BL Part #: 7045497-751 Required per assembly: 2 Note: DAC Currently Not Available
4	SP-335#, 15.25FL, 3.04-3.04ID, MS Part #: 7045497-705 Required per assembly: 2 Note: DAK Currently Not Available
5	SPG-600#, 3.98FL, 3.04X3.04ID, MS Part #: 7045082-705 Required per assembly: 2 Note: DAK Currently Not Available
5	SPG-600#, 3.98FL, 3.04X3.04ID, RD Part #: 7045082-293 Required per assembly: 2 Note: DAR Currently Not Available
5	SPG-600#, 3.98FL, 3.04X3.04ID, BL Part #: 7045082-751 Required per assembly: 2 Note: DAC Currently Not Available
6	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
9	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available
