BRAKE LINES AND MASTER CYLINDER - Z20R4_92AC/BC/AE/BE/AK/BK/AR/BR/AH/BH/AT/BT/LE/LT/LC Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
2	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
3	ASM-MASTER, CYL, TANDEM, 3-4BORE Part #: 1913289 Required per assembly: 1 Currently Not Available

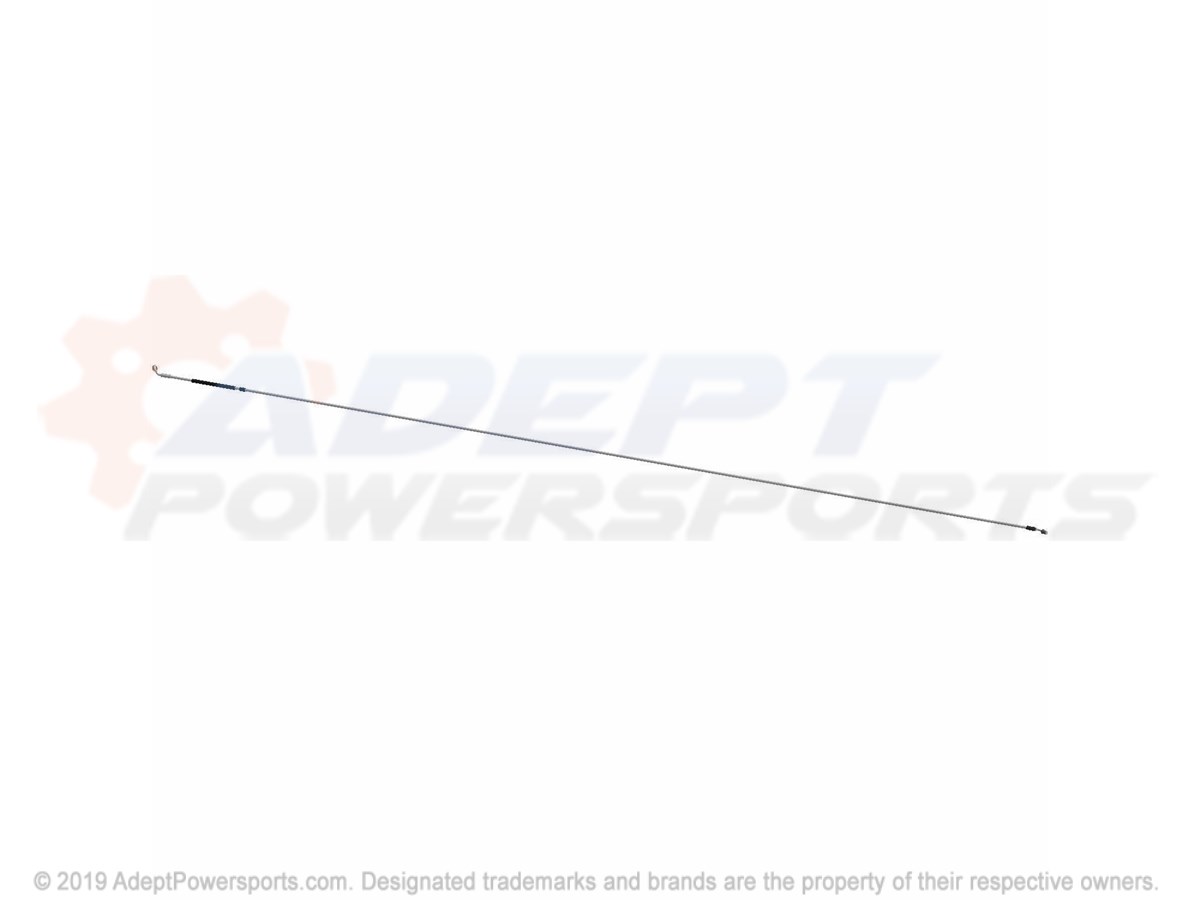

4	LINE-BRK, FL Part #: 1913453 Required per assembly: 1 Currently Not Available

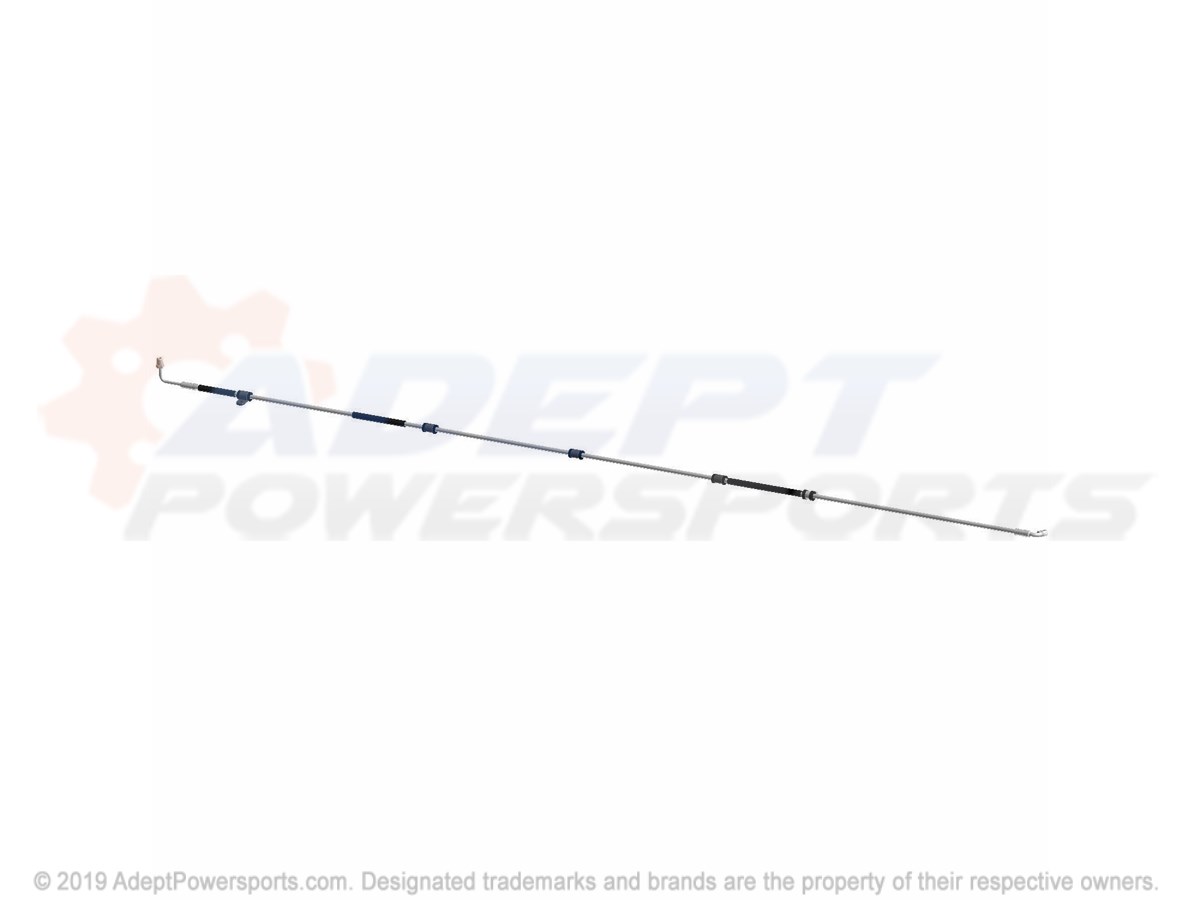

5	LINE-BRK, FR Part #: 1913477 Required per assembly: 1 Currently Not Available
6	LINE-BRK, RL, 60, 90F, 90D75B, 106? Part #: 1913557 Required per assembly: 1 Currently Not Available
7	LINE-BRK, RR Part #: 1913558 Required per assembly: 1 Currently Not Available

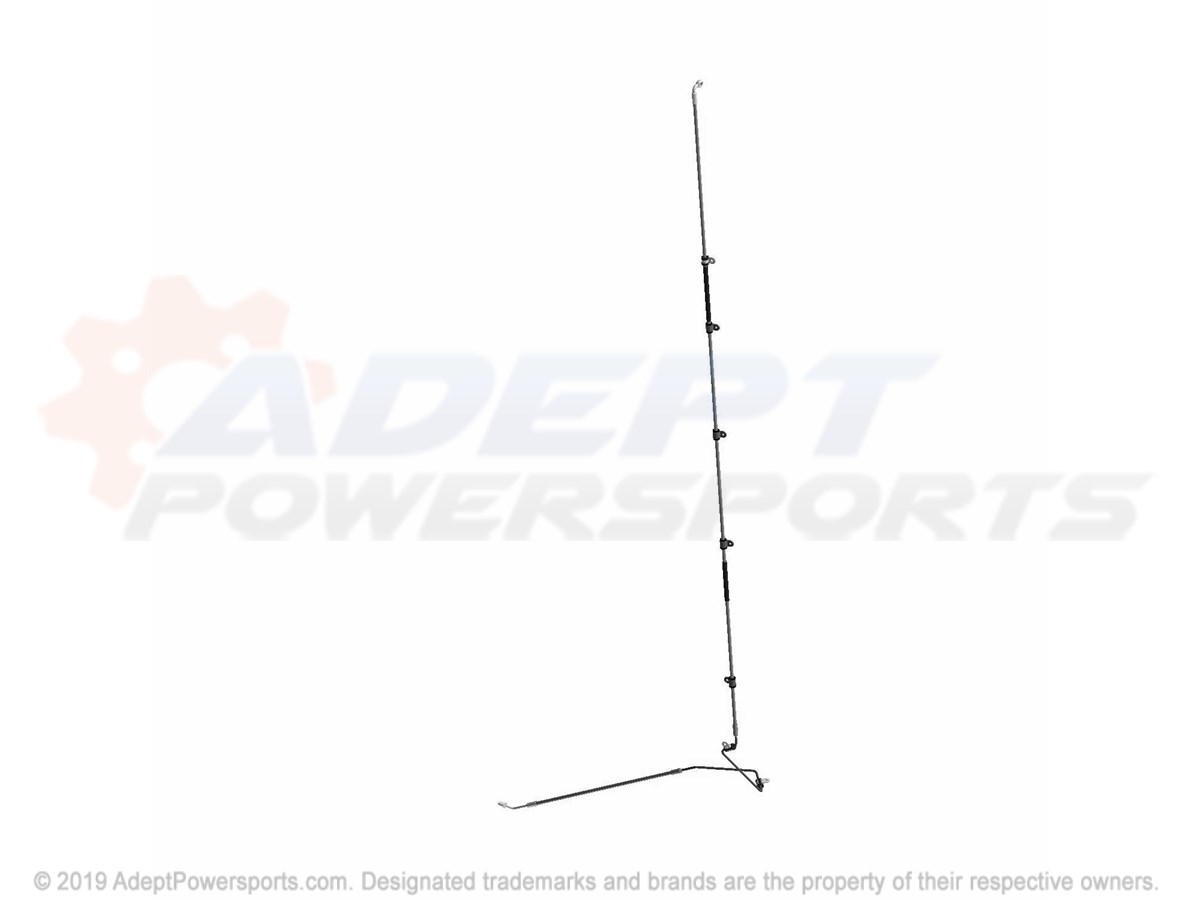

8	LINE-BRK, MCT, 100, 70B, 20F, 270? Part #: 1913244 Required per assembly: 1 Currently Not Available
9	SWITCH-BRK, M10X1.25, DBL Part #: 4081117 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available

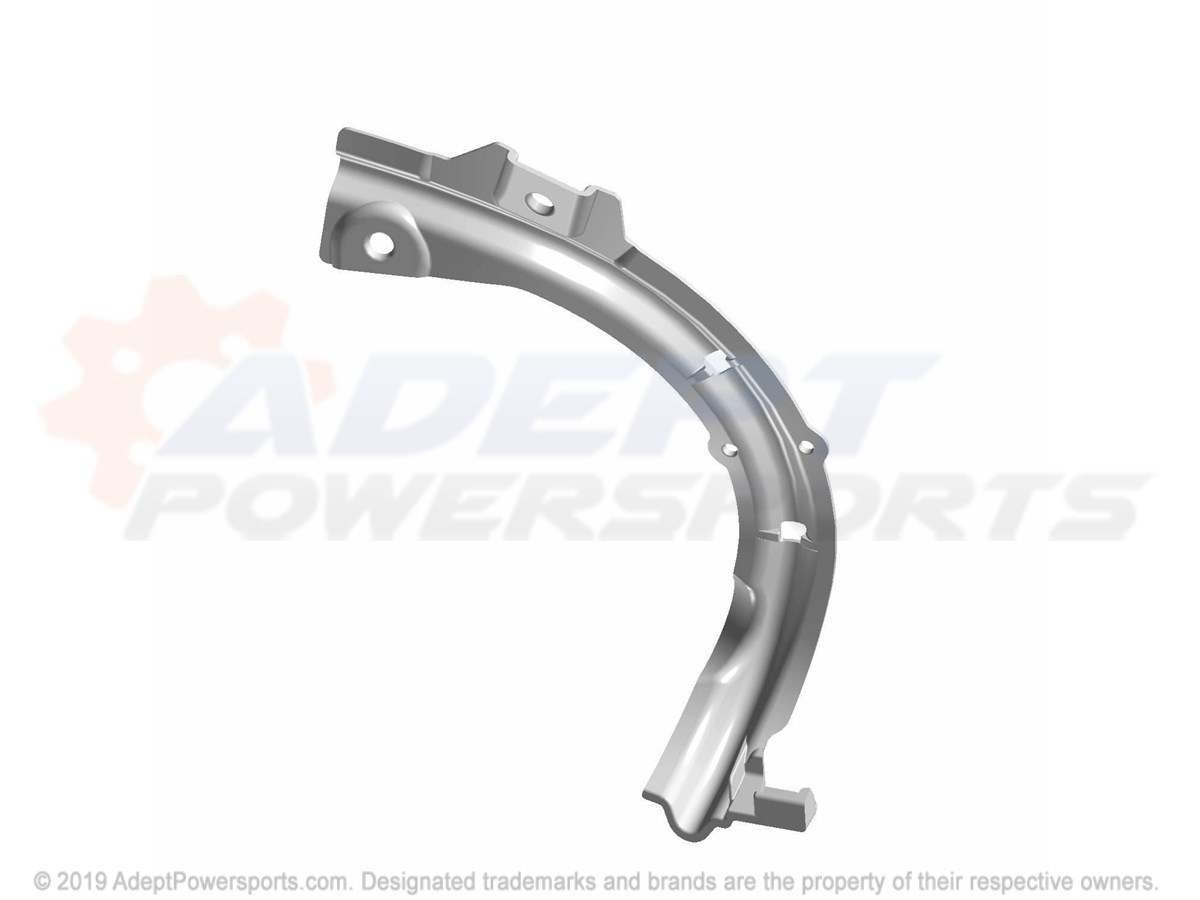

12	GUIDE, BRAKE, LINE, REAR, LH Part #: 5455385 Required per assembly: 1 Currently Not Available

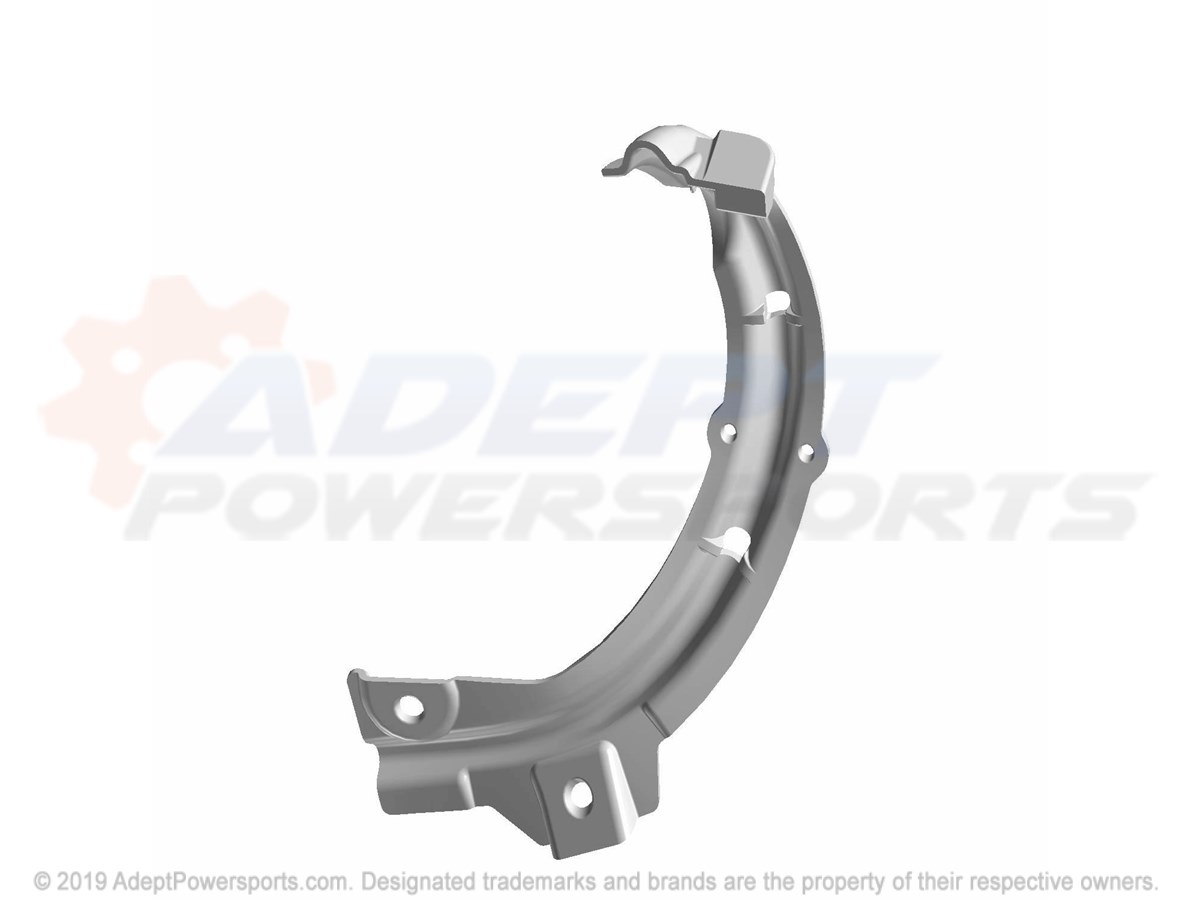

13	GUIDE, BRAKE, LINE, REAR, RH Part #: 5455386 Required per assembly: 1 Currently Not Available

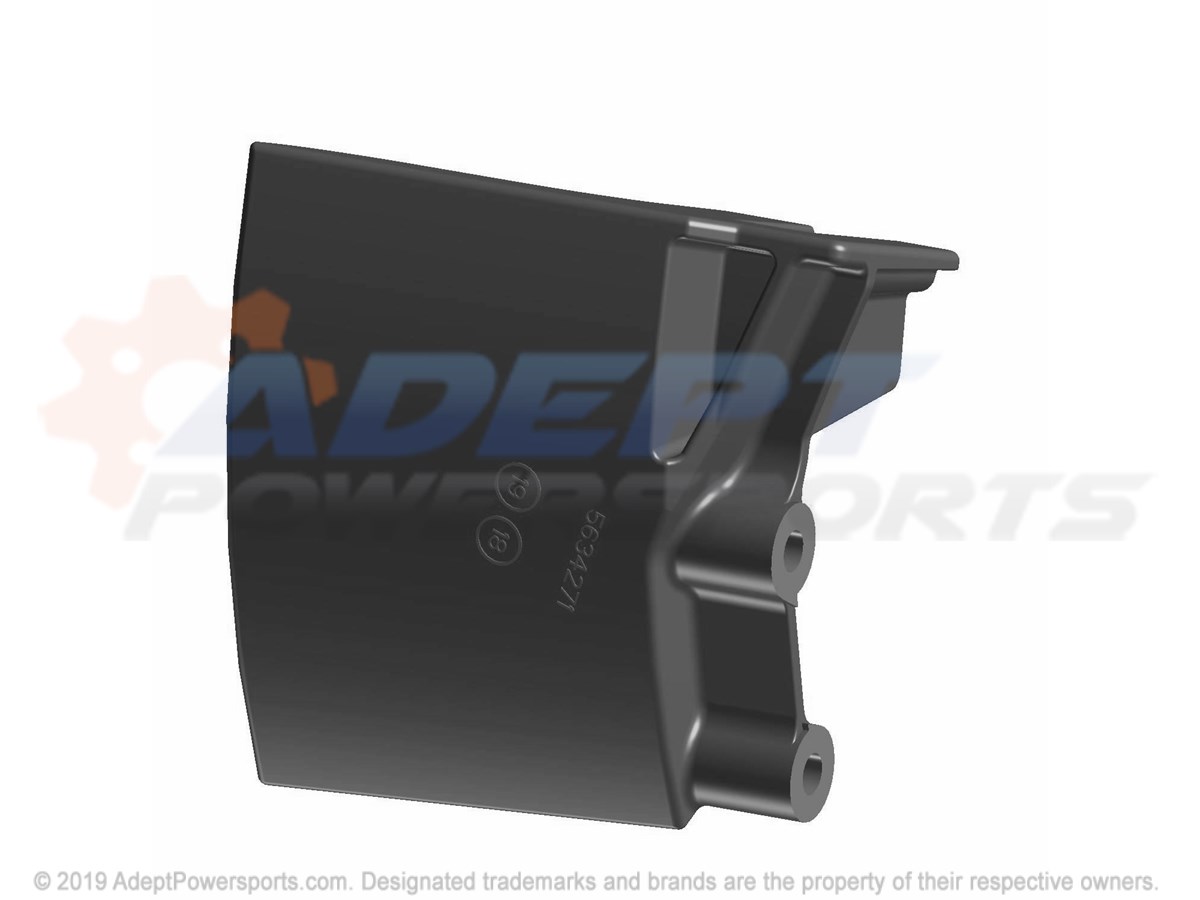

14	SCRAPER, RZR, T, F262, LH Part #: 5634271 Required per assembly: 1 Currently Not Available

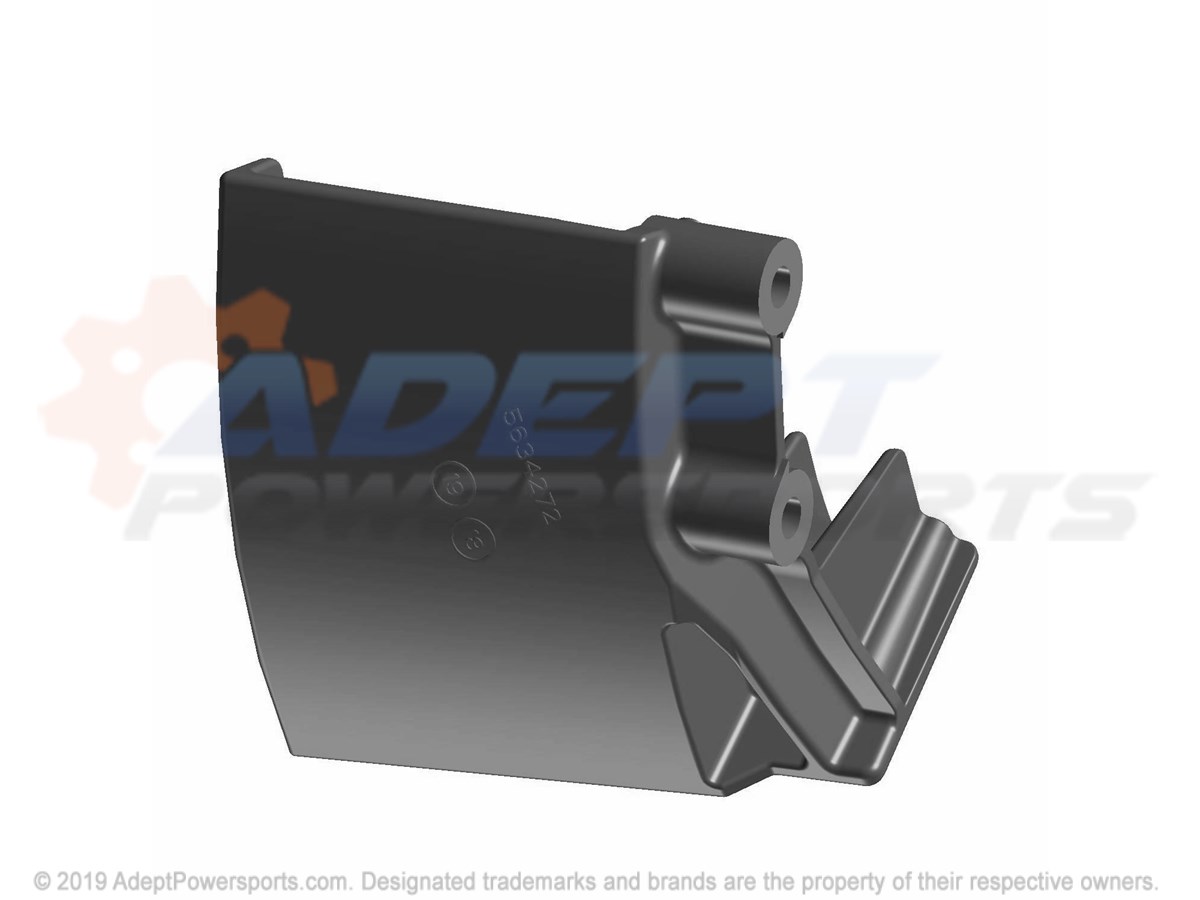

15	SCRAPER, RZR, T, F262, RH Part #: 5634272 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7516823 Required per assembly: 4 Currently Not Available
18	SCREW, FLANGE Part #: 7518559 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
19	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
20	SCREW Part #: 7519280 Required per assembly: 4 Currently Not Available
21	SCREW, FLANGE Part #: 7519298 Required per assembly: 2 Currently Not Available
22	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
23	NUT, FLANGE Part #: 7547453 Required per assembly: 4 Currently Not Available

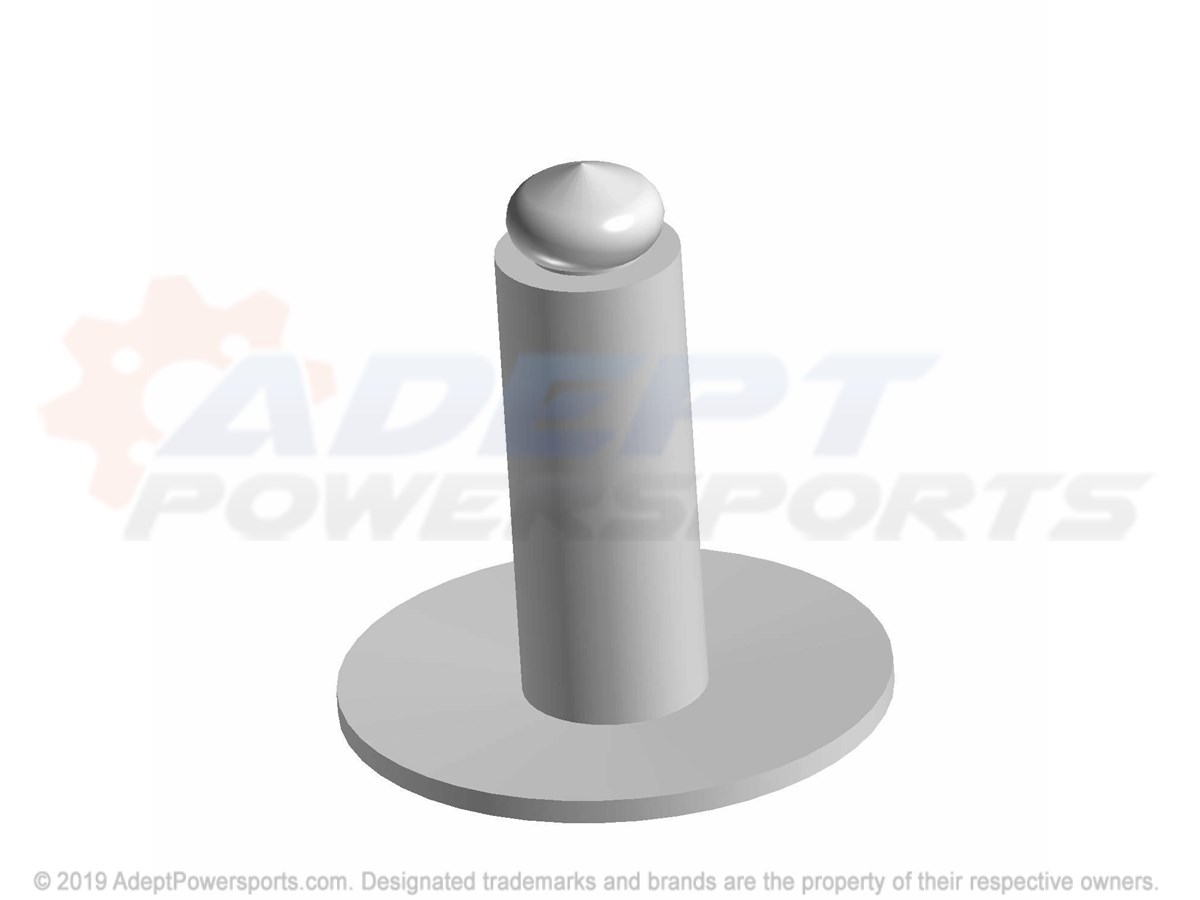

24	CLIP-NYLON, C, FIR-TREE Part #: 7662310 Required per assembly: 14 ~~$3.99~~ $2.30 - + Add to cart
25	RIVET-POP 5/32(.188-.250)-LF-B Part #: 7662408 Required per assembly: 19 Currently Not Available
