OEM Parts Polaris 2020 Polaris RZR PRO XP 4 Caliper, Front - Z20r4_92Ac/Bc/Ae/Be/Ak/Bk/Ar/Br/Ah/Bh/At/Bt/Le/Lt/Lc

2020 Polaris RZR PRO XP 4 Z20R4_92AC/BC/AK/BK/AR/BR/LE/LT/LC/AH/BH/AT/BT - Caliper, Front - Z20r4_92Ac/Bc/Ae/Be/Ak/Bk/Ar/Br/Ah/Bh/At/Bt/Le/Lt/Lc

CALIPER, FRONT - Z20R4_92AC/BC/AE/BE/AK/BK/AR/BR/AH/BH/AT/BT/LE/LT/LC Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

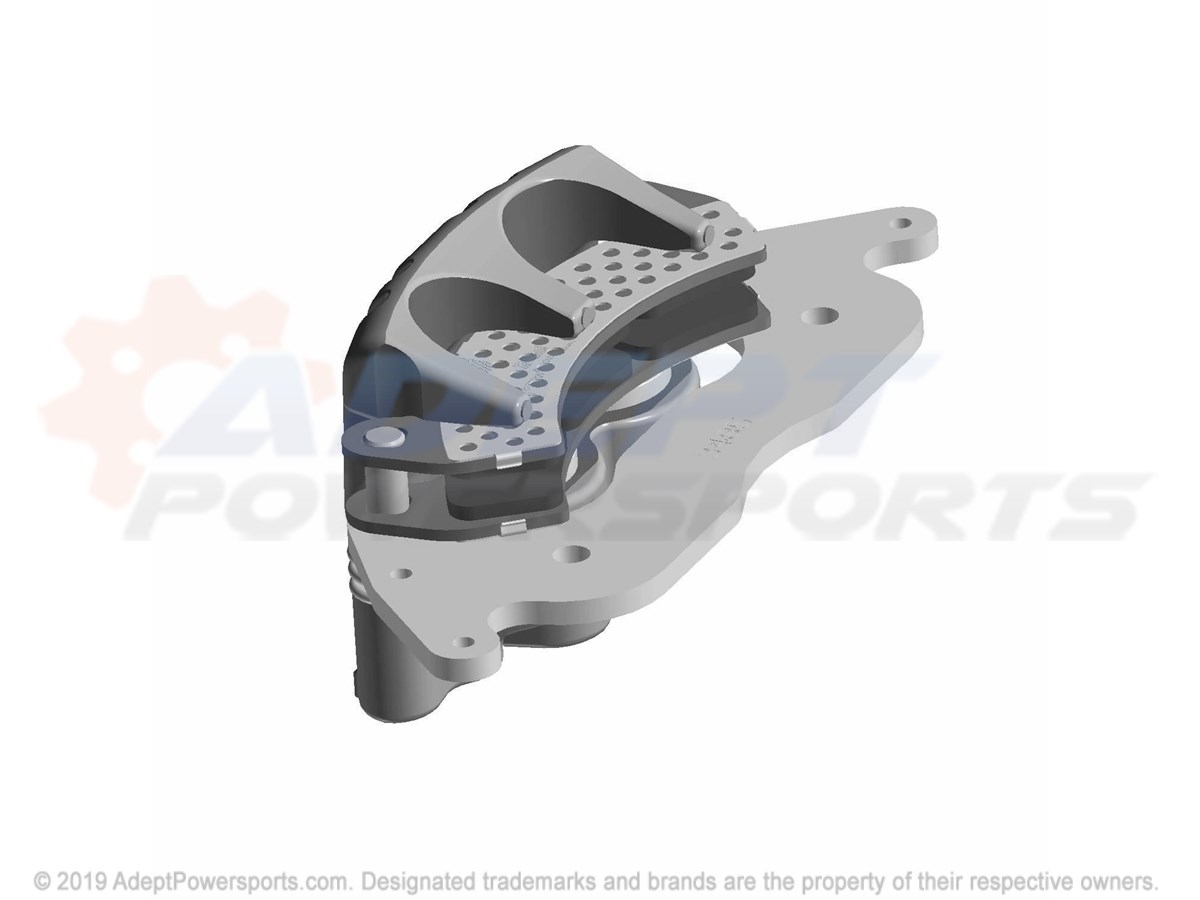

Polaris 1913468 Asm-Brk-Cal-Fr-2Xl 1-5Db

ASM-BRK-CAL-FR-2XL 1-5DB

Part #: 1913468 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
1

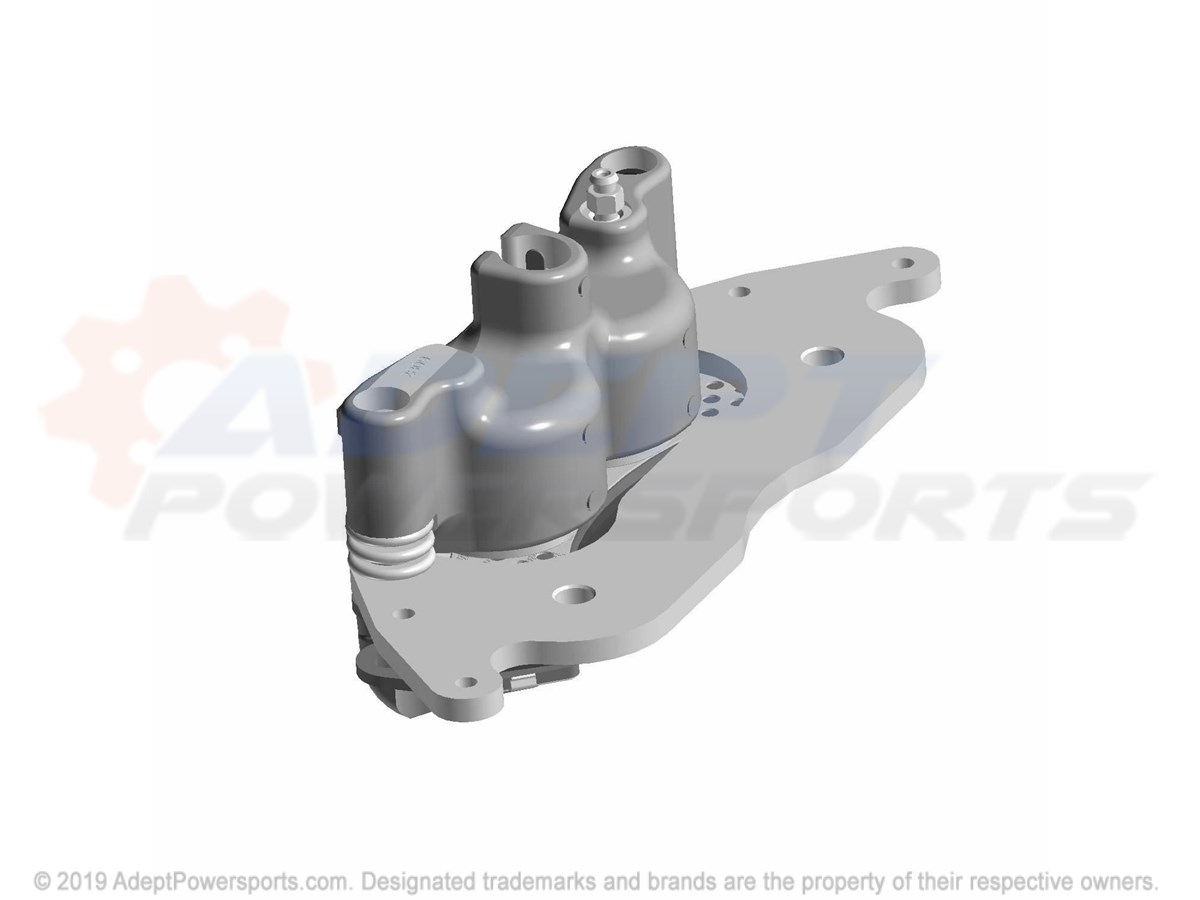

Polaris 1913467 Asm-Brk-Cal-Fl-2Xl 1-5Db

ASM-BRK-CAL-FL-2XL 1-5DB

Part #: 1913467 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

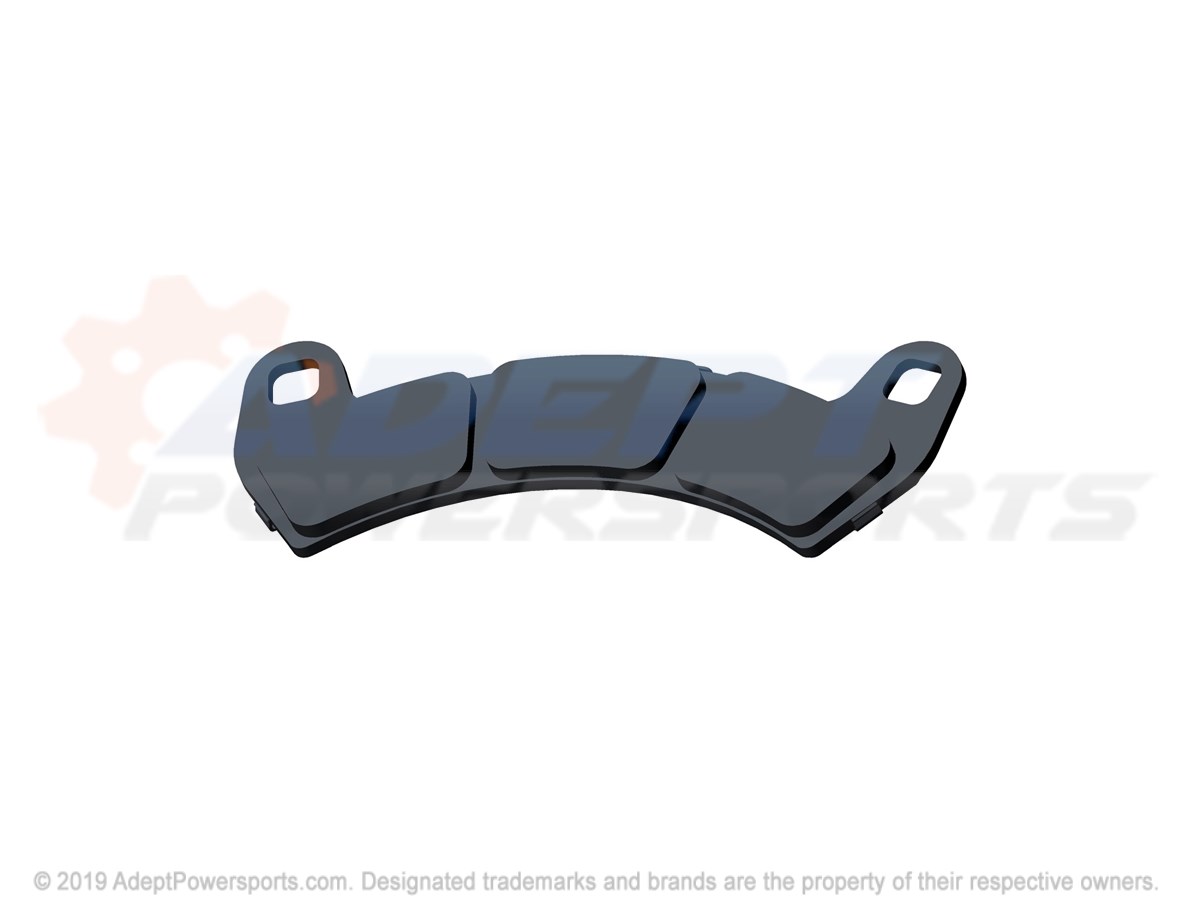

Polaris 1913469 Asm-Brakepad, Himu

ASM-BRAKEPAD, HIMU

Part #: 1913469 Required per assembly: 2
Currently Not Available
3

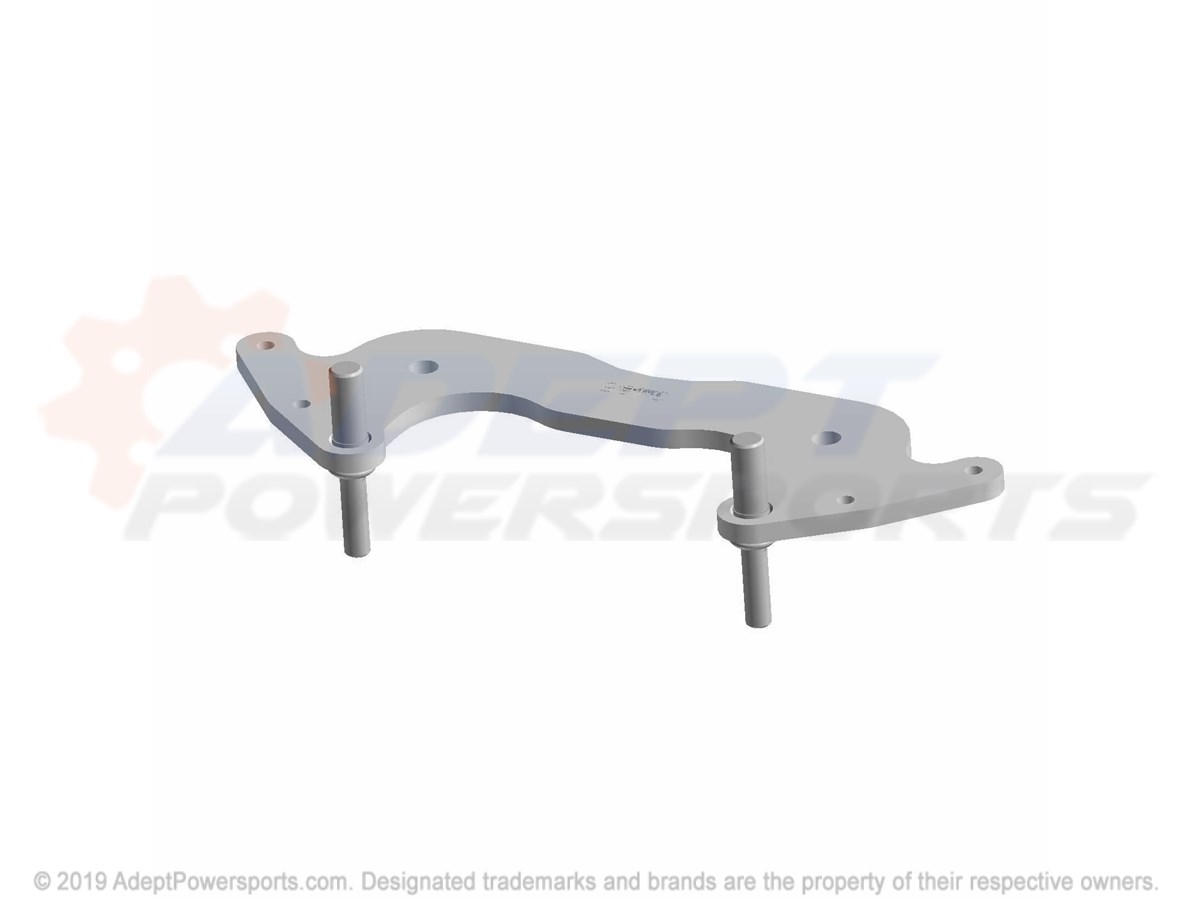

Polaris 1913485 Asm-Cal/Mnt, 2Xl, 262

ASM-CAL/MNT, 2XL, 262

Part #: 1913485 Required per assembly: 2
Currently Not Available
4
Polaris 5143050 Piston-Clpr, 1.5", Ss, 303

PISTON-CLPR, 1.5", SS, 303

Part #: 5143050 Required per assembly: 4
Currently Not Available
5
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 2
Currently Not Available
6
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 2
Currently Not Available
7

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 2
Currently Not Available
8
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 2
Currently Not Available
9
Polaris 5412010 Seal, Caliper, Inner

SEAL, CALIPER, INNER

Part #: 5412010 Required per assembly: 8
Currently Not Available
