Brake Lines replacement parts for 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01)

OEM Parts Polaris 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01) Brake Lines

BRAKE LINES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	LINE-BRK, MCT Part #: 1913830 Required per assembly: 1 Currently Not Available
2	LINE-BRK, FL, SP Part #: 1913746 Required per assembly: 1 Currently Not Available
3	LINE-BRK, FR, SP Part #: 1913747 Required per assembly: 1 Currently Not Available
4	LINE-BRK, TMC Part #: 1913744 Required per assembly: 1 Currently Not Available
5	LINE-BRK, RR Part #: 1913745 Required per assembly: 1 Currently Not Available
6	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart

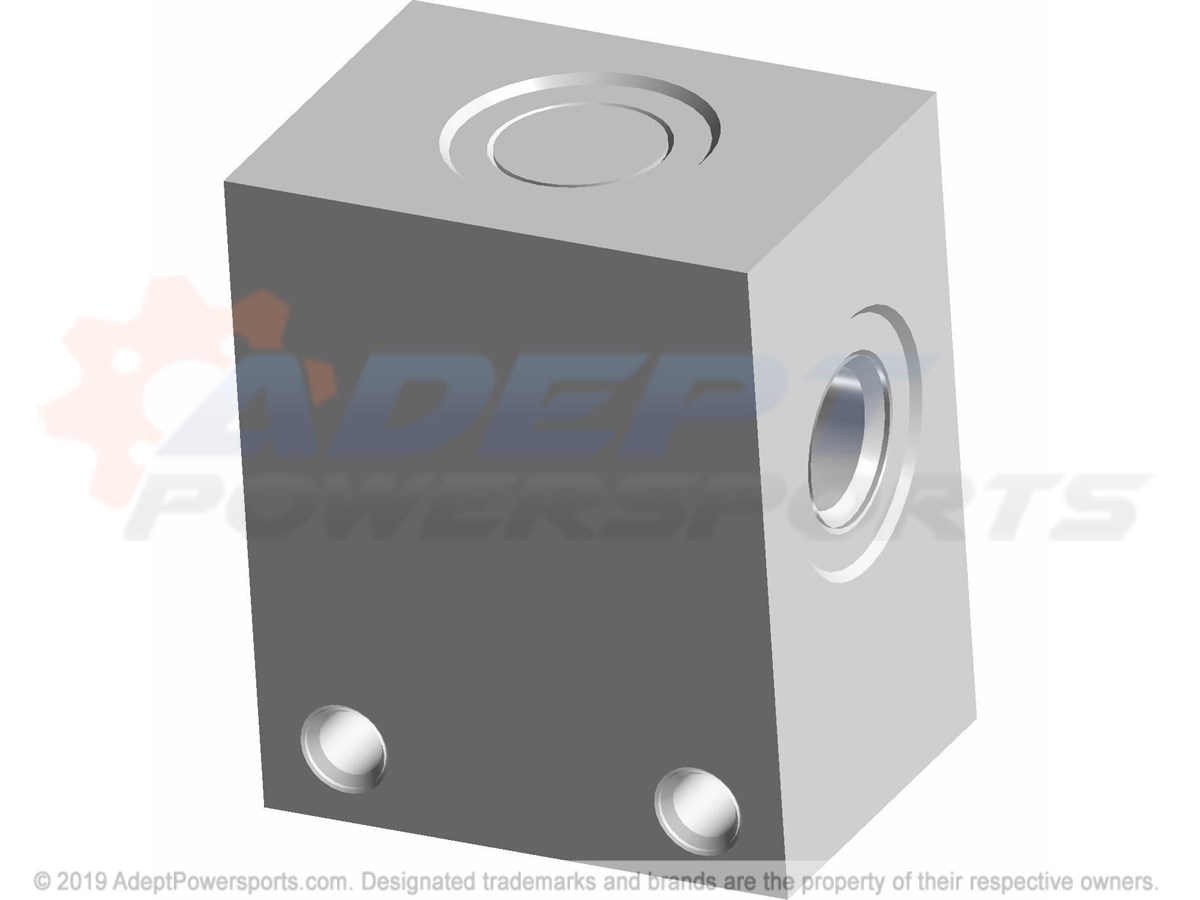

7	FITTING-CROSS, BRK, 4-WAY, BANJO Part #: 7052708 Required per assembly: 1 Currently Not Available
8	BOLT, BANJO Part #: 1910958 Required per assembly: 2 Currently Not Available
9	BRAKE, SWITCH, REPAIR, FOOT Part #: 2890648 Required per assembly: 1 Note: FOR USE WITH FOOT MASTER CYLINDER Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 14 ~~$9.99~~ $5.85 - + Add to cart
11	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
12	CLIP-P, W/CUSHION, BLACK, VINYL Part #: 7082067 Required per assembly: 2 Currently Not Available
13	CLAMP, VINYL, COATED Part #: 7081854 Required per assembly: 1 Currently Not Available
14	NUT, NYLOK Part #: 7547025 Required per assembly: 2 Note: Nut, Nylok [If built before 8/15/02] Currently Not Available
15	SCREW Part #: 7512084 Required per assembly: 5 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
16	RIVET, 3/16X.402 Part #: 7621432 Required per assembly: 2 Note: Sold in multiples of 50 only Currently Not Available
17	CLIP-NYLON, FIR-TREE, 7.0 Part #: 7662429 Required per assembly: 6 Currently Not Available
