A-Arm Mounting replacement parts for 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01)

OEM Parts Polaris 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01) A-Arm Mounting

A-ARM MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCR-HXFL-M10X1.25X90 10.9 ZOD Part #: 7521024 Required per assembly: 8 Currently Not Available
2	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart

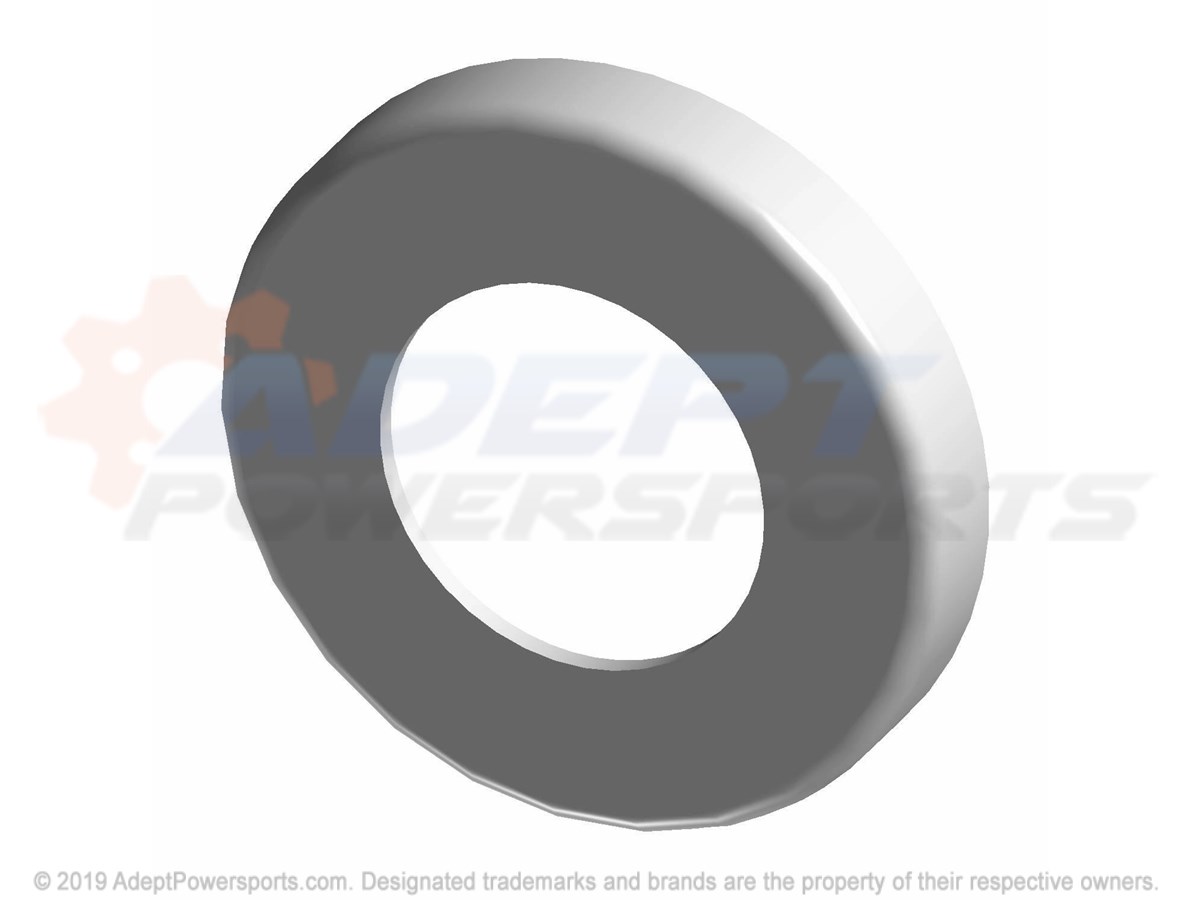

3	WASHER-CAP, SUSP, ID, 28.8 Part #: 7557210 Required per assembly: 4 Currently Not Available

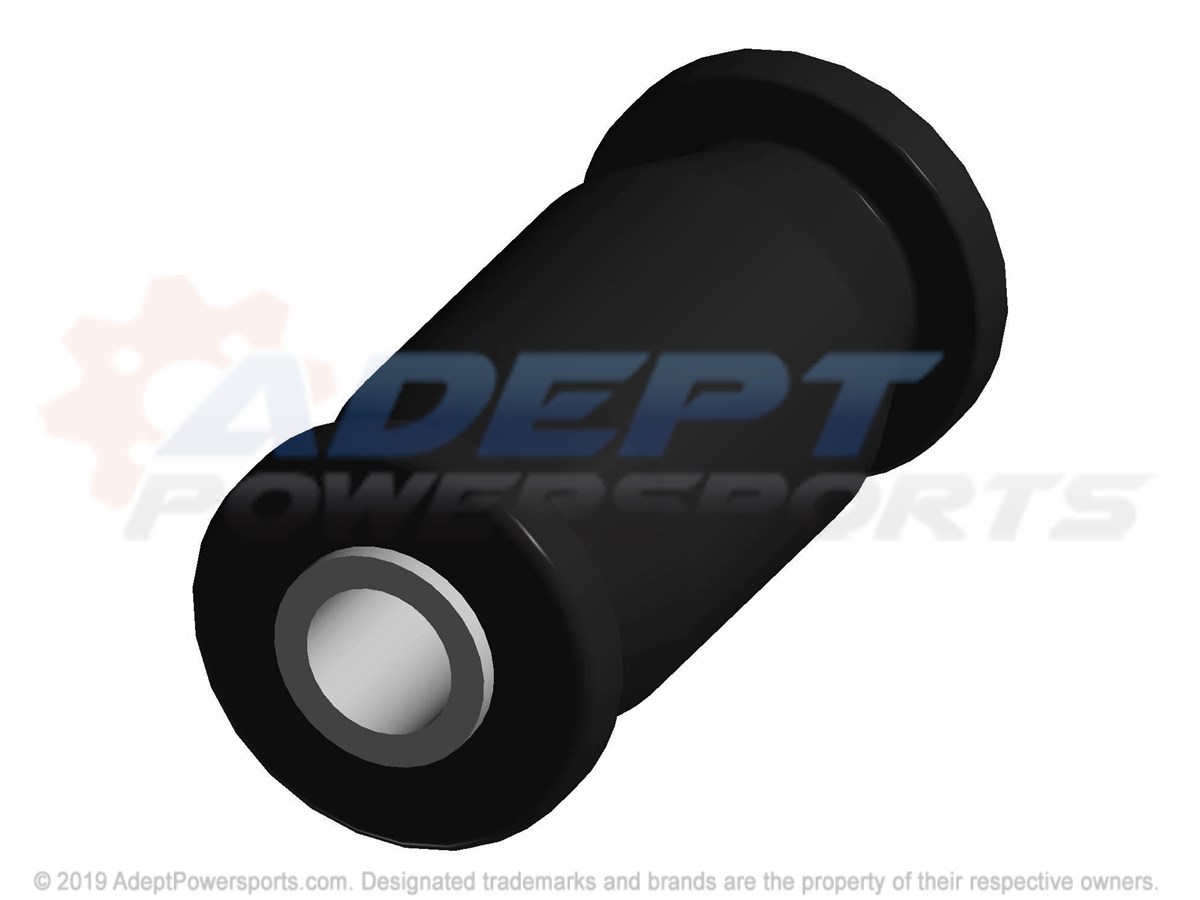

4	BUSHING-SUSPENSION, RUBBER Part #: 5417111 Required per assembly: 2 Currently Not Available
5	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
