Winch replacement parts for 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01)

OEM Parts Polaris 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01) Winch

WINCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
1	K-WINCH, SWITCH, HBR, EU, ATV Part #: 2207175 Required per assembly: 1 Note: INCL. HOUSING, SWITCH, & SCREWS Currently Not Available
1	SWITCH-HBR, EU, ATV Part #: 4017111 Required per assembly: 1 Currently Not Available
3	ASM-WINCH, 2.5, BAS, SAP Part #: 2638071 Required per assembly: 1 Note: INCL. 2-10,13-14, QTY 4 OF 15,17 Currently Not Available

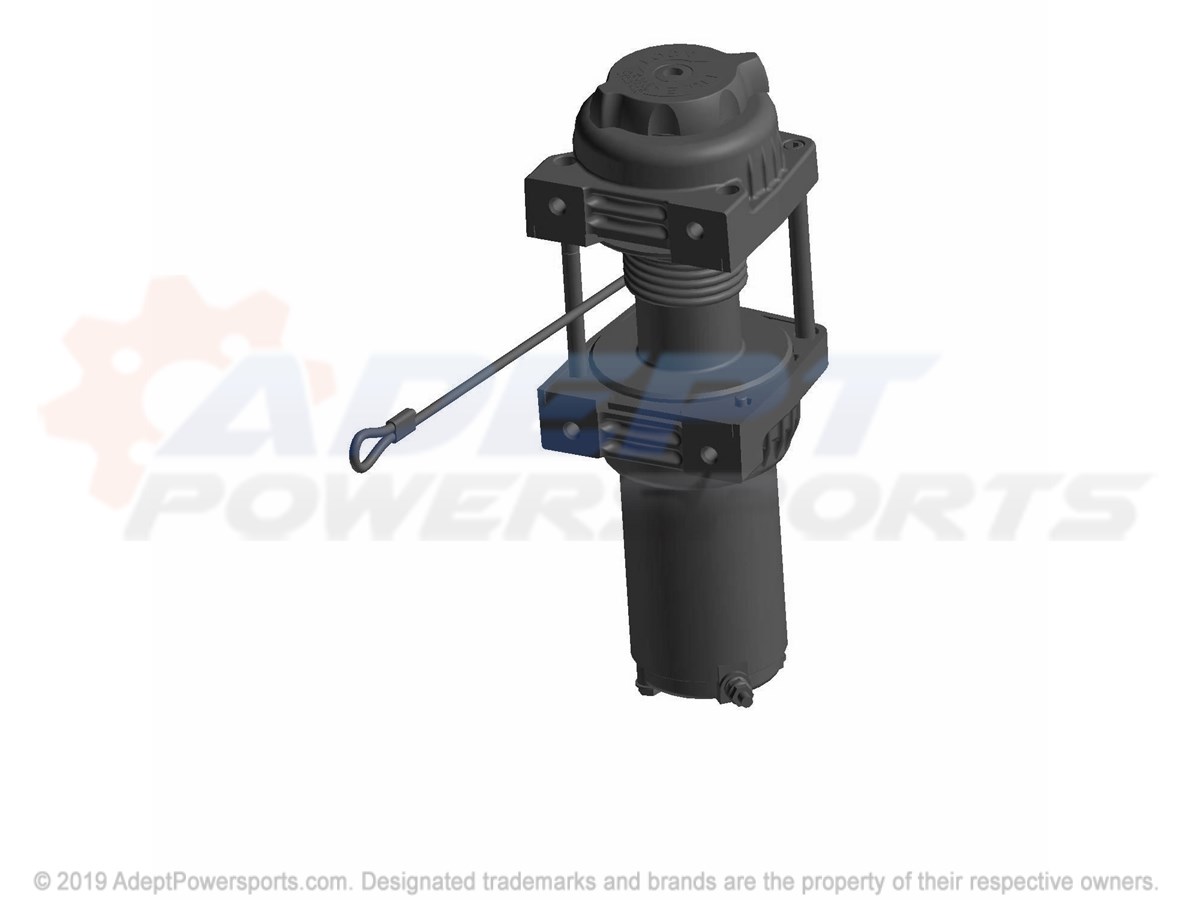

3	WINCH-POL2500, BT Part #: 2206563 Required per assembly: 1 Currently Not Available
4	HOOK-LATCH, WINCH, ULT, CMN Part #: 5910705 Required per assembly: 1 Currently Not Available
5	ASM-FAIRLEAD, ROLLER, LOWPRO, NRW Part #: 2638130 Required per assembly: 1 Currently Not Available
6	CABLE, WINCH, STEEL Part #: 2878890 Required per assembly: 1 Currently Not Available

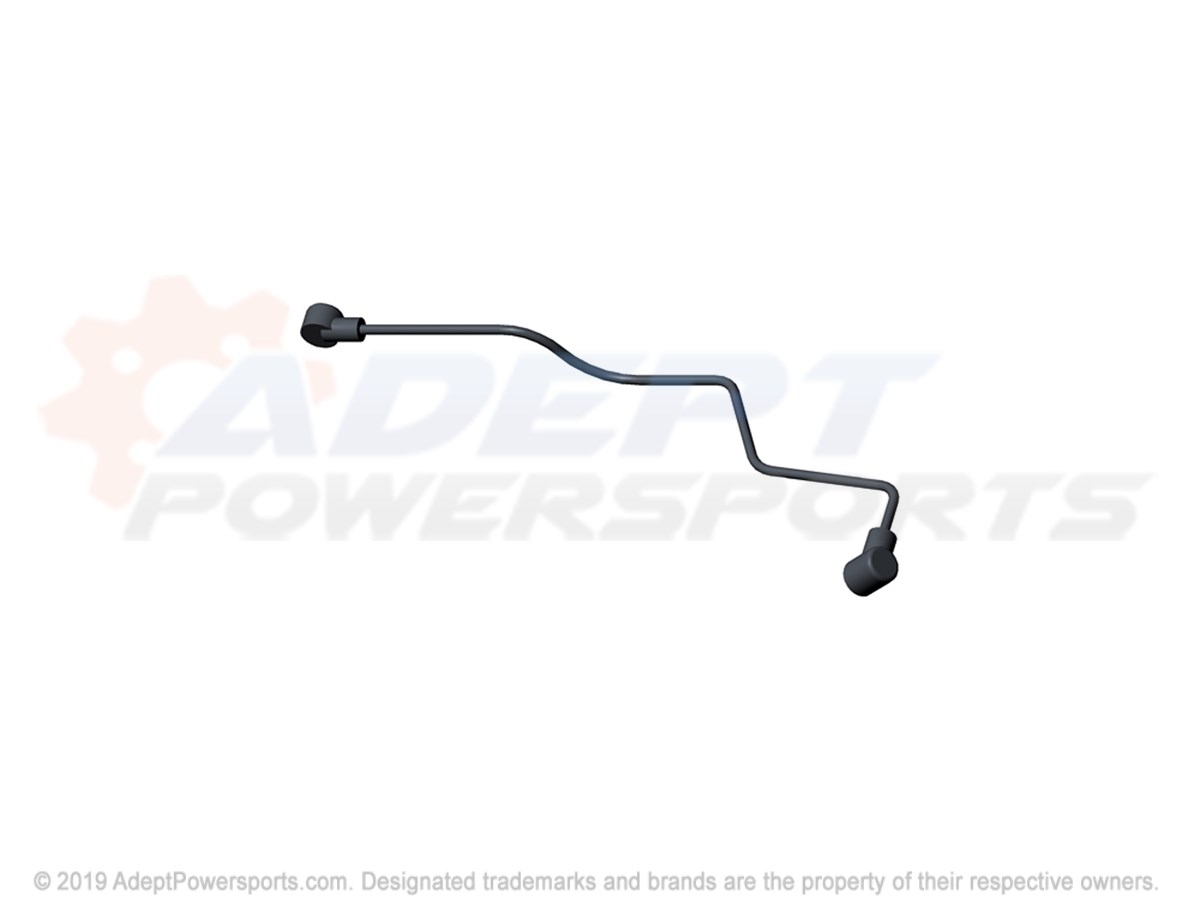

7	CABLE-WINCH, YELLOW, 6, GA, 300MM Part #: 4013468-300 Required per assembly: 1 Currently Not Available
8	CABLE-WINCH, BLUE, 6, GA, 410MM Part #: 4013469-410 Required per assembly: 1 Currently Not Available
9	ASM-HARN, POWER, WINCH, SAP Part #: 2415675 Required per assembly: 1 Currently Not Available
10	CONTACTOR-WINCH, POL, LIF, CAP Part #: 4015095 Required per assembly: 1 Currently Not Available
11	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 1 Currently Not Available
12	CLIP-FIR, TREE, 12.5MM, OFF, 90DEG Part #: 7082406 Required per assembly: 1 Currently Not Available
13	NUT, NYLOK Part #: 7547144 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
14	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
15	SCR-TXTH-M8X1.25X20 8.8 ZODP30 Part #: 7519260 Required per assembly: 8 Currently Not Available
16	SCREW, CARRIAGE Part #: 7519324 Required per assembly: 2 Currently Not Available
17	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
