Headlights replacement parts for 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01)

OEM Parts Polaris 2021 Polaris Sportsman 570 HUNTER PACKAGE (R01) Headlights

HEADLIGHTS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-HEADLIGHT, POD Part #: 2413427 Required per assembly: 1 Currently Not Available
2	SCREW, HEADLIGHT, ADJUST Part #: 7518690 Required per assembly: 1 Currently Not Available

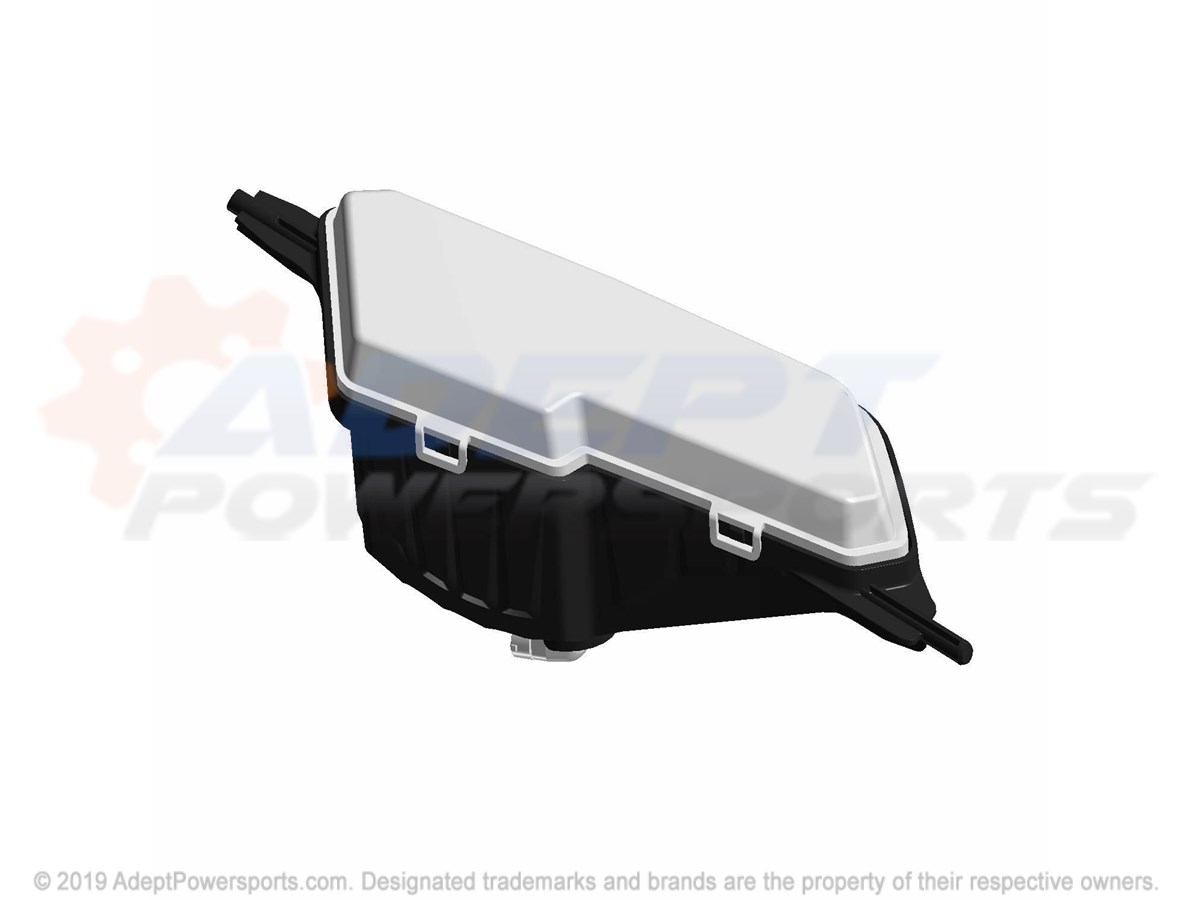

3	ASM-HEADLIGHT, BUMPER, LH Part #: 2413432 Required per assembly: 1 Currently Not Available

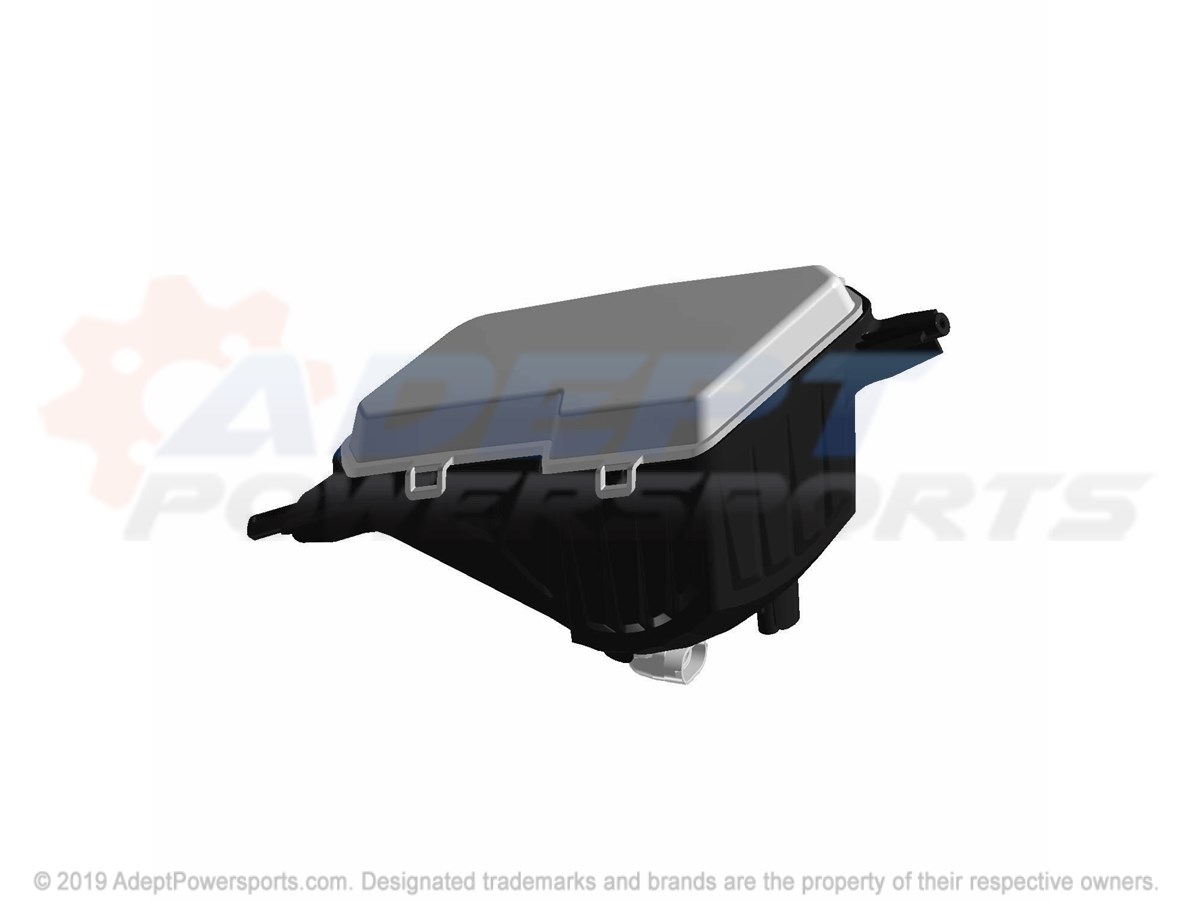

4	ASM-HEADLIGHT, BUMPER, RH Part #: 2413433 Required per assembly: 1 Currently Not Available
5	SPRING-HEADLIGHT Part #: 7043816 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7512078 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
7	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
8	WASHER Part #: 7556034 Required per assembly: 2 Currently Not Available
