Cooling System - R05rd68aa/Ab replacement parts for 2005 Polaris RANGER XP (R05RD68AA)

OEM Parts Polaris 2005 Polaris RANGER XP (R05RD68AA) Cooling System - R05rd68aa/Ab

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
3	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 $1.99 $1.15 - + Add to cart
4	MOUNT, CABLE, TIE Part #: 7080965 Required per assembly: 3 Currently Not Available
5	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 1 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
5	CLAMP Part #: 7081047 Required per assembly: 6 Currently Not Available
6	CONNECTOR, BARBED Part #: 7052381 Required per assembly: 2 Currently Not Available

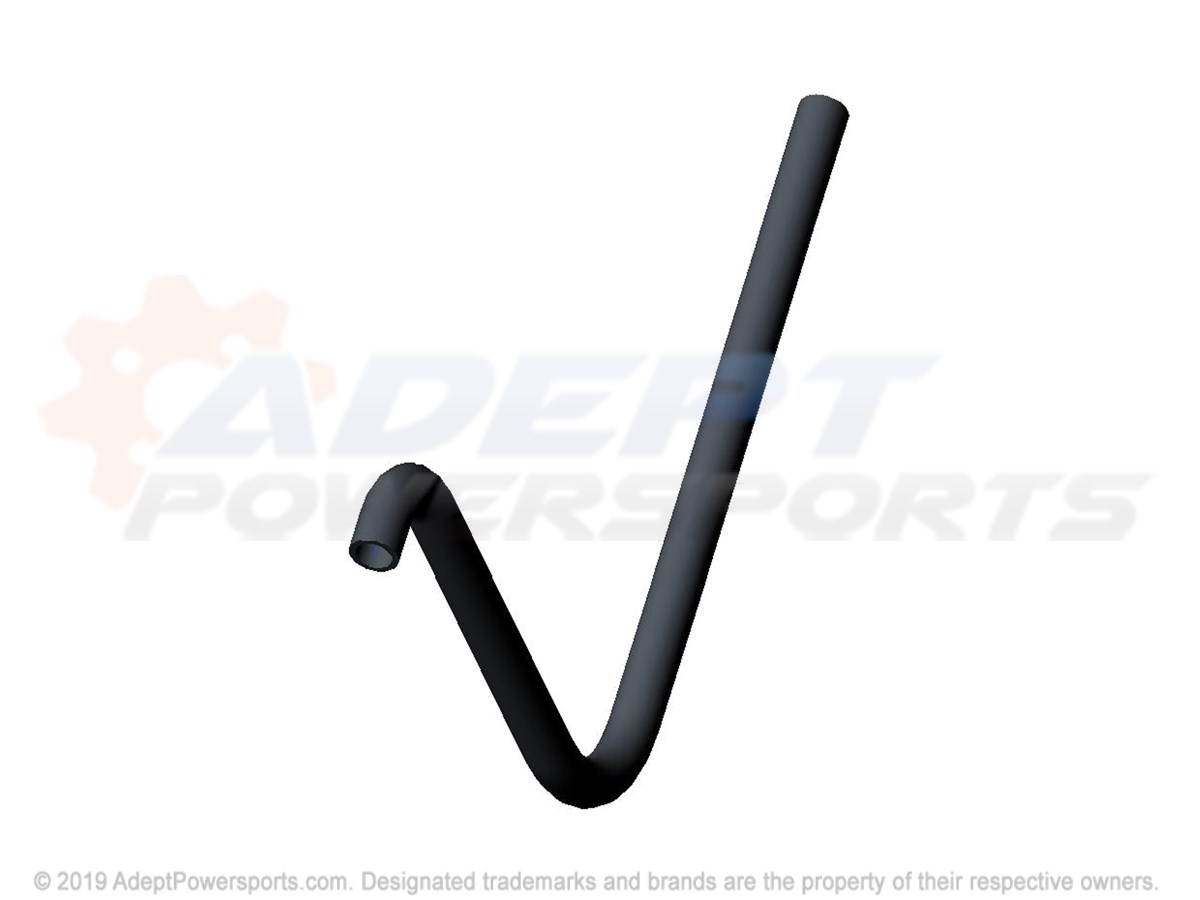

7	HOSE, RADIATOR, INLET Part #: 5412809 Required per assembly: 1 Currently Not Available

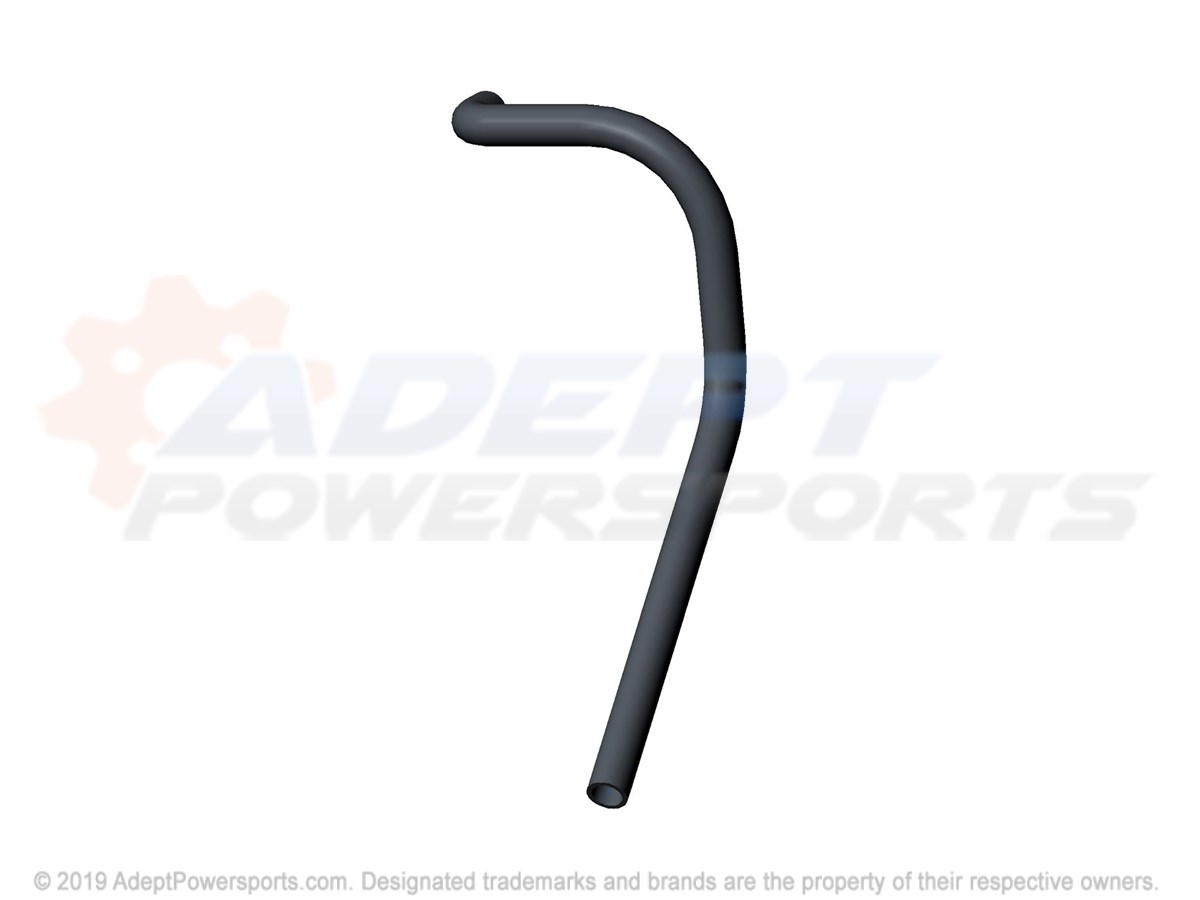

8	HOSE, RADIATOR, OUTLET Part #: 5412808 Required per assembly: 1 Currently Not Available
9	TRIM, EDGE, 6FT, BLACK Part #: 5521131 Required per assembly: 1 Currently Not Available
10	CAP-PRESSURE, 13, LBS. Part #: 1240093 Required per assembly: 1 Note: Cap, Pressure Currently Not Available

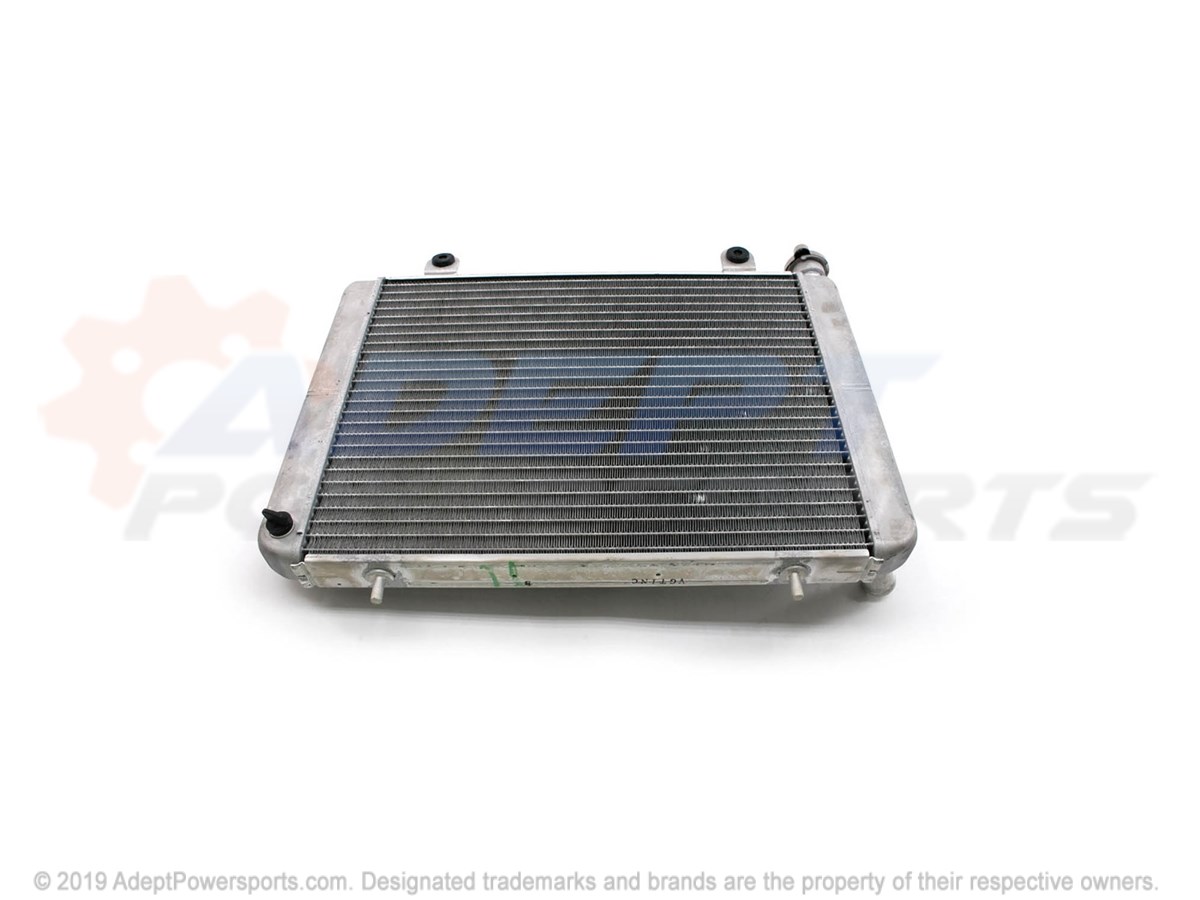

11	RADIATOR, FLAT Part #: 1240286 Required per assembly: 1 Currently Not Available
12	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
13	NUT Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok $3.47 $2.30 - + Add to cart
14	GROMMET Part #: 5411975 Required per assembly: 2 Note: Asm., Grommet and Insert Currently Not Available
15	SCREW Part #: 7512163 Required per assembly: 2 Currently Not Available
16	VALVE-PLASTIC RAD/COOLER DRAIN Part #: 7052296 Required per assembly: 1 Currently Not Available
17	SHROUD, FAN Part #: 5436015 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7517975 Required per assembly: 4 Note: Bolt Currently Not Available
19	U-CLIP Part #: 7547197 Required per assembly: 4 Note: Clip, U $8.49 $4.49 - + Add to cart
20	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 7 Note: Cable Tie Currently Not Available
21	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
22	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE $11.99 $6.90 - + Add to cart
23	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
24	BRACKET, SURGE, TANK Part #: 5246873 Required per assembly: 1 Currently Not Available
25	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
26	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart
27	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
28	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
29	ASSEMBLY, FAN Part #: 2410366 Required per assembly: 1 Note: Asm., Fan [If built before 10/05/06] Currently Not Available
30	SCREW W/WASHER (QTY. 2 AFTER 10/25/02) Part #: 7547220 Required per assembly: 4 Note: Screw $3.99 $2.30 - + Add to cart
31	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw $2.99 $1.73 - + Add to cart
32	CLAMP, DOUBLE, HOSE Part #: 7081250 Required per assembly: 1 Currently Not Available

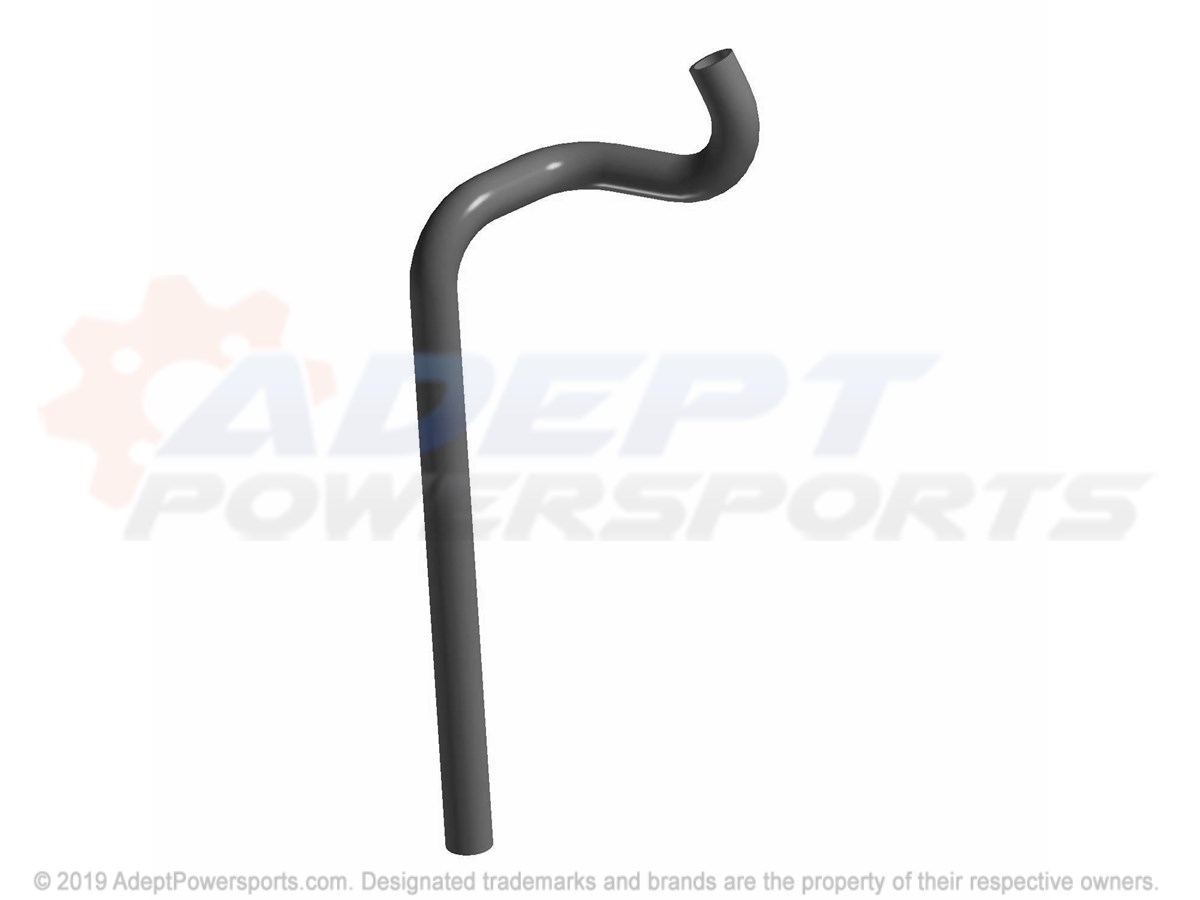

33	HOSE, ENGINE, INLET Part #: 5412801 Required per assembly: 1 Note: Hose, Engine Inlet Currently Not Available
34	TUBING, CONVOLUTED Part #: 5521324 Required per assembly: 1 Currently Not Available
35	SHEATH, REFLECT, SLEEVE Part #: 8450111-28 Required per assembly: 1 Note: Sheath, Reflect Sleeve Currently Not Available
