OEM Parts Polaris 2005 Polaris RANGER XP (R05RD68AA) Throttle - R05rd68aa/Ab

2005 Polaris RANGER XP (R05RD68AA) - Throttle - R05rd68aa/Ab

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CABLE, THROTTLE

Part #: 7081247 Required per assembly: 1
Currently Not Available
3

BLOCK, PIVOT, THROTTLE

Part #: 5434327 Required per assembly: 1
Currently Not Available
4

WASHER

Part #: 7555954 Required per assembly: 2 Note: Washer
Currently Not Available
5

PIN, CLIP

Part #: 7661140 Required per assembly: 2
Currently Not Available
6

SCREW

Part #: 7515102 Required per assembly: 4
$4.99
$2.88
-
+
Add to cart
7

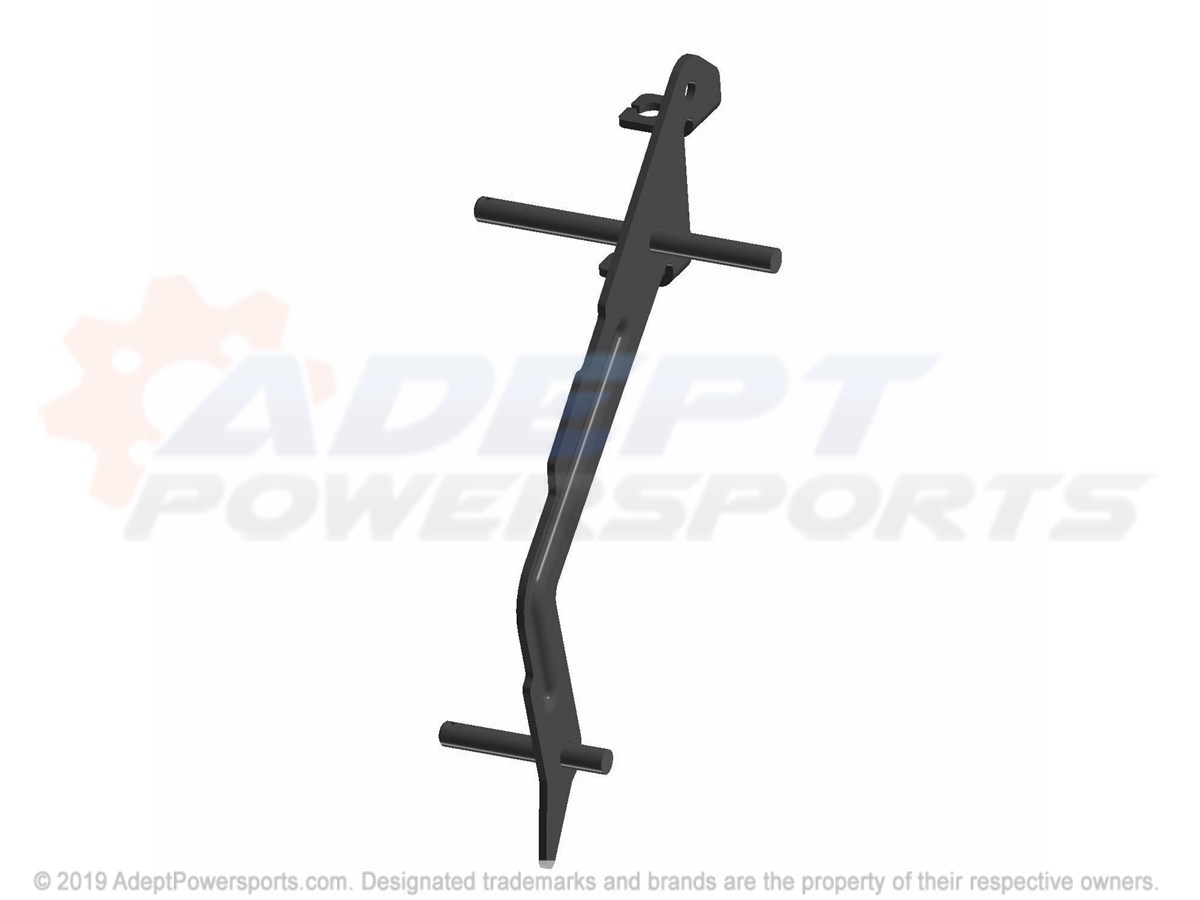

PEDAL, THROTTLE

Part #: 5435649 Required per assembly: 1
Currently Not Available
8

THROTTLE, BLACK

Part #: 1016063 Required per assembly: 1
Currently Not Available
9

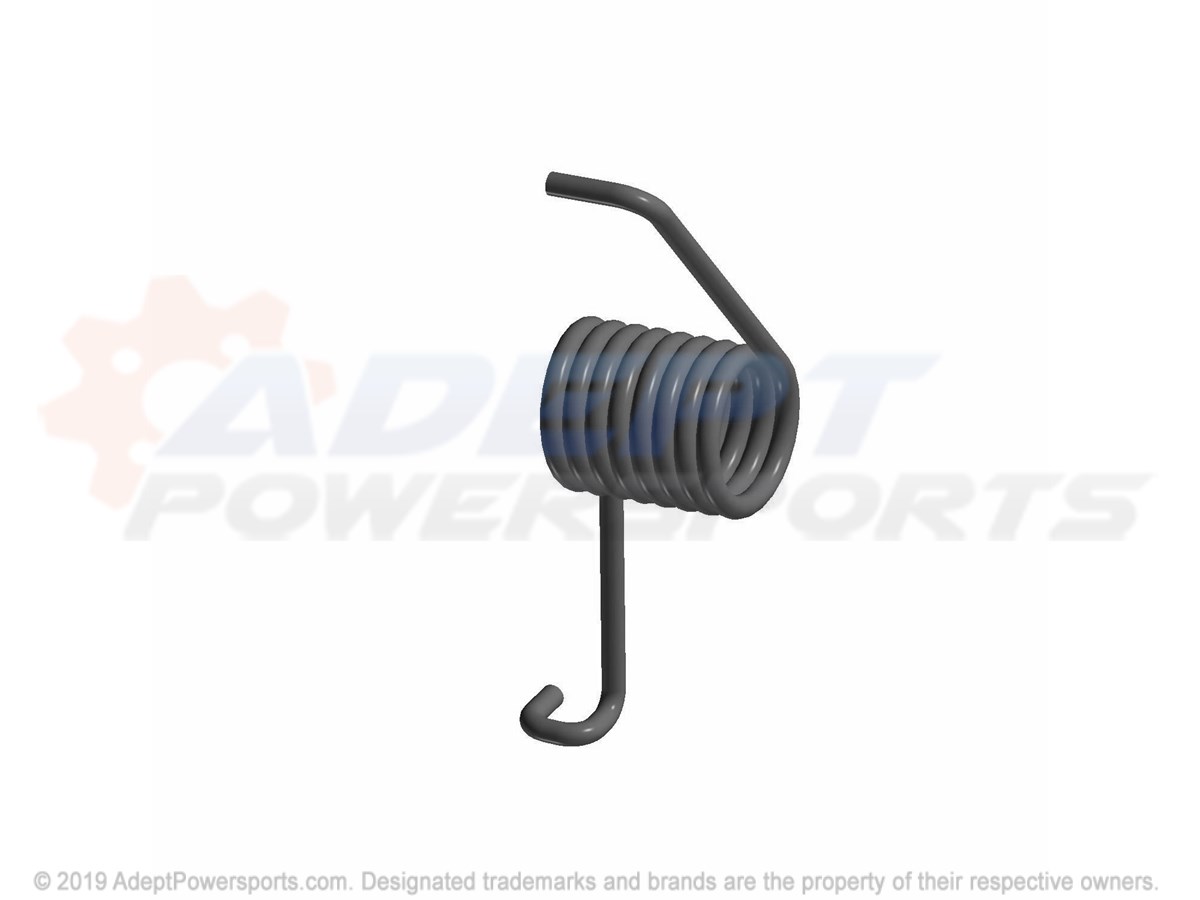

SPRING, THROTTLE

Part #: 7043078 Required per assembly: 1
Currently Not Available
10

SPRING, ACCELERATOR

Part #: 7043165 Required per assembly: 1 Note: Spring, Throttle
Currently Not Available
11

NUTSERT, HEX

Part #: 7547069 Required per assembly: 4 Note: Nutsert, Hex
Currently Not Available
