Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

N/A, USE, COMPONENTS

Part #: 9990000 Required per assembly: 1
Currently Not Available
1
Polaris 5435651-070 Box, Storage, Side, Black, (Aa)

BOX, STORAGE, SIDE, BLACK, (AA)

Part #: 5435651-070 Required per assembly: 1 Note: Box, Storage, Side, Black
Currently Not Available
1
Polaris 5435651-453 Box, Storage, Side, Grey, (Ab)

BOX, STORAGE, SIDE, GREY, (AB)

Part #: 5435651-453 Required per assembly: 1 Note: Box, Storage, Side, Grey [AD]
Currently Not Available
2
Polaris 7517396 Screw

SCREW

Part #: 7517396 Required per assembly: 5
$4.99
$2.88
-
+
Add to cart
3

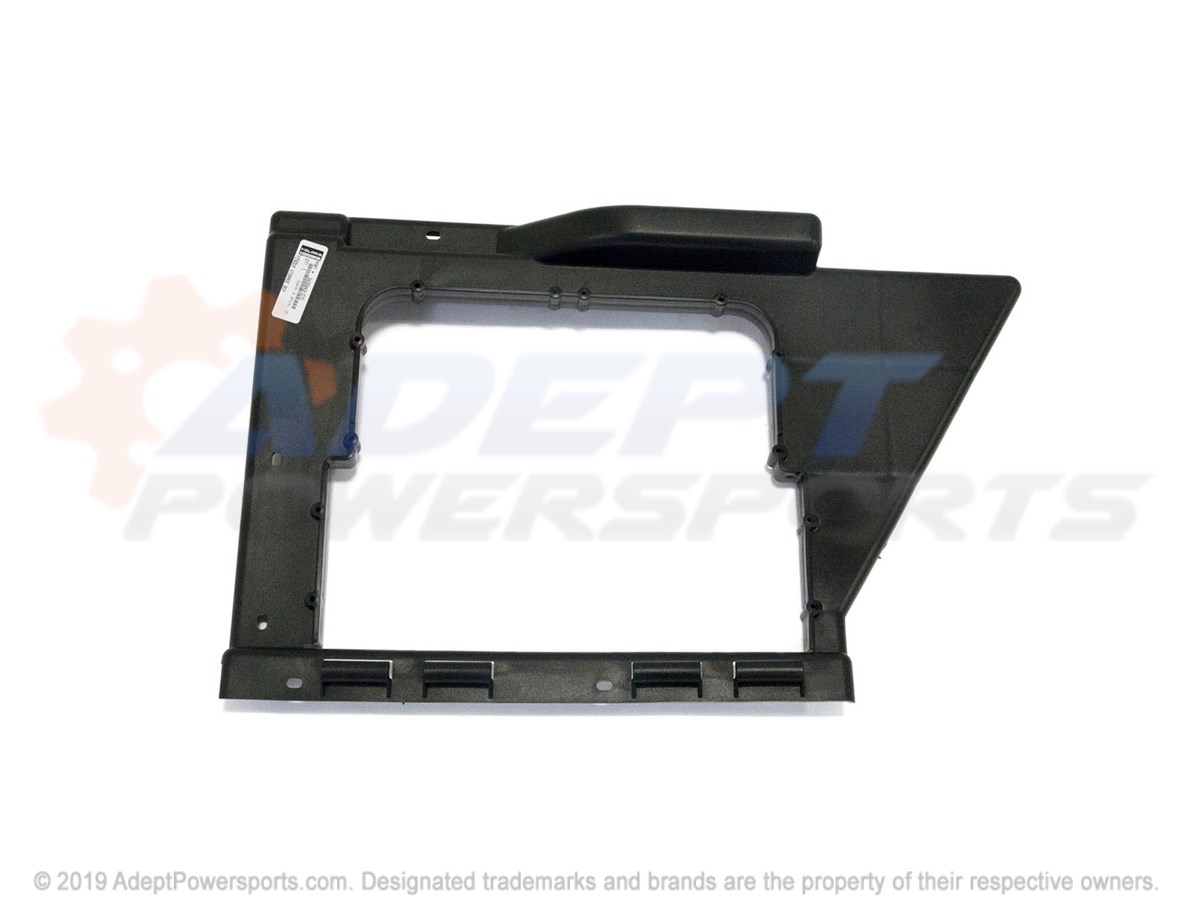

Polaris 5435843-070 Fender, Storage, Box, Black, (Aa)

FENDER, STORAGE, BOX, BLACK, (AA)

Part #: 5435843-070 Required per assembly: 1 Note: Fender, Storage Box, Black
Currently Not Available
3

FENDER, STORAGE, BOX, GREY, (AB)

Part #: 5435843-453 Required per assembly: 1 Note: Fender, Storage Box, Grey [AD]
Currently Not Available
4

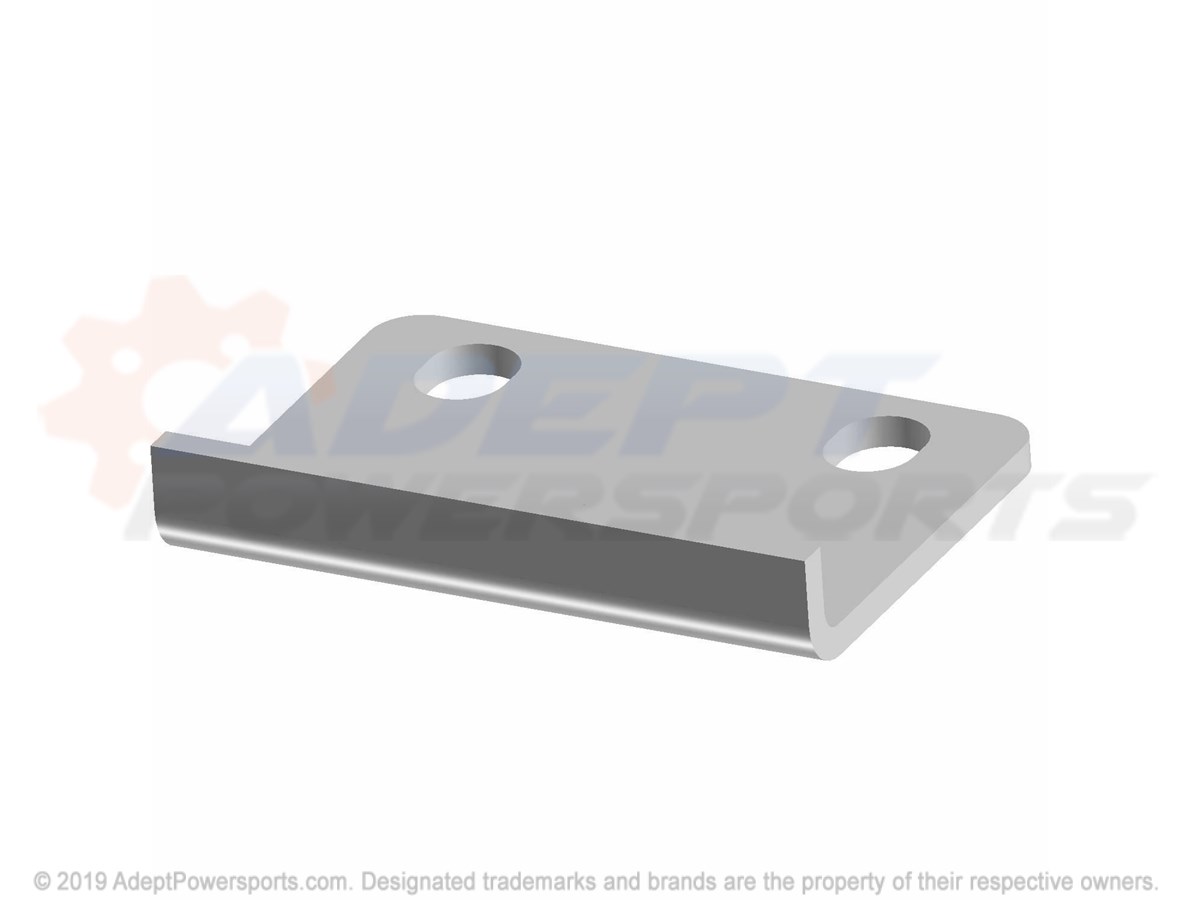

Polaris 5248581 Bracket, Latch

BRACKET, LATCH

Part #: 5248581 Required per assembly: 1
Currently Not Available
5
Polaris 7517790 Scr, #10X3/4, Hi/Lo

SCR, #10X3/4, HI/LO

Part #: 7517790 Required per assembly: 19 Note: Screw
$3.99
$2.30
-
+
Add to cart
6

CABLE, LID, FRONT

Part #: 7081124 Required per assembly: 1
Currently Not Available
7
Polaris 5521701 Seal, Storage, Box

SEAL, STORAGE, BOX

Part #: 5521701 Required per assembly: 1
Currently Not Available
8

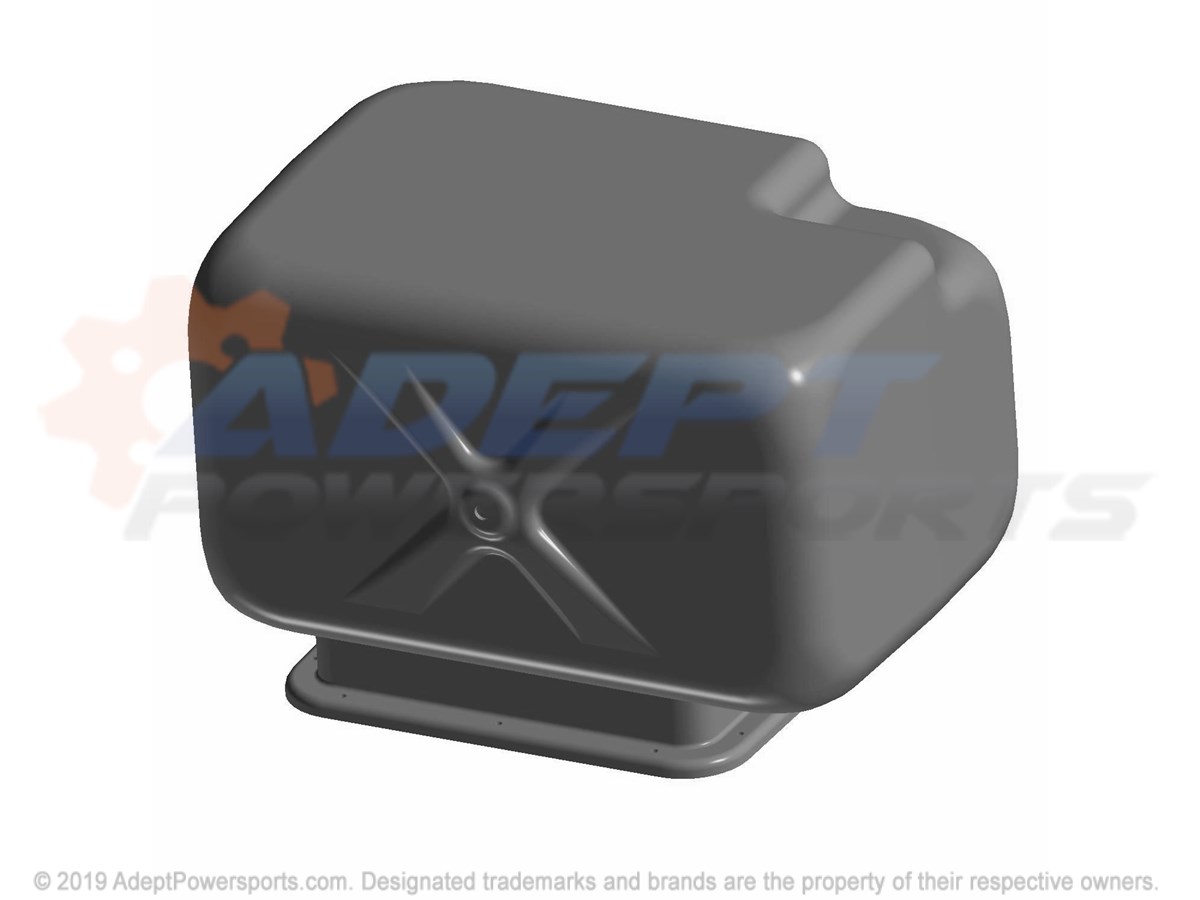

Polaris 5435650-070 Cover, Storage, Box, Black, (Aa)

COVER, STORAGE, BOX, BLACK, (AA)

Part #: 5435650-070 Required per assembly: 1 Note: Cover, Storage Box, Black
Currently Not Available
8

COVER, STORAGE, BOX, GREY, (AB)

Part #: 5435650-453 Required per assembly: 1 Note: Cover, Storage Box, Grey [AD]
Currently Not Available
9
Polaris 7081317 Latch, 1/4, Turn

LATCH, 1/4, TURN

Part #: 7081317 Required per assembly: 1 Note: Latch, 1/4 Turn
Currently Not Available
10
Polaris 5249363-067 Bracket, Spacer, Latch

BRACKET, SPACER, LATCH

Part #: 5249363-067 Required per assembly: 1 Note: Bracket, Spacer, Latch
Currently Not Available
10

WASHER-.906 X 1.38 X .060"

Part #: 7556120 Required per assembly: 1 Note: The next small shim is 7556454 WASHER-.906 X 1.38 X .030"
$2.99
$1.73
-
+
Add to cart
11

PLATE, SUPPORT, STORAGE, BOX, BLACK

Part #: 5248236-067 Required per assembly: 1
Currently Not Available
12
Polaris 5412981 Plug

PLUG

Part #: 5412981 Required per assembly: 1
Currently Not Available
