OEM Parts Polaris 2005 Polaris RANGER XP (R05RD68AA) Driven Clutch - R05rd68aa/Ab

2005 Polaris RANGER XP (R05RD68AA) - Driven Clutch - R05rd68aa/Ab

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

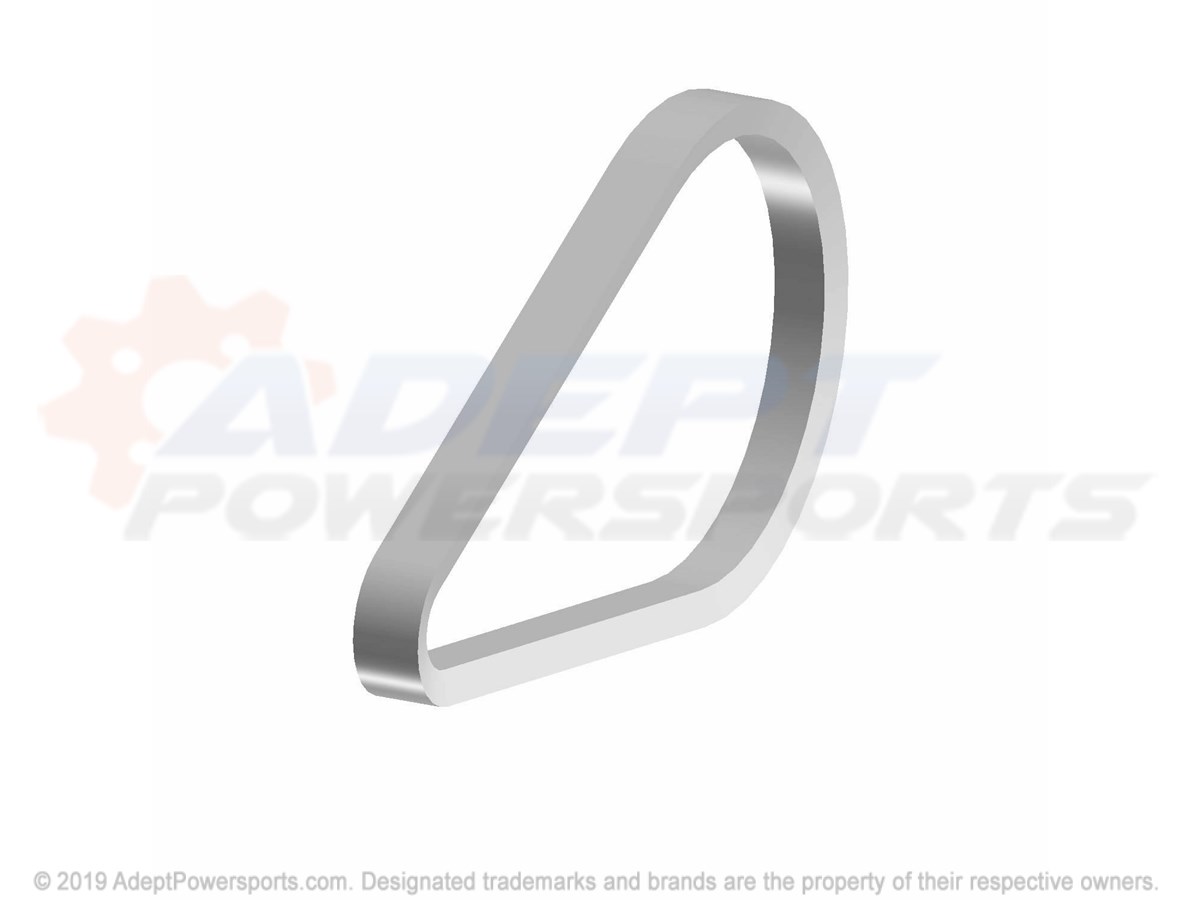

BELT, DRIVE

Part #: 3211161 Required per assembly: 1 Note: Belt, Drive, EBS
Currently Not Available
2

WASHER-.906 X 1.38 X .060"

Part #: 7556120 Note: The next small shim is 7556454 WASHER-.906 X 1.38 X .030"
$2.99
$1.73
-
+
Add to cart
3

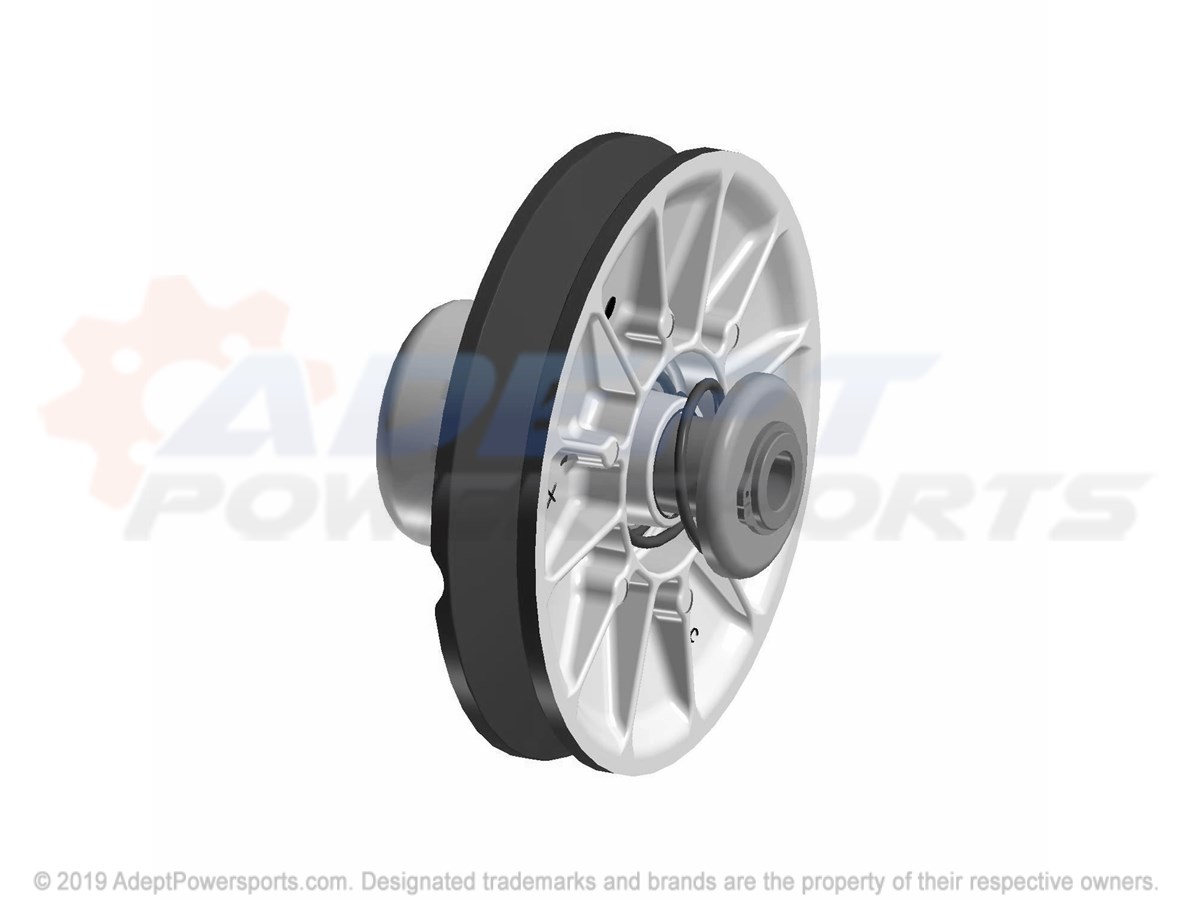

ASSEMBLY, DRIVEN, CLUTCH

Part #: 1322514 Required per assembly: 1 Note: Asm., Driven Clutch [Incl. 7-10]
Currently Not Available
4

WASHER, DOMED

Part #: 5220646 Required per assembly: 1
Currently Not Available
5

LOCK WASHER

Part #: 7552901 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
6

BOLT

Part #: 7515382 Required per assembly: 1 Note: Bolt
Currently Not Available
7

BEARING, PLAIN

Part #: 3514531 Required per assembly: 2 Note: Bearing, Plain
Currently Not Available
8

RETAINER, SPRING, OUTER

Part #: 7710563 Required per assembly: 1
Currently Not Available
9

SPRING, COMPRESSION

Part #: 7043167 Required per assembly: 1
Currently Not Available
10

K-CLUTCH, PTD, SPIDER, DAMPER

Part #: 2206554 Required per assembly: 1
Currently Not Available
11

RING, RETAINING, EXT, 1.500

Part #: 7710522 Required per assembly: 1
Currently Not Available
