OEM Parts Polaris 2005 Polaris RANGER XP (R05RD68AA) Intake - R05rd68aa/Ab

2005 Polaris RANGER XP (R05RD68AA) - Intake - R05rd68aa/Ab

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

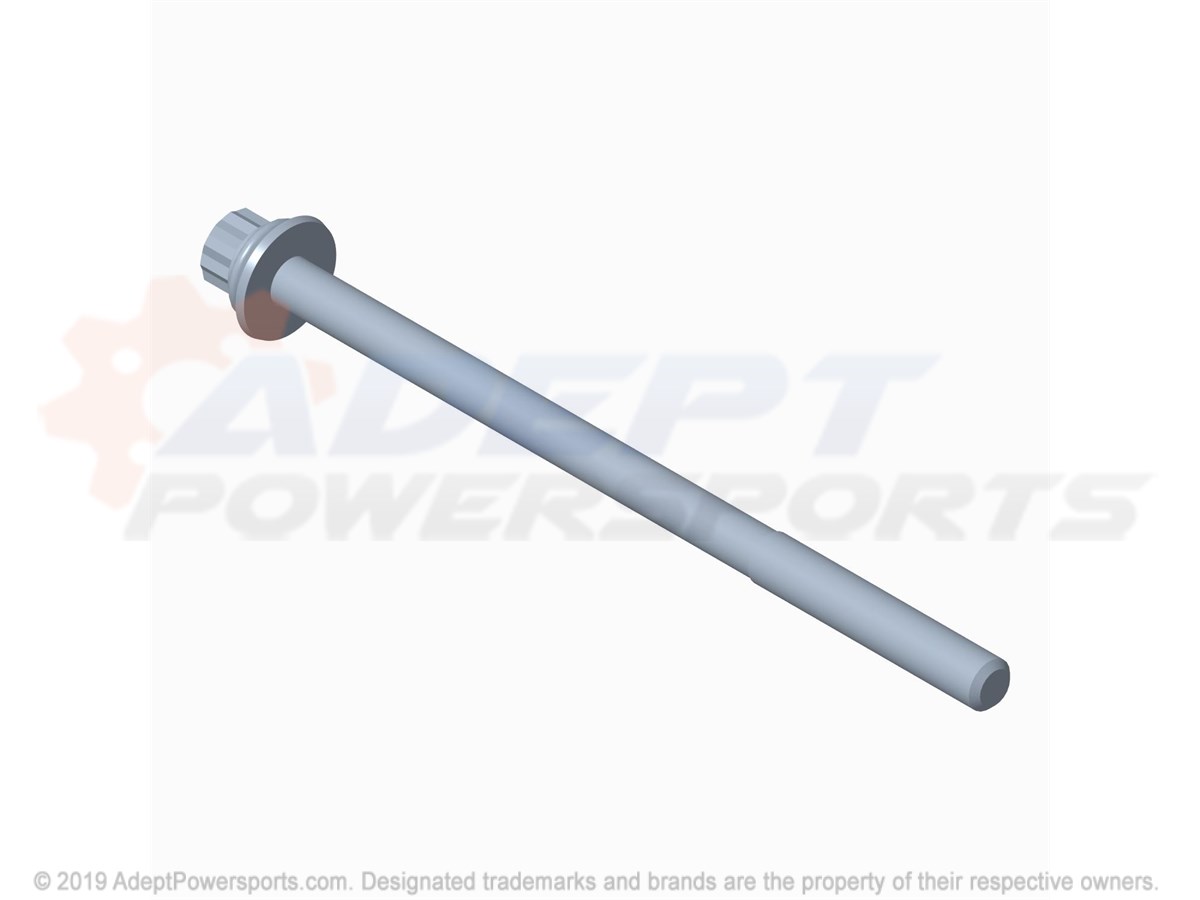

BOLT-HEAD M11X1.25 SEMS

Part #: 7519219 Required per assembly: 6
Currently Not Available
2

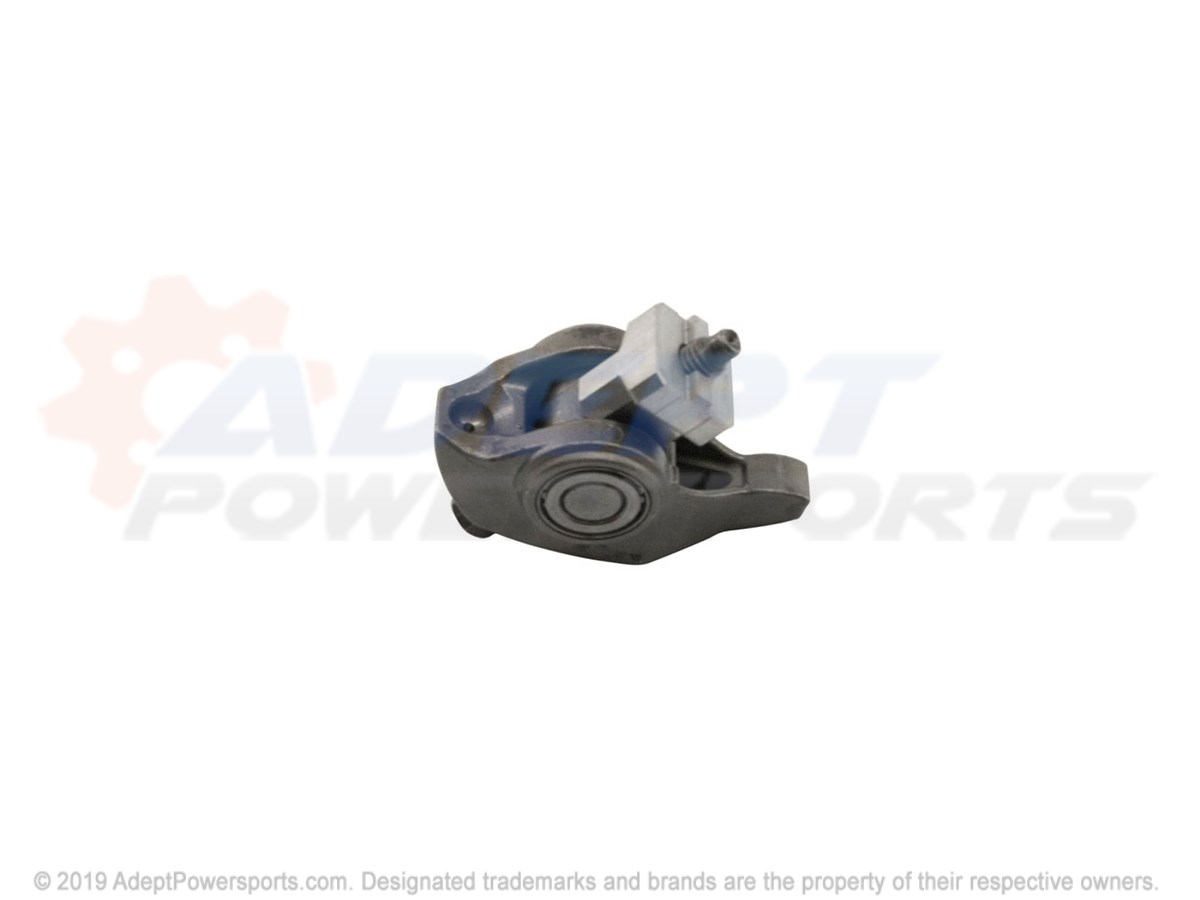

ASSEMBLY, ROCKER, ARM

Part #: 1202169 Required per assembly: 4 Note: Asm., Arm, Rocker
Currently Not Available
3

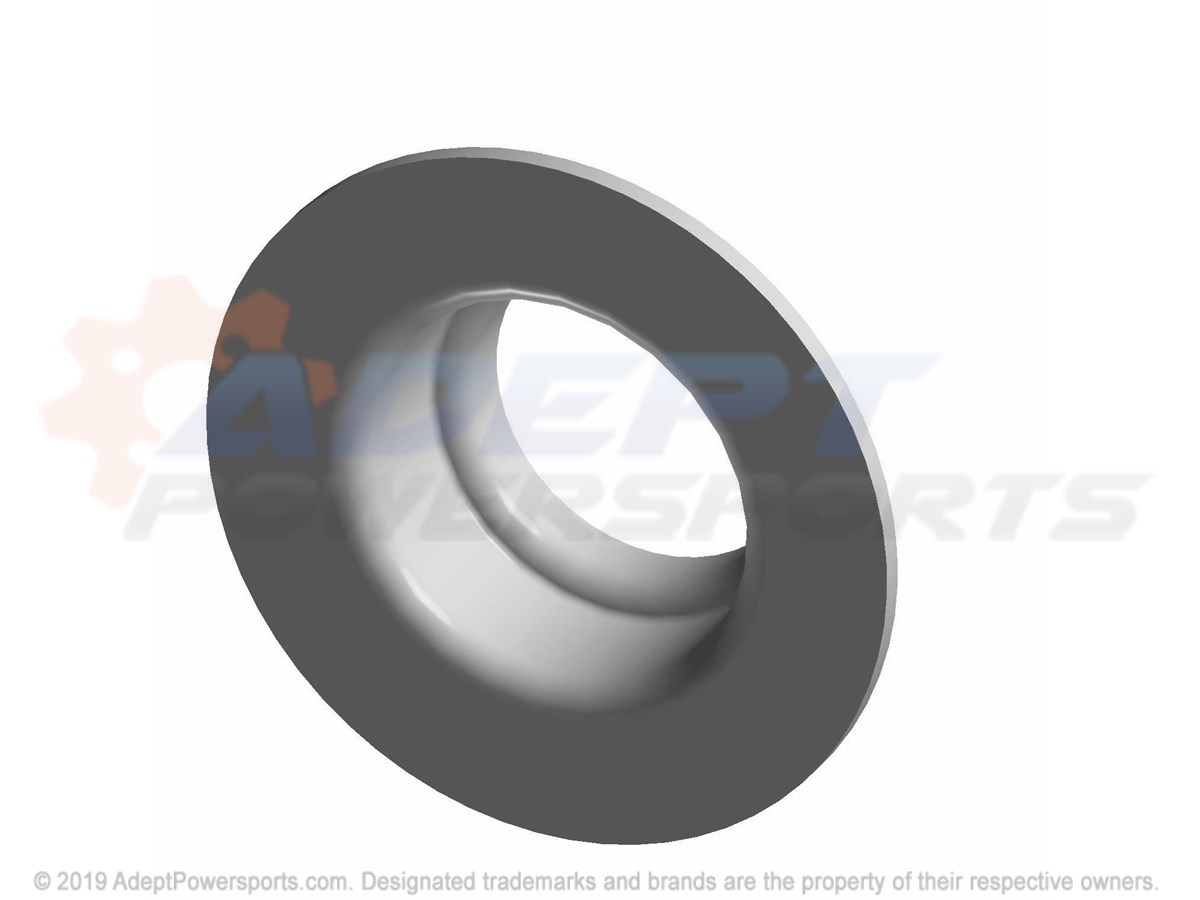

RETAINER, SPRING

Part #: 5131413 Required per assembly: 4
Currently Not Available
4

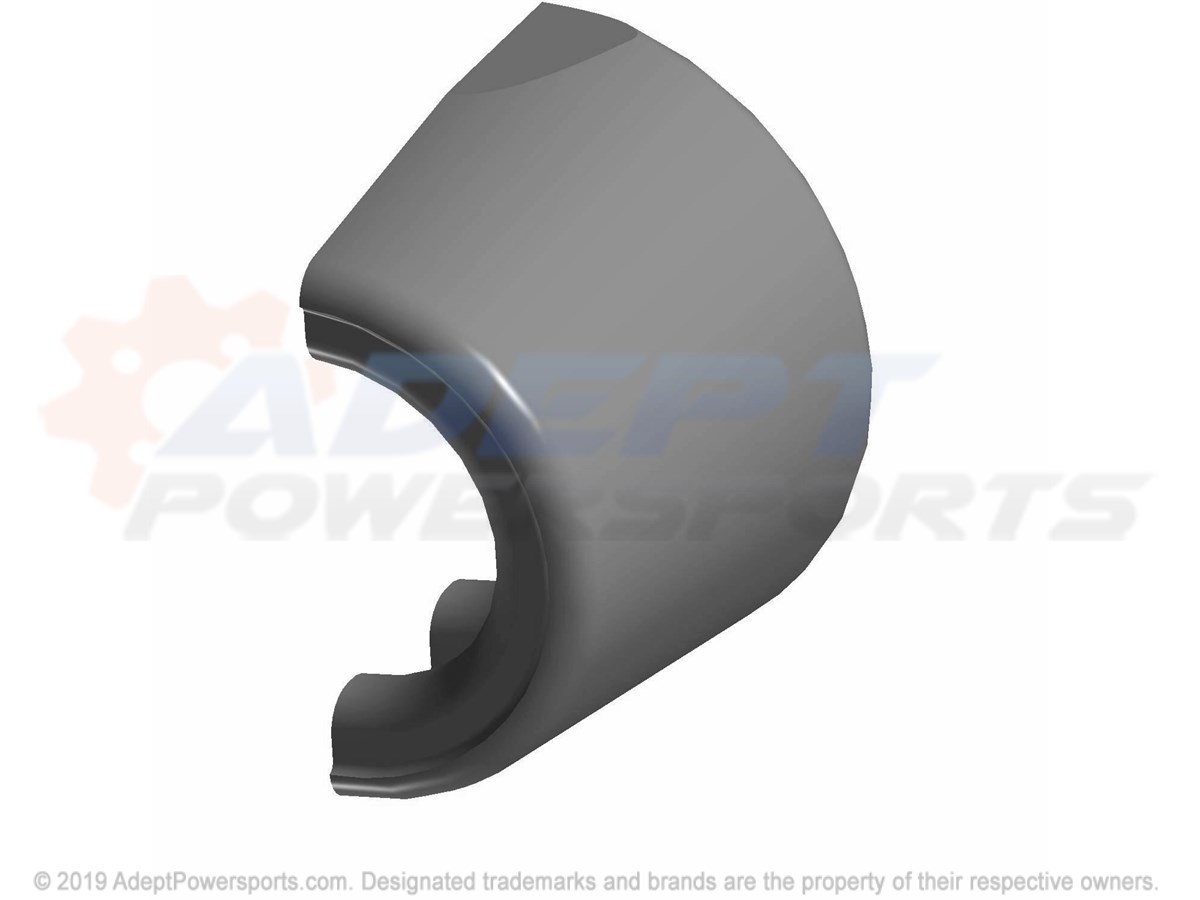

LOCK, VALVE, STEM

Part #: 5910042 Required per assembly: 8 Note: Retainer, Lock
Currently Not Available
5

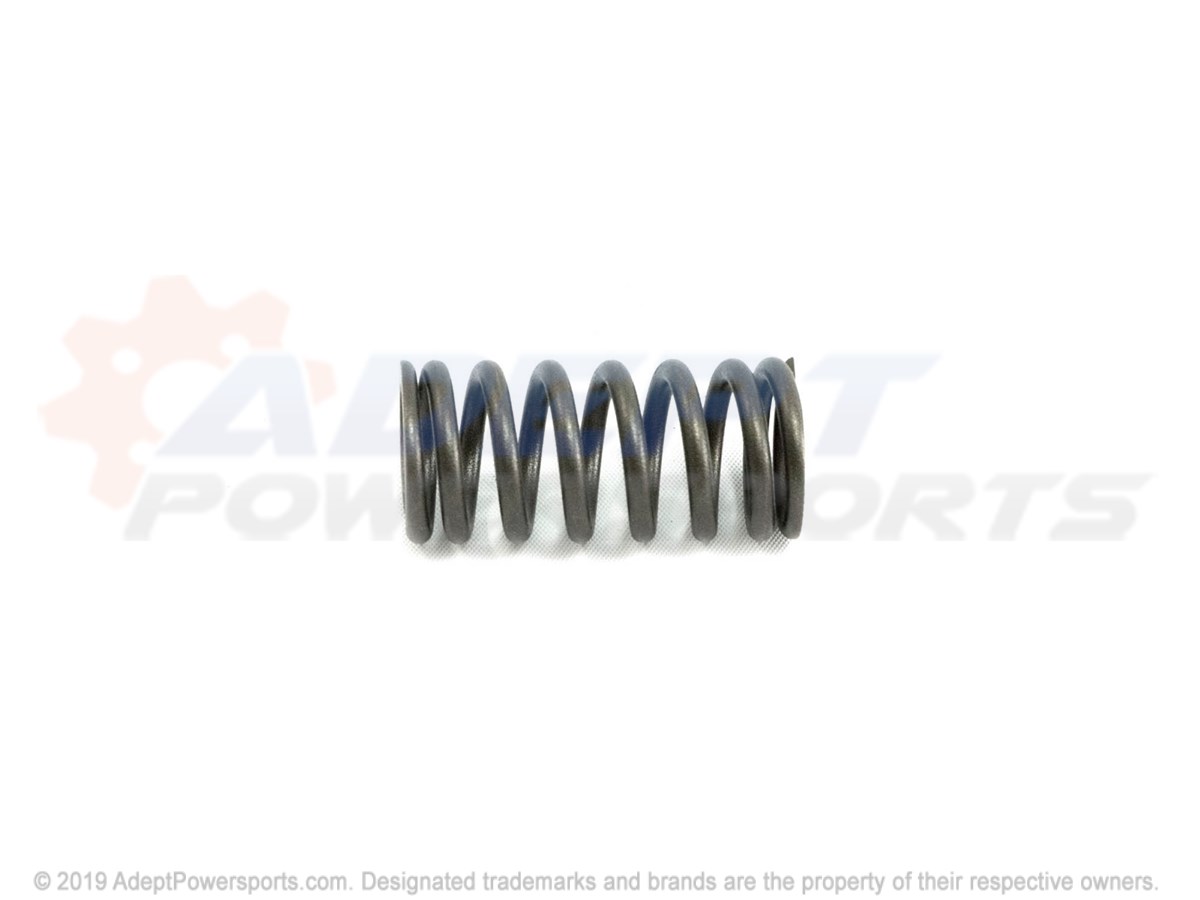

SPRING, VALVE

Part #: 7041565 Required per assembly: 4
Currently Not Available
6

SEAT, VALVE, SPRING

Part #: 5910194 Required per assembly: 2 Note: Sold in multiples of 2 only
Currently Not Available
7

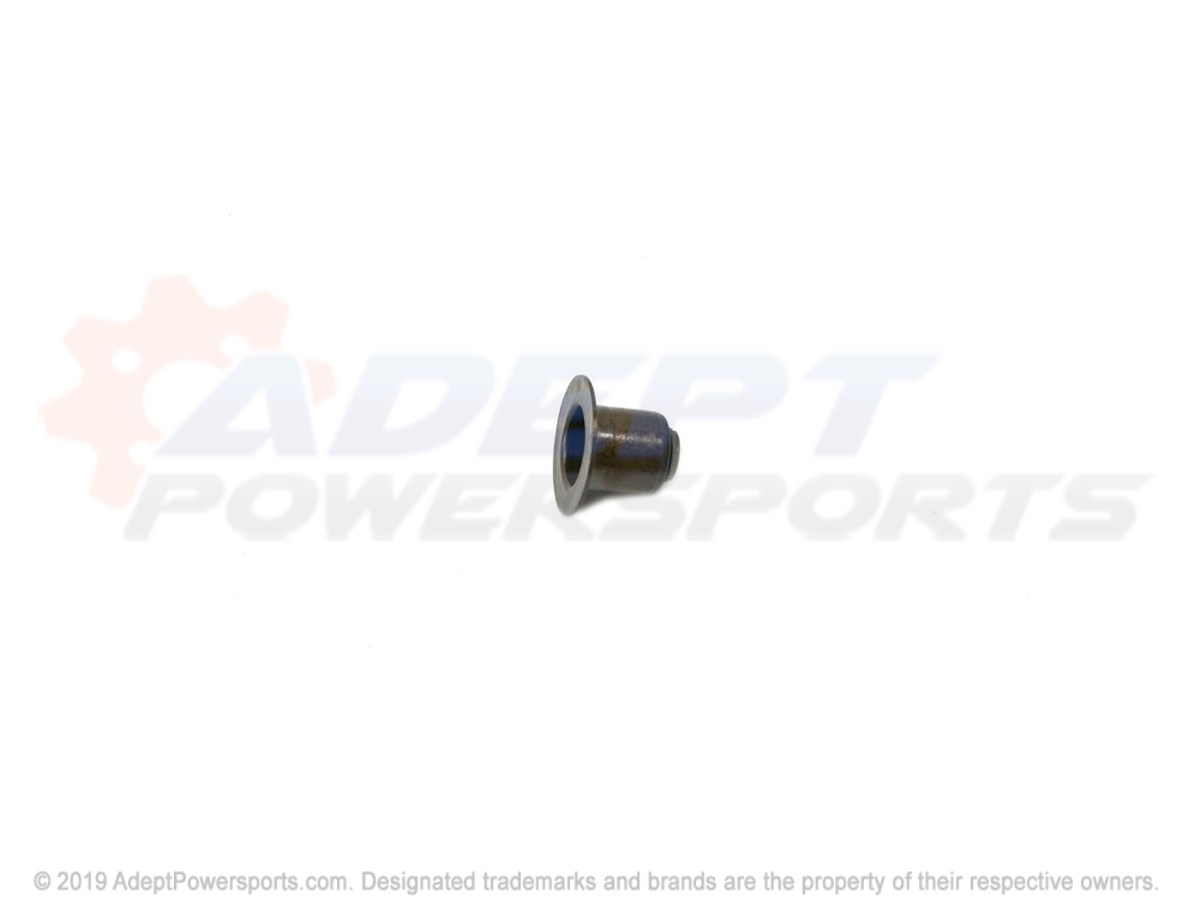

SEAL, VALVE, GUIDE

Part #: 5411895 Required per assembly: 2
Currently Not Available
8

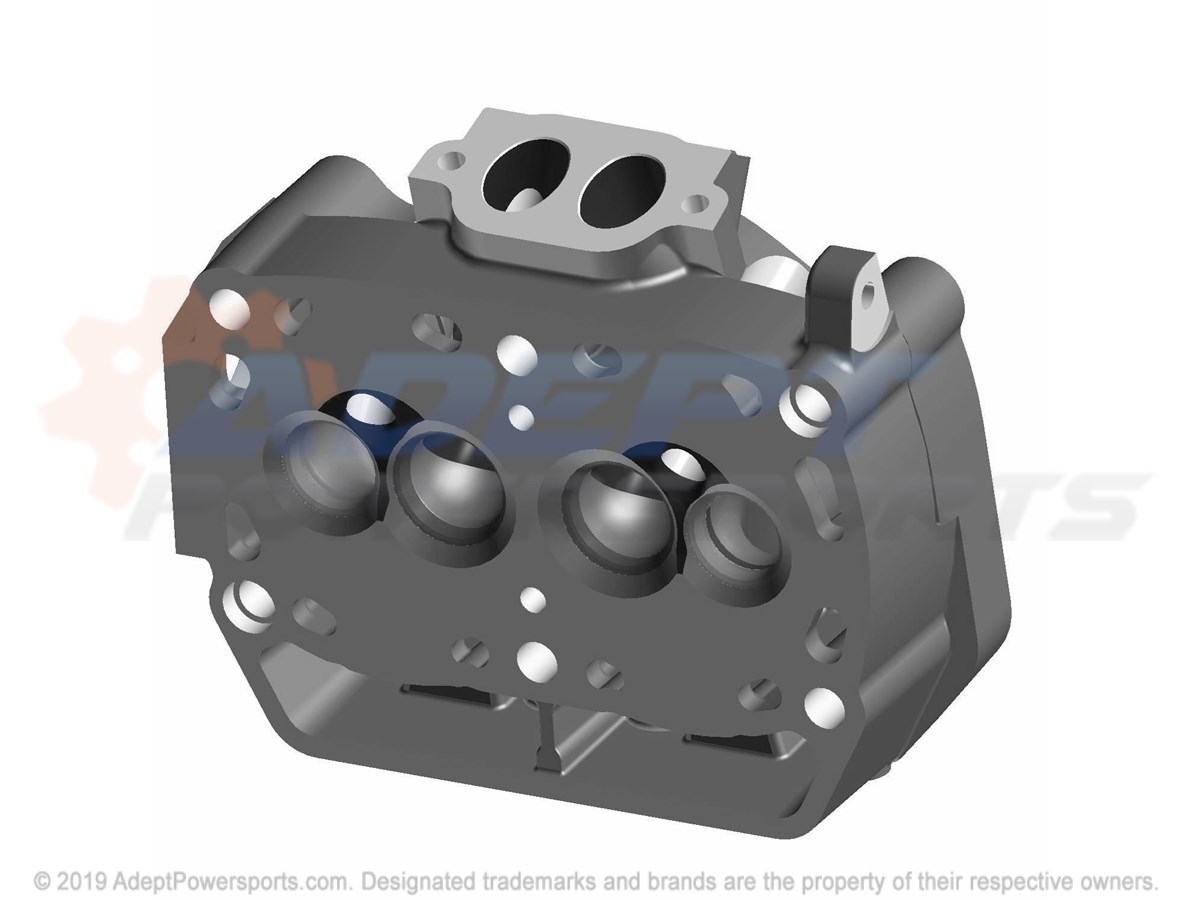

HEAD, CYLINDER

Part #: 3021914 Required per assembly: 1
Currently Not Available
9

VALVE, EXHAUST

Part #: 5137264 Required per assembly: 2
Currently Not Available
10

VALVE, INTAKE

Part #: 5137265 Required per assembly: 2 Note: Valve, Intake [Built 11/06/07 and After]
Currently Not Available
