Engine Housing Cover, Right replacement parts for 2012-2013 BMW HP4 (K42)

OEM Parts Bmw 2012-2013 Bmw HP4 (K42) Engine Housing Cover, Right

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	COVER Part #: 11147713749 Required per assembly: 1 Note: REPAIR PAINT M957 Currently Not Available

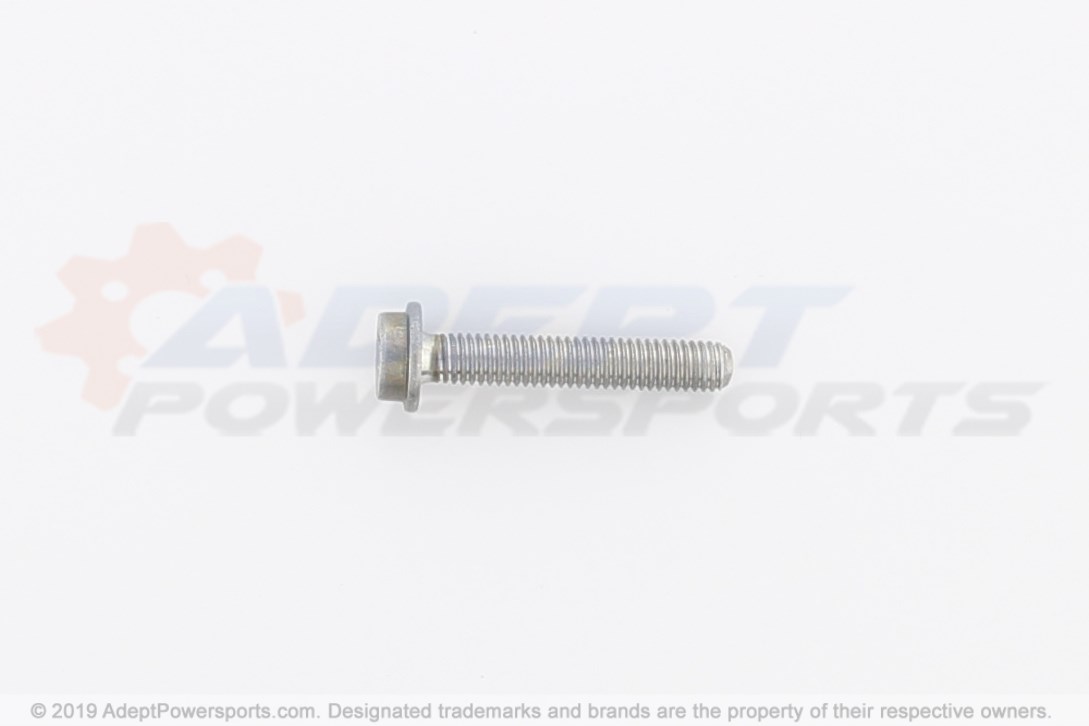

02	ISA SCREW - M6X25 Part #: 11137676132 Required per assembly: 7 Note: CAUTION! ALUMINIUM SCREW ONLY TO BE USED 1X. OBSERVE TORQUE SPECIFICATIONS. REPLACE ALL SCREWS. Currently Not Available
03	SCREW PLUG - M32X2 Part #: 11147713775 Required per assembly: 1 Currently Not Available
04	O-RING - 29,87X1,78 Part #: 11147722366 Required per assembly: 1 Currently Not Available
05	CLUTCH HOUSING COVER Part #: 11147713739 Required per assembly: 1 Note: REPAIR PAINT M957 Currently Not Available
06	GASKET Part #: 11148527544 Required per assembly: 1 $29.99 $24.95 - + Add to cart
07	ISA SCREW - M6X35 Part #: 11147724485 Required per assembly: 9 Note: CAUTION! ALUMINIUM SCREW ONLY TO BE USED 1X. OBSERVE TORQUE SPECIFICATIONS. REPLACE ALL SCREWS. Currently Not Available
08	SET: SET, THREADED OIL PLUG Part #: 11437715430 Required per assembly: 1 Currently Not Available
09	DOWEL PIN - 7X47 Part #: 11317718076 Required per assembly: 2 Currently Not Available
