Side Stand replacement parts for 2012-2013 BMW HP4 (K42)

OEM Parts Bmw 2012-2013 Bmw HP4 (K42) Side Stand

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SIDE STAND Part #: 46537718152 Required per assembly: 1 Currently Not Available
02	SUPPORTING BRACKET F SIDE STAND Part #: 46537718154 Required per assembly: 1 Currently Not Available
03	SLIDE BEARING Part #: 46537702153 Required per assembly: 1 Currently Not Available
04	SIDE-SUPPORT SCREW - M10X1 Part #: 46537707216 Required per assembly: 1 Currently Not Available
05	TENSION SPRING Part #: 46537690990 Required per assembly: 1 Currently Not Available
06	GROMMET Part #: 46537690236 Required per assembly: 1 Currently Not Available
07	STOP BUFFER - 5.6X8X12 Part #: 31428537724 Required per assembly: 1 Currently Not Available
08	HEX BOLT - M8X30 Part #: 46538542021 Required per assembly: 2 Not Available
09	SWITCH, KICKSTAND - L=530MM Part #: 61317654603 Required per assembly: 1 Currently Not Available
10	WASHER - 6,4 Part #: 07119931035 Required per assembly: 1 Not Available

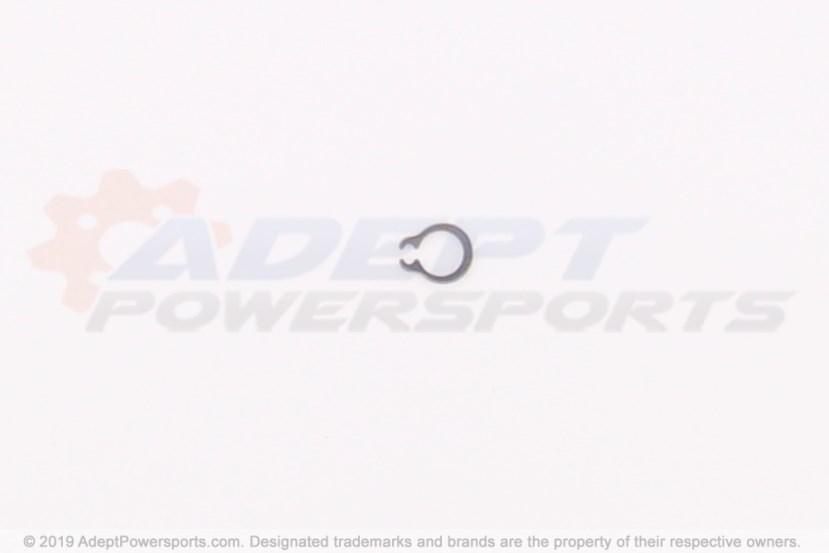

11	LOCK RING - 6X0,7 Part #: 07119903479 Required per assembly: 1 Note: ONLY APPLIES TO Currently Not Available
12	SECURING PLATE Part #: 46538544834 Required per assembly: 1 Not Available
