Headlight replacement parts for 2012-2013 BMW HP4 (K42)

OEM Parts Bmw 2012-2013 Bmw HP4 (K42) Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HIGH BEAM Part #: 63128527553 Aftermarket alternatives available Required per assembly: 1 Currently Not Available
02	LOW-BEAM HEADLAMP Part #: 63128527552 Aftermarket alternatives available Required per assembly: 1 Currently Not Available
03	BULB - H7/55W Part #: 63217160780 Required per assembly: 2 Currently Not Available
04	LONGLIFE BULB - 5W Part #: 63217160797 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
05	HEADLIGHT COVER Part #: 63127720060 Required per assembly: 2 Currently Not Available
06	GASKET Part #: 63127716863 Required per assembly: 2 Not Available
07	HEADLIGHT COVER Part #: 63127716864 Required per assembly: 1 Currently Not Available
08	GASKET Part #: 63127716866 Required per assembly: 1 Not Available
09	SELF-LOCKING PLUG NUT - M5 Part #: 46637694548 Required per assembly: 4 Currently Not Available

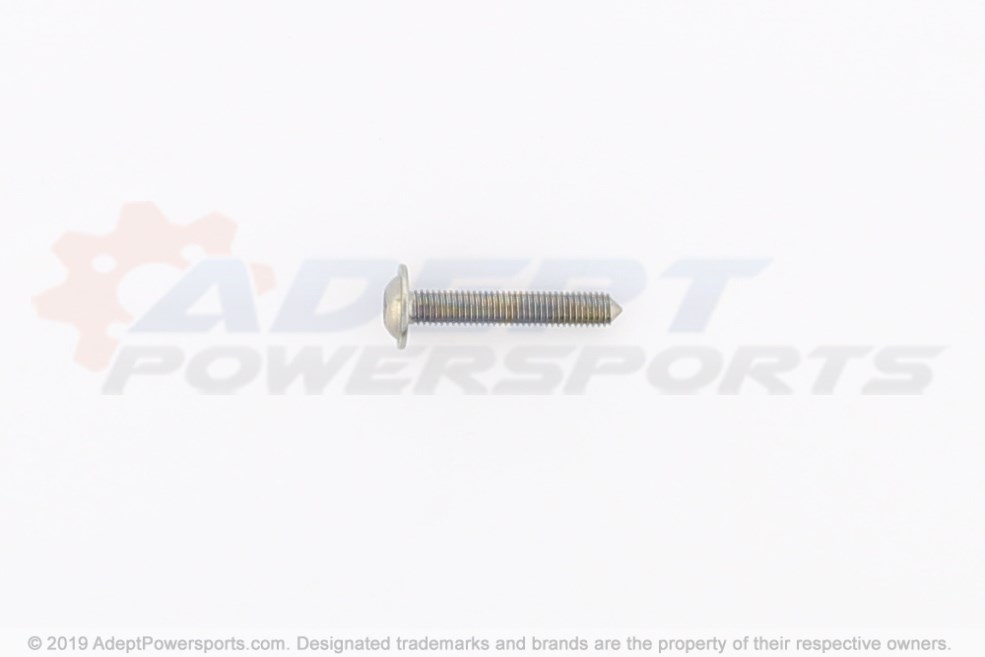

10	FILLISTER HEAD SCREW - M5X30 Part #: 46547699778 Required per assembly: 4 Currently Not Available
11	WASHER - 5-200 HV-ZNFE Part #: 07119904446 Required per assembly: 4 Currently Not Available
12	SOCKET WITH SHOULDER - DI=6/L=14,5 Part #: 46637706314 Required per assembly: 4 Currently Not Available
13	FILLISTER HEAD SCREW - M5X14 Part #: 46637657650 Required per assembly: 3 Note: ONLY IN CONJUNCTION WITH Currently Not Available
14	GROMMET Part #: 62217670749 Required per assembly: 6 Note: ONLY IN CONJUNCTION WITH Currently Not Available
15	NUT - M5 Part #: 46637707388 Required per assembly: 6 Note: FOR VEHICLES WITH PREPARATIONS FOR AUDIO SYSTEM + GPS (CODE: X266A) OR AUDIO SYSTEM ECE + PREP. FOR GPS (CODE: X267A) Currently Not Available
16	SET: REPAIR KIT FOR BULB SOCKET (TO 02/10) Part #: 63128527583 Required per assembly: 1 Currently Not Available
