Forged Wheel, Rear replacement parts for 2012-2013 BMW HP4 (K42)

OEM Parts Bmw 2012-2013 Bmw HP4 (K42) Forged Wheel, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	REAR WHEEL IN HP-BLUE - 6.0X17 Part #: 36318536094 Required per assembly: 1 Note: FOR VEHICLES WITH COMPETITION (CODE: X197A) Currently Not Available
01	BLACK REAR WHEEL - 6,0X17 Part #: 36318533751 Required per assembly: 1 Note: NOT FOR VEHICLES WITH COMPETITION (CODE: X197A) Currently Not Available

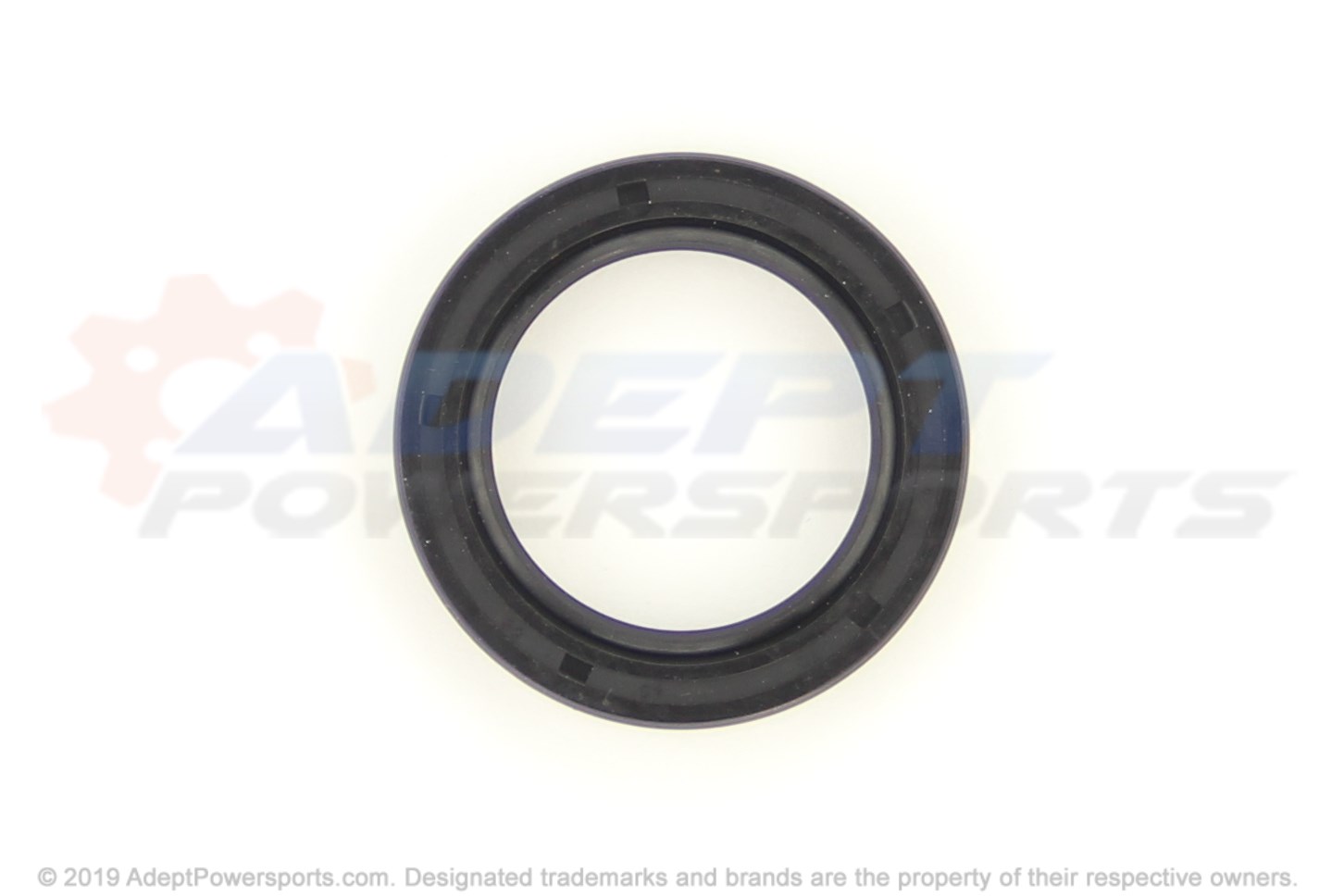

02	SHAFT SEAL - 35X52X7 Part #: 07119904626 Required per assembly: 1 Note: REPAIR PAINT PAINT GRANIT-GRAY 963 Currently Not Available
03	LOCK RING - 52X2 Part #: 07119934723 Required per assembly: 1 Currently Not Available
04	GROOVED BALL BEARING Part #: 36318548881 Required per assembly: 1 Currently Not Available
05	SPACER TUBE Part #: 36318523716 Required per assembly: 1 Currently Not Available
06	GROOVED BALL BEARING Part #: 36318548881 Required per assembly: 1 Currently Not Available
07	AXLE SHAFT REAR Part #: 33177718528 Required per assembly: 1 Currently Not Available
08	CHAIN TENSIONER, RIGHT Part #: 33177716721 Required per assembly: 1 Currently Not Available
09	SPACER BUSHING, EXTERIOR Part #: 36318534822 Required per assembly: 1 Currently Not Available
10	ABSORBER Part #: 33818530682 Required per assembly: 5 Currently Not Available
11	SPROCKET HUB Part #: 33818530679 Required per assembly: 1 Currently Not Available
12	SPACER BUSH - L=7,1MM Part #: 33818530683 Required per assembly: 1 Not Available
13	GROOVED BALL BEARING Part #: 27718523193 Required per assembly: 1 Not Available
14	LOCK RING - 58X2 Part #: 27717711759 Required per assembly: 1 Currently Not Available
15	SHAFT SEAL - 58X40X9 Part #: 27717711760 Required per assembly: 1 $12.15 $9.84 - + Add to cart
16	FIT BOLT - M12X1,5 Part #: 33818532733 Required per assembly: 5 Currently Not Available
17	SPROCKET - Z=45 Part #: 33818532146 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
18	FLANGE NUT Part #: 27717724142 Required per assembly: 5 Currently Not Available
19	SPACER BUSH - L=19,25MM Part #: 33818523331 Required per assembly: 1 Currently Not Available
20	CHAIN TENSIONER, LEFT Part #: 33177716720 Required per assembly: 1 Currently Not Available
21	WASHER Part #: 07119906682 Required per assembly: 1 Currently Not Available
22	NUT - M24X1,5 Part #: 33177718533 Required per assembly: 1 Currently Not Available
23	VALVE - D=15MM Part #: 36317653064 Required per assembly: 1 Note: NOT FOR VEHICLES WITH RDC (CODE: X530A) Currently Not Available
24	VALVE - L=20MM Part #: 36317683236 Required per assembly: 1 Note: REPAIR PAINT BLACK 103 Currently Not Available
25	WINKELVENTIL Part #: 36318542009 Required per assembly: 1 Currently Not Available
26	NUT Part #: 36318542010 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G Part #: 36317720635 Required per assembly: Note: ONLY FOR WHEEL FLANGE WITH THREADED SLEEVE Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G Part #: 36317720636 Required per assembly: Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G Part #: 36317720637 Required per assembly: Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G Part #: 36317720638 Required per assembly: Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G Part #: 36317720639 Required per assembly: Currently Not Available
27	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G Part #: 36317720640 Required per assembly: Currently Not Available
