Turn Signals, Rear replacement parts for 2012-2013 BMW HP4 (K42)

OEM Parts Bmw 2012-2013 Bmw HP4 (K42) Turn Signals, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

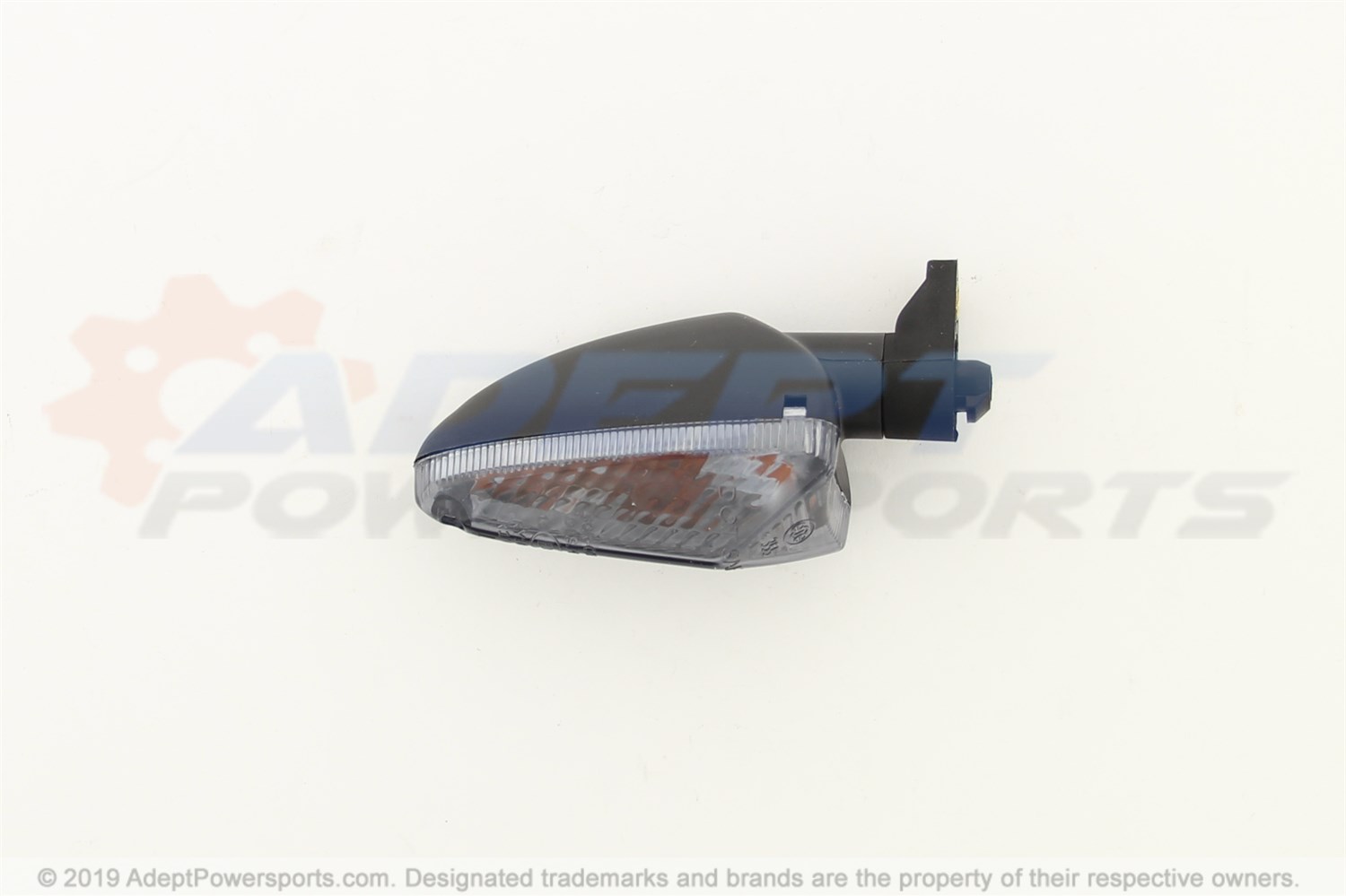

01	TURN INDICATOR Part #: 63237720564 Required per assembly: 1 Currently Not Available
01	TURN SIGNAL LAMP, WHITE (FROM 02/13) Part #: 63238534360 Required per assembly: 1 Currently Not Available
02	TURN SIGNAL LAMP, WHITE (FROM 02/13) Part #: 63238534361 Required per assembly: 1 Currently Not Available
02	TURN INDICATOR Part #: 63237720563 Required per assembly: 1 Currently Not Available
03	HEADLIGHT LENS, WHITE (FROM 02/13) Part #: 63138534350 Required per assembly: 1 Currently Not Available
03	LAMP LENS Part #: 63137715772 Required per assembly: 1 Currently Not Available
04	LAMP LENS Part #: 63137715771 Required per assembly: 1 Currently Not Available
04	HEADLIGHT LENS, WHITE (FROM 02/13) Part #: 63138534351 Required per assembly: 1 Currently Not Available
05	BULB - 12V 10W Part #: 63217169203 Required per assembly: 2 Currently Not Available
06	SCREW - 2,2X18 A2 Part #: 63137722372 Required per assembly: 2 Currently Not Available
07	OVAL HEAD SCREW - M6X35 MK Part #: 46547705577 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
08	WASHER - D= 6MM Part #: 07119904202 Required per assembly: 2 Not Available
09	SQUARE NUT - M6 Part #: 07119904050 Required per assembly: 2 Currently Not Available
