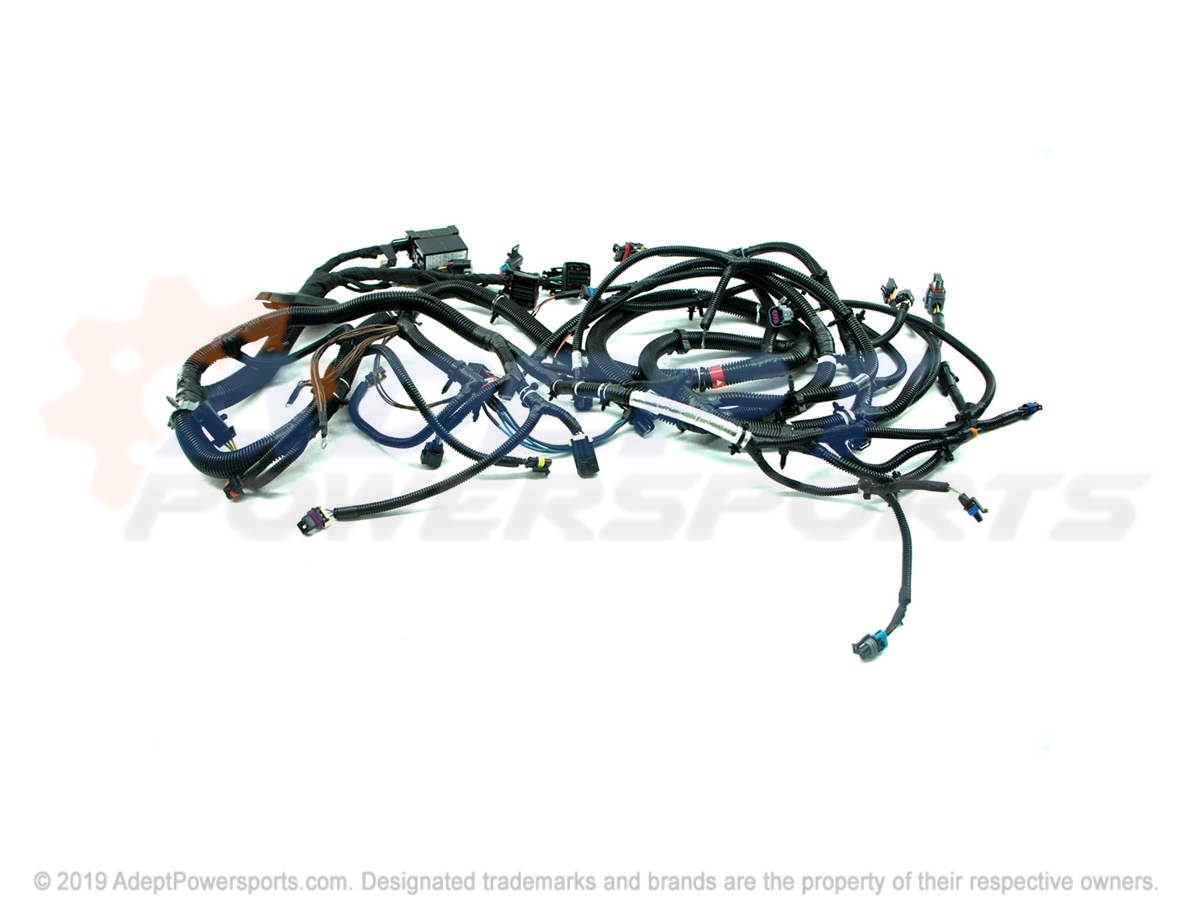

Harness - R15RTA/E87 All Options (49RGRHARNESS15900XP) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2412857 Harness-Chassis, 4X4, Eps

HARNESS-CHASSIS, 4X4, EPS

Part #: 2412857 Required per assembly: 1 Note: INCL. 5-15
Currently Not Available
2
Polaris 2411801 Harness, Box

HARNESS, BOX

Part #: 2411801 Required per assembly: 1
Currently Not Available
3
Polaris 5258150 Plate, Fuse, Mount

PLATE, FUSE, MOUNT

Part #: 5258150 Required per assembly: 1
Currently Not Available
4
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
5
Polaris 5414435 Grommet

GROMMET

Part #: 5414435 Required per assembly: 1
Currently Not Available
6
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496
Currently Not Available
7
Polaris 4012170 Cover, Diagnostic, W/Clip

COVER, DIAGNOSTIC, W/CLIP

Part #: 4012170 Required per assembly: 1
Currently Not Available
8
Polaris 2434016 Fuse, 10Amp

FUSE, 10AMP

Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition
Sold in multiples of 10 only
Currently Not Available
9
Polaris 4012811 Fuse-20 Mini Blade 58V(Yellow)

FUSE-20 MINI BLADE 58V(YELLOW)

Part #: 4012811 Required per assembly: 4
Currently Not Available
10
Polaris 2410881 Breaker, Circuit, 20, Amp

BREAKER, CIRCUIT, 20, AMP

Part #: 2410881 Required per assembly: 1
Currently Not Available
11
Polaris 5438758 Cover-Relay/Fuse Center

COVER-RELAY/FUSE CENTER

Part #: 5438758 Required per assembly: 1
Currently Not Available
12
Polaris 7177866 Decal, Relay/Fuse, Box

DECAL, RELAY/FUSE, BOX

Part #: 7177866 Required per assembly: 1
Currently Not Available
13
Polaris 4012260 Cover-Fuseholder

COVER-FUSEHOLDER

Part #: 4012260 Required per assembly: 1
Currently Not Available
14
Polaris 4016819 Relay-Spst, 12V, 20A, Epxy, Hfa

RELAY-SPST, 12V, 20A, EPXY, HFA

Part #: 4016819 Required per assembly: 5
Currently Not Available
15
Polaris 2434015 Fuse, Main, 30, Amp

FUSE, MAIN, 30, AMP

Part #: 2434015 Required per assembly: 1 Note: Fuse, 30 AMP, Main
Sold in multiples of 10 only
Currently Not Available
16
Polaris 4014235 Connector-Cap, Eps, Power

CONNECTOR-CAP, EPS, POWER

Part #: 4014235 Required per assembly: 1 Note: NON EPS MODELS
Currently Not Available
17
Polaris 4014236 Connector-Cap, Eps, Signal

CONNECTOR-CAP, EPS, SIGNAL

Part #: 4014236 Required per assembly: 1 Note: NON EPS MODELS
Currently Not Available
