Windshield Tip-Out - R15rta/E87a5 (49Rgrwindshield142m) replacement parts for 2015 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2015 Polaris Ranger 900 XP All Options Windshield Tip-Out - R15rta/E87a5 (49Rgrwindshield142m)

Windshield TIP-OUT - R15RTA/E87A5 (49RGRWINDSHIELD142M) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BRACKET, HINGE, UPPER, LH Part #: 1018927 Required per assembly: 1 Currently Not Available
2	BRACKET, HINGE, UPPER, RH Part #: 1018928 Required per assembly: 1 Currently Not Available
3	ASM-MT2, LWR, TIP, WSHLD, TTN Part #: 1020002 Required per assembly: 1 Currently Not Available
4	ASSEMBLY, GLASS, TIPOUT Part #: 2878858 Required per assembly: 1 Note: INCL. 5-7 Currently Not Available

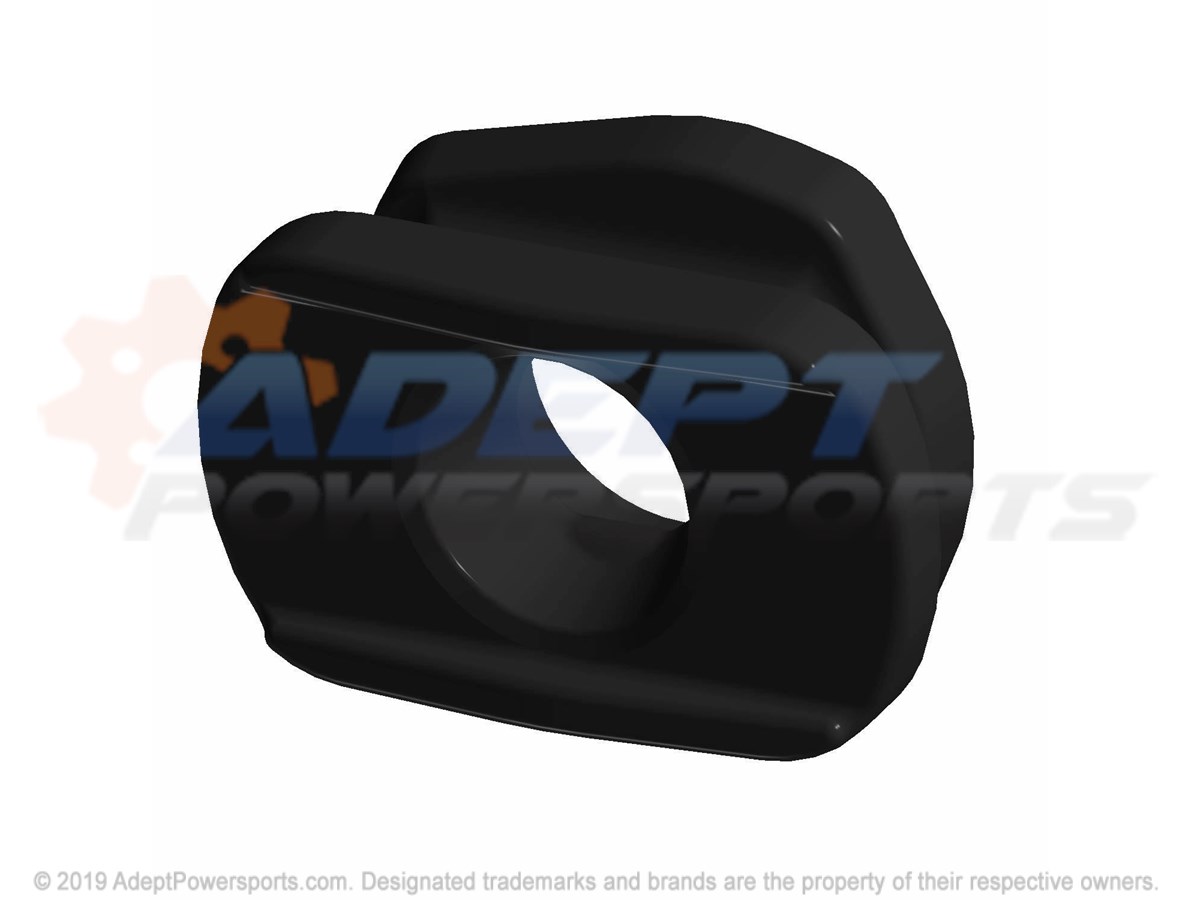

5	BUSHING Part #: 5137866 Required per assembly: 4 Currently Not Available
6	PLUG, WIPER, L, AND, R Part #: 5439803 Required per assembly: 1 Currently Not Available
7	SEAL, GLASS, FRONT Part #: 5521838 Required per assembly: 1 Currently Not Available
8	BUMPER Part #: 5412465 Required per assembly: 2 Currently Not Available
9	GROMMET, RUBBER, HANDLE, TIPOUT Part #: 5439913 Required per assembly: 1 Currently Not Available
10	HANDLE-TIP OUT Part #: 5451292 Required per assembly: 1 Currently Not Available
11	SHOCK, GAS, TIPOUT Part #: 7043889 Required per assembly: 2 Currently Not Available
12	SPRING, TORSION, RH, TIPOUT Part #: 7043894 Required per assembly: 1 Currently Not Available
13	SPRING, TORSION, LH, TIPOUT Part #: 7043895 Required per assembly: 1 Currently Not Available
14	BALL, END Part #: 7081839 Required per assembly: 4 Currently Not Available
15	SCREW Part #: 7511866 Required per assembly: 2 Currently Not Available
16	PIN, PIVOT, HANDLE, TIPOUT Part #: 7519743 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7519747 Required per assembly: 6 Currently Not Available
18	NUT, FLANGE Part #: 7547454 Required per assembly: 8 Currently Not Available
19	GROMMET-RUBBER, WSHLD, TIP, TTN Part #: 5415090 Required per assembly: 1 Currently Not Available
20	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
