Seat, Slider - R15rta/E87 All Options (49Rgrseat15900xp) replacement parts for 2015 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2015 Polaris Ranger 900 XP All Options Seat, Slider - R15rta/E87 All Options (49Rgrseat15900xp)

Seat, Slider - R15RTA/E87 All Options (49RGRSEAT15900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

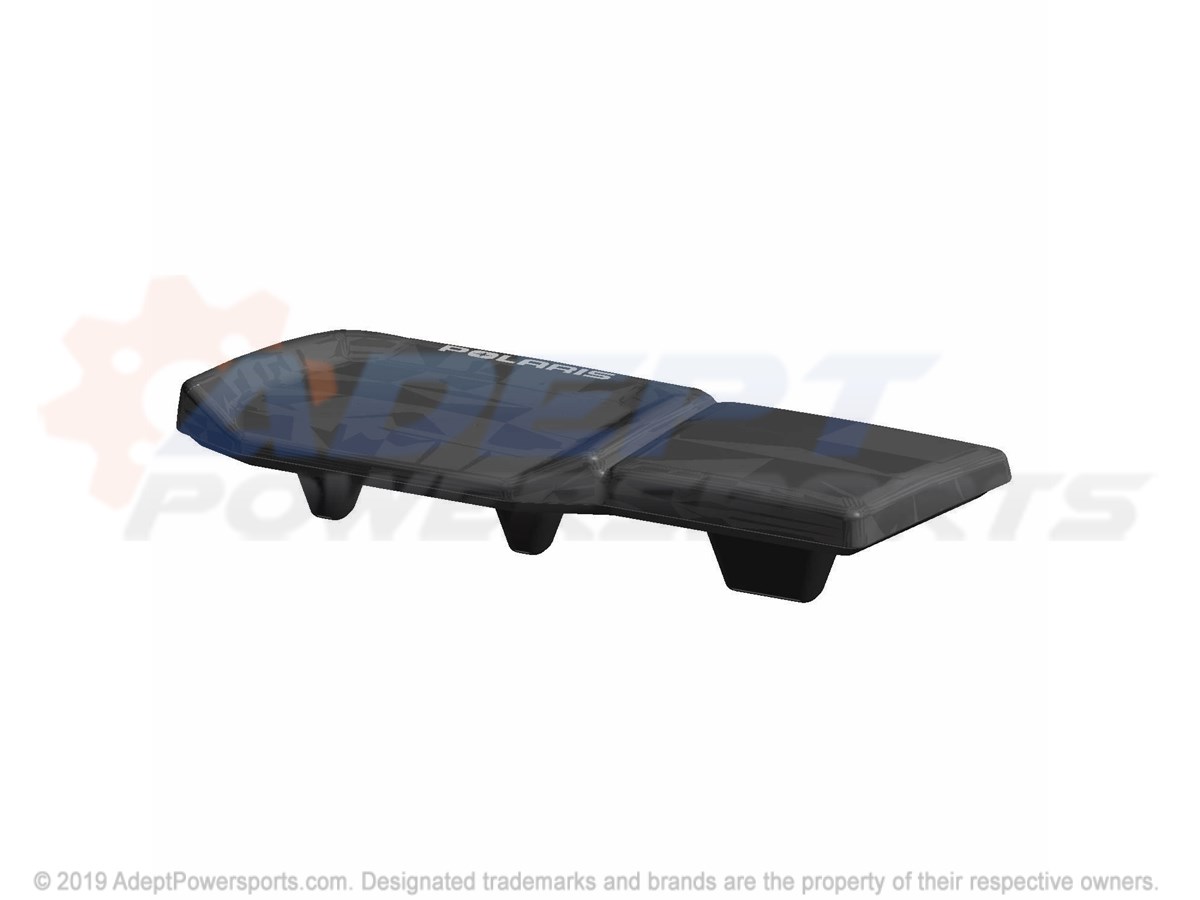

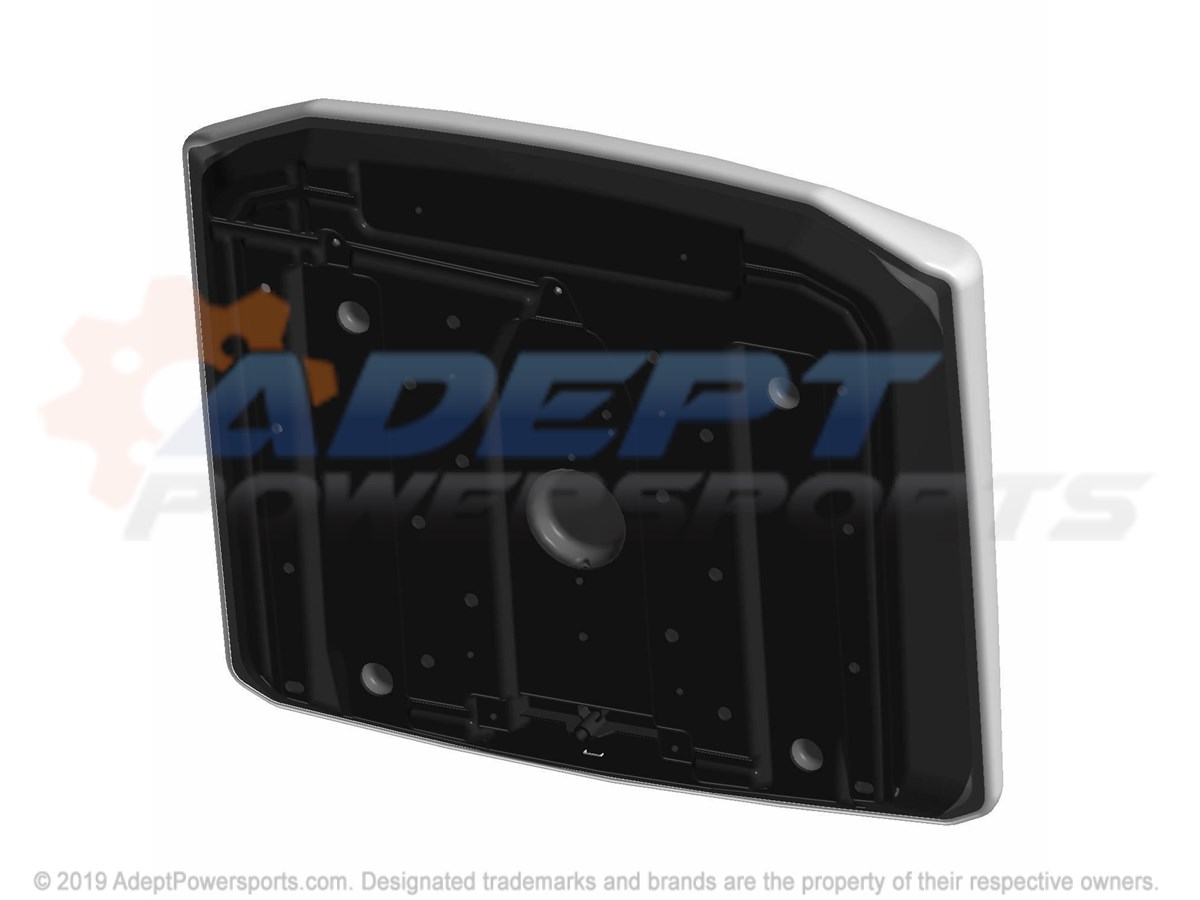

1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685141 Required per assembly: 1 Note: AS Currently Not Available

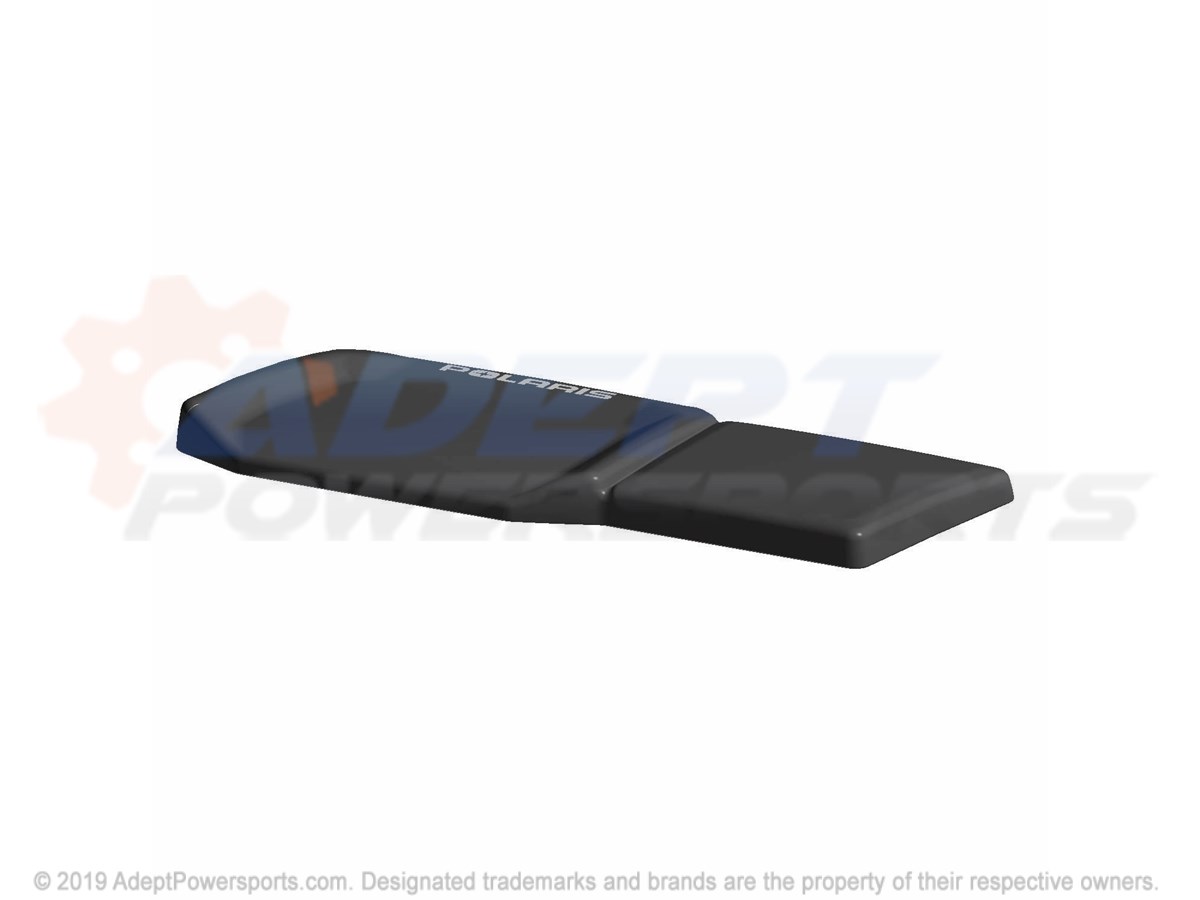

1	COVERING, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685350 Required per assembly: 1 Note: AS Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685350 Required per assembly: 1 Note: A2 Currently Not Available
1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/D., MARSH Part #: 2685600 Required per assembly: 1 Note: AB Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/D., MARSH Part #: 2685604 Required per assembly: 1 Note: AB Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/D., MARSH Part #: 2685604 Required per assembly: 1 Note: A5 Currently Not Available
1	ASM-SEAT, BTM, 60, SS, GRAY/I.RED Part #: 2686236 Required per assembly: 1 Note: AM Currently Not Available
1	ASM-SEAT, BTM, 60, O.MAD/WHT Part #: 2686240 Required per assembly: 1 Note: AW Currently Not Available
1	ASM-SEAT, BTM, 60, DK.STL/WHITE Part #: 2686258 Required per assembly: 1 Note: AK Currently Not Available

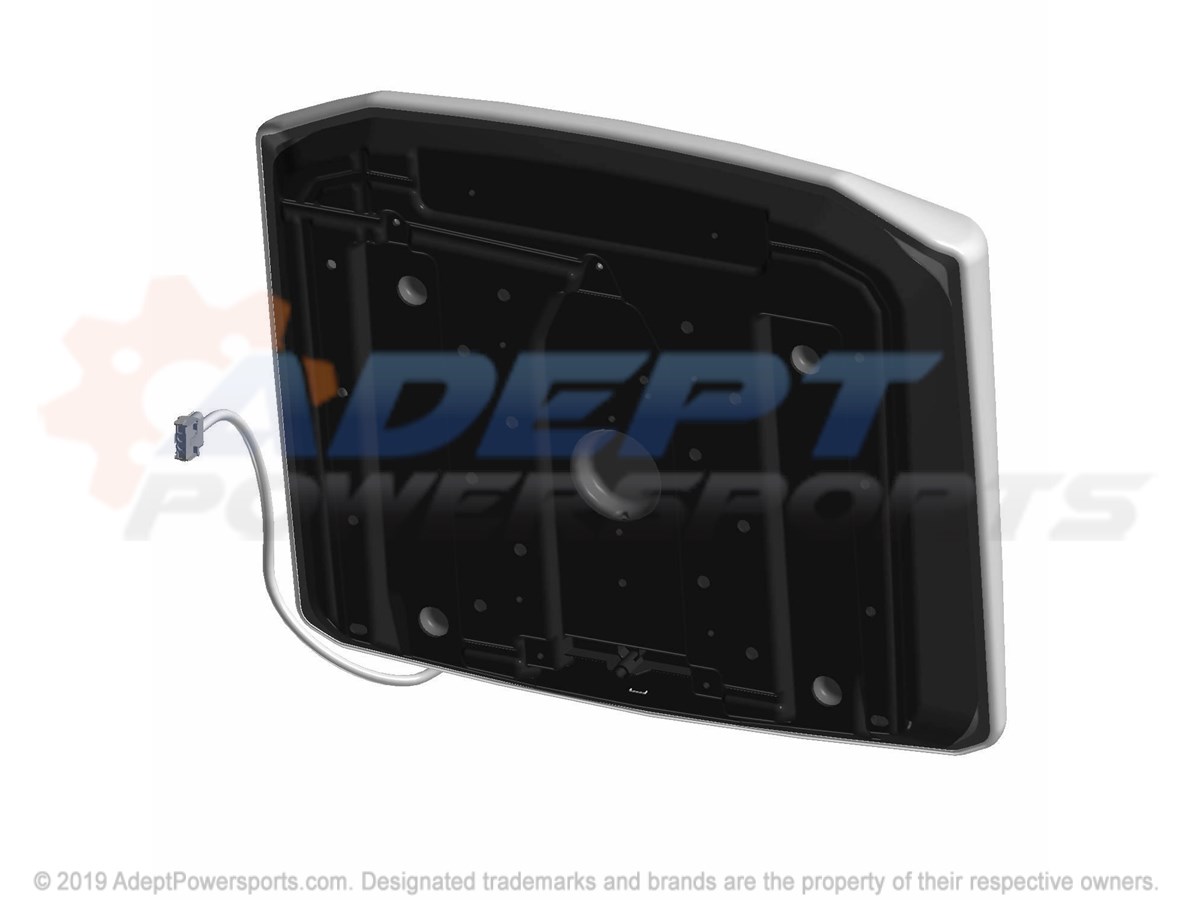

1	ASM-SEAT, BTM, HTR, 60, BLK, D.MRH Part #: 2686317 Required per assembly: 1 Note: A5 Currently Not Available
1	CVR-SEAT, BTM, 60, O.MAD/WHT Part #: 2686286 Required per assembly: 1 Note: AW Currently Not Available
1	CVR-SEAT, BTM, 60, SS, GRAY/I.RED Part #: 2686290 Required per assembly: 1 Note: AM Currently Not Available
1	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: A5 Currently Not Available
1	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: A2 Currently Not Available
1	CVR-SEAT, BTM, 60, DK.STL/WHT Part #: 2686294 Required per assembly: 1 Note: AK Currently Not Available
1	ASM-SEAT, BTM, HTR, 60, BLK/S.RED Part #: 2686315 Required per assembly: 1 Note: A2 Currently Not Available
1	ASM-SEAT, BTM, 60, T.SLVR/S.RED Part #: 2686631 Required per assembly: 1 Note: AX Currently Not Available
1	ASM-SEAT, BTM, 60, BLK/SUEDE Part #: 2686615 Required per assembly: 1 Note: AX Currently Not Available
1	COVERING-BTM, 60, T.SLVR/S.RED Part #: 2686635 Required per assembly: 1 Note: AZ Currently Not Available
1	COVERING-BTM, 60, BLK/SUEDE Part #: 2686619 Required per assembly: 1 Note: AX Currently Not Available

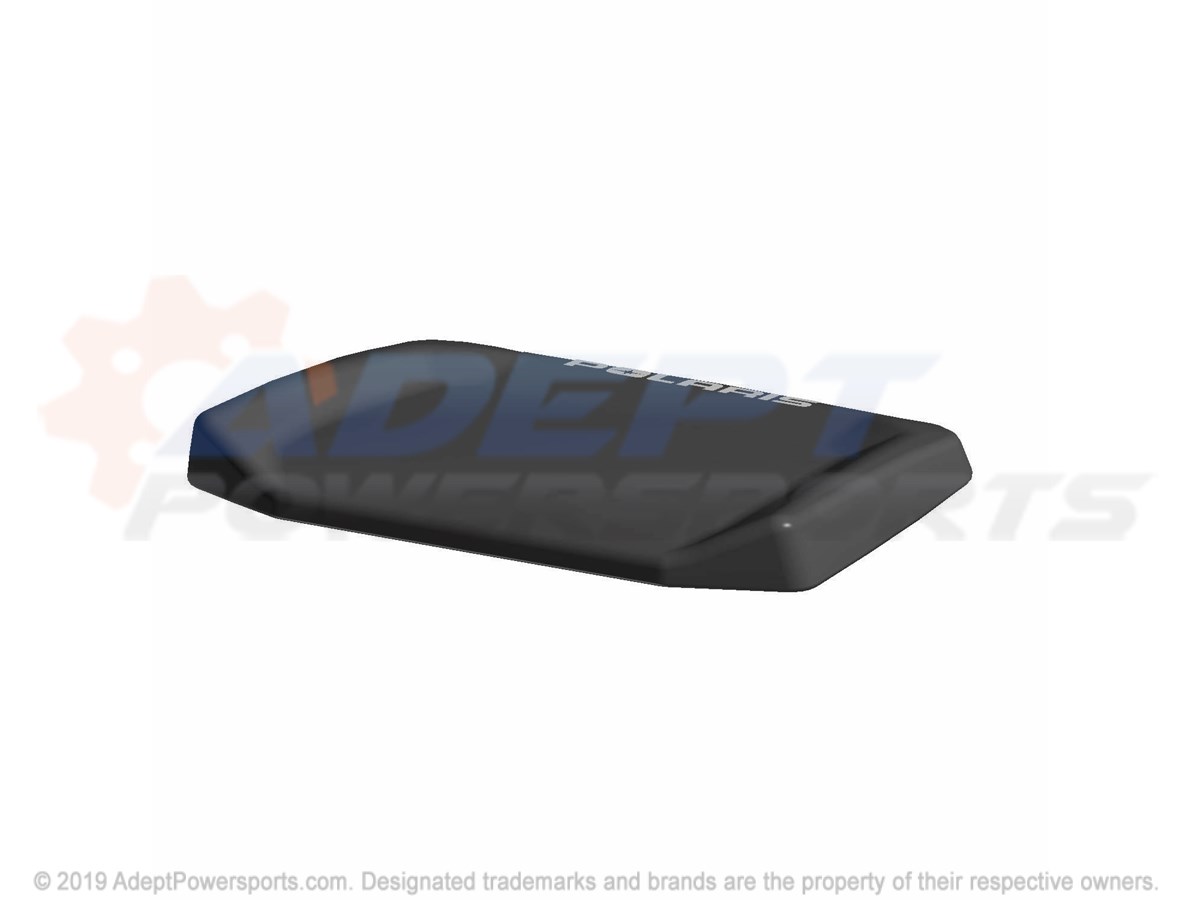

2	COVERING-BTM, 40, BLK/SUEDE Part #: 2686621 Required per assembly: 1 Note: AX Currently Not Available
2	COVERING-BTM, 40, T.SLVR/S.RED Part #: 2686637 Required per assembly: 1 Note: AZ Currently Not Available

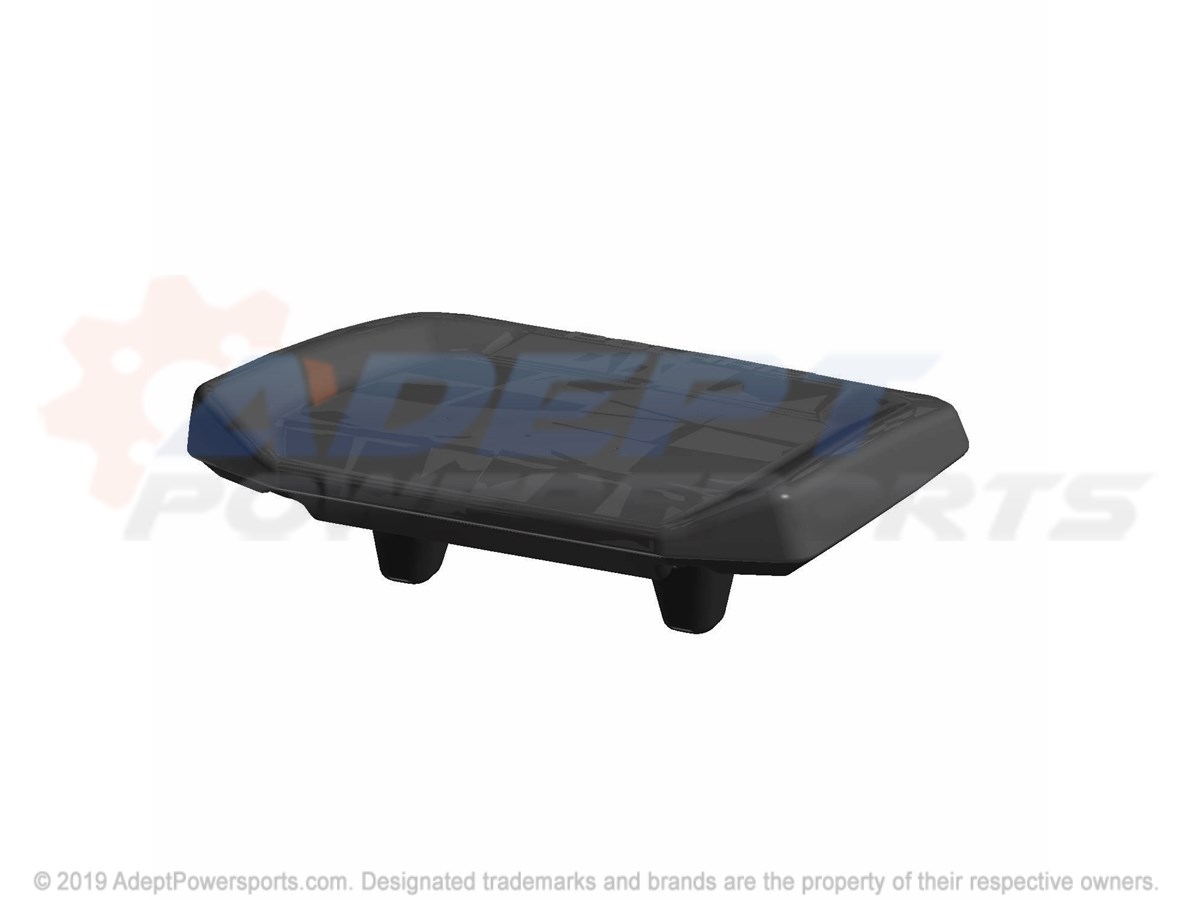

2	ASM-SEAT, BTM, 40, BLK/SUEDE Part #: 2686617 Required per assembly: 1 Note: AX Currently Not Available
2	ASM-SEAT, BTM, HTR, 40, BLK/S.RED Part #: 2686316 Required per assembly: 1 Note: A2 Currently Not Available
2	ASM-SEAT, BTM, HTR, 40, BLK, D.MRH Part #: 2686318 Required per assembly: 1 Note: A5 Currently Not Available
2	CVR-SEAT, BTM, 40, DK.STL/WHT Part #: 2686296 Required per assembly: 1 Note: AK Currently Not Available
2	CVR-SEAT, BACK, 40, O.MAD/WHT Part #: 2686287 Required per assembly: 1 Note: AW Currently Not Available
2	CVR-SEAT, BTM, 40, SS, GRAY/I.RED Part #: 2686292 Required per assembly: 1 Note: AM Currently Not Available
2	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: A5 Currently Not Available
2	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: A2 Currently Not Available
2	ASM-SEAT, BTM, 40, SS, GRAY/I.RED Part #: 2686238 Required per assembly: 1 Note: AM Currently Not Available
2	ASM-SEAT, BTM, 40.DK.STL/WHITE Part #: 2686260 Required per assembly: 1 Note: AK Currently Not Available
2	ASM-SEAT, BACK, 40, O.MAD/WHT Part #: 2686241 Required per assembly: 1 Note: AW Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685143 Required per assembly: 1 Note: AS Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685360 Required per assembly: 1 Note: A2 Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685360 Required per assembly: 1 Note: AS Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/D., MARSH Part #: 2685602 Required per assembly: 1 Note: AB Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/D., MARSH Part #: 2685606 Required per assembly: 1 Note: AB Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/D., MARSH Part #: 2685606 Required per assembly: 1 Note: A5 Currently Not Available
2	ASM-SEAT, BTM, 40, T.SLVR/S.RED Part #: 2686633 Required per assembly: 1 Note: AX Currently Not Available

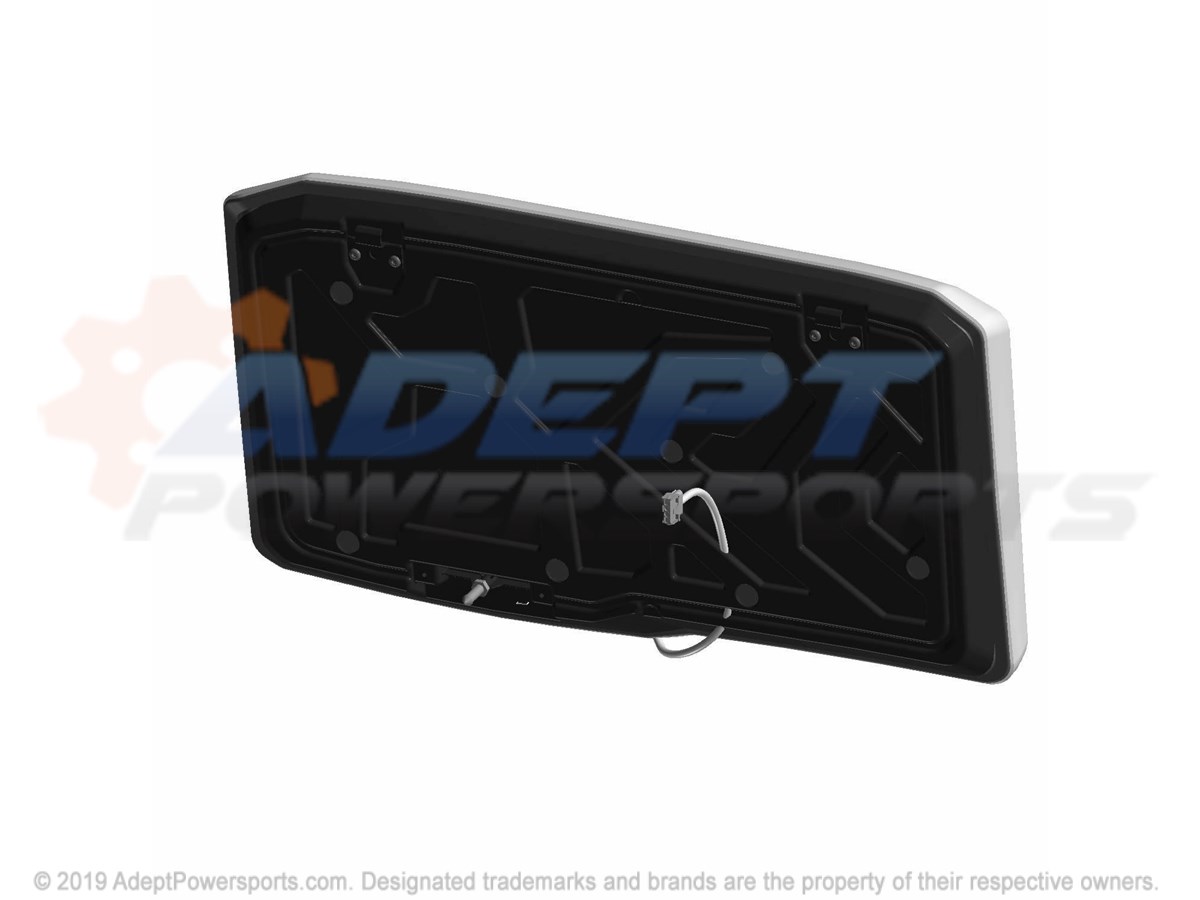

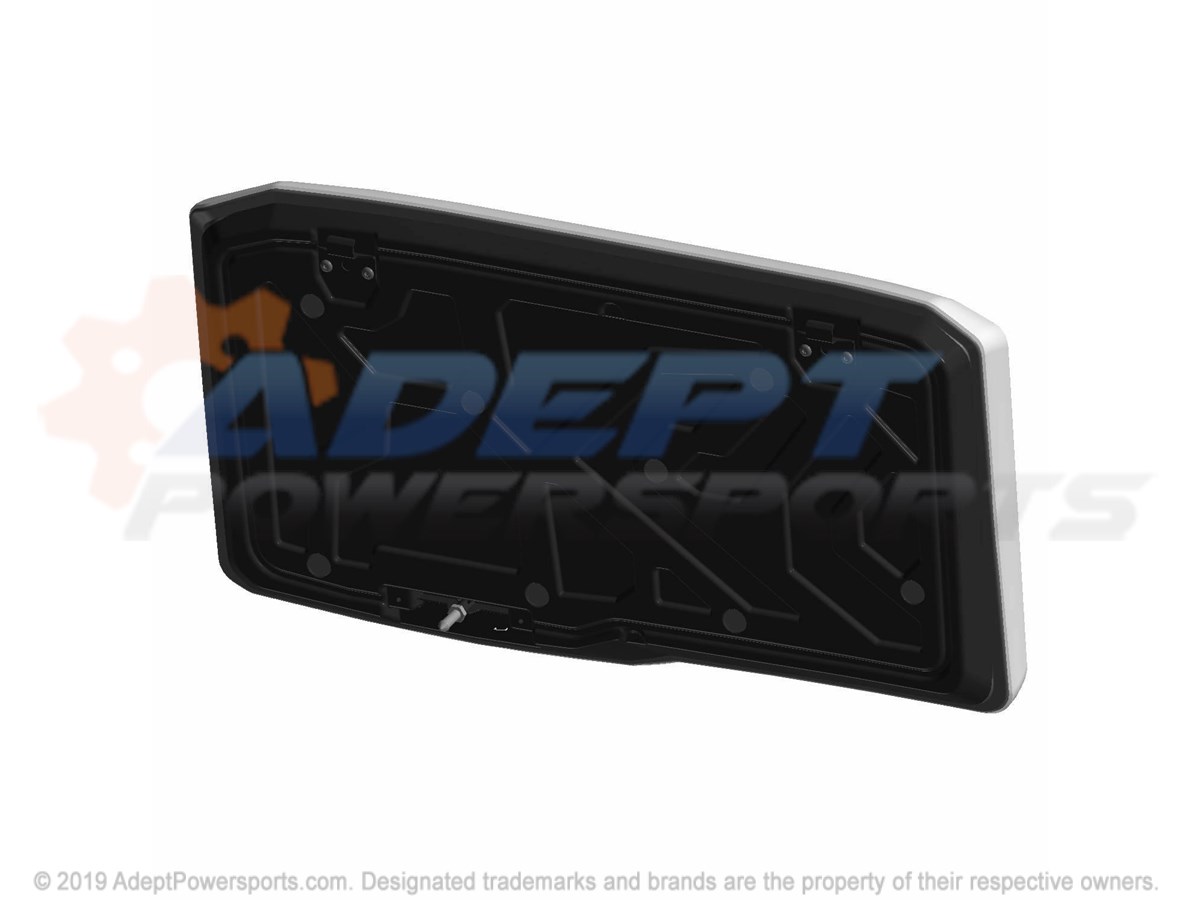

3	ASSEMBLY, SEAT, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685140 Required per assembly: 1 Note: AS Currently Not Available

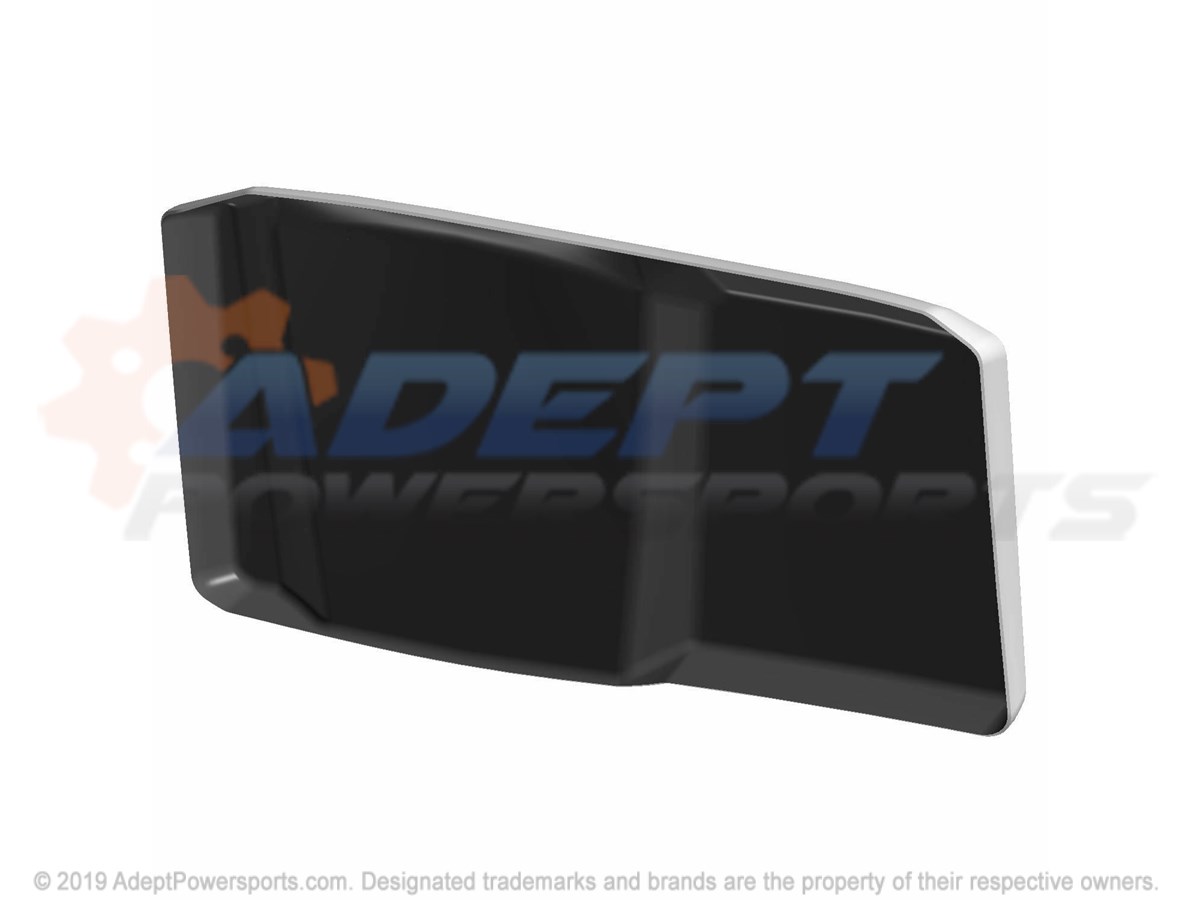

3	COVERING, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685345 Required per assembly: 1 Note: AS Currently Not Available
3	ASM-SEAT, BACK, 60, SS, GRAY/I.RED Part #: 2686235 Required per assembly: 1 Note: AM Currently Not Available
3	ASM-SEAT, BACK, 60, BLK, D.MARSH Part #: 2686356 Required per assembly: 1 Note: AB Currently Not Available
3	ASM-SEAT, BACK, 60, DK.STL/WHITE Part #: 2686257 Required per assembly: 1 Note: AK Currently Not Available
3	ASM-SEAT, BACK, 60, O.MAD/WHT Part #: 2686239 Required per assembly: 1 Note: AW Currently Not Available
3	CVR-SEAT, BACK, 60, O.MAD/WHT Part #: 2686285 Required per assembly: 1 Note: AW Currently Not Available
3	COVERING-BACK, 60, BLK, D.MARSH Part #: 2686395 Required per assembly: 1 Note: AB Currently Not Available
3	CVR-SEAT, BACK, 60, SS, GRAY/I.RED Part #: 2686289 Required per assembly: 1 Note: AM Currently Not Available
3	CVR-SEAT, BACK, 60, DK.STL/WHT Part #: 2686293 Required per assembly: 1 Note: AK Currently Not Available
3	ASM-SEAT, BACK, 60, T.SLVR/S.RED Part #: 2686630 Required per assembly: 1 Note: AX Currently Not Available
3	COVERING-BACK, 60, T.SLVR/S.RED Part #: 2686634 Required per assembly: 1 Note: AZ Currently Not Available
3	COVERING-BACK, 60, BLK/SUEDE Part #: 2686618 Required per assembly: 1 Note: AX Currently Not Available
3	ASM-SEAT, BACK, 60, BLK/SUEDE Part #: 2686614 Required per assembly: 1 Note: AX Currently Not Available

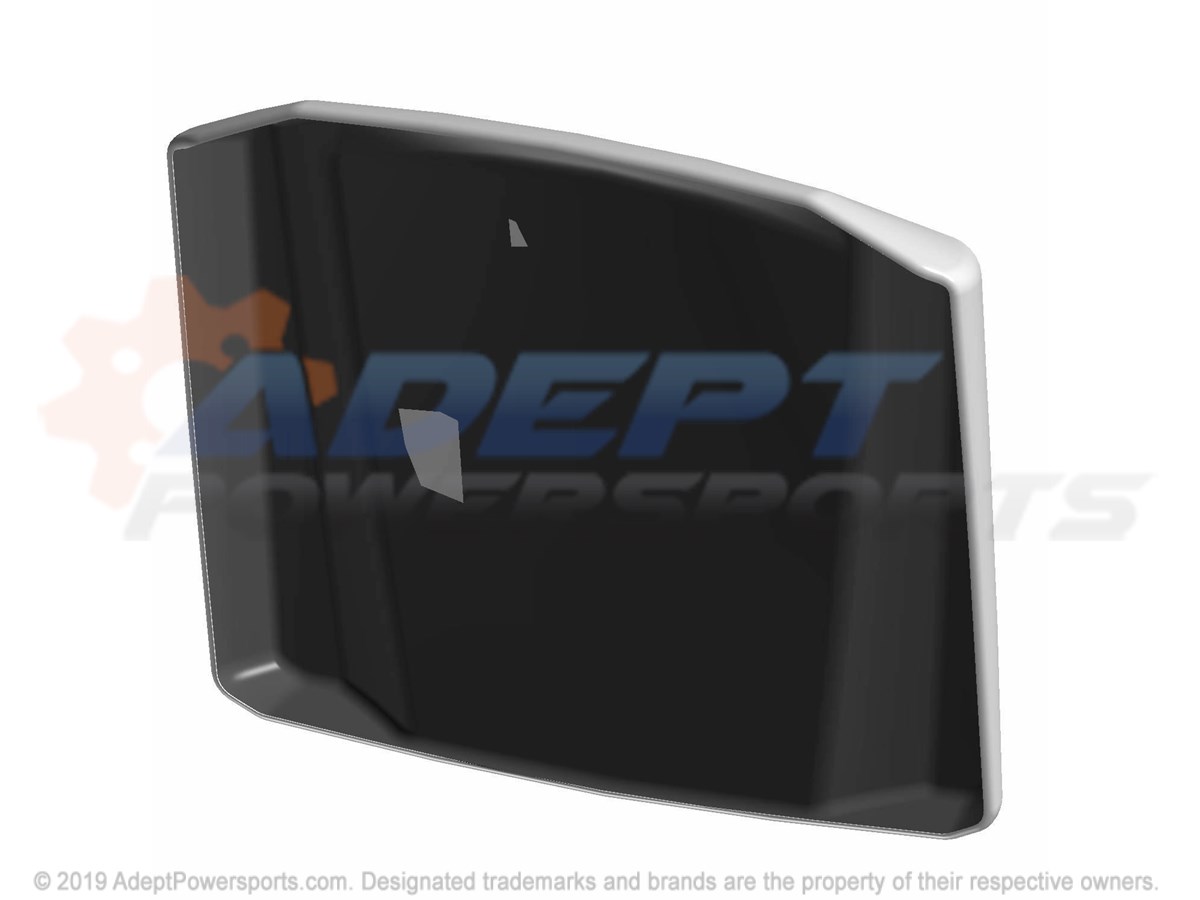

4	COVERING-BACK, 40, T.SLVR/S.RED Part #: 2686636 Required per assembly: 1 Note: AZ Currently Not Available
4	COVERING-BACK, 40, BLK/SUEDE Part #: 2686620 Required per assembly: 1 Note: AX Currently Not Available
4	ASM-SEAT, BACK, 40, BLK/SUEDE Part #: 2686616 Required per assembly: 1 Note: AX Currently Not Available
4	ASM-SEAT, BACK, 40, T.SLVR/S.RED Part #: 2686632 Required per assembly: 1 Note: AZ Currently Not Available
4	CVR-SEAT, BACK, 40, DK.STL/WHT Part #: 2686295 Required per assembly: 1 Note: AK Currently Not Available
4	ASM-SEAT, BACK, 40, DK.STL/WHITE Part #: 2686259 Required per assembly: 1 Note: AK Currently Not Available
4	CVR-SEAT, BTM, 40, O.MAD/WHT Part #: 2686288 Required per assembly: 1 Note: AW Currently Not Available
4	CVR-SEAT, BACK, 40, SS, GRAY/I.RED Part #: 2686291 Required per assembly: 1 Note: AM Currently Not Available
4	COVERING-BACK, 40, BLK, D.MARSH Part #: 2686396 Required per assembly: 1 Note: AB Currently Not Available
4	ASM-SEAT, BACK, 40, BLK, D.MARSH Part #: 2686357 Required per assembly: 1 Note: AB Currently Not Available
4	ASM-SEAT, BTM, 40, O.MAD/WHT Part #: 2686242 Required per assembly: 1 Note: AW Currently Not Available
4	ASM-SEAT, BACK, 40, SS, GRAY/I.RED Part #: 2686237 Required per assembly: 1 Note: AM Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685142 Required per assembly: 1 Note: AS Currently Not Available
4	COVERING, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685355 Required per assembly: 1 Note: AS Currently Not Available
5	GROMMET Part #: 5439179 Required per assembly: 2 Currently Not Available
6	PIN, SEAT, LATCH Part #: 5910404 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7519045 Required per assembly: 8 Currently Not Available
8	ASM-SEAT, BELT, 3PT Part #: 2638785 Required per assembly: 2 Currently Not Available
9	ASM-SEAT, BELT, 3PT, CENTER Part #: 2638784 Required per assembly: 1 Currently Not Available
10	BUCKLE-SEATBELT, 90, Z, SWITCH Part #: 2637304 Required per assembly: 1 Currently Not Available
11	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 6 Currently Not Available
12	SCREW Part #: 7519770 Required per assembly: 7 Currently Not Available
13	NUT, FLANGE, NYLOK Part #: 7547441 Required per assembly: 12 Currently Not Available
14	BUCKLE, SEATBELT, PASSENGER Part #: 2635235 Required per assembly: 2 Currently Not Available
15	CAP, BOLT, HEAD Part #: 5450708 Required per assembly: 1 Currently Not Available
16	BRACKET, SEAT, HINGE Part #: 5256836 Required per assembly: 2 Currently Not Available
17	CLAMP, WIRE/TUBE Part #: 7081246 Required per assembly: 1 Currently Not Available
