Roof - R15rta/E87a2/A5 (49Rgrroof15900xp) replacement parts for 2015 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2015 Polaris Ranger 900 XP All Options Roof - R15rta/E87a2/A5 (49Rgrroof15900xp)

Roof - R15RTA/E87A2/A5 (49RGRROOF15900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-ACCY, ROOF, POLY, PREM, ZS Part #: 2882912 Required per assembly: 1 Note: A2 Currently Not Available
1	K-ACCY, ROOF, CAMO, PREM, ZS Part #: 2882913 Required per assembly: 1 Note: A5 Currently Not Available
2	LOCK & RIDE® PRO-FIT™ SEAL KIT Part #: 2879289 Required per assembly: 1 Note: The Lock & Ride PRO-FIT Seal Kit ensures the tightest, most reliable fit for the Lock & Ride PRO-FIT Sport Roof (2878849 sold separately). Includes everything needed for installation. INCL. 3-5 Currently Not Available
3	FOAM, SEAL, ROOF, SIDE Part #: 5813845 Required per assembly: 2 Currently Not Available
4	FOAM, SEAL, ROOF, REAR Part #: 5813846 Required per assembly: 1 Currently Not Available
5	LOCK & RIDE® PRO-FIT™ SEAL KIT Part #: 2879289 Required per assembly: 1 Note: The Lock & Ride PRO-FIT Seal Kit ensures the tightest, most reliable fit for the Lock & Ride PRO-FIT Sport Roof (2878849 sold separately). Includes everything needed for installation. Currently Not Available

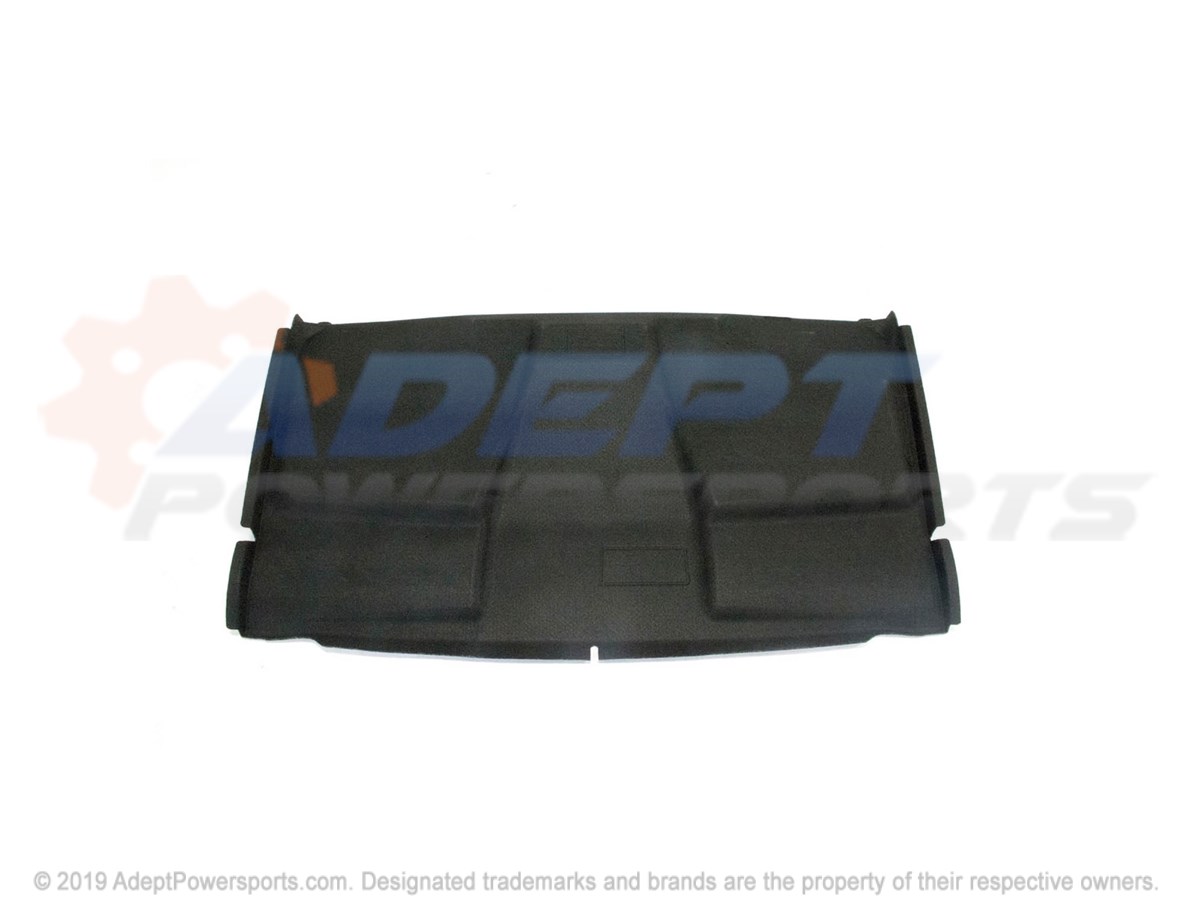

6	ROOF-L&R Part #: 5439723 Required per assembly: 1 Note: A2 Currently Not Available
6	PANEL-ROOF, CAMO, TTN Part #: 5450980 Required per assembly: 1 Note: A5 Currently Not Available
7	HEADLINER-INNER, ROOF, L&R Part #: 5813912 Required per assembly: 1 Currently Not Available
8	U-TYPE, SPEED, NUT Part #: 7081305 Required per assembly: 3 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
9	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
10	SCREW Part #: 7519092 Required per assembly: 3 Currently Not Available
11	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
12	WASHER Part #: 7556034 Required per assembly: 2 Currently Not Available
13	CLIP, PLASTIC, DART, NYLON Part #: 7670088 Required per assembly: 6 Currently Not Available
14	SCREW Part #: 7519722 Required per assembly: 1 Note: A5 Currently Not Available
15	NUT, FLANGE Part #: 7547453 Required per assembly: 1 Note: A5 Currently Not Available
16	BUMPER, BOX Part #: 5414343 Required per assembly: 1 Note: A5 ~~$5.99~~ $3.45 - + Add to cart
