Seat - R15rte87av/Bv All Options (49Rgrseat159xp) replacement parts for 2015 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2015 Polaris Ranger 900 XP All Options Seat - R15rte87av/Bv All Options (49Rgrseat159xp)

Seat - R15RTE87AV/BV All Options (49RGRSEAT159XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

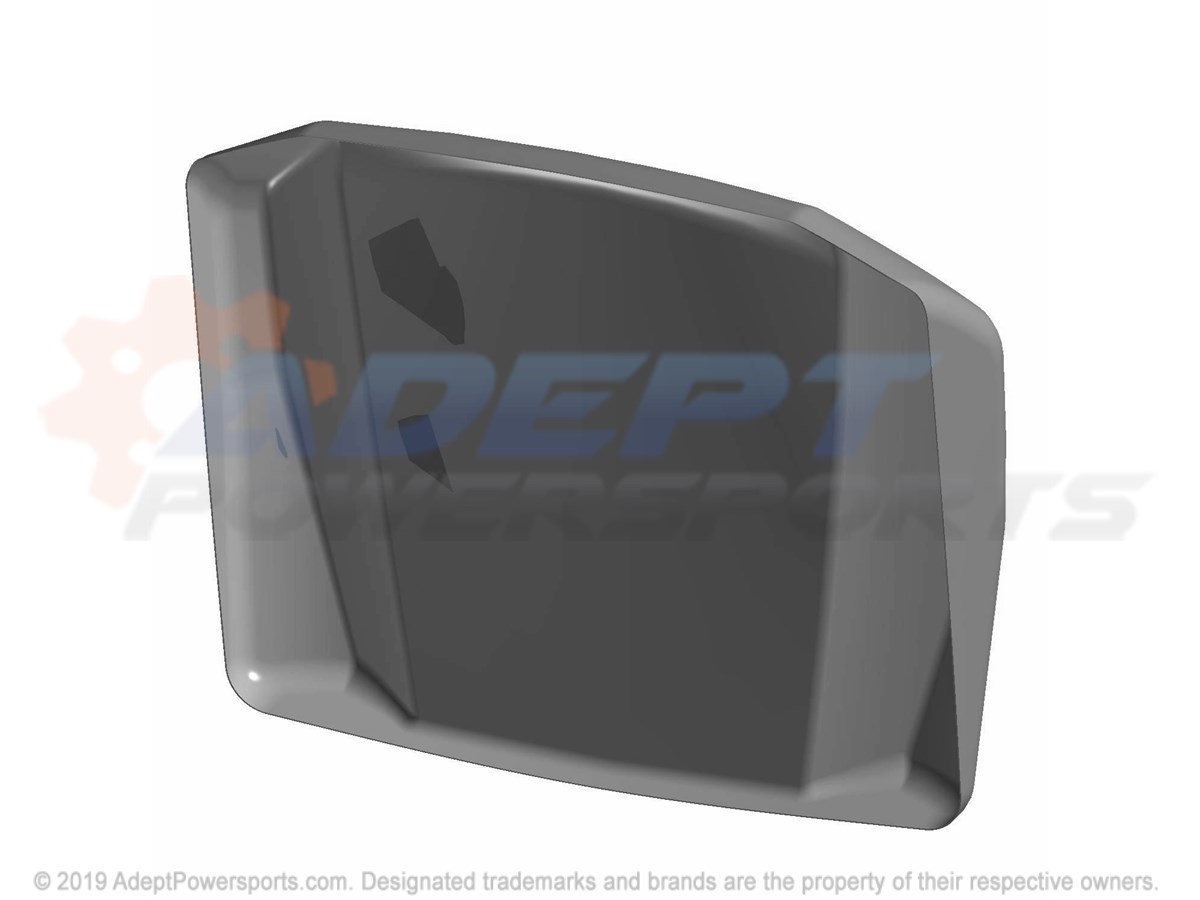

1	COVER-SEATBACK, BLK, WV, SLVR, STX Part #: 2686362 Required per assembly: 2 Currently Not Available
1	ASM-SEAT, BACK, BLK, WV, SLVR, STX Part #: 2686358 Required per assembly: 2 Currently Not Available
2	COVER-BTM, 40, BLK, WV, SLVR, STX Part #: 2686363 Required per assembly: 1 Currently Not Available

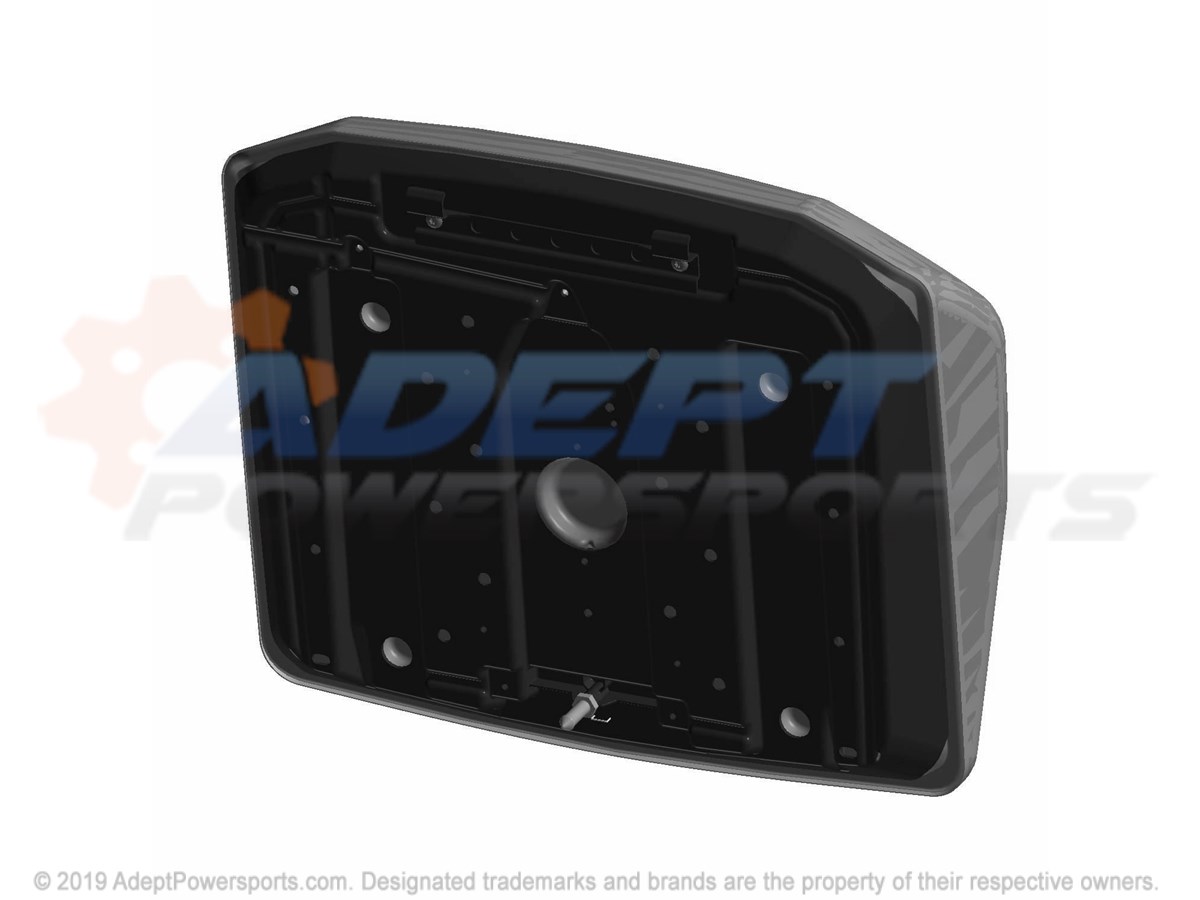

2	ASM-SEAT, BTM40, BLK, WV, SLVR, STX Part #: 2686359 Required per assembly: 1 Currently Not Available
3	ASM-SEAT, BTM40, BLK, WV, SLVR, STX Part #: 2686360 Required per assembly: 1 Note: INCL. 4, QTY 2 OF 5,6 Currently Not Available

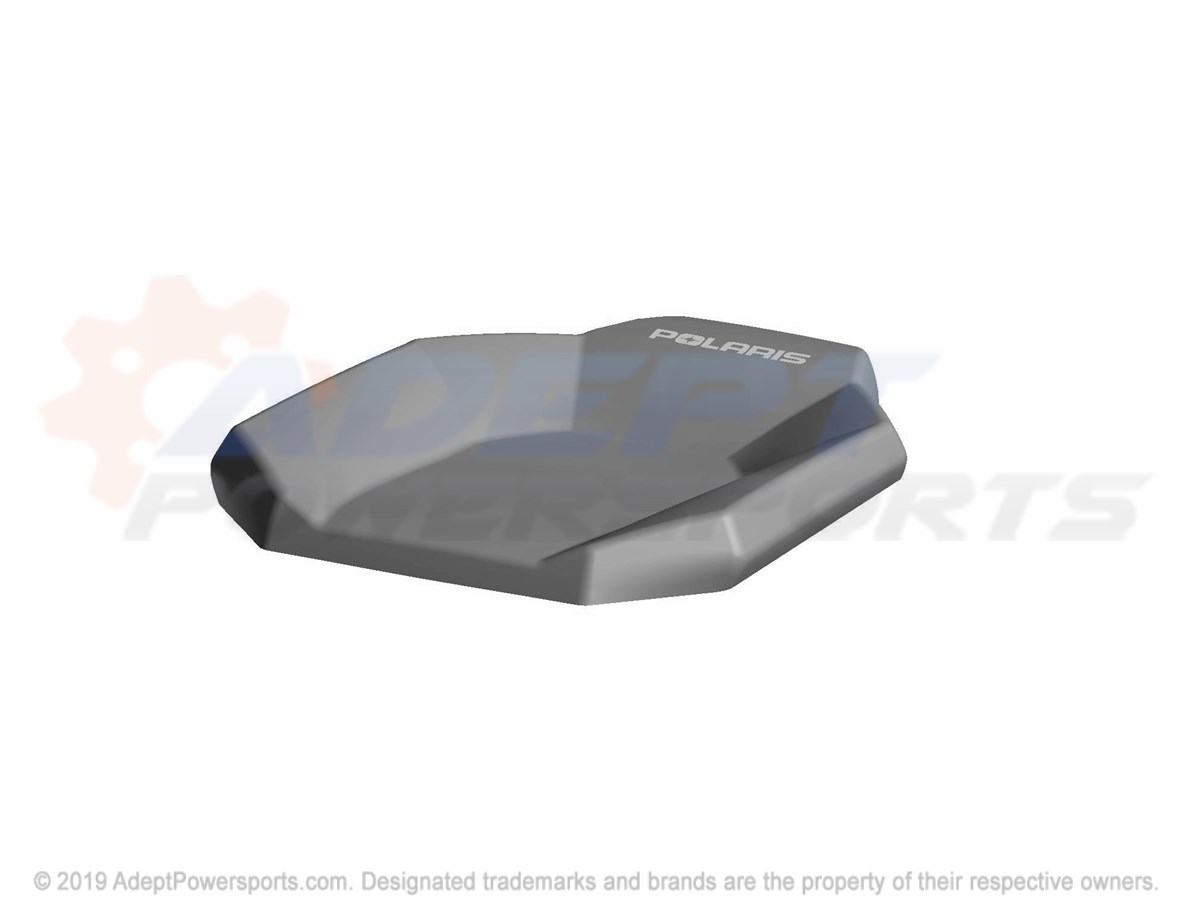

3	COVER-BTM, 40, BLK, WV, SLVR, STX Part #: 2686363 Required per assembly: 1 Currently Not Available
4	BRACKET, SEAT, HINGE, DOUBLE Part #: 5256837 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519045 Required per assembly: 8 Currently Not Available
6	PIN, SEAT, LATCH Part #: 5910404 Required per assembly: 1 Currently Not Available
7	ASM-SEAT, BELT, 3PT Part #: 2638785 Required per assembly: 2 Currently Not Available
8	BUCKLE, SEATBELT, PASSENGER Part #: 2635235 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7519770 Required per assembly: 4 Currently Not Available
10	NUT, FLANGE, NYLOK Part #: 7547441 Required per assembly: 8 Currently Not Available
11	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 4 Currently Not Available
12	GROMMET Part #: 5439179 Required per assembly: 2 Currently Not Available
13	BUCKLE-SEATBELT, 90, Z, SWITCH Part #: 2637304 Required per assembly: 1 Currently Not Available
14	CLAMP, WIRE/TUBE Part #: 7081246 Required per assembly: 1 Currently Not Available
