Cab Frame - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (49Rgrcab14rzr1000) replacement parts for 2015 Polaris RZR XP 1000

OEM Parts Polaris 2015 Polaris RZR XP 1000 Cab Frame - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (49Rgrcab14rzr1000)

Cab Frame - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/K99AA/AU (49RGRCAB14RZR1000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

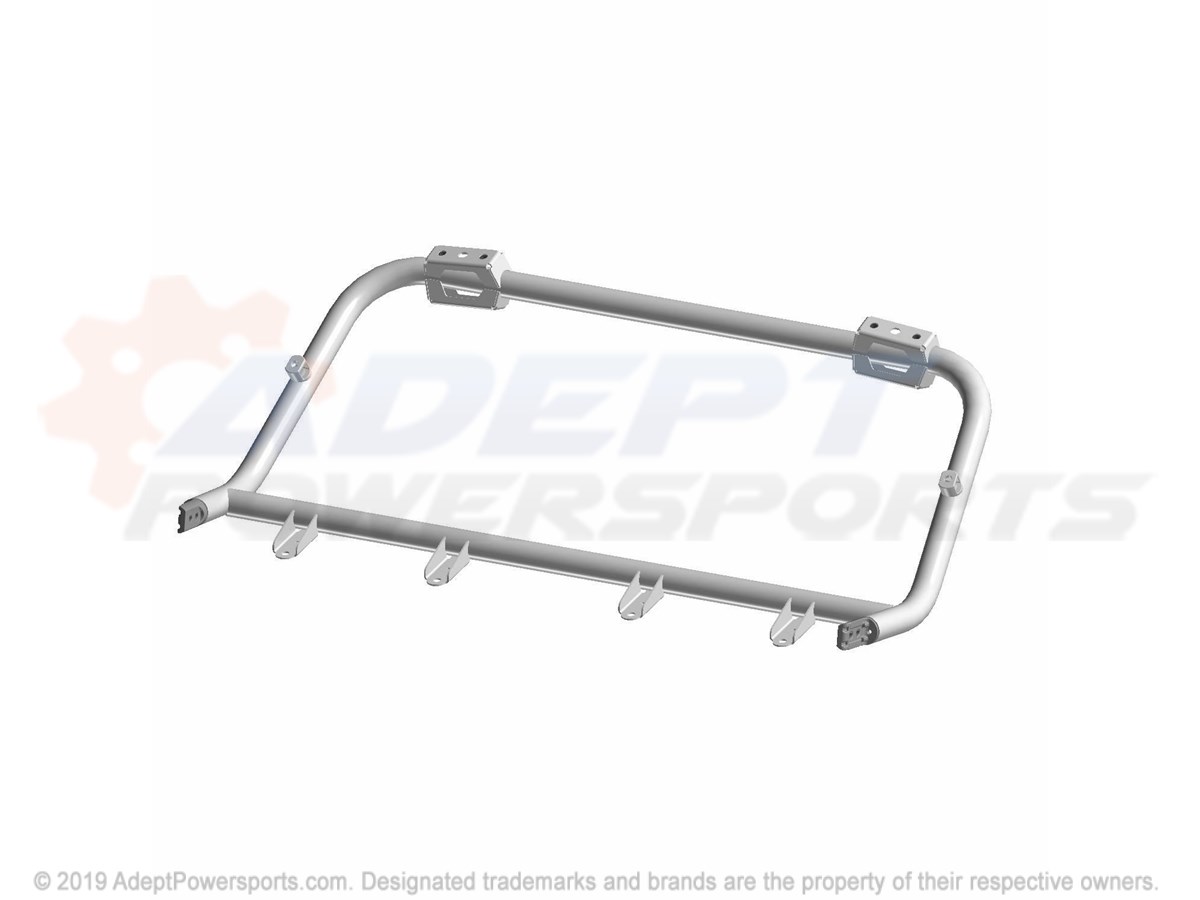

1	PANEL, VISOR, TRIM, BLACK Part #: 5450657-070 Required per assembly: 1 Currently Not Available

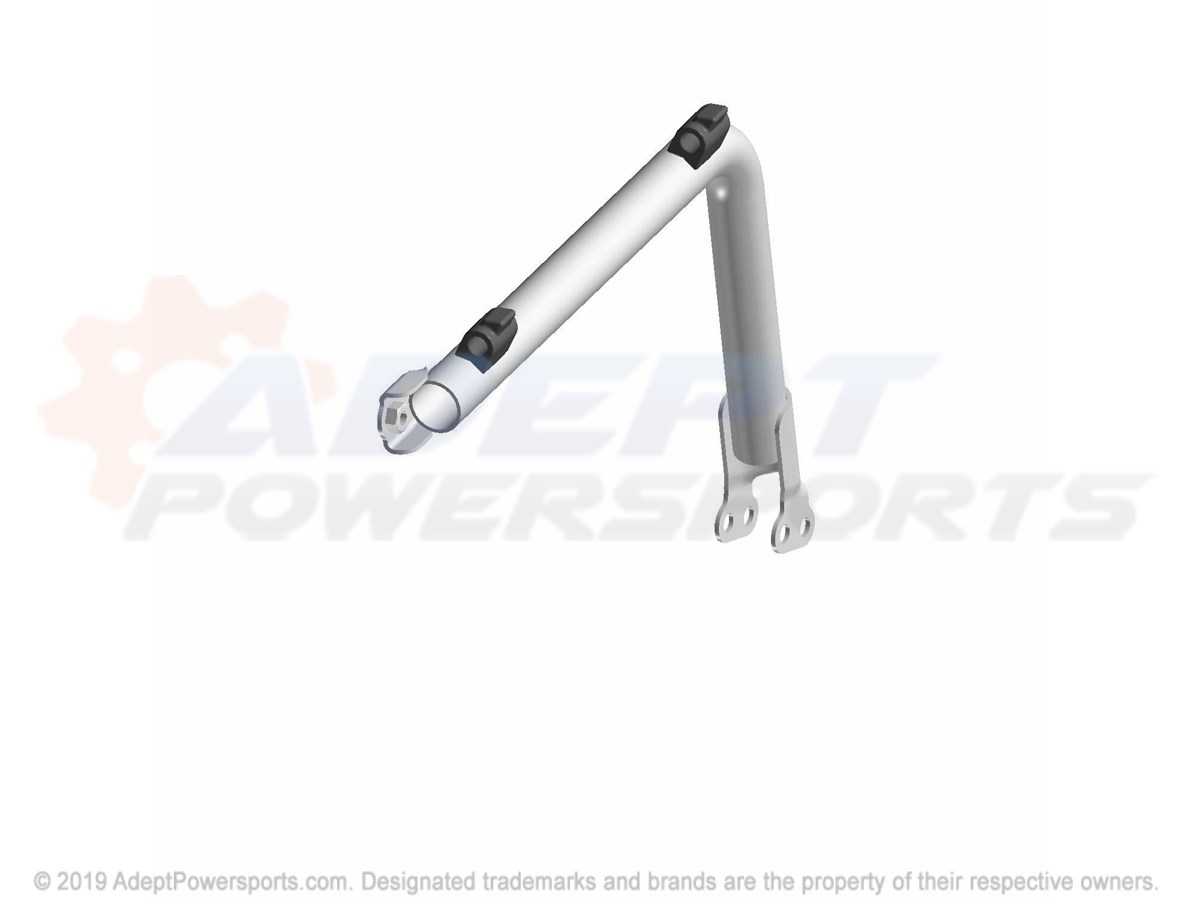

2	HOOP, ROPS, BLACK Part #: 1019941-458 Required per assembly: 1 Note: AT Currently Not Available
2	WELD-HOOP, ROPS, ORG, MAD Part #: 1019941-589 Required per assembly: 1 Note: AL Currently Not Available

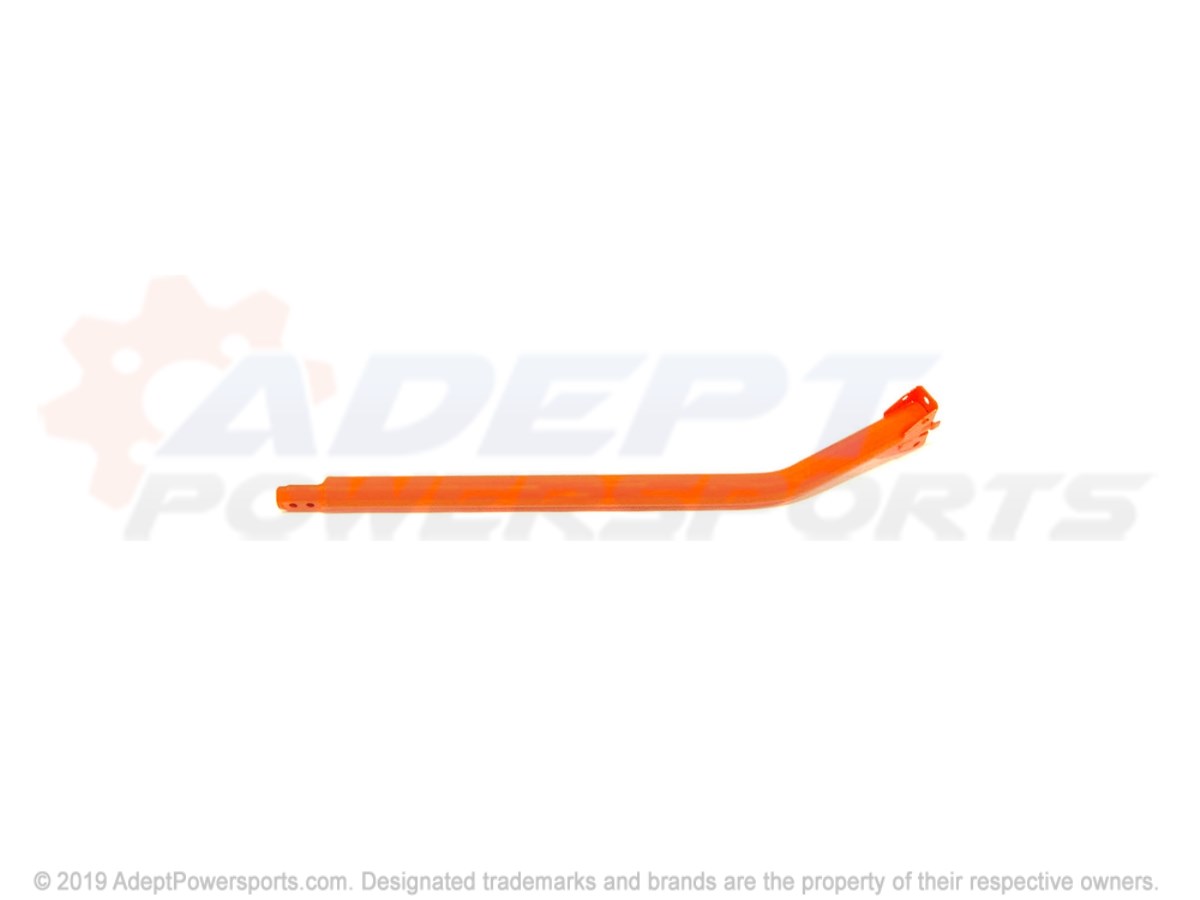

3	WELD-ROPS, LH, ORG, MAD Part #: 1019132-589 Required per assembly: 1 Note: AL Currently Not Available
3	ROPS, LH, BLACK Part #: 1019132-458 Required per assembly: 1 Note: AT Currently Not Available
4	ROPS, RH, BLACK Part #: 1019133-458 Required per assembly: 1 Note: AT Currently Not Available
4	WELD-ROPS, RH, ORG, MAD Part #: 1019133-589 Required per assembly: 1 Note: AL Currently Not Available

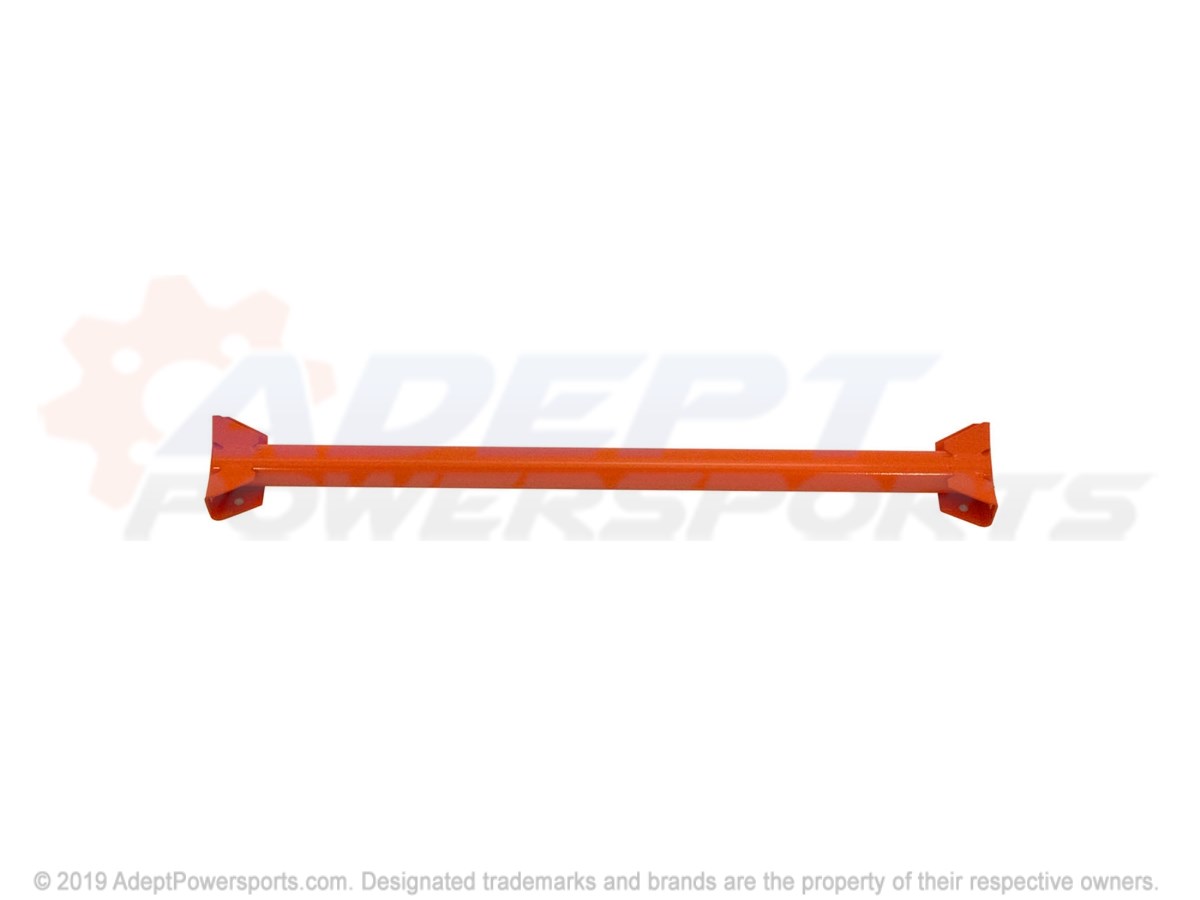

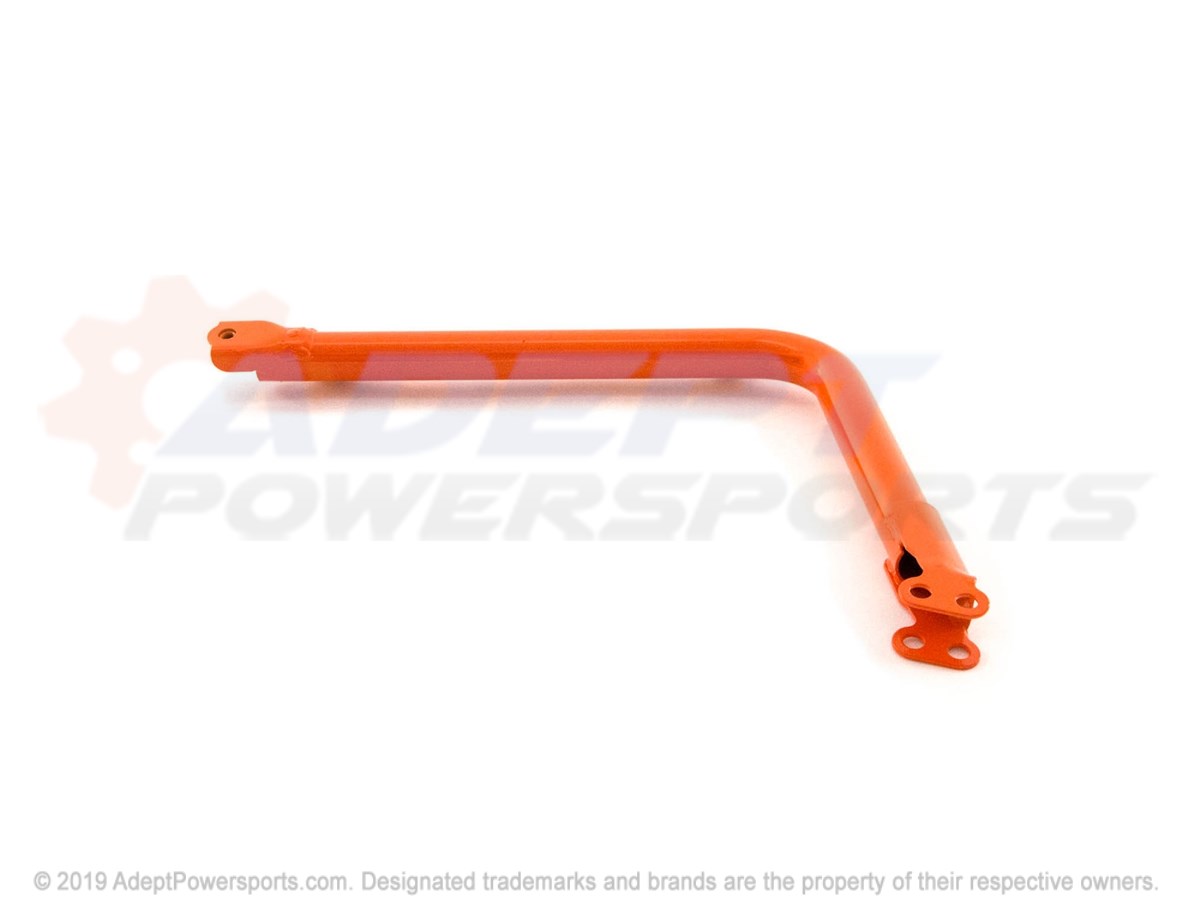

5	WELD-ROPS, FRONT, CROSS, O.MAD Part #: 1020755-589 Required per assembly: 1 Note: AL Currently Not Available
5	WELD-ROPS, FRONT, CROSS, BLK Part #: 1020755-458 Required per assembly: 1 Note: AT Currently Not Available

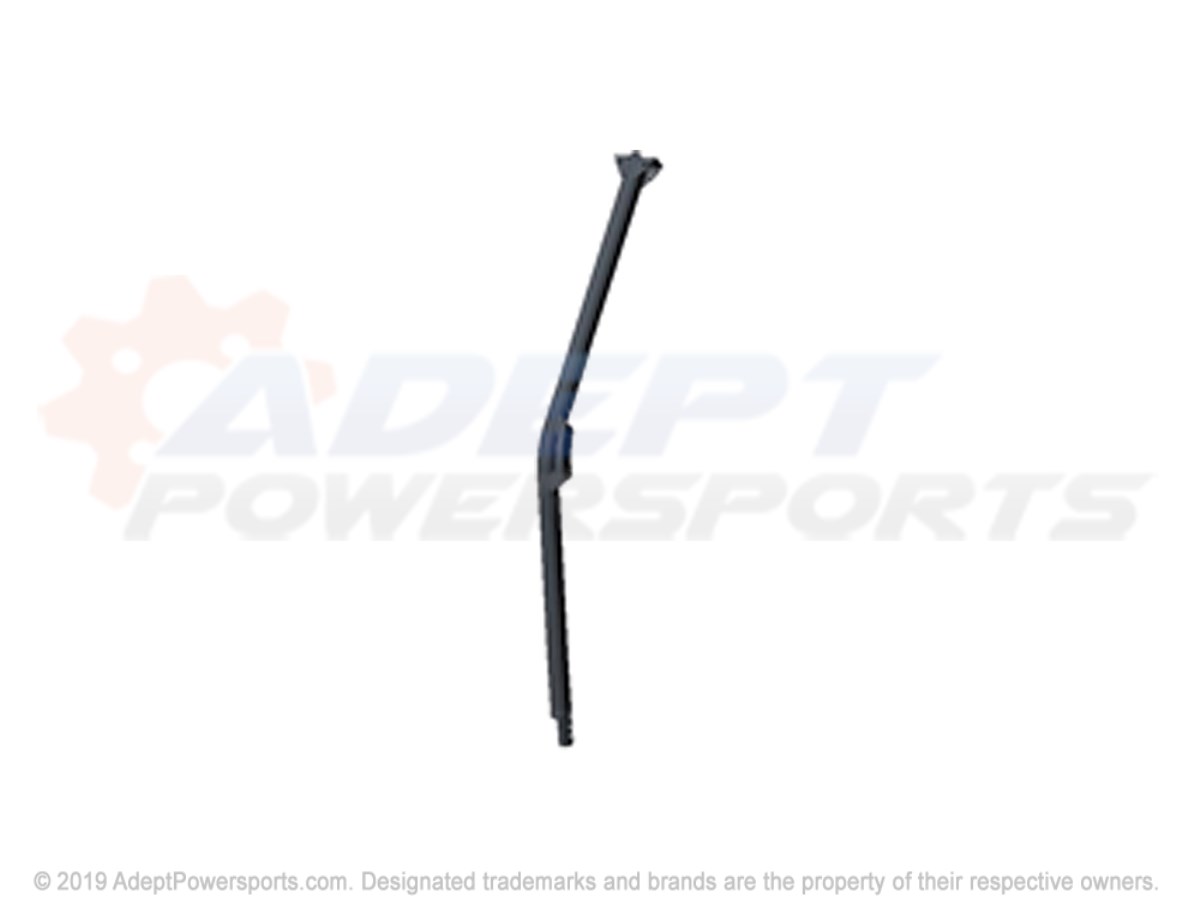

6	ROPS, REAR, LH, BLACK Part #: 1019942-458 Required per assembly: 1 Note: AT Currently Not Available
6	WELD-ROPS, REAR, NO, RES, LH, O.MAD Part #: 1020751-589 Required per assembly: 1 Note: AL Currently Not Available

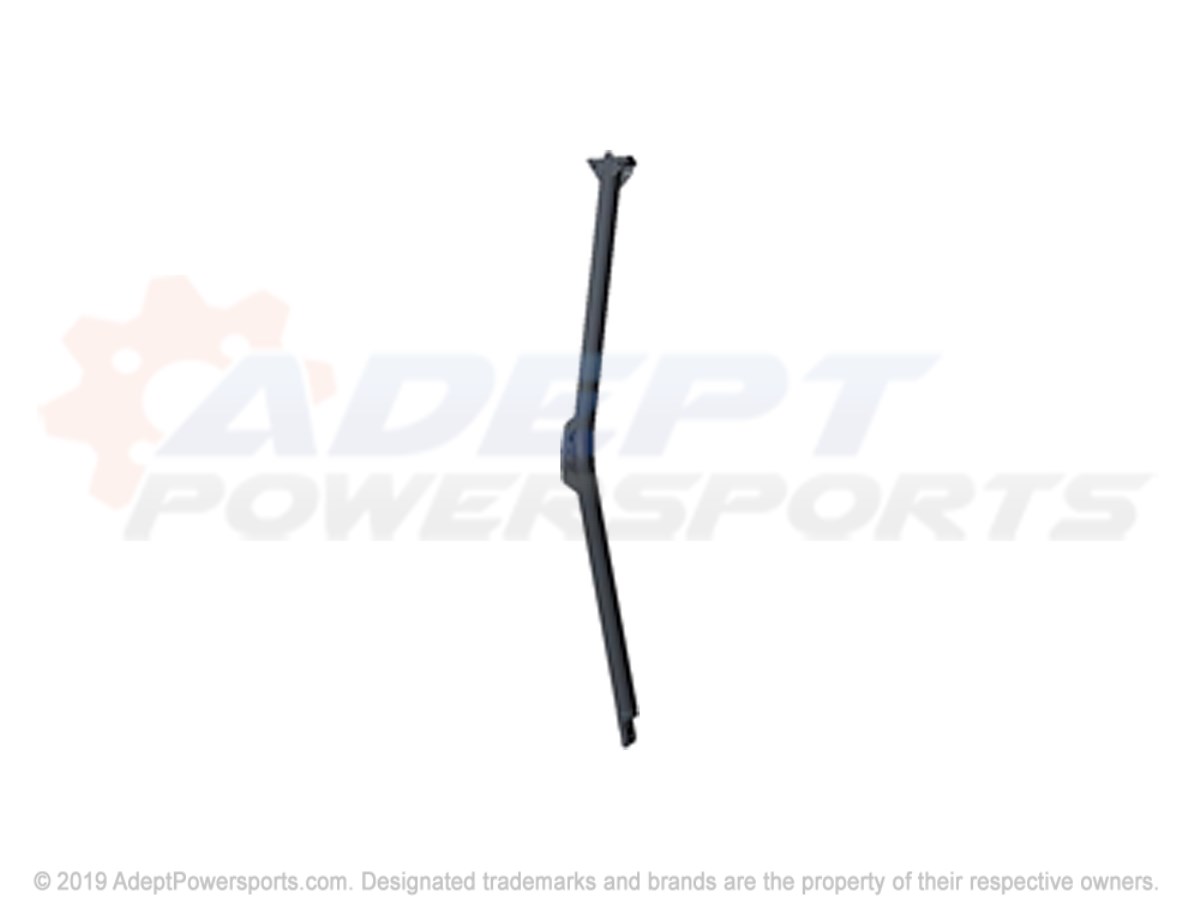

7	WELD-ROPS, REAR, NO, RES, RH, O.MAD Part #: 1020753-589 Required per assembly: 1 Note: AL Currently Not Available
7	ROPS, REAR, RH, BLACK Part #: 1019943-458 Required per assembly: 1 Note: AT Currently Not Available

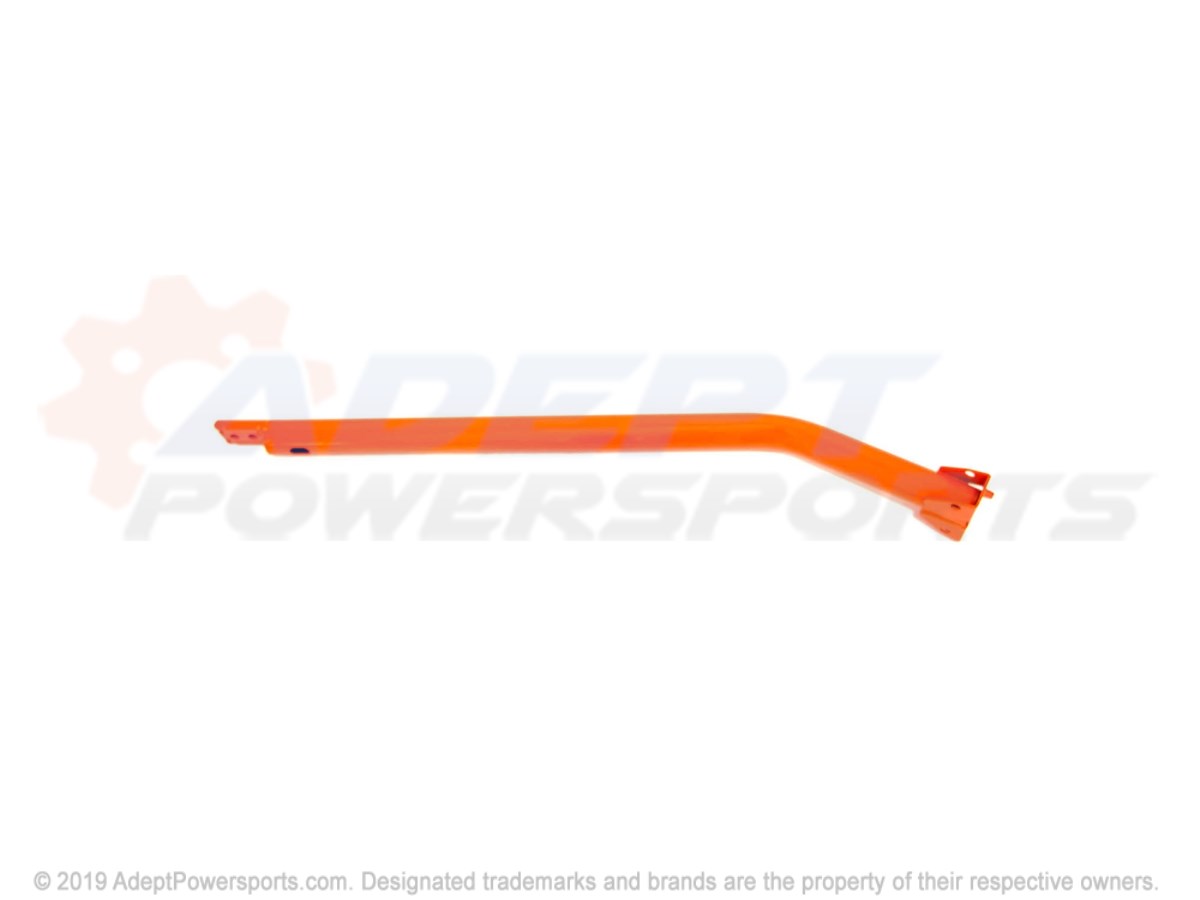

8	BOLSTER, LH, BLACK Part #: 1019403-458 Required per assembly: 1 Note: AT Currently Not Available
8	WELD-BOLSTER, LH, ORG, MAD Part #: 1019403-589 Required per assembly: 1 Note: AL Currently Not Available
9	BOLSTER, RH, BLACK Part #: 1019404-458 Required per assembly: 1 Note: AT Currently Not Available
9	WELD-BOLSTER, RH, ORG, MAD Part #: 1019404-589 Required per assembly: 1 Note: AL Currently Not Available
10	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
11	NUT, U-TYPE Part #: 7547674 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
12	SCREW Part #: 7519905 Required per assembly: 12 Currently Not Available
13	SCREW Part #: 7519906 Required per assembly: 8 Currently Not Available
14	NUT-HEX-M10X1.5 10 ZB3 NYL Part #: 7547746 Required per assembly: 4 Currently Not Available
15	SCREW, FLANGE Part #: 7518450 Required per assembly: 2 Currently Not Available
16	SCREW Part #: 7519956 Required per assembly: 4 Currently Not Available
17	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
