Rear Box and Tire - Z15VDE99AA (49RGRBOX151K) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

RING-15", BDLCK, FORGE, VDBLU

Part #: 1522240-619 Required per assembly: 1
Currently Not Available
3
Polaris 1525017 Valve, Rim

VALVE, RIM

Part #: 1525017 Required per assembly: 1
Currently Not Available
4

TIRE-30X10R15 KNTI MGRL

Part #: 5415036 Required per assembly: 1
Currently Not Available
5

SCR-HEXHD, M8X20, ZINC, 0600088

Part #: 7518097 Required per assembly: 16
Currently Not Available
6
Polaris 7556557 Washer-M8 Fw Stl Thru-Hrd

WASHER-M8 FW STL THRU-HRD

Part #: 7556557 Required per assembly: 16
Currently Not Available
7

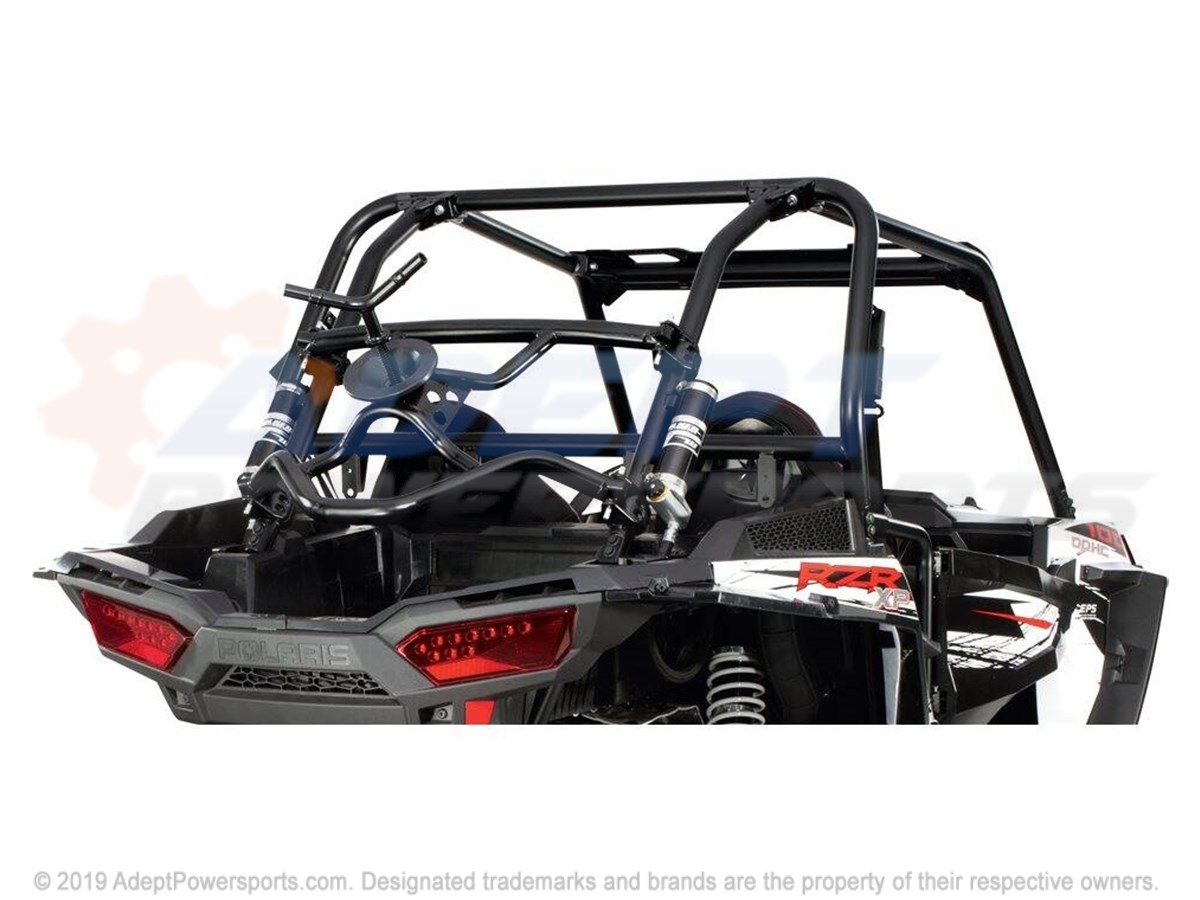

Polaris 2879464 K-Mount, Spare, Tire,

K-MOUNT, SPARE, TIRE,

Part #: 2879464 Required per assembly: 1 Note: Incl 9-13
Currently Not Available
8

SCREW, SOCKET, HEAD

Part #: 7517305 Required per assembly: 16
Currently Not Available
9

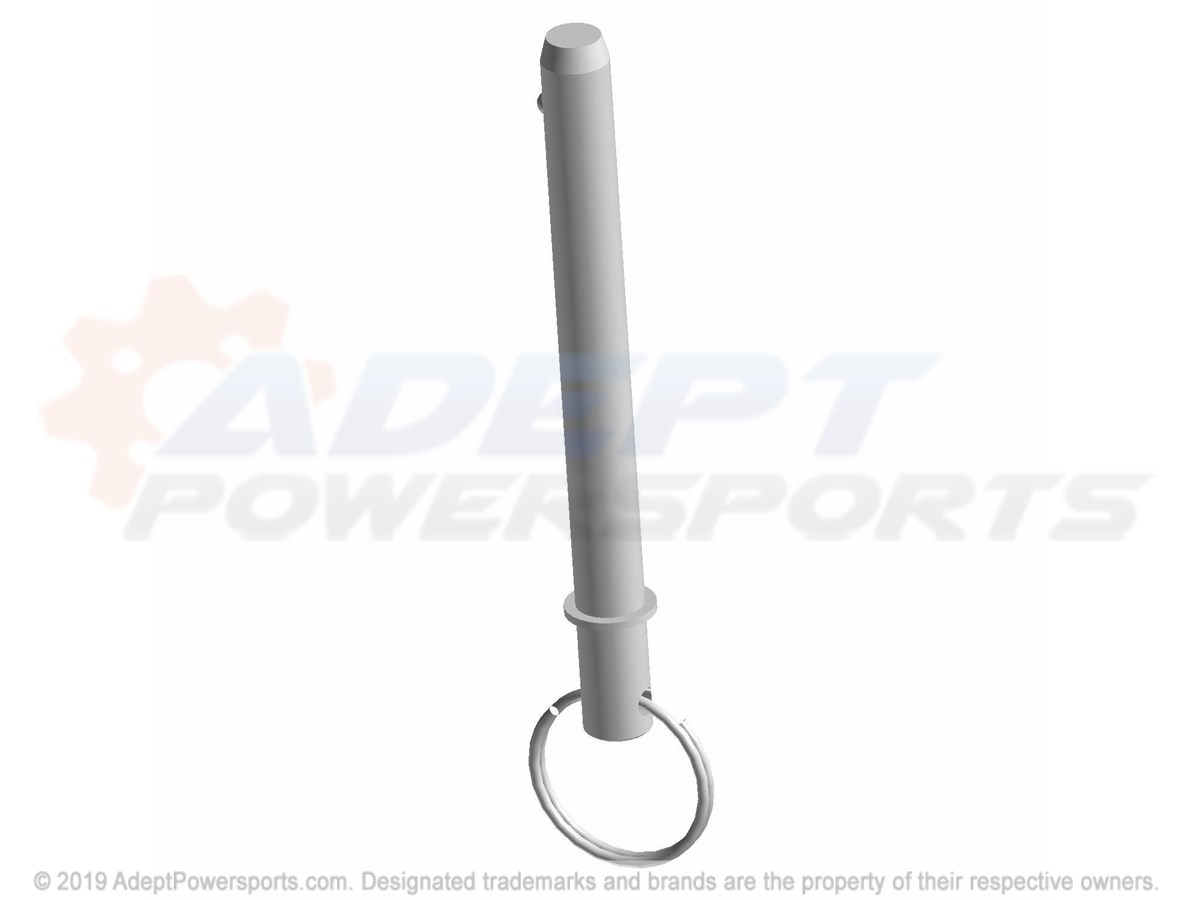

Polaris 7662167 Pin-Hitch, Tab, Long, Rzn

PIN-HITCH, TAB, LONG, RZN

Part #: 7662167 Required per assembly: 4
Currently Not Available
10

K-BOX, CARGO, RR, ROTO, CTR

Part #: 2879997 Required per assembly: 1 Note: Incl 11-12
Currently Not Available
11
Polaris 2876420 Kit, Accessory, Anchor, [At]

KIT, ACCESSORY, ANCHOR, [AT]

Part #: 2876420 Required per assembly: 2 Note: Kit, Accessory Anchor [MN50AT]
Currently Not Available
12

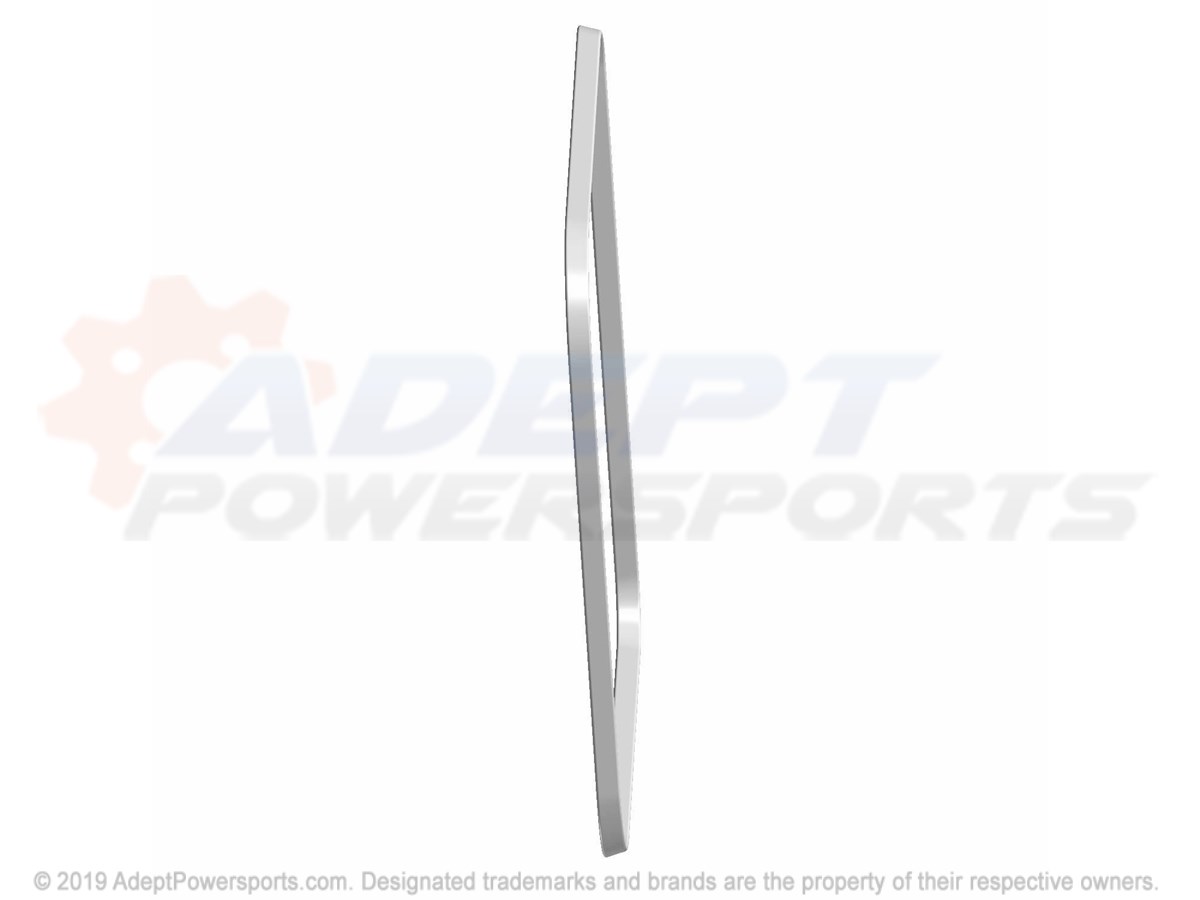

Polaris 5414990 Seal-Storage, Box, Rzn, Blk

SEAL-STORAGE, BOX, RZN, BLK

Part #: 5414990 Required per assembly: 1
Currently Not Available
