Front Shock - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (49Rgrshockfrt14rzr1000) replacement parts for 2015 Polaris RZR XP 1000

OEM Parts Polaris 2015 Polaris RZR XP 1000 Front Shock - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (49Rgrshockfrt14rzr1000)

Front Shock - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/K99AA/AU (49RGRSHOCKFRT14RZR1000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

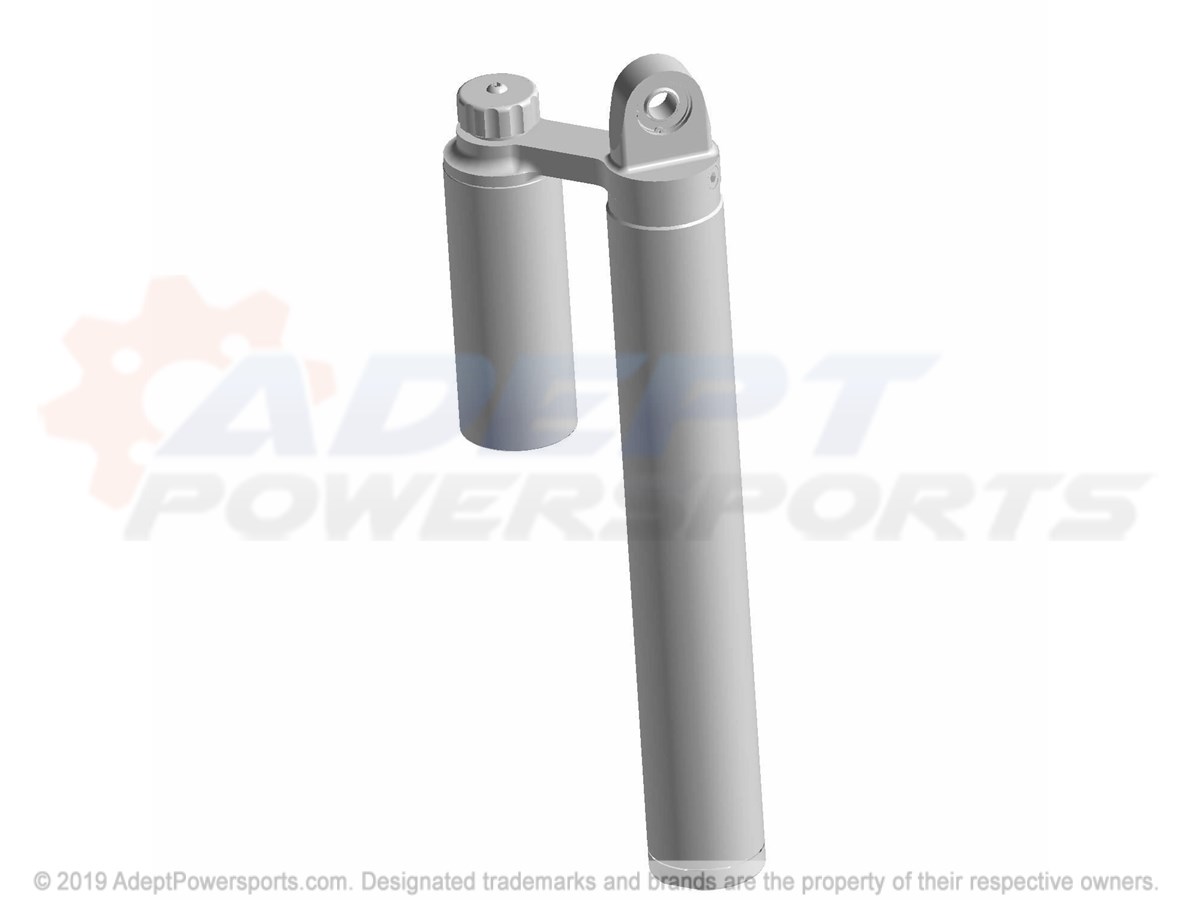

1	SHOCK-FRT, RZRXP, HC, PIGGYBK, LH Part #: 7044255 Required per assembly: 1 Note: AL Currently Not Available
1	SHOCK-FRONT, RZRXP, PIGGYBK, RH Part #: 7044332 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	SHOCK-FRONT, RZRXP, PIGGYBK, LH Part #: 7044331 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	SHOCK-FRT, RZRXP, HC, PIGGYBK, RH Part #: 7044256 Required per assembly: 1 Note: AL Currently Not Available
2	NUT, SPRING Part #: 1800514 Required per assembly: 1 Currently Not Available
3	BODY, RESERVOIR Part #: 1800575 Required per assembly: 1 Currently Not Available
4	CAP, END, RESERVOIR Part #: 1800574 Required per assembly: 1 Currently Not Available
5	O-RING Part #: 1800184 Required per assembly: 2 Currently Not Available
6	VALVE Part #: 1800021 Required per assembly: 1 Currently Not Available
7	BEARING, SPHERICAL Part #: 1800616 Required per assembly: 2 Currently Not Available
8	KNOB Part #: 1800418 Required per assembly: 1 Currently Not Available
9	SEAL Part #: 1800596 Required per assembly: 1 Currently Not Available
10	SHAFT Part #: 1800597 Required per assembly: 1 Note: USE W/7044255/256 Currently Not Available
11	PISTON, RESERVOIR Part #: 1800355 Required per assembly: 1 Currently Not Available
12	BAND-PISTON Part #: 1800185 Required per assembly: 2 Currently Not Available
13	O-RING-BLEED SCREW Part #: 1800210 Required per assembly: 1 Currently Not Available
14	SCREW, BLEED Part #: 1800043 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
15	RING, SNAP Part #: 1800159 Required per assembly: 1 Currently Not Available
16	BALL, DETENT Part #: 1800127 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
17	SPRING, DETENT Part #: 1800128 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
18	SCREW Part #: 1800357 Required per assembly: 1 Currently Not Available
19	RING, SNAP Part #: 1800041 Required per assembly: 4 ~~$5.99~~ $3.51 - + Add to cart
20	O-RING BODY Part #: 1800030 Required per assembly: 3 Note: Sold in multiples of 10 only Currently Not Available
21	O-RING SEAL HEAD BROWN 1200325 Part #: 1800655 Required per assembly: 1 Currently Not Available
22	NUT, CRIMP Part #: 1800164 Required per assembly: 1 Currently Not Available
23	NEEDLE Part #: 1800300 Required per assembly: 1 Currently Not Available
24	SCREW, BLEED, W/O, RING Part #: 1800299 Required per assembly: 1 Currently Not Available
26	PISTON Part #: 1800217 Required per assembly: 1 Currently Not Available
27	SCREW Part #: 1800219 Required per assembly: 2 Currently Not Available
28	WASHER Part #: 1800050 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
29	SPACER Part #: 1800598 Required per assembly: 1 Currently Not Available
30	PIGGY, BACK, LH Part #: 1800595 Required per assembly: 1 Currently Not Available
30	PIGGY, BACK, RH Part #: 1800594 Required per assembly: 1 Currently Not Available
31	WIPER D/TYPE Part #: 1800322 Required per assembly: 1 Currently Not Available
32	PLUG, PIPE Part #: 1800599 Required per assembly: 1 Currently Not Available
33	LOOP, SHAFT Part #: 1800600 Required per assembly: 1 Currently Not Available
34	BOLT, NEEDLE Part #: 1800601 Required per assembly: 1 Currently Not Available
35	BODY Part #: 1800602 Required per assembly: 1 Currently Not Available
36	BUMP STOP Part #: 1800603 Required per assembly: 1 Currently Not Available
37	STUD Part #: 1800352 Required per assembly: 1 Currently Not Available
38	O-RING Part #: 1800215 Required per assembly: 1 Currently Not Available
39	WASHER Part #: 1800187 Required per assembly: 1 Currently Not Available
40	PISTON, NO, BLEEED Part #: 1800604 Required per assembly: 1 Currently Not Available
41	SHAFT BUSHING Part #: 1800038 Required per assembly: 1 Currently Not Available
