Front Control Arms - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (700034) replacement parts for 2015 Polaris RZR XP 1000

OEM Parts Polaris 2015 Polaris RZR XP 1000 Front Control Arms - Z15vde99at/Al/Av/Aw/Lp/Ew/Ao/Ap/Az/K99aa/Au (700034)

Front Control Arms - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/K99AA/AU (700034) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

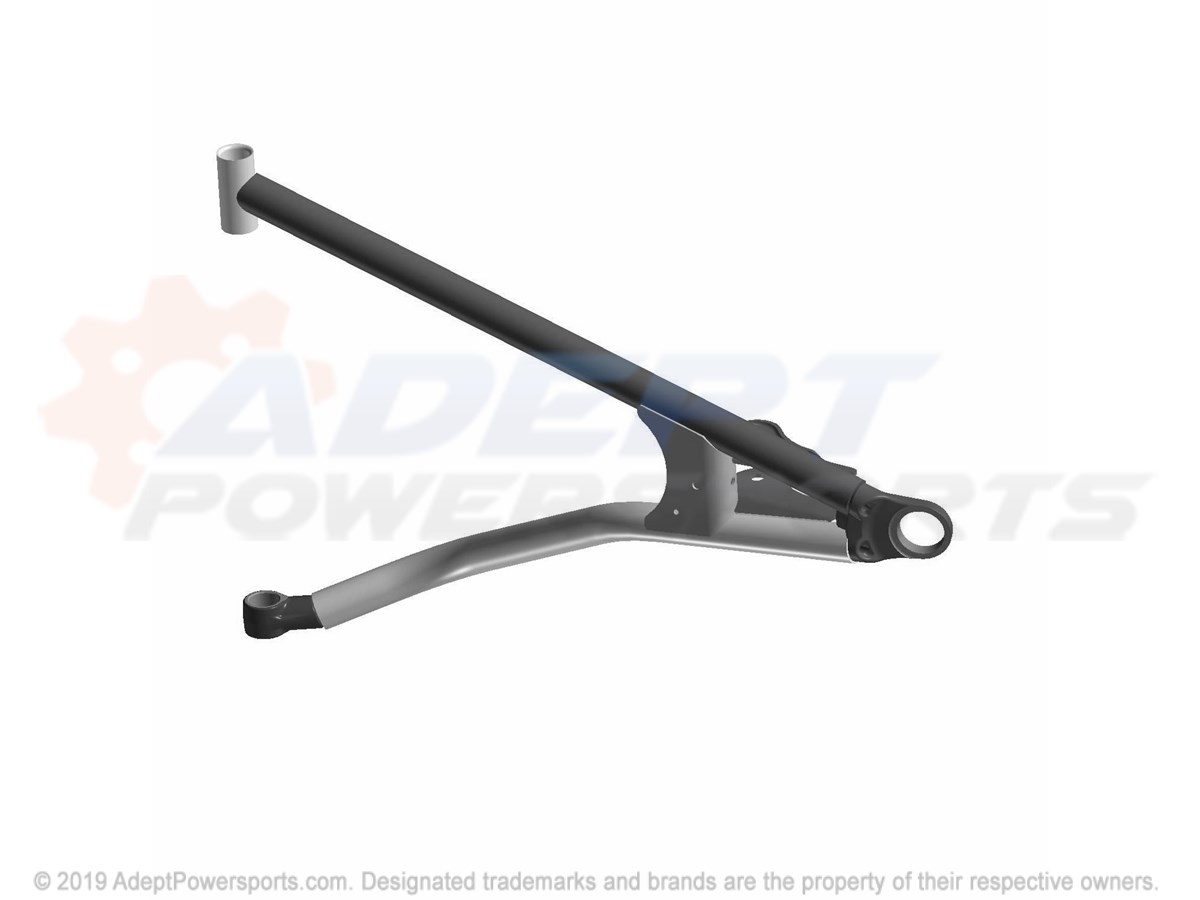

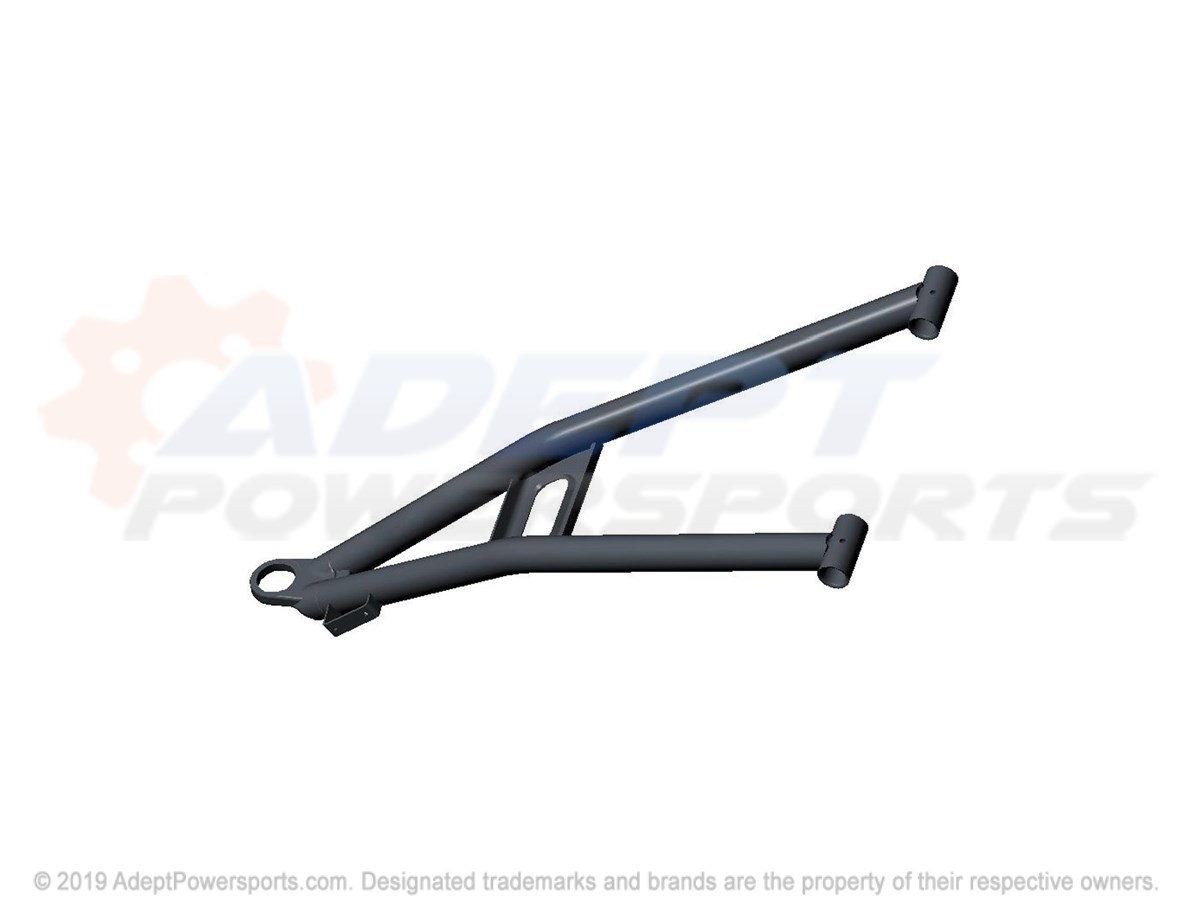

1	WELD-CTL, ARM, UPR, FR, LH, 64, VDBL Part #: 1018824-619 Required per assembly: 1 Note: AA Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1018824-458 Required per assembly: 1 Note: AO Currently Not Available

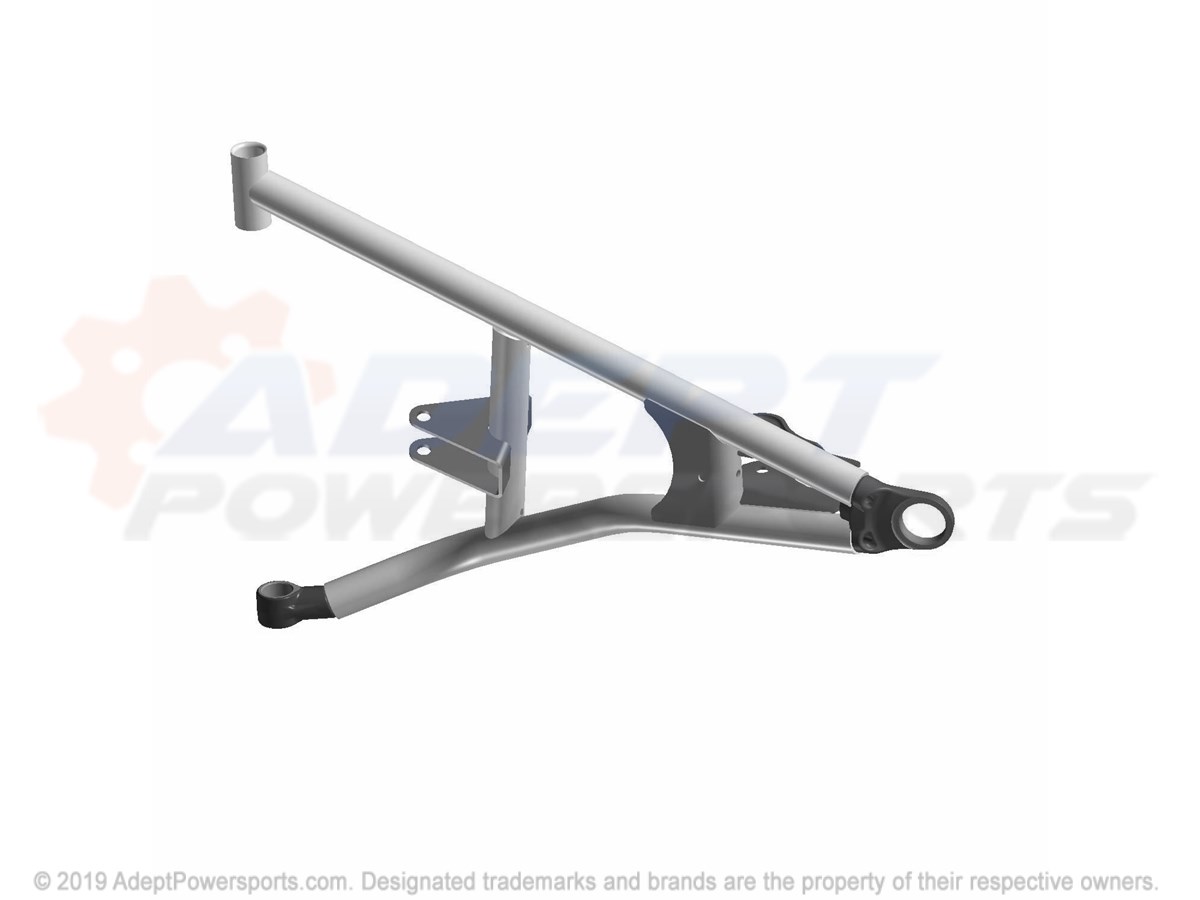

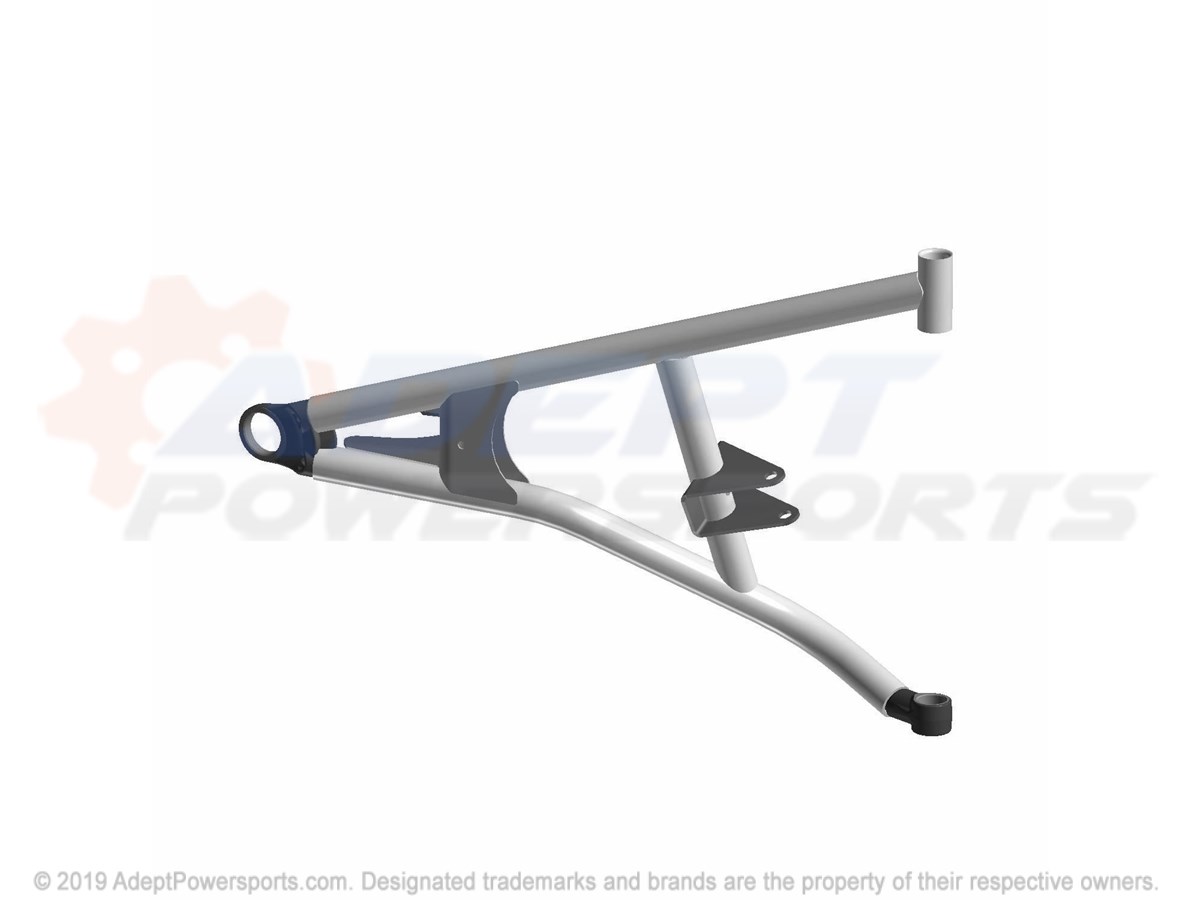

1	WELD-CTRL, ARM, UPR, FR, LH, 64, SLV Part #: 1020946-385 Required per assembly: 1 Note: AT Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, SLV Part #: 1021732-385 Required per assembly: 1 Note: USE W/1912519 BRAKE LINE ~~$354.99~~ $217.08 - + Add to cart
1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1021732-458 Required per assembly: 1 Note: USE W/1912519 BRAKE LINE Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, O.M Part #: 1021732-589 Required per assembly: 1 Note: USE W/1912519 BRAKE LINE Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, O.M Part #: 1021732-589 Required per assembly: 1 Note: AL Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, VDB Part #: 1021732-619 Required per assembly: 1 Note: USE W/1912519 BRAKE LINE Currently Not Available

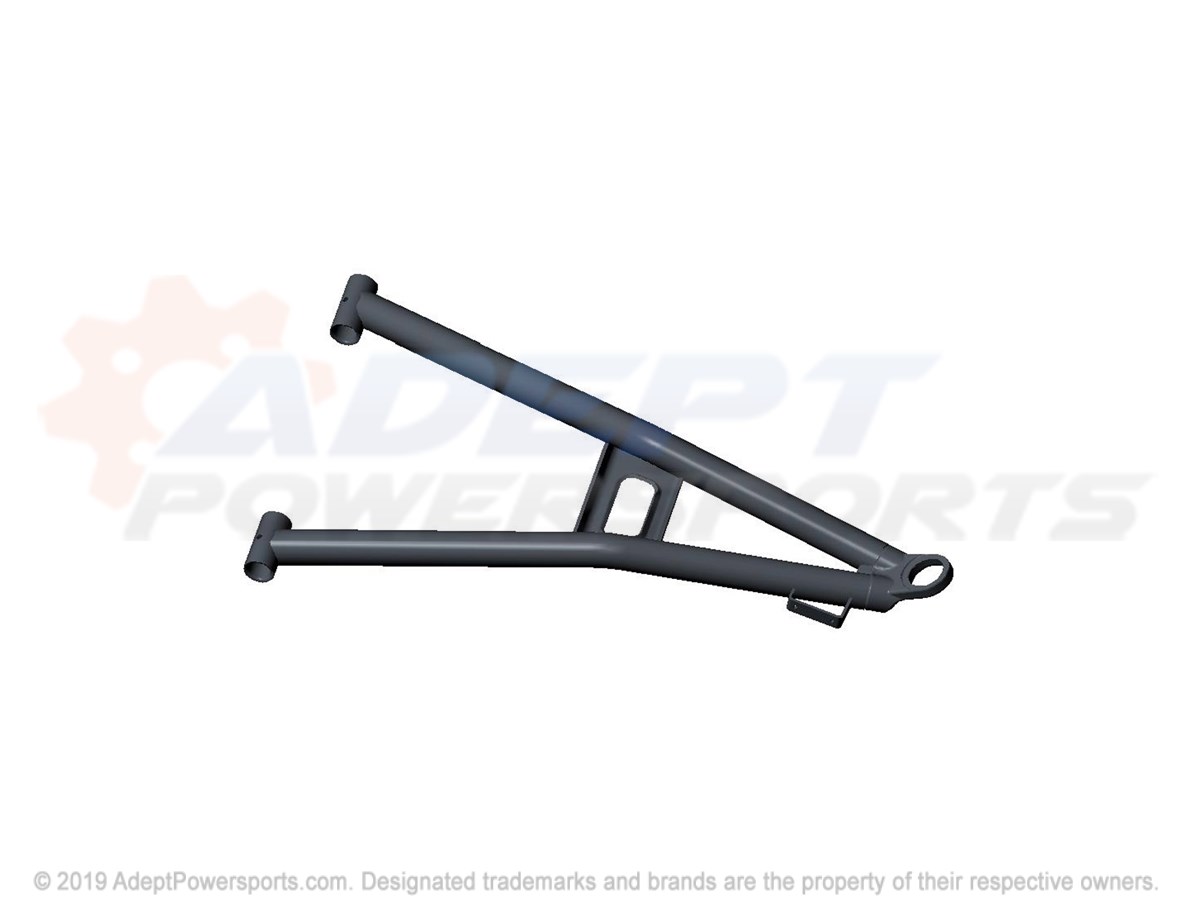

2	WELD-CTRL, ARM, UPR, FR, RH, 64, SLV Part #: 1021733-385 Required per assembly: 1 Note: USE W/1912520 BRAKE LINE Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1021733-458 Required per assembly: 1 Note: USE W/1912520 BRAKE LINE Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, O.M Part #: 1021733-589 Required per assembly: 1 Note: USE W/1912520 BRAKE LINE Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, O.M Part #: 1021733-589 Required per assembly: 1 Note: AL Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, VDB Part #: 1021733-619 Required per assembly: 1 Note: USE W/1912520 BRAKE LINE Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1018825-458 Required per assembly: 1 Note: AO Currently Not Available
2	WELD-CTL, ARM, UPR, FR, RH, 64, VDBL Part #: 1018825-619 Required per assembly: 1 Note: AA Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, SLV Part #: 1020947-385 Required per assembly: 1 Note: AT Currently Not Available

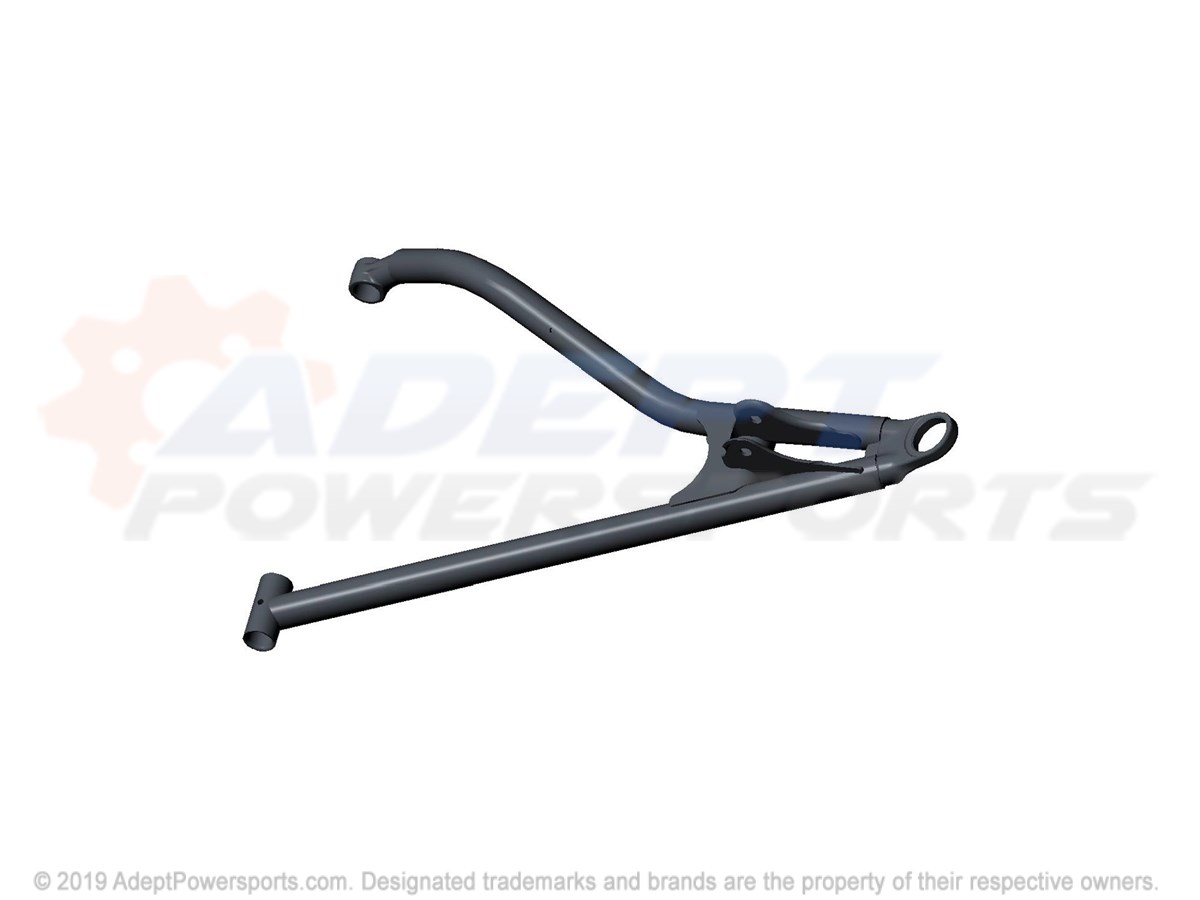

3	WELD-CTL, ARM, LWR, FR, LH, 64, CLSV Part #: 1018826-385 Required per assembly: 1 Note: AT Currently Not Available
3	WELD-CTRLARM, HC, LWR, FR, LH, 64, O Part #: 1020540-589 Required per assembly: 1 Note: AL Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLK Part #: 1018826-458 Required per assembly: 1 Note: AO Currently Not Available
3	WELD-CTLARM, HC, LWR, FR, LH, 64, VB Part #: 1020540-619 Required per assembly: 1 Note: AA Currently Not Available
3	ARM, CONTROL, LOWER, FRONT, LH, ORANGE, MADNESS Part #: 1018826-589 Required per assembly: 1 Note: EW Currently Not Available

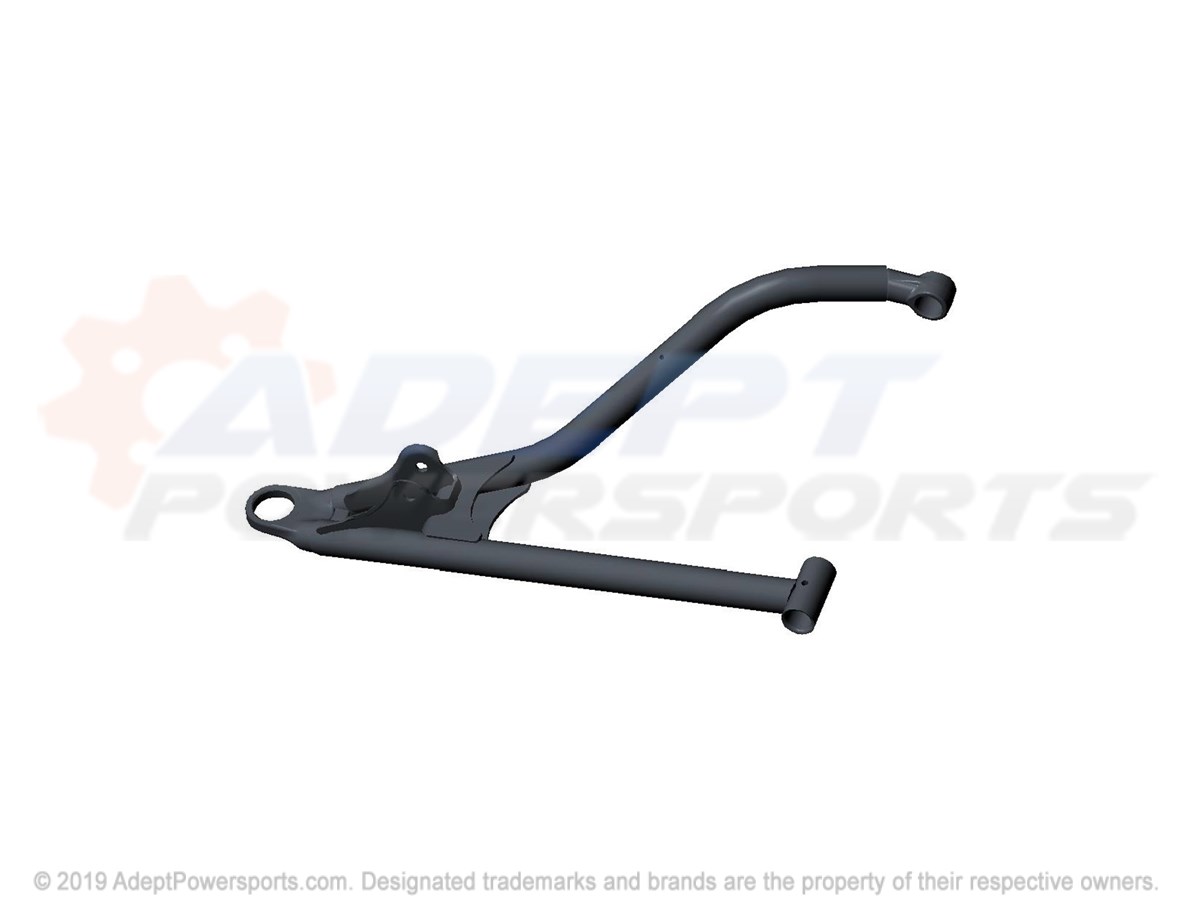

4	ARM, CONTROL, LOWER, FRONT, RH, ORANGE, MADNESS Part #: 1018827-589 Required per assembly: 1 Note: EW Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLK Part #: 1018827-458 Required per assembly: 1 Note: AO Currently Not Available
4	WELD-CTLARM, HC, LWR, FR, RH, 64, VB Part #: 1020541-619 Required per assembly: 1 Note: AA Currently Not Available
4	WELD-CTL, ARM, LWR, FR, RH, 64, CLSV Part #: 1018827-385 Required per assembly: 1 Note: AT Currently Not Available
4	WELD-CTRLARM, HC, LWR, FR, RH, 64, O Part #: 1020541-589 Required per assembly: 1 Note: AL Currently Not Available
5	TUBE, PIVOT Part #: 5138276 Required per assembly: 2 Note: 29.2 MM ~~$19.99~~ $11.50 - + Add to cart
6	SHAFT, PIVOT Part #: 5138797 Required per assembly: 6 Currently Not Available
7	SHIELD-CV FRONT BLK Part #: 5438641-070 Required per assembly: 2 Currently Not Available
8	BUSHING Part #: 5439874 Required per assembly: 12 Currently Not Available
9	BUSHING, CONTROL, ARM Part #: 5450095 Required per assembly: 4 Currently Not Available
10	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 6 Note: FITTING, ZERK (90o) Currently Not Available
11	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
12	SCREW Part #: 7519043 Required per assembly: 6 Note: Bolt Currently Not Available
13	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available
14	NUT, FLANGE Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
15	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
16	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Currently Not Available
17	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
18	RING, RETAINING Part #: 7710716 Required per assembly: 4 Currently Not Available
