Doors - Z17vfe92ng (701492) replacement parts for 2017 Polaris RZR XP4 Turbo International (R02)

OEM Parts Polaris 2017 Polaris RZR XP4 Turbo International (R02) Doors - Z17vfe92ng (701492)

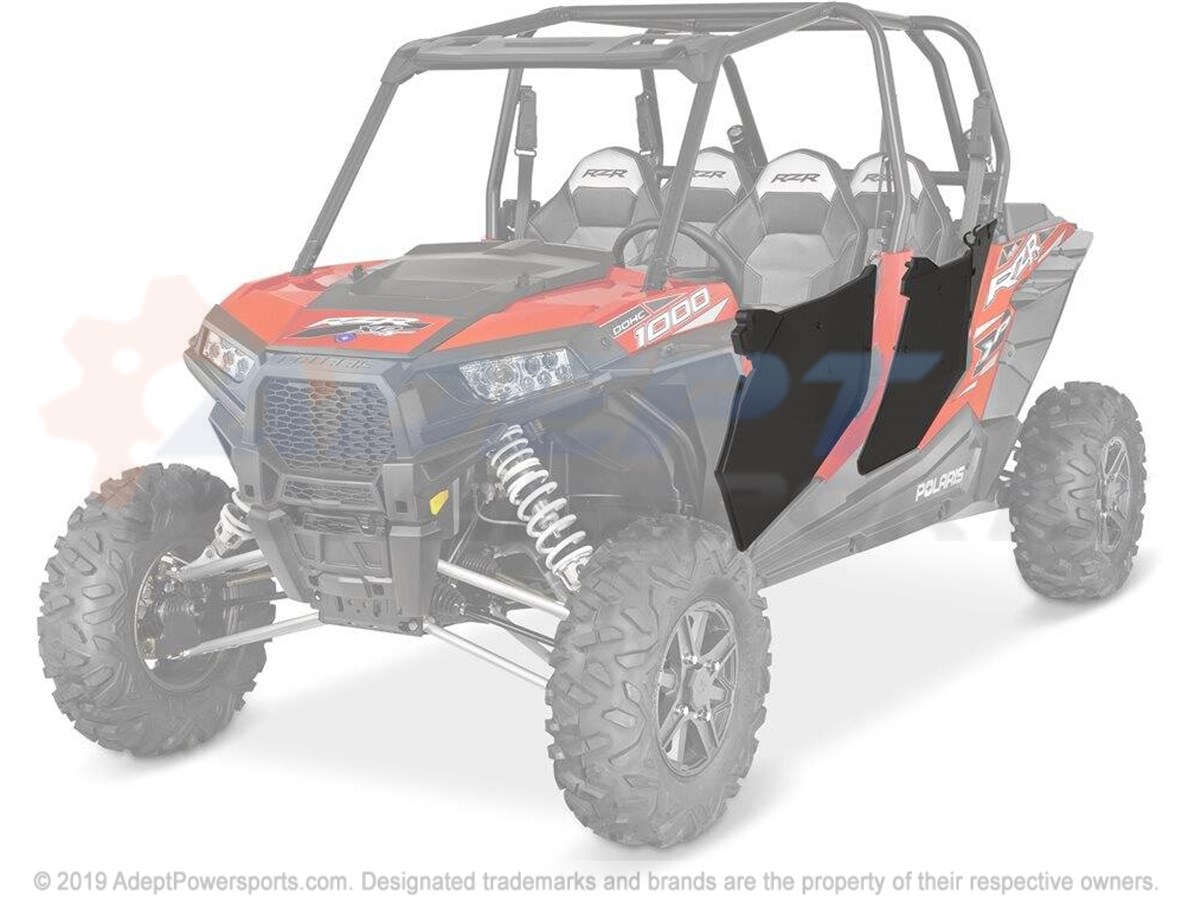

DOORS - Z17VFE92NG (701492) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-DR, LWR, AL, RZN4 Part #: 2879943 Required per assembly: 1 Note: INCL. 2-15 Currently Not Available
2	SPACER-MNT, SMALL, RZN Part #: 5139035 Required per assembly: 14 Currently Not Available
3	SPACER-MNT, MED, RZN Part #: 5139036 Required per assembly: 8 Currently Not Available
4	SPACER-MNT, LARGE, RZN Part #: 5139037 Required per assembly: 2 Currently Not Available
5	EXTR-MACH, MOUNT, ALUM, DOOR, RZN Part #: 5139153 Required per assembly: 8 Currently Not Available

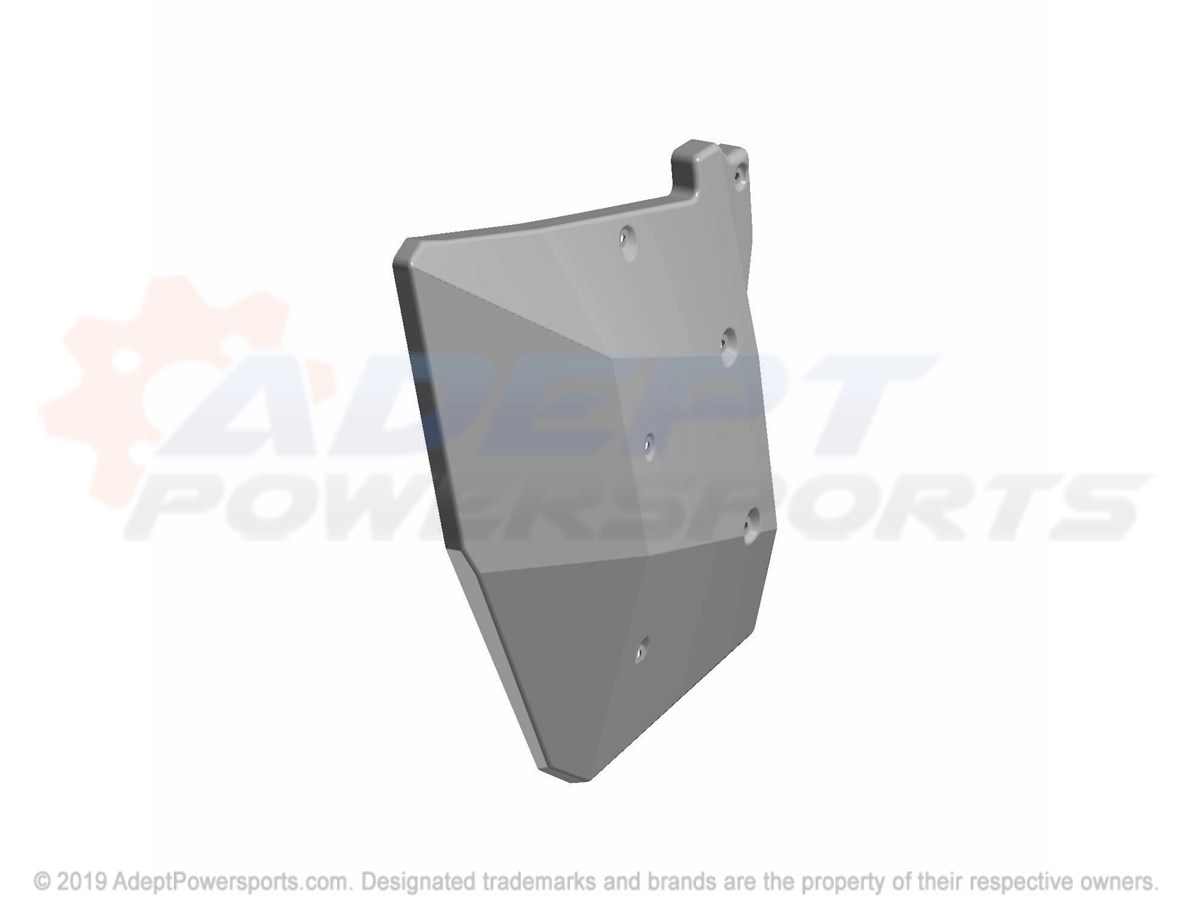

6	DOOR, SKIN-AL, LH, RZN Part #: 5258357 Required per assembly: 1 Currently Not Available

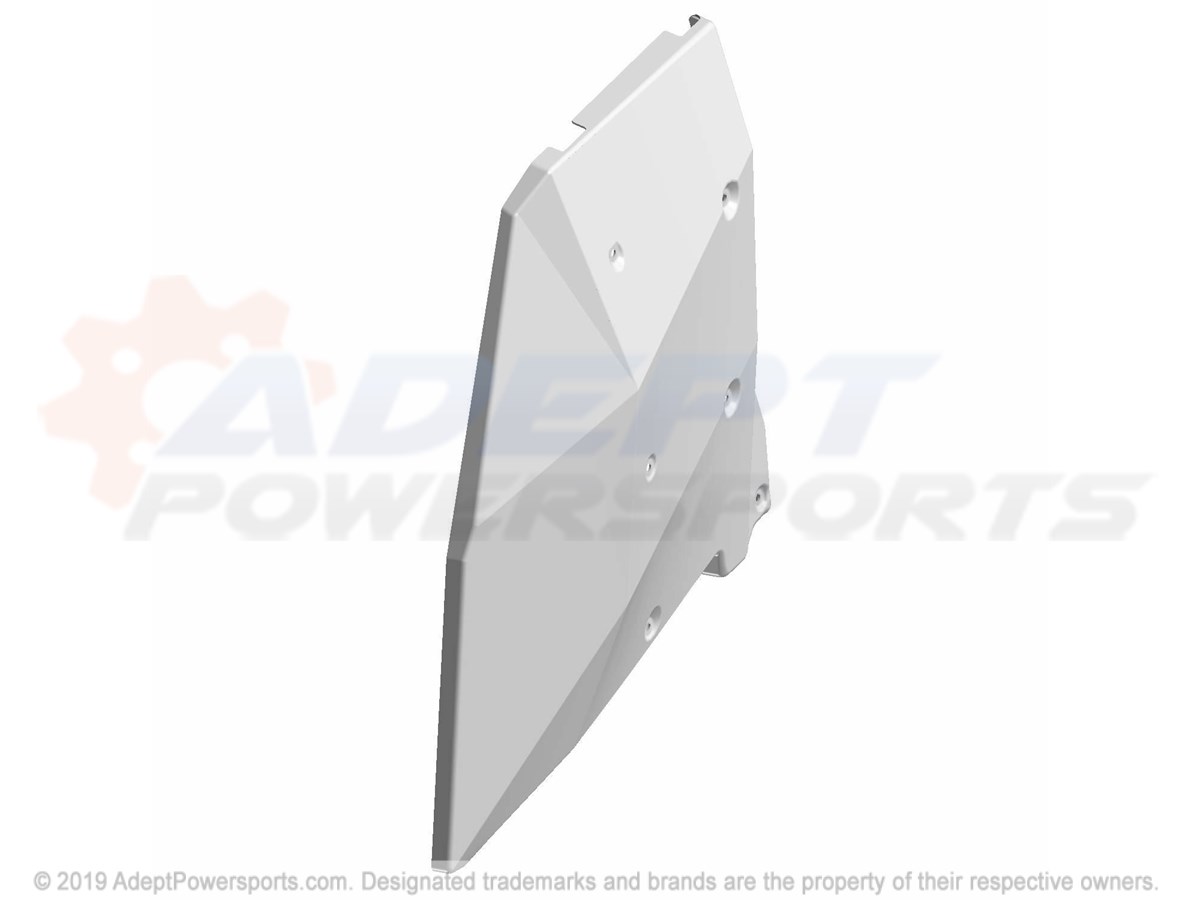

7	DOOR, SKIN-AL, RH, RZN Part #: 5258358 Required per assembly: 1 Currently Not Available
8	K-DOOR, LOWER, AL, Part #: 2879510 Required per assembly: 1 Currently Not Available
9	K-DOOR, LOWER, AL, Part #: 2879510 Required per assembly: 1 Currently Not Available
10	DOOR, SKIN-AL, LH, RR, RZN4 Part #: 5258508 Required per assembly: 1 Currently Not Available
11	DOOR, SKIN-AL, RH, RR, RZN4 Part #: 5258509 Required per assembly: 1 Currently Not Available
12	SEAL-AL, DOOR, RZN Part #: 5522024-1258 Required per assembly: 2 Currently Not Available
13	SEAL-AL, PILLAR, RZN Part #: 5522024-310 Required per assembly: 2 Currently Not Available
14	SEAL-WTHRSTRP, DOOR, LWR, RZN Part #: 5522024-820 Required per assembly: 2 Currently Not Available
15	SEAL-WTHRSTRP, DOOR, FRT, RZN Part #: 5522083-550 Required per assembly: 2 Currently Not Available
16	WELD-STRIKER, LH Part #: 1021237 Required per assembly: 2 Currently Not Available
17	WELD-STRIKER, RH Part #: 1021238 Required per assembly: 2 Currently Not Available
18	BRKT-DOOR HINGE Part #: 5258008 Required per assembly: 8 Currently Not Available
19	BUSHING, DOOR, PIVOT Part #: 5450592 Required per assembly: 16 Currently Not Available
20	SCREW Part #: 7518936 Required per assembly: 4 Currently Not Available
21	SCR-TXTH-M6X1.0X20 T40 ZPB Part #: 7519112 Required per assembly: 4 Currently Not Available
22	SCREW Part #: 7519997 Required per assembly: 16 Currently Not Available
23	PIN, DOOR, HINGE Part #: 7662138 Required per assembly: 8 Currently Not Available
24	E-CLIP Part #: 7710466 Required per assembly: 8 Currently Not Available
