OEM Parts Polaris 2017 Polaris RZR XP4 Turbo International (R02) Front Wheel - Z17vfe92ng/Nk/Nm (701488)

2017 Polaris RZR XP4 Turbo International (R02) Z17VFE92NG/NK/NM - Front Wheel - Z17vfe92ng/Nk/Nm (701488)

FRONT WHEEL - Z17VFE92NG/NK/NM (701488) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1522842-655 Rim-Frt, 14X6, Cast, 53, Flash, Blk

RIM-FRT, 14X6, CAST, 53, FLASH, BLK

Part #: 1522842-655 Required per assembly: 2 Note: NM
Currently Not Available
2
Polaris 1521509-521 Black Sixr Center Cap

BLACK SIXR CENTER CAP

Part #: 1521509-521 Required per assembly: 2 Note: NG
Currently Not Available
2
Polaris 1523994-655 Cap-Rim, Blk

CAP-RIM, BLK

Part #: 1523994-655 Required per assembly: 2 Note: NM
Currently Not Available
3
Polaris 1521982 Valve-Rim

VALVE-RIM

Part #: 1521982 Required per assembly: 2
Currently Not Available
4
Polaris 5414964 Tire-Front, 29X9, R14, Bighrn, Em

TIRE-FRONT, 29X9, R14, BIGHRN, EM

Part #: 5414964 Required per assembly: 2
Currently Not Available
5
Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8
Currently Not Available
6

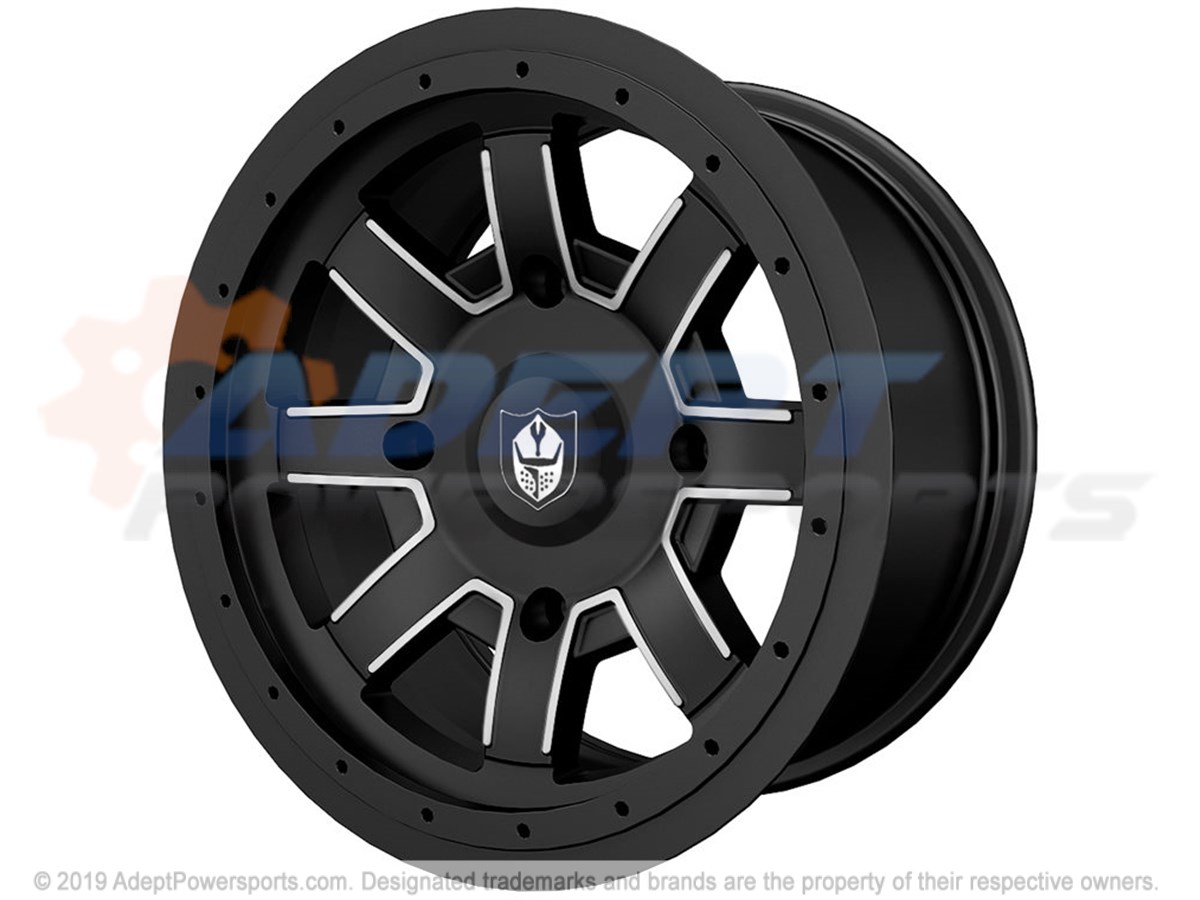

Polaris 1522238-458 Wheel-Fr, 14X7, Bdlck, Flbl, Mach

WHEEL-FR, 14X7, BDLCK, FLBL, MACH

Part #: 1522238-458 Required per assembly: 2 Note: NG
Currently Not Available
7

SCREW

Part #: 7518925 Note: NG
Currently Not Available
8
Polaris 7555827 Washer

WASHER

Part #: 7555827 Note: NG
$3.99
$2.30
-
+
Add to cart
9

RING-14", BDLCK, FORGE, MT.TTNM

Part #: 1522244-632 Required per assembly: 2 Note: NG
Currently Not Available
