HOOD AND FRONT BODY WORK - Z17VFE92NG/NK/NM (700437) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

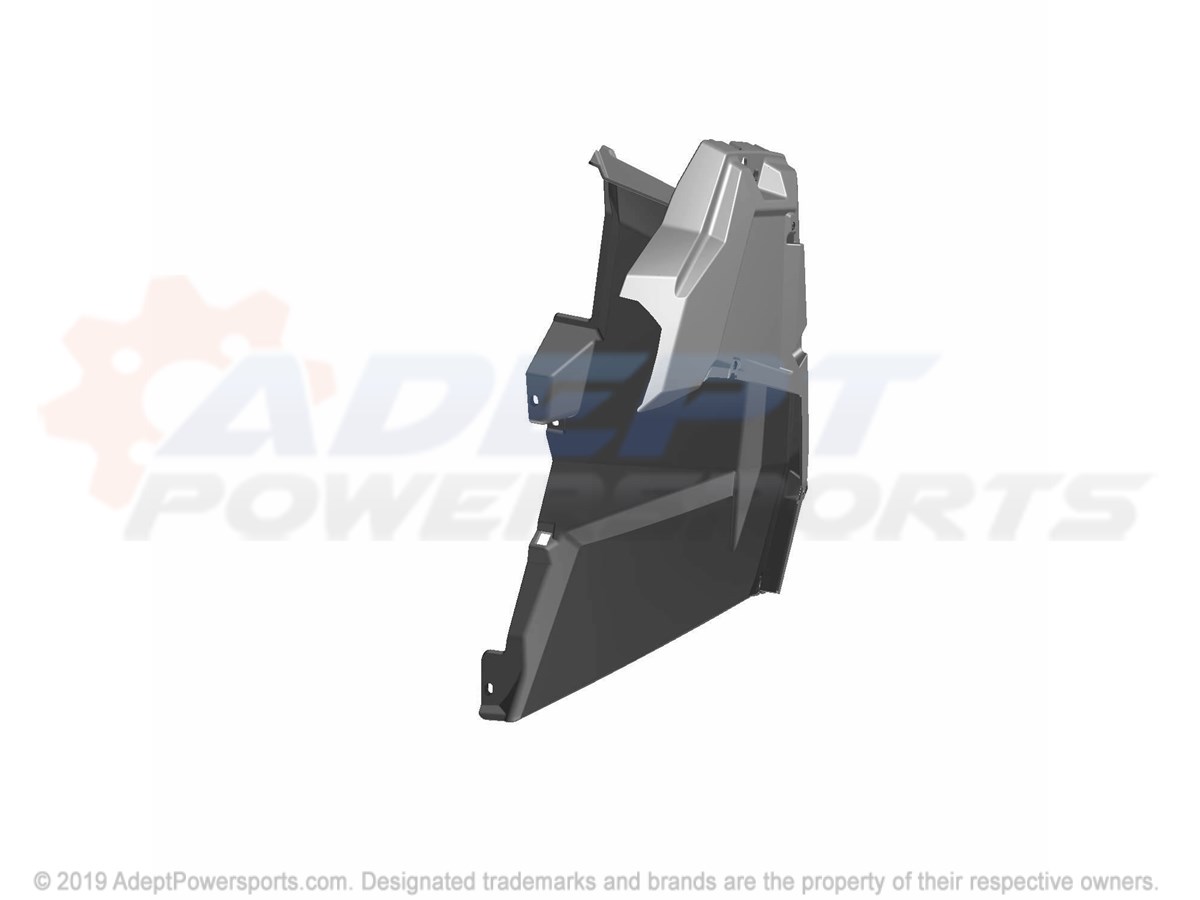

1	FENDER, FRONT, FLAIR, LH, BLACK Part #: 5439760-070 Required per assembly: 1 Currently Not Available

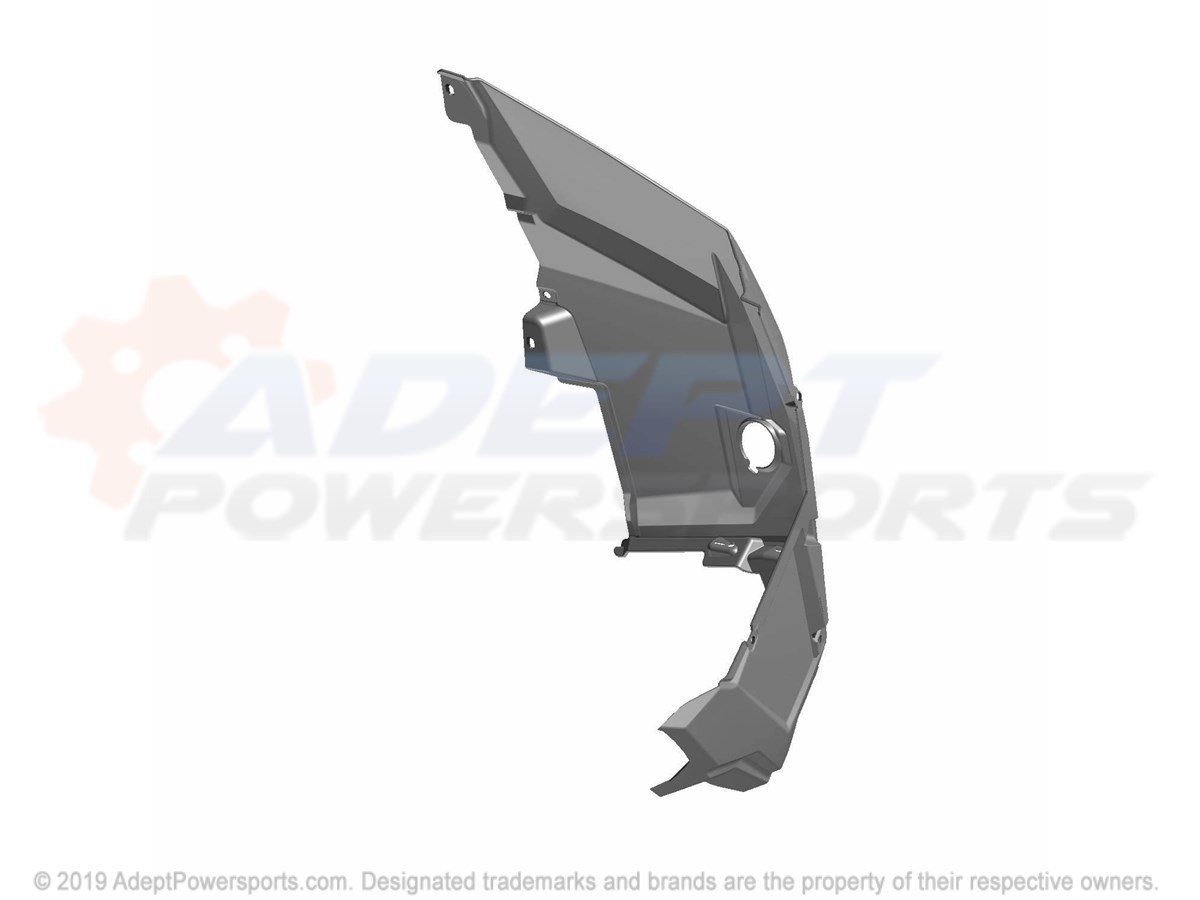

2	FENDER, FRONT, FLAIR, RH, BLACK Part #: 5439761-070 Required per assembly: 1 Currently Not Available
3	FENDER, FRONT, LH, TITANIUM Part #: 5450717-632 Required per assembly: 1 Note: NM Currently Not Available
3	FENDER-FR, PNTD, LH, I.RED Part #: 5450717-293 Required per assembly: 1 Note: NK Currently Not Available
3	FENDER-FR, PNTD, LH, S.SGB, GRN Part #: 5450717-685 Required per assembly: 1 Note: NG Currently Not Available
4	FENDER-FR, PNTD, RH, S.SGB, GRN Part #: 5450718-685 Required per assembly: 1 Note: NG Currently Not Available
4	FENDER-FR, PNTD, RH, I.RED Part #: 5450718-293 Required per assembly: 1 Note: NK Currently Not Available
4	FENDER, FRONT, RH, TITANIUM Part #: 5450718-632 Required per assembly: 1 Note: NM Currently Not Available
5	SCREW Part #: 7519650 Currently Not Available
5	SCREW Part #: 7519650 Currently Not Available
6	SCREW Part #: 7519840 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
8	NUT, U-TYPE Part #: 7547674 ~~$2.99~~ $1.73 - + Add to cart
9	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
10	HOOD-CENTER, PNT, MT.TTNM Part #: 5452494-632 Required per assembly: 1 Note: NM Currently Not Available
10	HOOD-CENTER, GELOY, GLOSS, BLK Part #: 5452162-266 Required per assembly: 1 Note: NK Currently Not Available
10	HOOD-CENTER, PNT, S.SGB, GRN Part #: 5452494-685 Required per assembly: 1 Note: NG Currently Not Available
11	LATCH-1/4 TURN Part #: 5439798 Required per assembly: 2 Currently Not Available
12	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
13	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
14	PALNUT, 7/16-20, STEEL Part #: 7710849 Required per assembly: 1 Currently Not Available

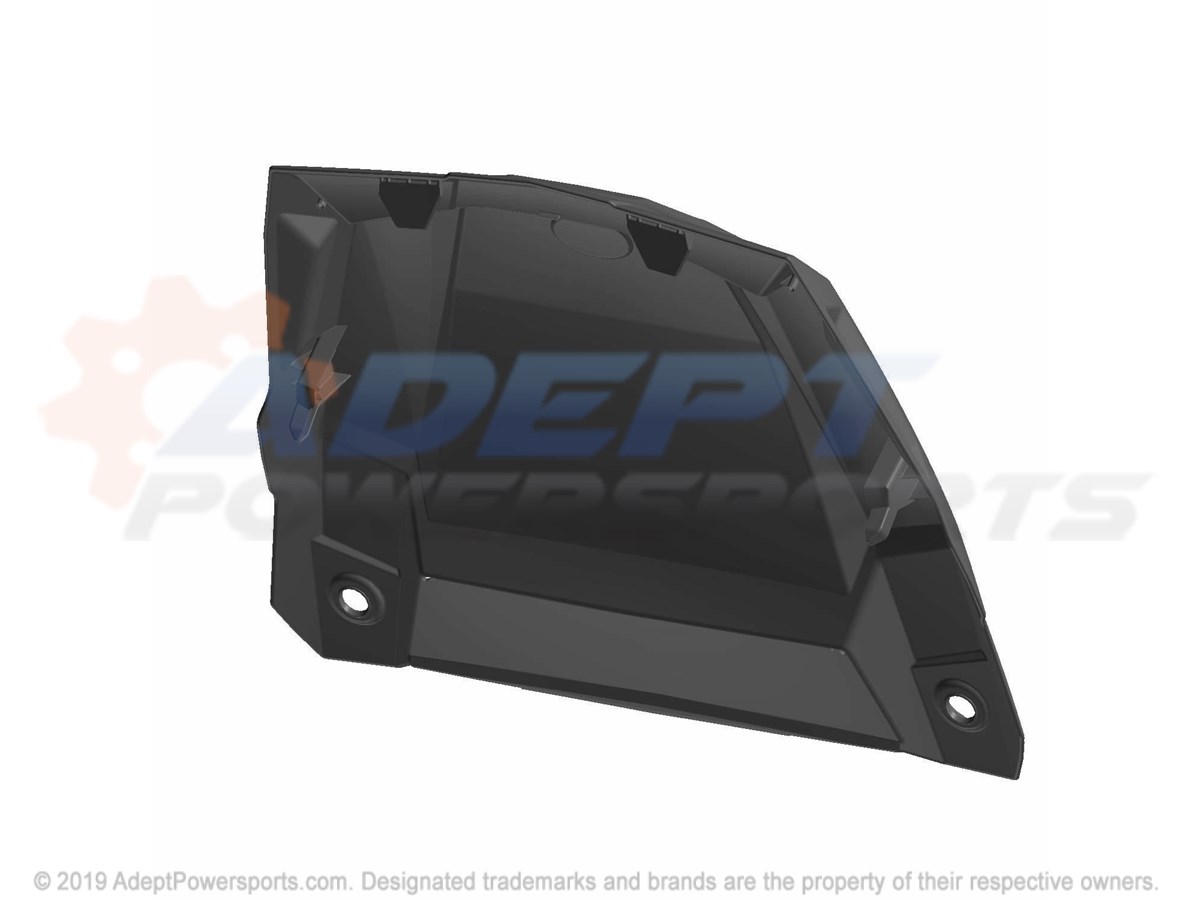

15	GRILLE-CENTER, HOOD, BLK Part #: 5452038-070 Required per assembly: 1 Currently Not Available
