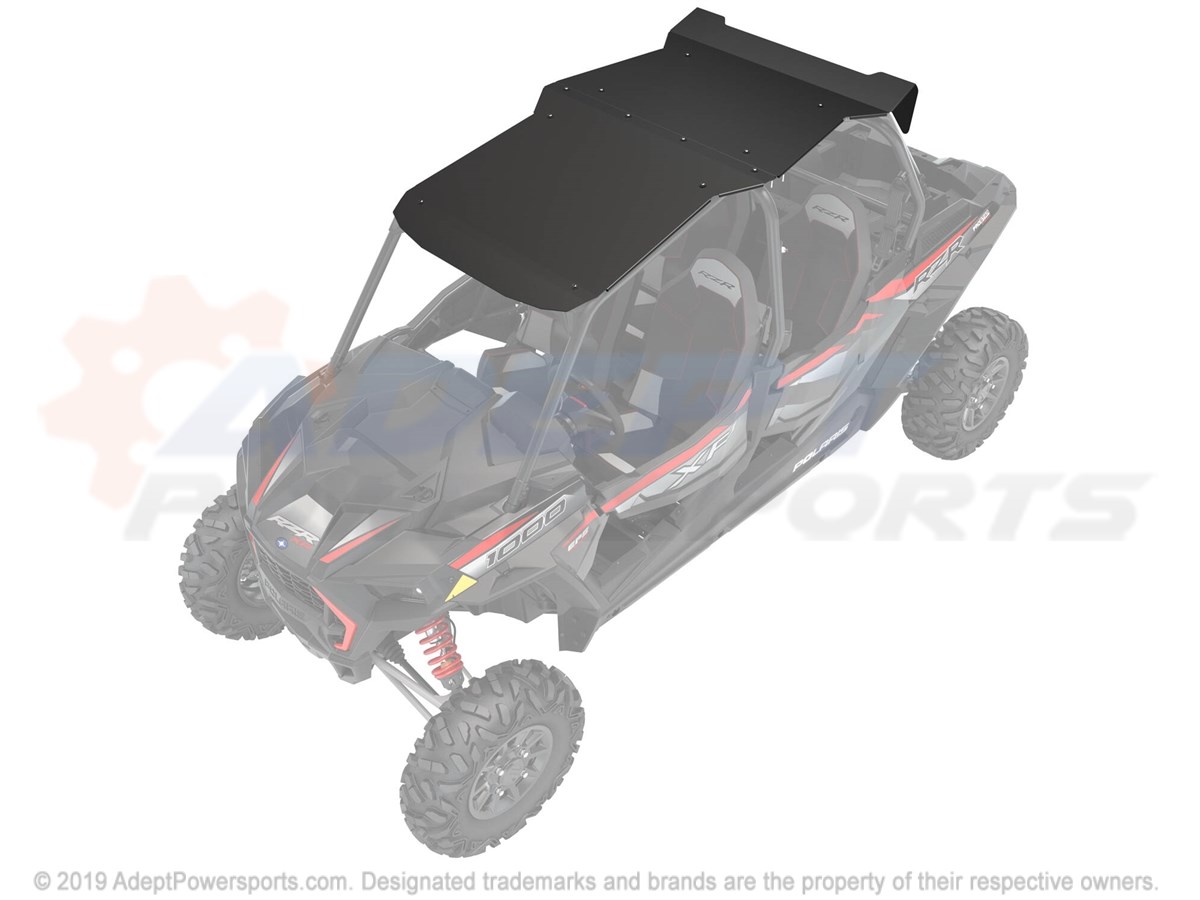

ROOF - Z17VFE92NG (701493) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2881592-458 K-Roof, Al, Rzn4, Blk

K-ROOF, AL, RZN4, BLK

Part #: 2881592-458 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

K-SVC, HDWR, ROOF, AL, RZN4

Part #: 2205286 Note: (Description)
INCL. 2-6
Currently Not Available
3
Polaris 5258479 Clamp-Roof, Rzn4, Blk

CLAMP-ROOF, RZN4, BLK

Part #: 5258479 Required per assembly: 6
Currently Not Available
4

U-TYPE, SPEED, NUT

Part #: 7081305 Required per assembly: 12 Note: Clip, U Speed Nut [Built 12/07/09 and Before]
Currently Not Available
5
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 10
Currently Not Available
6

WASHER

Part #: 7556329 Required per assembly: 12
Currently Not Available
