Mirrors - Z17vfe92ng (701486) replacement parts for 2017 Polaris RZR XP4 Turbo International (R02)

OEM Parts Polaris 2017 Polaris RZR XP4 Turbo International (R02) Mirrors - Z17vfe92ng (701486)

MIRRORS - Z17VFE92NG (701486) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

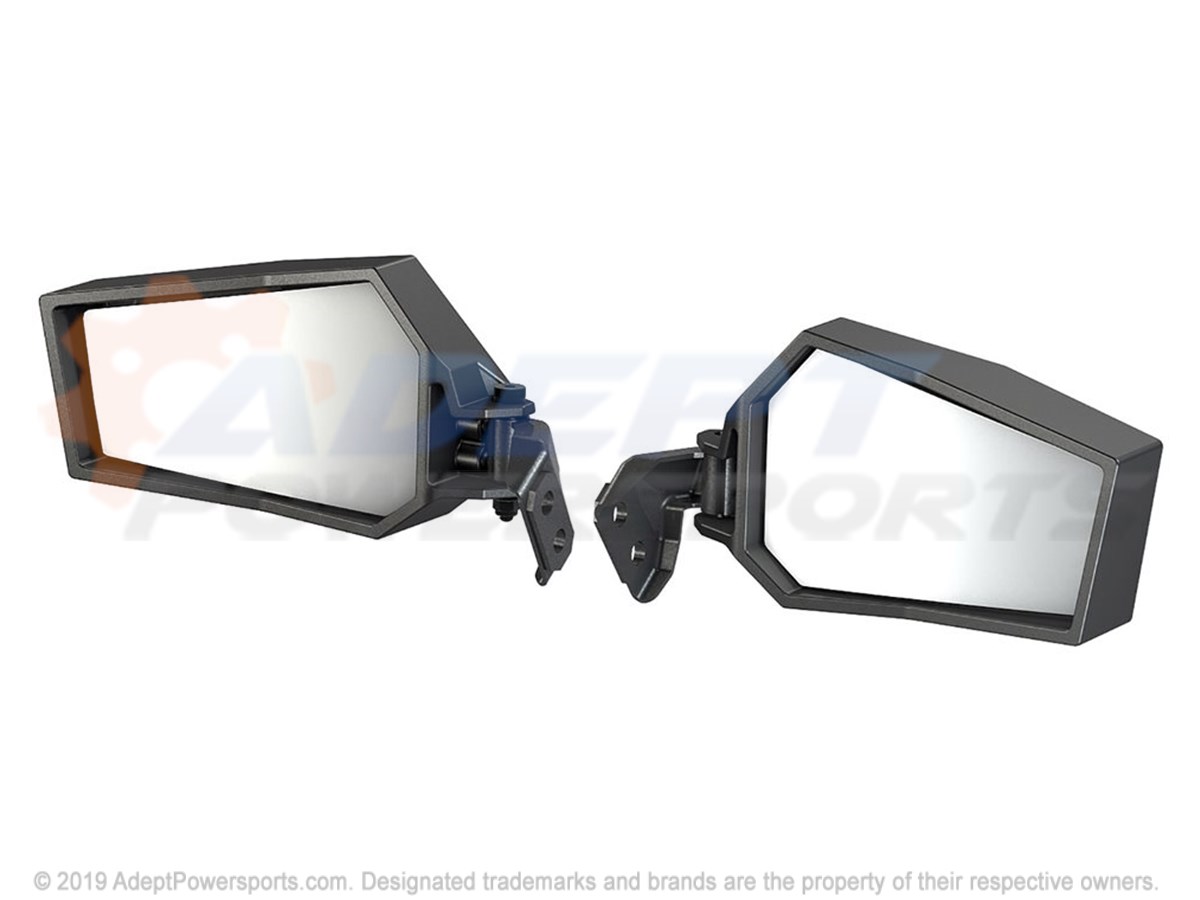

1	K-MIRROR, SIDE, FOLD, RZN Part #: 2881198 Required per assembly: 1 Note: INCL. 2-4 Currently Not Available
2	K-HRDWR, MIRROR, SIDE, FOLD, RZN Part #: 2206171 Currently Not Available
3	SCR-HXFL-M10X1.5X70 10.9 RIE Part #: 7520370 Required per assembly: 4 Currently Not Available
4	SCR-HXFL-M10X1.5X50 10.9 RIE Part #: 7520371 Required per assembly: 4 Currently Not Available

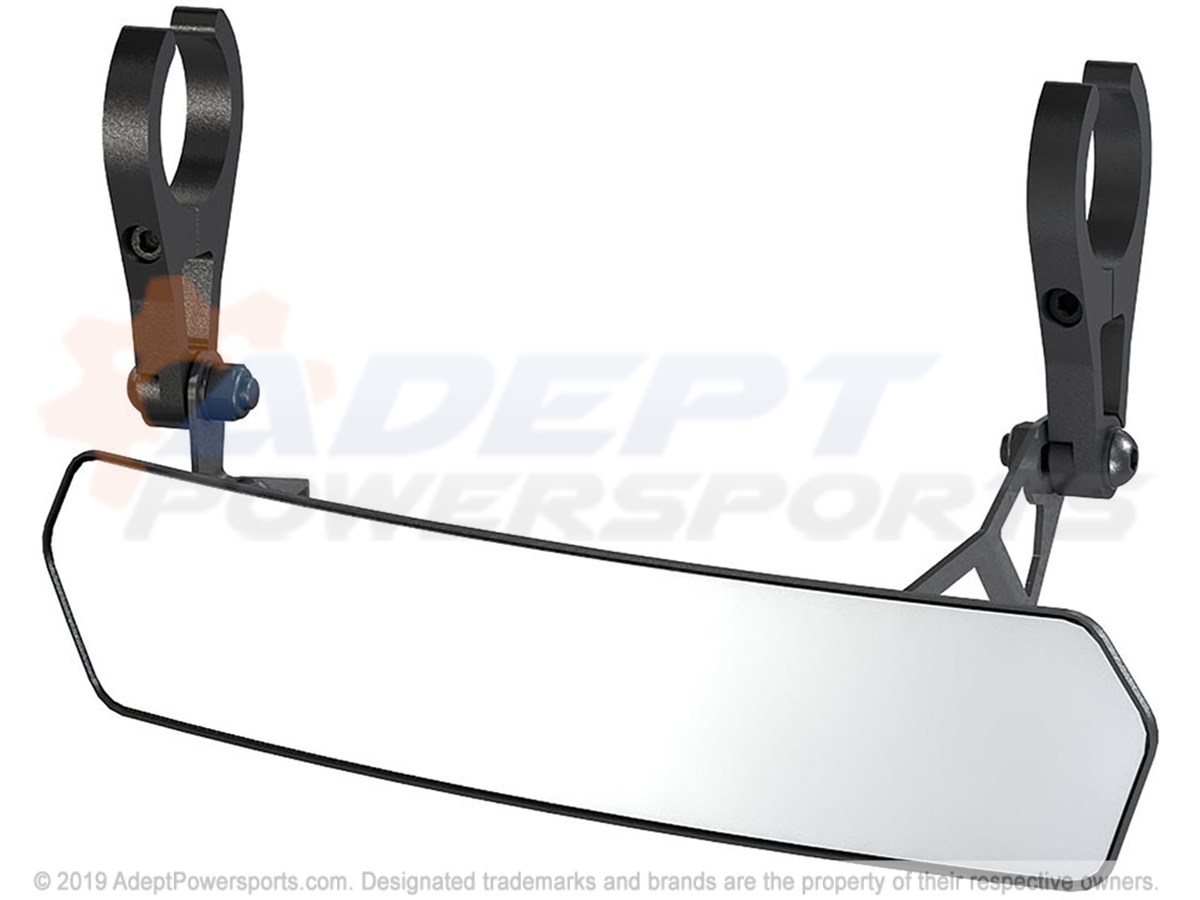

5	K-MIRROR, REAR, SINGLE, RZN Part #: 2881199 Required per assembly: 1 Note: INCL. 6-9 Currently Not Available
6	WELD-MIRROR, SINGLE, RZN Part #: 1021773 Required per assembly: 1 Currently Not Available
7	K-HRDWR, MIRROR, SINGLE, RZN Part #: 2206084 Currently Not Available
8	CLAMP-MIRROR, UPR, CNTR, RZN Part #: 5139046 Required per assembly: 2 Currently Not Available
9	CLAMP-MIRROR, LWR, CNTR, RZN Part #: 5139047 Required per assembly: 2 Currently Not Available
