OEM Parts Polaris 2020 Polaris RZR RS1 PS MD (R02) Fuel Line

2020 Polaris RZR RS1 PS MD (R02) Z20S1E99NG - Fuel Line

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2521677 Asm-Fuel Line

ASM-FUEL LINE

Part #: 2521677 Required per assembly: 1
Currently Not Available
2

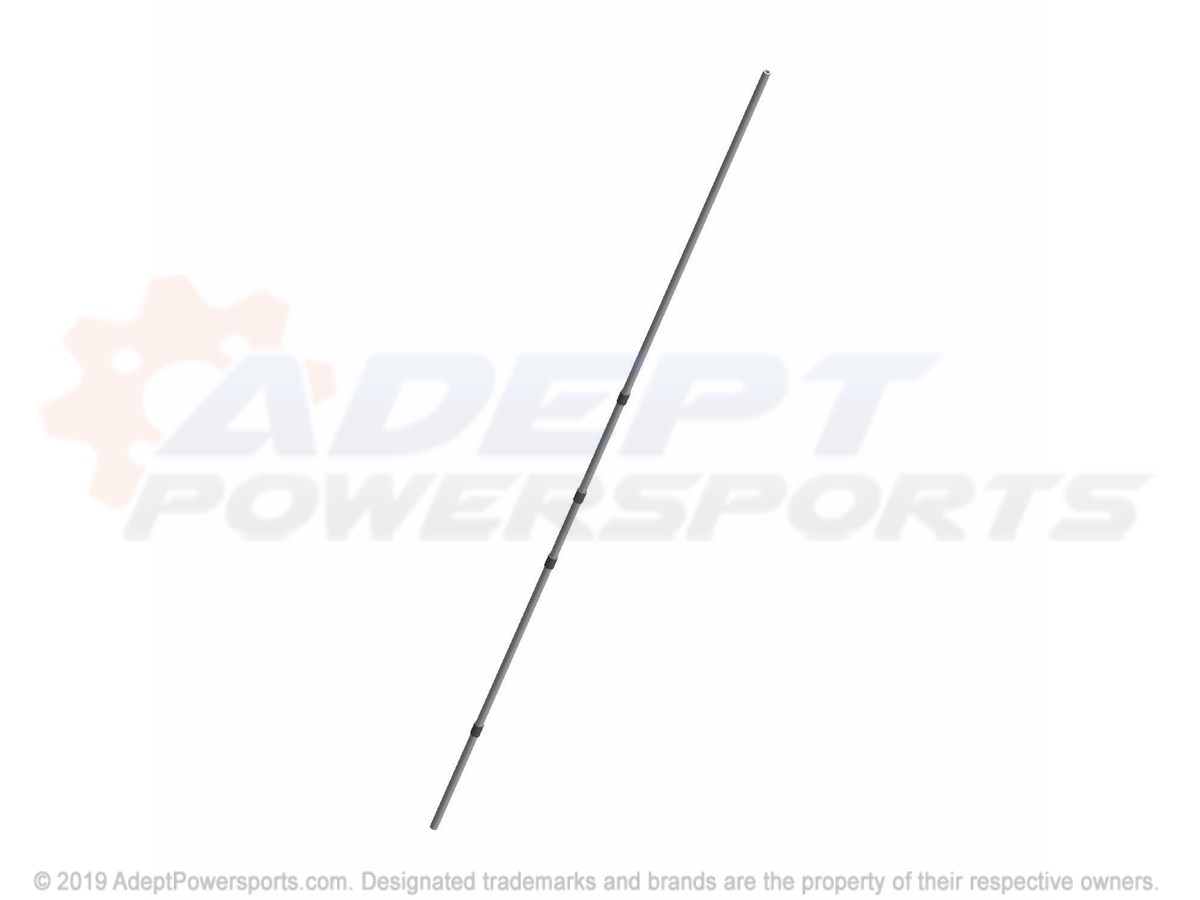

Polaris 2521881 Asm-Vent, Line, 145Cm

ASM-VENT, LINE, 145CM

Part #: 2521881 Required per assembly: 1
Currently Not Available
3
Polaris 5453464 Fitting-Vent, Line, 90

FITTING-VENT, LINE, 90

Part #: 5453464 Required per assembly: 1
Currently Not Available
4
Polaris 5454233 Tray-Routing, Rear, Closeoff

TRAY-ROUTING, REAR, CLOSEOFF

Part #: 5454233 Required per assembly: 1
Currently Not Available
5
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 3
Currently Not Available
6
Polaris 7081808 Strap-Cable Tie W/Edge Clip

STRAP-CABLE TIE W/EDGE CLIP

Part #: 7081808 Required per assembly: 1
Currently Not Available
7
Polaris 7516820 Screw, Flange

SCREW, FLANGE

Part #: 7516820 Required per assembly: 1 Note: Screw
Currently Not Available
8
Polaris 7519731 Screw

SCREW

Part #: 7519731 Required per assembly: 1
Currently Not Available
9

CLIP, ROUTING, .472, B.D., HINGED

Part #: 7670116 Required per assembly: 3 Note: Clip, Routing
Currently Not Available
10
Polaris 7710495 Nut

NUT

Part #: 7710495 Required per assembly: 1
Currently Not Available
11
Polaris 7081871 Clip-Harness 3-13Mm Interlck

CLIP-HARNESS 3-13MM INTERLCK

Part #: 7081871 Required per assembly: 5
Currently Not Available
12
Polaris 5264484-458 Brkt-Purge, Mnt, Blk

BRKT-PURGE, MNT, BLK

Part #: 5264484-458 Required per assembly: 1
Currently Not Available
