Pedal replacement parts for 2020 Polaris RZR RS1 PS MD (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 PS MD (R02) Pedal

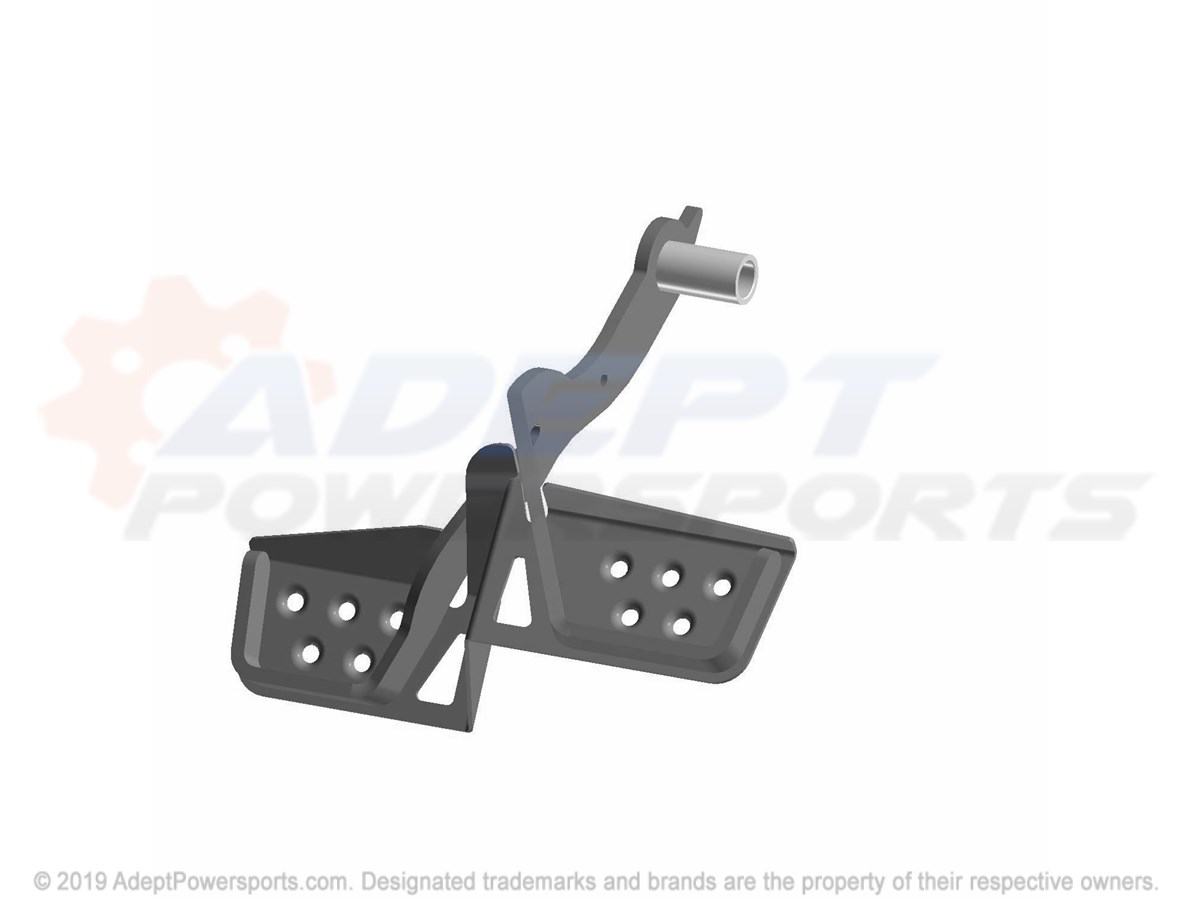

PEDAL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-BRAKE, PEDAL, M.BLK Part #: 1023075-458 Required per assembly: 1 Currently Not Available
2	BUSHING, PEDAL, PIVOT Part #: 5439274 Required per assembly: 2 Currently Not Available
3	PIN, CLIP Part #: 7661140 Required per assembly: 1 Currently Not Available
4	CLEVIS (US ONLY) Part #: 7661843 Required per assembly: 1 Note: Pin, Clevis Currently Not Available
5	RING, RETAINING Part #: 7710901 Required per assembly: 1 Currently Not Available
