Rear Stabilizer Bar replacement parts for 2020 Polaris RZR RS1 PS MD (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 PS MD (R02) Rear Stabilizer Bar

REAR STABILIZER BAR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

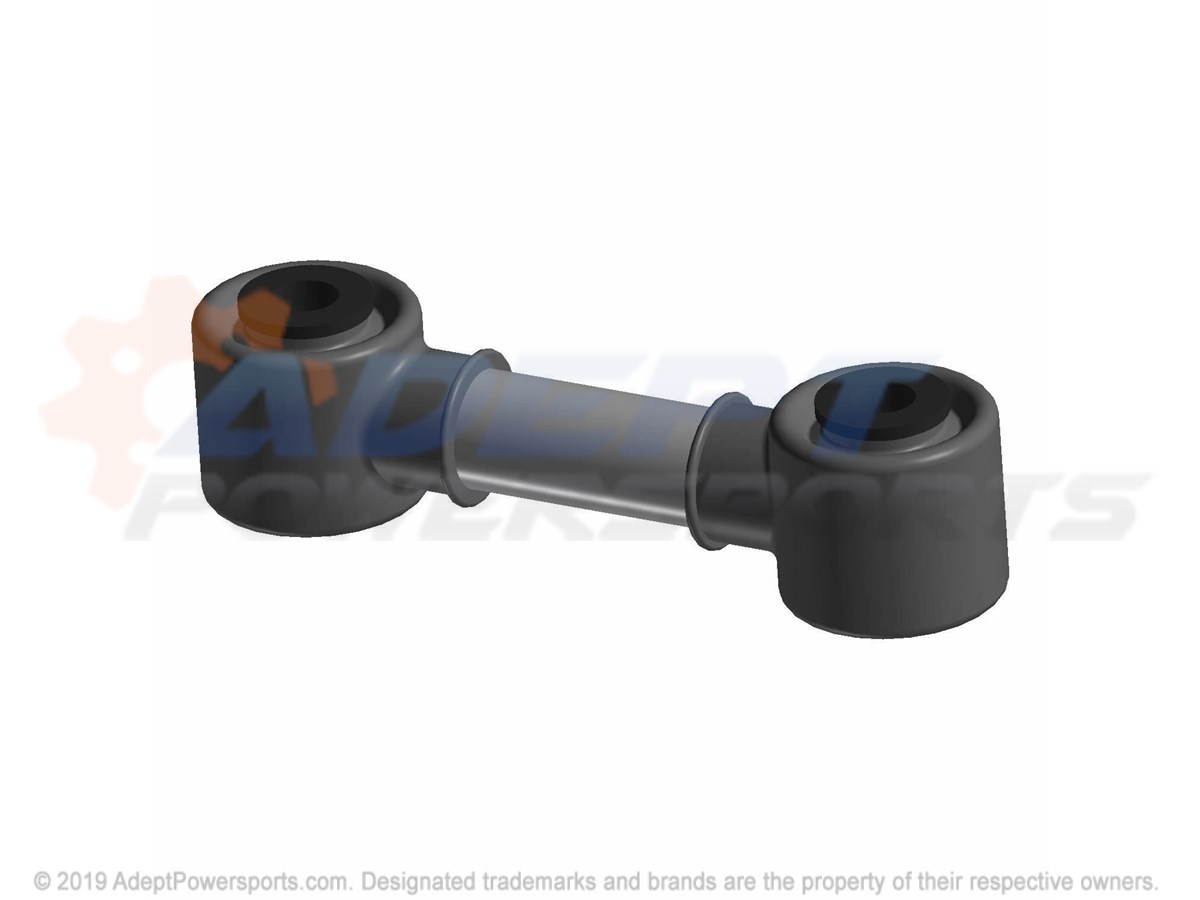

1	ASM-LINK STABILIZER BAR Part #: 1543850 Required per assembly: 2 Currently Not Available

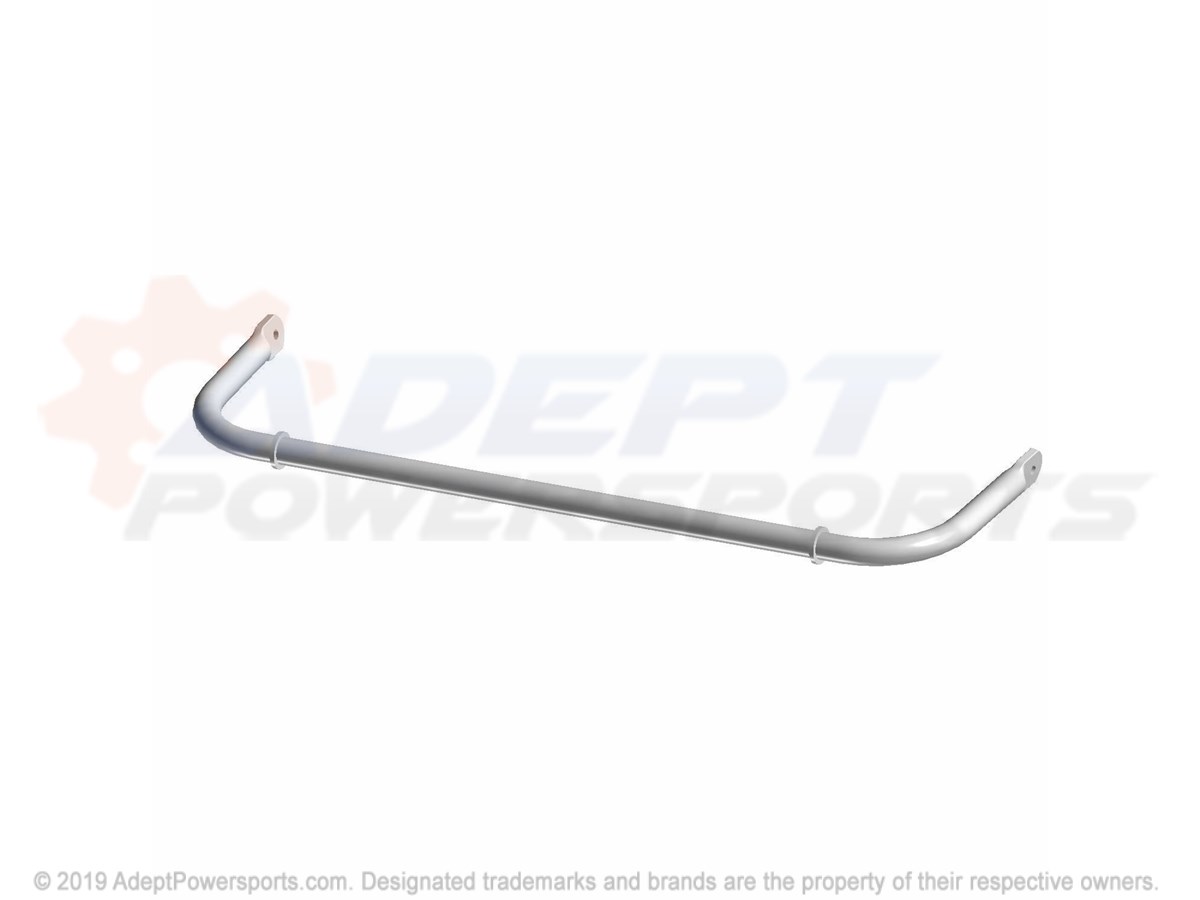

2	BAR-STABILIZER, 28.5MM, TUBE Part #: 5339671 Required per assembly: 1 Currently Not Available

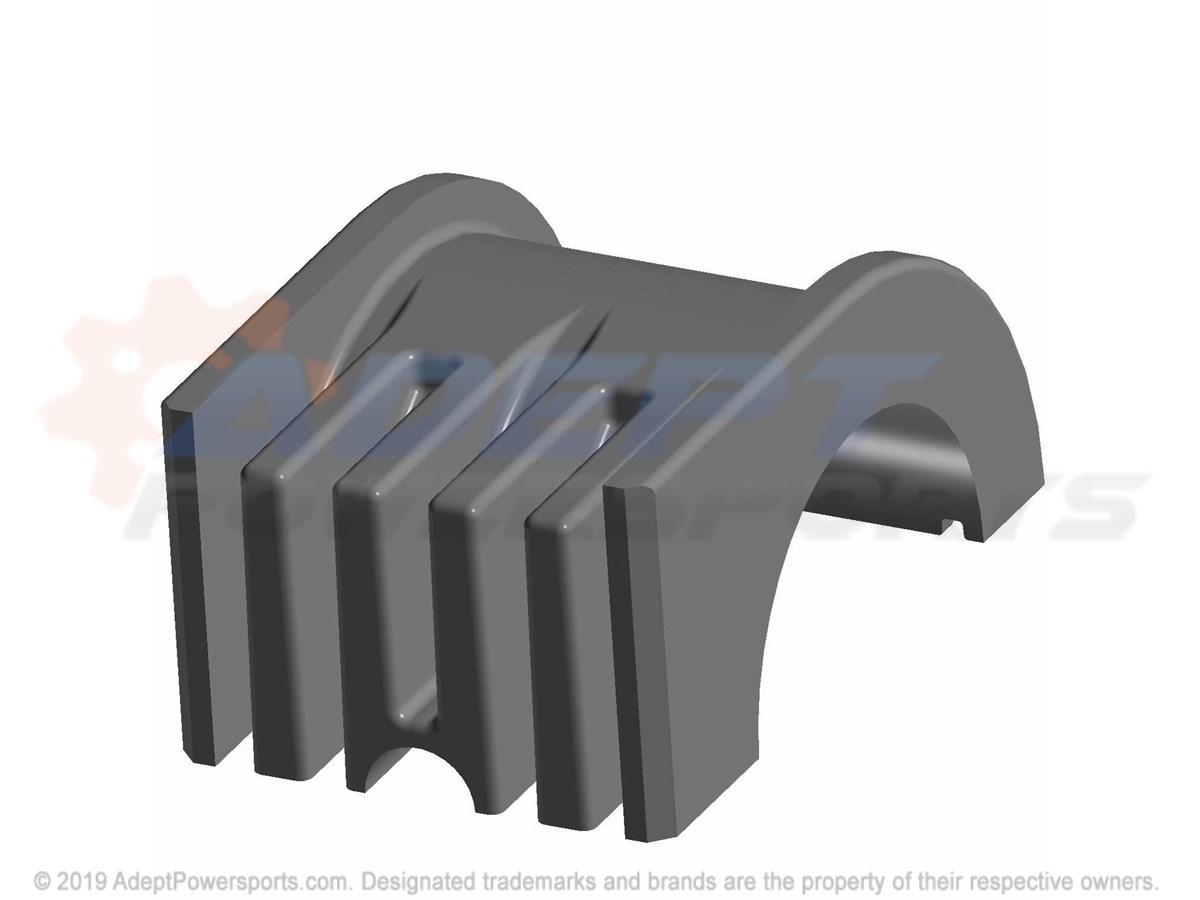

3	BUSHING-STAB, BAR, 28.5MM Part #: 5454578 Required per assembly: 4 Currently Not Available

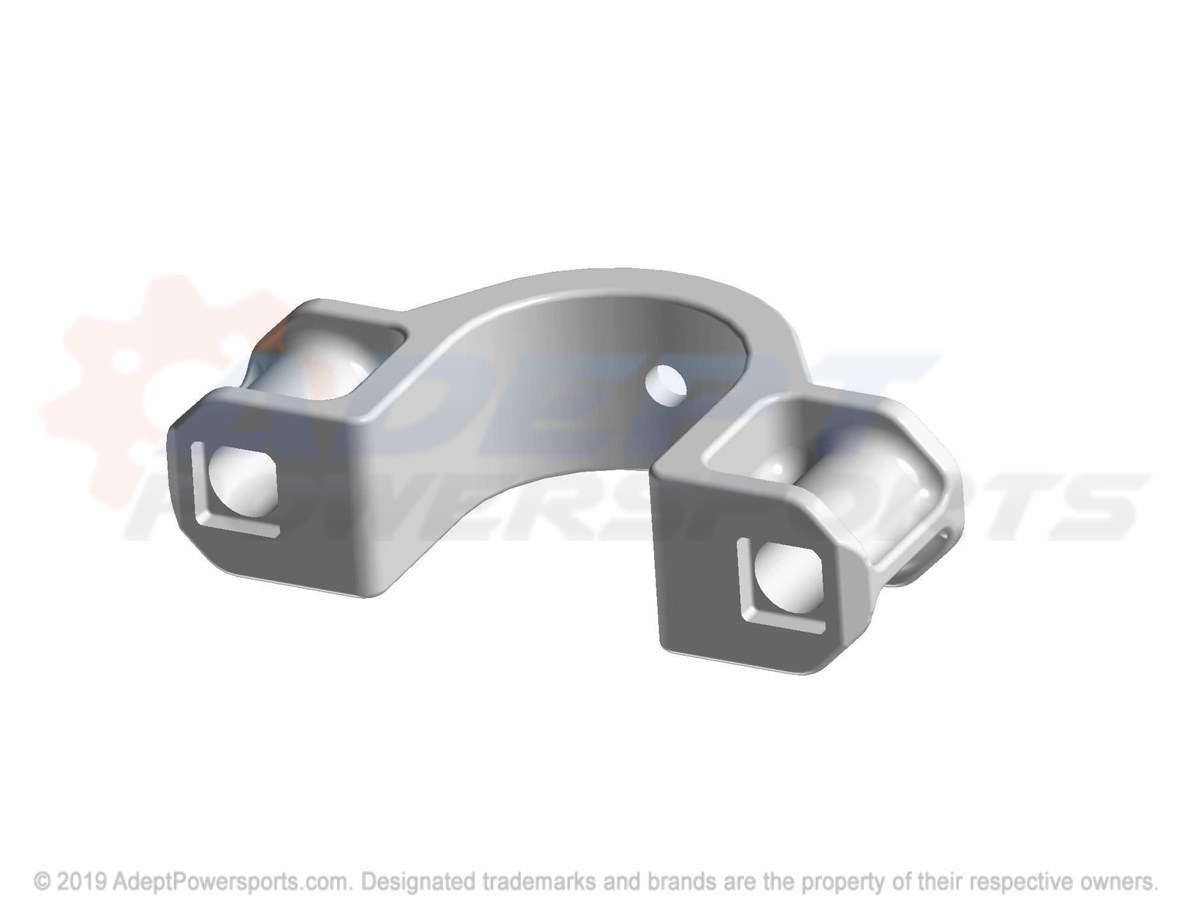

4	BRKT-CAP, SWAY, BAR, 1.25" Part #: 5633969 Required per assembly: 2 Currently Not Available
5	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
6	SCREW, FLANGE Part #: 7518559 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
7	BOLT, FLANGE Part #: 7518561 Required per assembly: 2 Currently Not Available
8	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	NUT Part #: 7547423 Required per assembly: 4 Currently Not Available
11	WASHER, FLAT Part #: 7556153 Required per assembly: 2 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
