Hood And Liner replacement parts for 2020 Polaris RZR RS1 PS MD (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 PS MD (R02) Hood And Liner

HOOD AND LINER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOOD-LINER, BLK Part #: 5454084-070 Required per assembly: 1 Currently Not Available
2	GROMMET-SIDE COVER Part #: 5433833 Required per assembly: 4 Currently Not Available

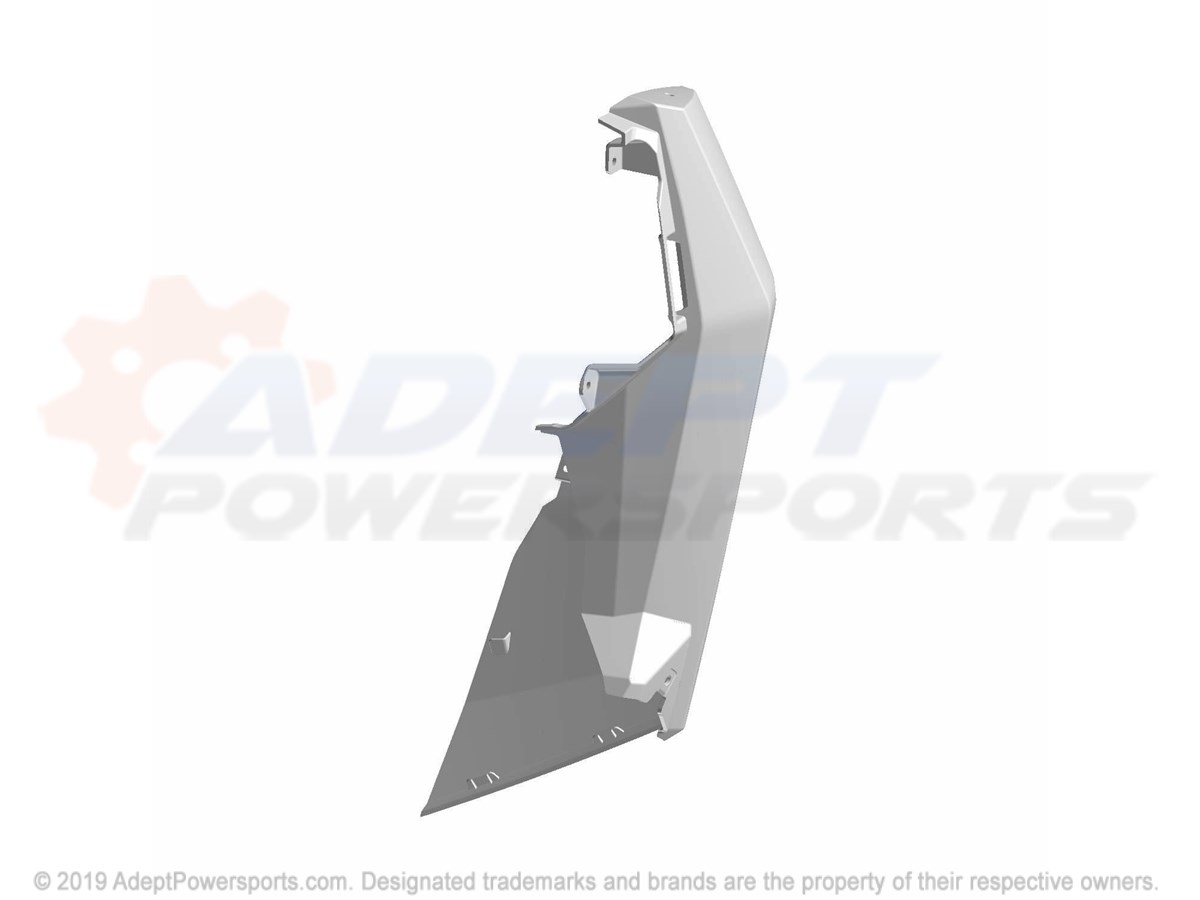

3	FENDER-FRT, UPR, PNTD, LH, G.GRY Part #: 5454552-728 Required per assembly: 1 Currently Not Available
4	FENDER-FRT, UPR, PNTD, RH, G.GRY Part #: 5454553-728 Required per assembly: 1 Currently Not Available
5	NUT, U-TYPE Part #: 7547674 ~~$2.99~~ $1.73 - + Add to cart
6	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available

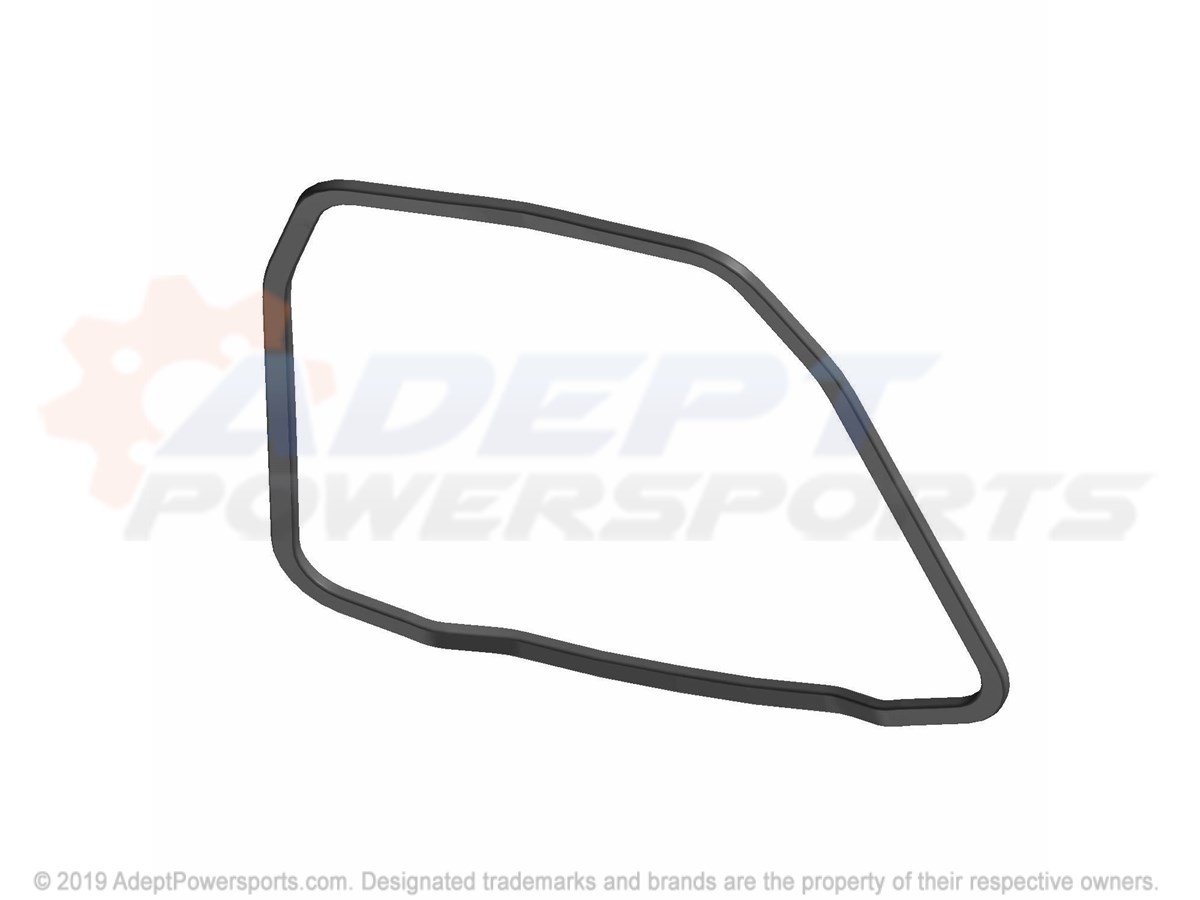

7	SEAL-FRONT TUB Part #: 5416294 Required per assembly: 1 Currently Not Available
8	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
9	HOOD-CENTER, PNTD, GH, GRAY Part #: 5454554-728 Required per assembly: 1 Currently Not Available
10	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available

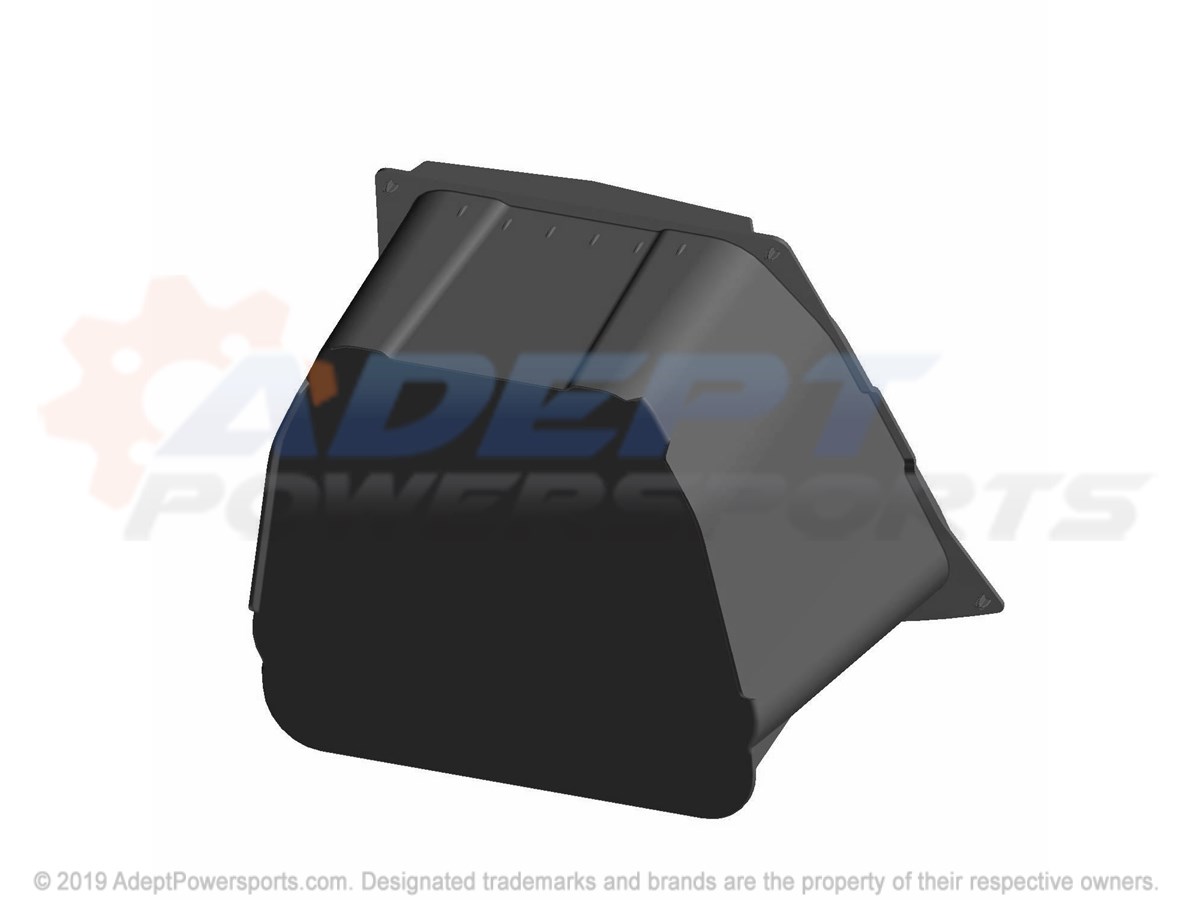

11	BOX-FRONT, BLK Part #: 5453974-070 Required per assembly: 1 Currently Not Available
12	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
13	SCREW Part #: 7519650 Currently Not Available
14	FENDER-FRONT, LWR, LH, BLK Part #: 5453957-070 Required per assembly: 1 Currently Not Available
15	FENDER-FRONT, LWR, RH, BLK Part #: 5453958-070 Required per assembly: 1 Currently Not Available
16	COVER-FRT, ROPS, SLX, LH, BLK Part #: 5454067-266 Required per assembly: 1 Currently Not Available
17	COVER-FRT, ROPS, SLX, RH, BLK Part #: 5454068-266 Required per assembly: 1 Currently Not Available
