Secondary Clutch replacement parts for 2020 Polaris RZR RS1 PS MD (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 PS MD (R02) Secondary Clutch

SECONDARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVEN, CLUTCH, BASIC Part #: 1323394 Required per assembly: 1 Note: INCL. 2-10 Currently Not Available

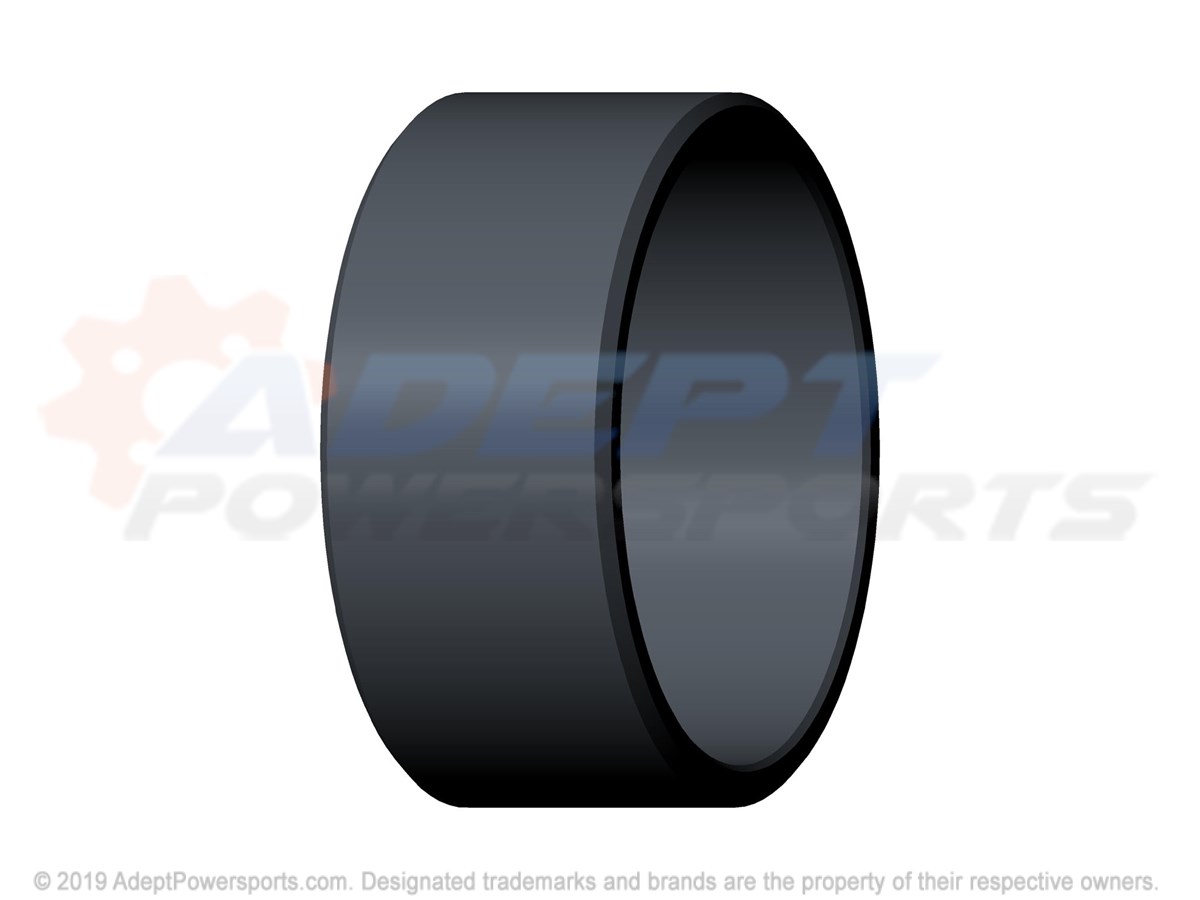

2	BEARING-DU, 30X15 Part #: 3514904 Required per assembly: 1 Currently Not Available
3	COVER-DRIVEN, MACH, HD Part #: 5139820 Required per assembly: 1 Currently Not Available

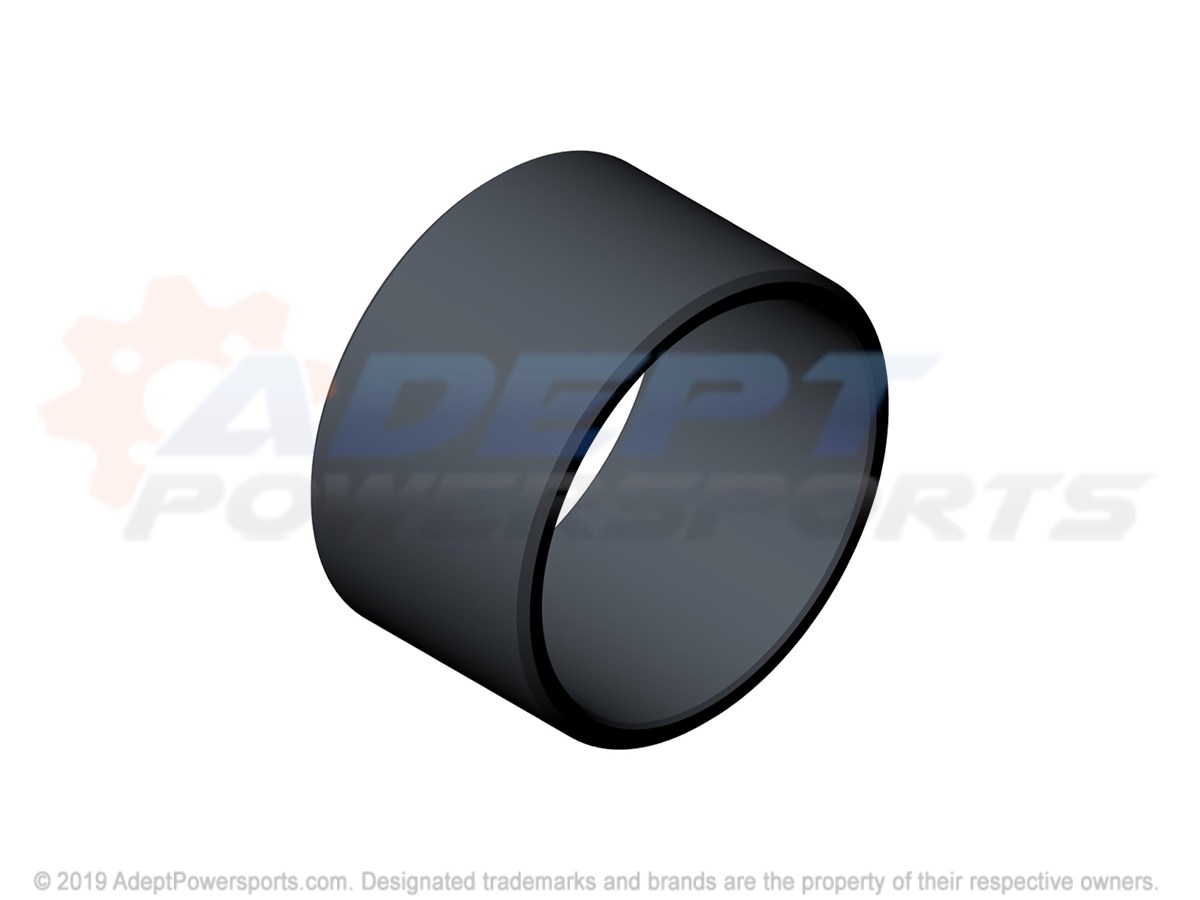

4	BEARING-DU, 22X25 Part #: 3514902 Required per assembly: 2 Currently Not Available

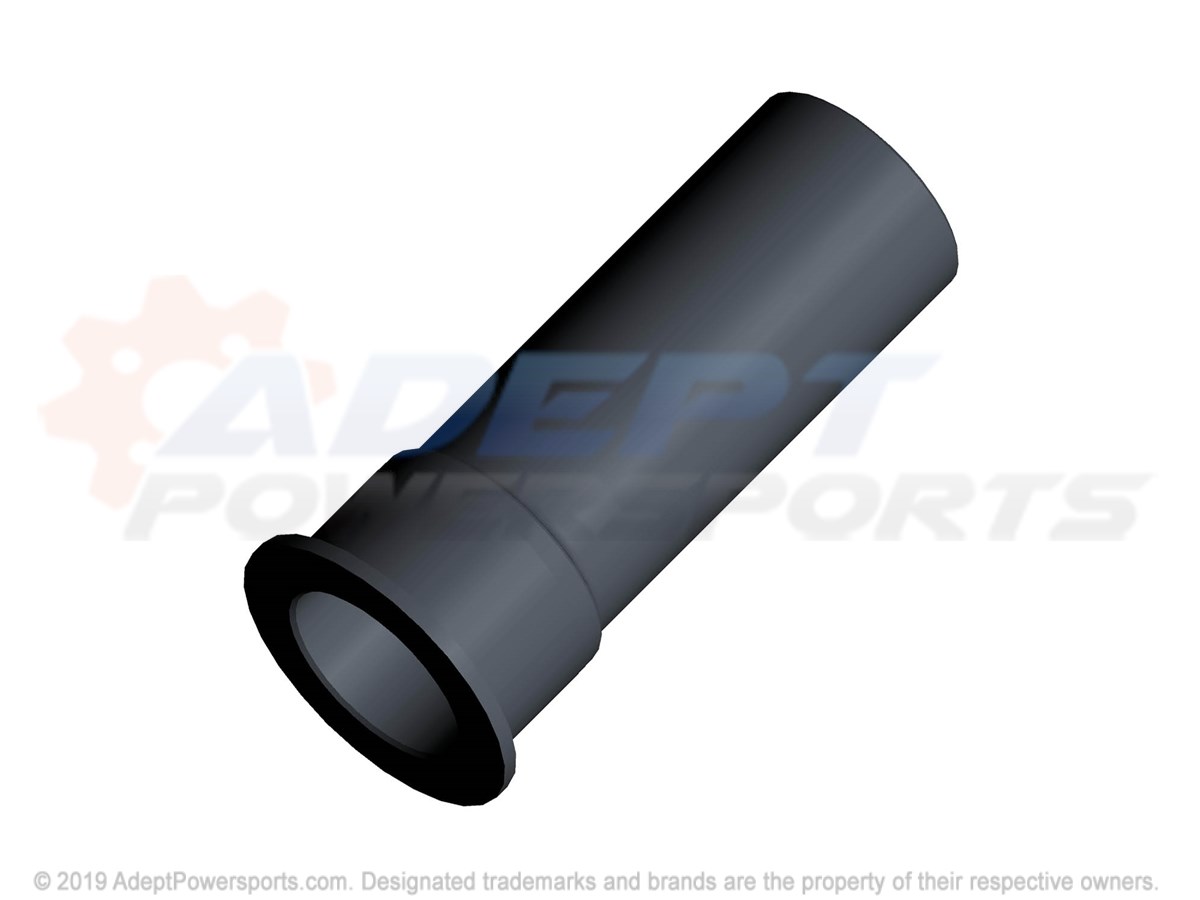

5	POST-CLUTCH, DRIVEN Part #: 5140678 Required per assembly: 1 Currently Not Available

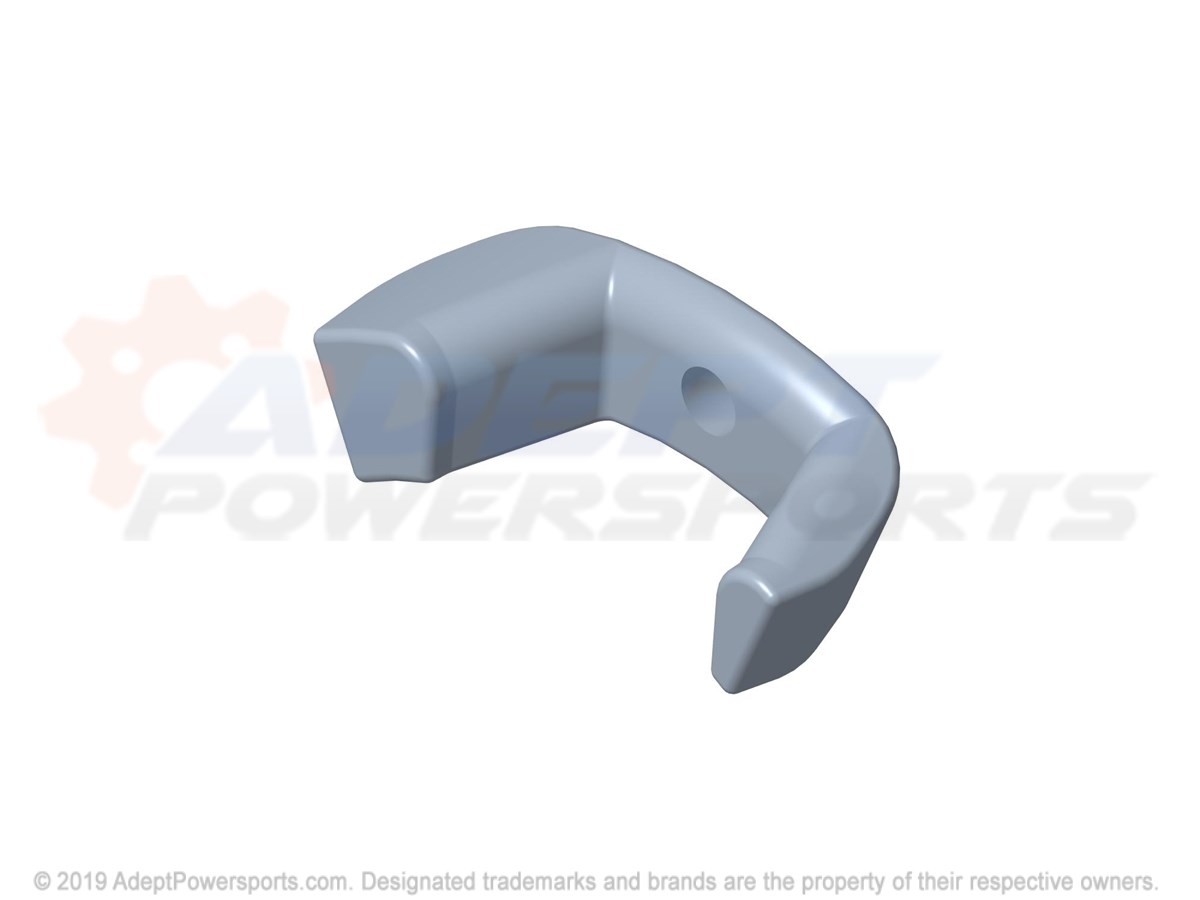

6	SLIDER-DRIVEN, HD Part #: 5452016 Required per assembly: 3 Currently Not Available

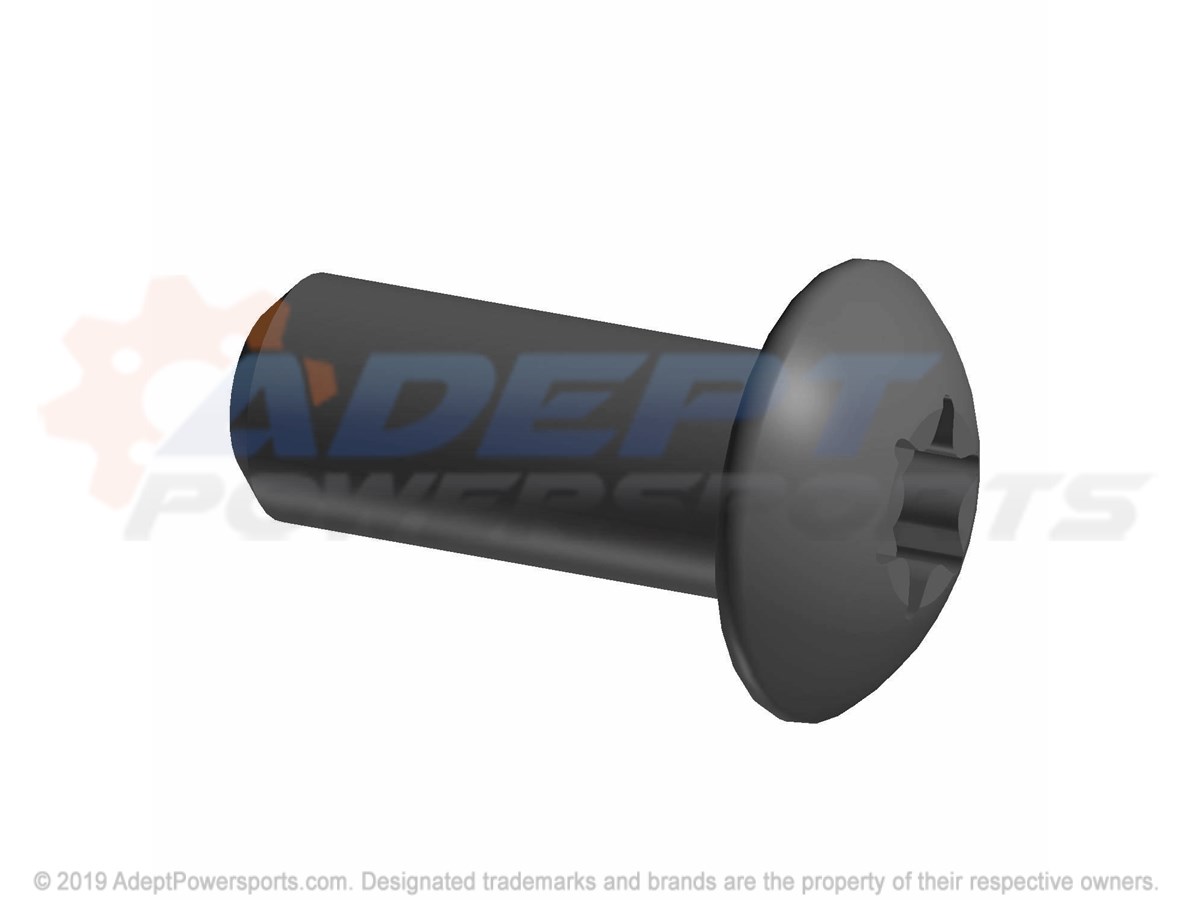

7	SCR-TXBH-M5X0.8X12 10.9ZPC P30 Part #: 7520385 Required per assembly: 6 Currently Not Available
8	BEARING-DU, 30X20 Part #: 3514919 Required per assembly: 1 Currently Not Available
9	BUTTON-HELIX, HD Part #: 5453660 Required per assembly: 3 Currently Not Available
10	SCR-TXFH-M6X1.0X20 8.8ZOD Part #: 7520219 Required per assembly: 3 Currently Not Available

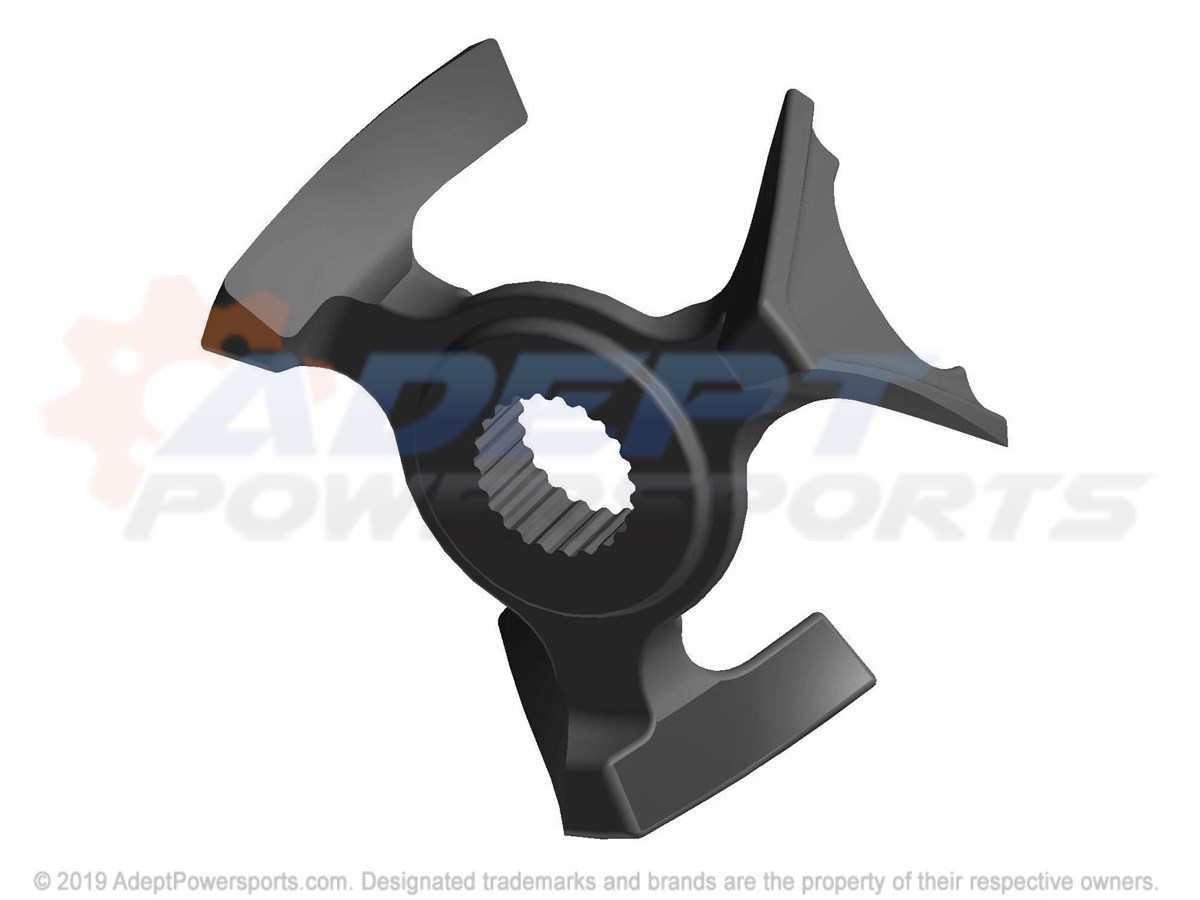

11	HELIX-DRIVEN, HD, MACH-60/49HT Part #: 5141253 Required per assembly: 1 Currently Not Available
12	SPACER-CLUTCH, LIMITER Part #: 5453070 Required per assembly: 1 Currently Not Available

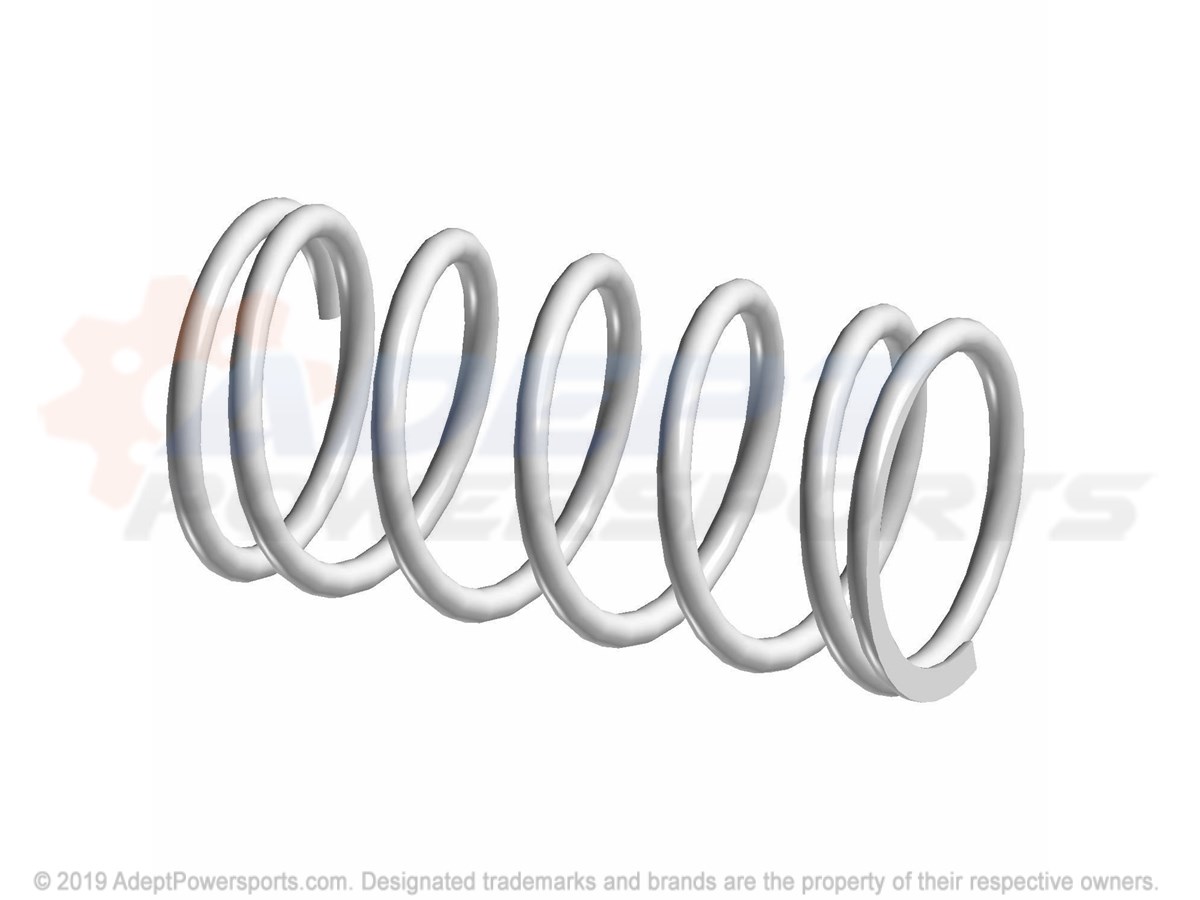

13	SPRING-CLUTCH, 136-215 Part #: 7044816 Required per assembly: 1 Currently Not Available

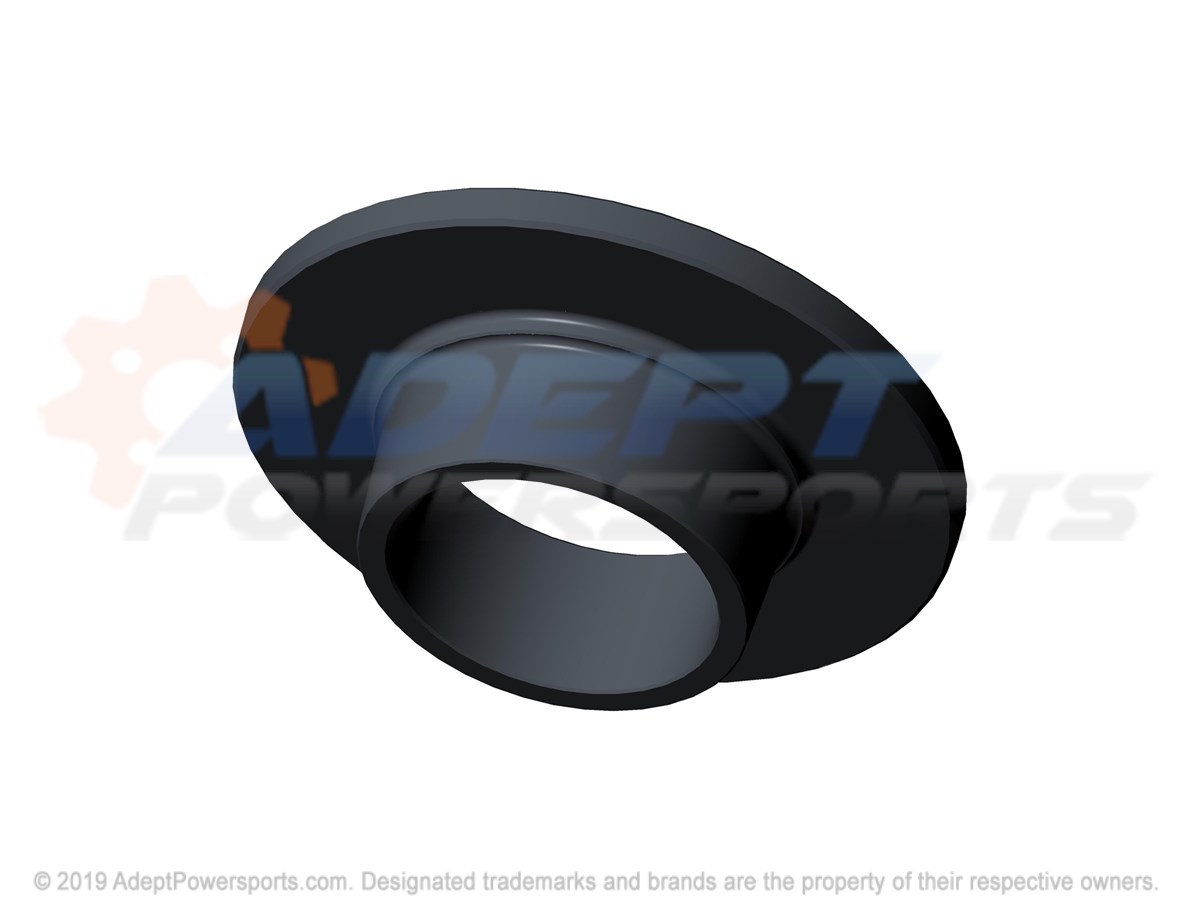

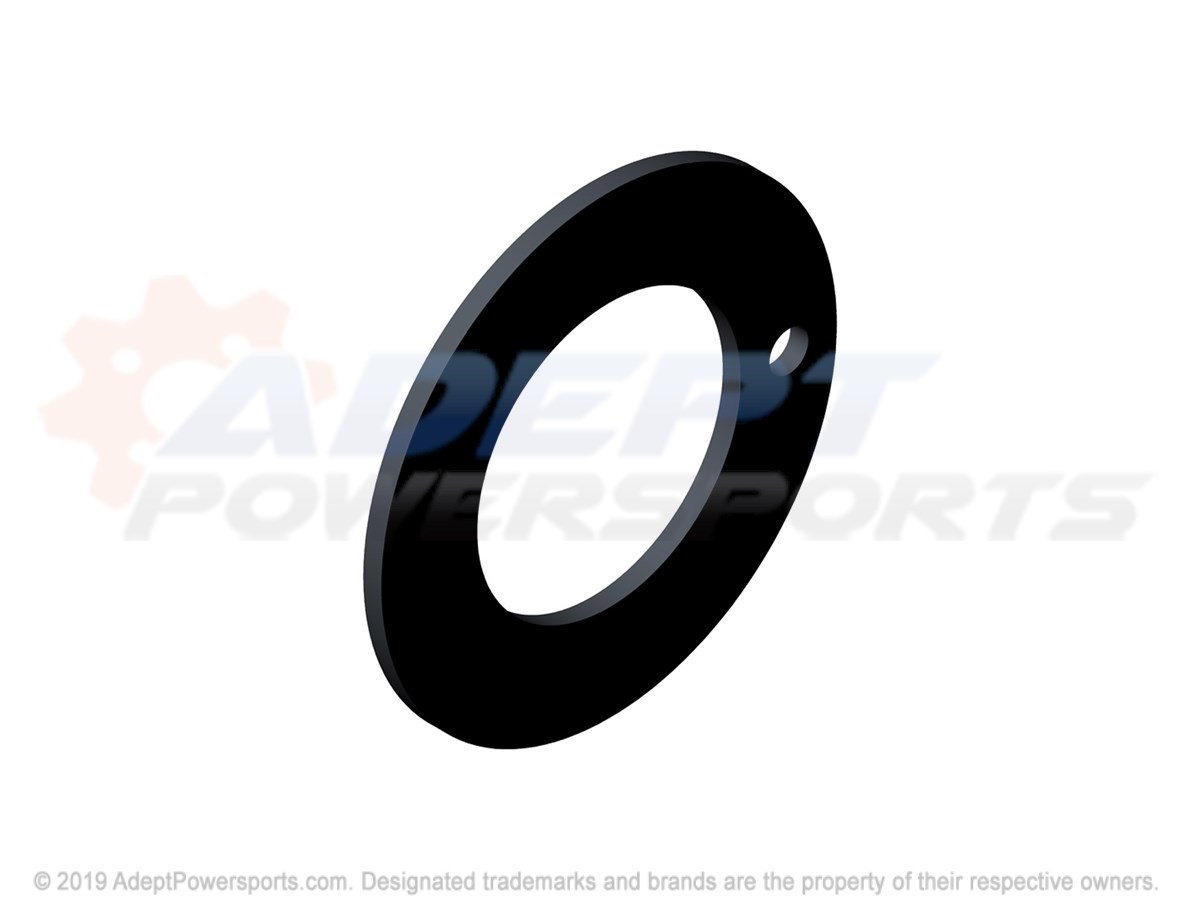

14	BRG-THRUST, DU, 20 Part #: 3514905 Required per assembly: 1 Currently Not Available
15	SCR-HXFL-M10X1.25X75 10.9 ZOD Part #: 7519286 Required per assembly: 1 Currently Not Available
16	WASHER-CUP Part #: 7557154 Required per assembly: 1 Currently Not Available
17	BELT-DRIVE Part #: 3211186 Required per assembly: 1 Currently Not Available
